Key specifications
5,000 lbs
Towing Capacity
78 in
Bed Length
Regular Unleaded V-8
Engine Type
17 City / 25 Hwy
MPG
Regular Unleaded V-8
Engine Type
5.0 L/302
Displacement
400 @ 6000
SAE Net Horsepower @ RPM
410 @ 4250
SAE Net Torque @ RPM
Rigid Axle
Axle Type - Rear
Independent
Axle Type - Front
Leaf
Suspension Type - Rear
Double Wishbone
Suspension Type - Front
9,500 lbs
Gross Combined Wt Rating
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
500 lbs
Dead Weight Hitch - Max Tongue Wt.
5,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
Standard
Stability Control
Standard
Blind Spot Monitor
Standard
Lane Departure Warning
200
Maximum Alternator Capacity (amps)
610
Cold Cranking Amps @ 0° F (Primary)
N/A
Drum - Rear (Yes or )
13 in
Rear Brake Rotor Diam x Thickness
14 in
Front Brake Rotor Diam x Thickness
Yes
Disc - Rear (Yes or )
Engine
Regular Unleaded V-8 Engine Type
5.0 L/302 Displacement
400 @ 6000 SAE Net Horsepower @ RPM
410 @ 4250 SAE Net Torque @ RPM
Suspension
Rigid Axle Axle Type - Rear
Independent Axle Type - Front
Leaf Suspension Type - Rear
Double Wishbone Suspension Type - Front
Weight & Capacity
9,500 lbs Gross Combined Wt Rating
5,000 lbs Dead Weight Hitch - Max Trailer Wt.
500 lbs Dead Weight Hitch - Max Tongue Wt.
5,000 lbs Wt Distributing Hitch - Max Trailer Wt.
500 lbs Wt Distributing Hitch - Max Tongue Wt.
5,000 lbs Fifth Wheel Hitch - Max Trailer Wt.
1,250 lbs Fifth Wheel Hitch - Max Tongue Wt.
5,000 lbs Maximum Trailering Capacity
6,200 lbs Gross Vehicle Weight Rating
0 lbs Total Option Weight
4,300 lbs Curb Weight
N/A Aux Fuel Tank Capacity, Approx
23 gal Fuel Tank Capacity, Approx
4,300 lbs Base Curb Weight
2,522 lbs Curb Weight - Front
1,778 lbs Curb Weight - Rear
0 lbs Option Weight - Front
0 lbs Option Weight - Rear
4,300 lbs As Spec'd Curb Weight
1,900 lbs As Spec'd Payload
1,900 lbs Maximum Payload Capacity
6,650 lbs Gross Axle Weight Rating
Safety
Standard Stability Control
Standard Blind Spot Monitor
Standard Lane Departure Warning
Electrical
200 Maximum Alternator Capacity (amps)
610 Cold Cranking Amps @ 0° F (Primary)
Brakes
N/A Drum - Rear (Yes or )
13 in Rear Brake Rotor Diam x Thickness
14 in Front Brake Rotor Diam x Thickness
Yes Disc - Rear (Yes or )
Yes Disc - Front (Yes or )
4-Wheel Brake ABS System (Second Line)
4-Wheel Brake ABS System
4-Wheel Disc Brake Type
Photo & video gallery
Consumer reviews
No reviews yet
This car doesn’t have a consumer review yet.
Latest news
Featured
2024 Ford F-150 Raptor R: More, More, More (Power)
For 2024, the Raptor R’s supercharged 5.2-liter V-8 engine gains an extra 20 horsepower, now pulling stumps and smashing through desert whoops with a healthy 720 hp.
Read more
Which Cars Under $40,000 Offer Heated Exterior Mirrors?
An increasing number of vehicles with sticker prices of $40,000 or less, some much less, offer heated mirrors.
2024 Ford F-150 Gets New Prices With Redesign, Starts at $38,565
Ford updated the 2024 F-150 with a new face that looks rather Ram-ish, a tailgate like Ram’s Multi-Function unit and a standard engine that puts out more power than the Chevrolet Silverado’s.
2024 Ford F-150 Up Close: Smart, Sensible Improvements
The new Pro Access Tailgate available on the 2024 F-150 appears to improve its utility by eliminating the need to reach over a lowered tailgate or awkwardly tilt around a corner to get access to the ...
Ford dealers near you

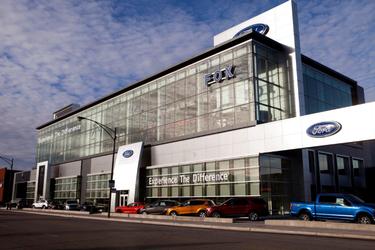

Fox Ford of Chicago
Metro Ford Sales & Service
Zeigler Ford of North Riverside
Freeway Ford Truck Sales
Al Piemonte Ford
Napleton Ford of Oak Lawn
Fox Ford of Chicago
Metro Ford Sales & Service
Zeigler Ford of North Riverside
Freeway Ford Truck Sales
Al Piemonte Ford
Napleton Ford of Oak Lawn
Westfield Ford
McCarthy Ford Inc.
Golf Mill Ford
Roesch Ford
Bredemann Ford
Willowbrook Ford, Inc.
Willowbrook Ford Kia
Tasca Ford Midlothian

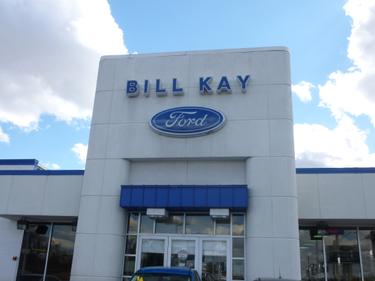

Bill Kay Ford

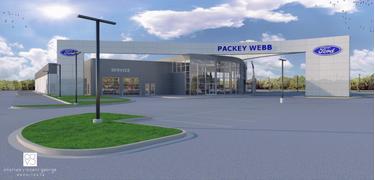

Packey Webb Ford
Joe Rizza Ford Lincoln
Joe Rizza Ford
Ford of Homewood
Highland Park Ford Lincoln
Highland Park Ford
Friendly Ford Inc

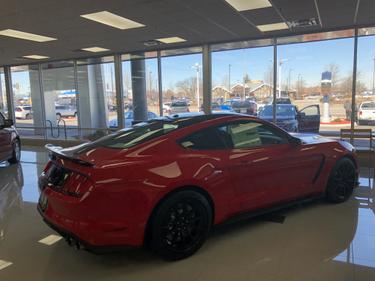

Schaumburg Ford
Hawk Ford of Carol Stream
Arlington Heights Ford
Webb Ford
Sutton Ford
Currie Motors Ford of Frankfort
Haggerty Ford
Fair Oaks Ford
Paul Heuring Ford
Napleton Ford in Libertyville
Art Hill Ford
Wickstrom Auto Group

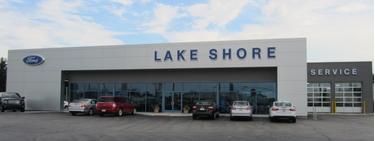

Lake Shore Ford
Bosak Ford
Hopkins Ford of Elgin
Hawk Ford of St. Charles
Rod Baker Ford
River View Ford
Ron Tirapelli Ford
Terry's Ford of Peotone
Victor Ford
Gerald Ford
Gillespie Ford

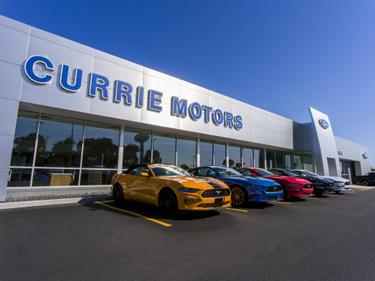

Currie Motors Ford of Valpo
Castle Ford
Smith Ford Of Lowell, Inc.
Huntley Ford

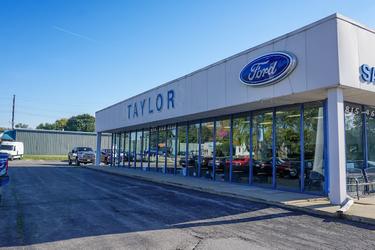

Taylor Ford of Manteno
