2016 Volkswagen Golf SportWagen TSI Limited Edition specs & colors
4dr Car
Change trim
MSRP
- 4dr DSG TDI S $0
- 4dr Man TDI S $0
- 4dr Man TDI SE $0
- 4dr DSG TDI SE $0
- 4dr Man TDI SEL $0
- 4dr DSG TDI SEL $0
- 4dr Man TSI S $21,625
- 4dr Auto TSI S $22,725
- 4dr Auto TSI Limited Edition $24,995
- 4dr Auto TSI SE $27,025
- 4dr Auto TSI SEL $29,385
$24,995
Starting MSRP
Current listing price
Current listing price

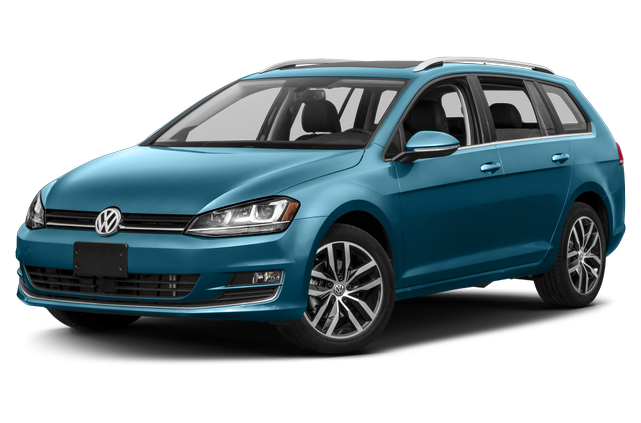

Showing the 2016 Volkswagen Golf SportWagen 4dr Auto TSI Limited Edition
Shop NowKey specs
Color options
Interior
Dark Brown
Medium pebble
Packages
Specifications
| EPA Classification | Small Station Wagons |
| Spare Wheel Material | Steel |
| Rear Wheel Size | 17 X 7 in |
| Front Wheel Size | 17 X 7 in |
| Front Wheel Material | Aluminum |
| Spare Wheel Size | Compact in |
| Rear Wheel Material | Aluminum |
| Maximum Alternator Capacity (amps) | 140 |
| Cold Cranking Amps @ 0° F (Primary) | 480 |
| Displacement | 1.8 L/110 |
| SAE Net Horsepower @ RPM | 170 @ 4500 |
| SAE Net Torque @ RPM | 199 @ 1600 |
| Engine Type | Intercooled Turbo Regular Unleaded I-4 |
| Cruising Range - City | 330.00 mi |
| EPA MPG Equivalent - Hwy | N/A |
| Fuel Economy Est-Combined | 29 (Est) MPG |
| EPA MPG Equivalent - City | N/A |
| Cruising Range - Hwy | 462.00 mi |
| EPA Fuel Economy Est - Hwy | 35 (Est) MPG |
| EPA Fuel Economy Est - City | 25 (Est) MPG |
| Estimated Battery Range | N/A mi |
| Trans Type | 6 |
| Sixth Gear Ratio (:1) | 0.67 |
| Reverse Ratio (:1) | 3.19 |
| Fourth Gear Ratio (:1) | 1.14 |
| Third Gear Ratio (:1) | 1.56 |
| Final Drive Axle Ratio (:1) | 3.87 |
| Second Gear Ratio (:1) | 2.50 |
| Trans Description Cont. | Automatic w/OD |
| Fifth Gear Ratio (:1) | 0.85 |
| Drivetrain | Front Wheel Drive |
| Trans Description Cont. Again | N/A |
| First Gear Ratio (:1) | 4.46 |
| Suspension Type - Front | Strut |
| Suspension Type - Rear (Cont.) | Multi-Link |
| Suspension Type - Front (Cont.) | Strut |
| Suspension Type - Rear | Multi-Link |
| Brake ABS System (Second Line) | N/A |
| Disc - Front (Yes or ) | Yes |
| Brake Type | 4-Wheel Disc |
| Disc - Rear (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 11.3 in |
| Brake ABS System | 4-Wheel |
| Rear Brake Rotor Diam x Thickness | 10.7 in |
| Drum - Rear (Yes or ) | N/A |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Fuel Tank Capacity, Approx | 13.2 gal |
| Turning Diameter - Wall to Wall | N/A ft |
| Steering Ratio (:1), Overall | N/A |
| Lock to Lock Turns (Steering) | N/A |
| Steering Type | Rack-Pinion |
| Turning Diameter - Curb to Curb | 35.8 ft |
| Spare Tire Size | Compact |
| Front Tire Size | P225/45HR17 |
| Rear Tire Size | P225/45HR17 |
| Wt Distributing Hitch - Max Trailer Wt. | N/A lbs |
| Dead Weight Hitch - Max Tongue Wt. | N/A lbs |
| Wt Distributing Hitch - Max Tongue Wt. | N/A lbs |
| Dead Weight Hitch - Max Trailer Wt. | N/A lbs |
| Base Curb Weight | 3120 lbs |
| Second Shoulder Room | 53.9 in |
| Cargo Box (Area) Height | N/A in |
| Second Hip Room | N/A in |
| Front Shoulder Room | 55.9 in |
| Length, Overall | 179.6 in |
| Second Head Room | 38.6 in |
| Cargo Volume to Seat 2 | 30.4 ft³ |
| Width, Max w/o mirrors | 70.8 in |
| Front Hip Room | N/A in |
| Front Head Room | 38.6 in |
| Min Ground Clearance | 5.5 in |
| Cargo Area Width @ Beltline | N/A in |
| Track Width, Front | 61 in |
| Trunk Volume | N/A ft³ |
| Wheelbase | 103.5 in |
| Cargo Area Length @ Floor to Seat 2 | N/A in |
| Rear Door Opening Height | N/A in |
| Cargo Area Length @ Floor to Seat 1 | N/A in |
| Second Leg Room | 35.6 in |
| Passenger Capacity | 5 |
| Cargo Volume to Seat 1 | 66.5 ft³ |
| Track Width, Rear | 59.8 in |
| Cargo Volume to Seat 3 | 30.4 ft³ |
| Cargo Area Length @ Floor to Seat 3 | N/A in |
| Rear Door Opening Width | N/A in |
| Front Leg Room | 41.2 in |
| Liftover Height | N/A in |
| Passenger Volume | 94.3 ft³ |
| Cargo Box Width @ Wheelhousings | N/A in |
| Height, Overall | 58.3 in |
| 1 LCD Monitor In The Front | Standard |
| Integrated Roof Diversity Antenna | Standard |
| Radio w/Seek-Scan, MP3 Player, Clock, Speed Compensated Volume Control, Steering Wheel Controls and Radio Data System | Standard |
| Radio: Composition Media w/6.5" Touchscreen -inc: AM/FM/HD radio and CD w/USB and aux-in, 8-speaker sound system, Bluetooth connectivity and SiriusXM satellite radio (limited subscription) | Standard |
| Audio Theft Deterrent | Standard |
| Streaming Audio | Standard |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Standard |
| Light Tinted Glass | Standard |
| Express Open/Close Sliding And Tilting Glass 1st And 2nd Row Sunroof w/Power Sunshade | Optional |
| Fixed Rear Window w/Fixed Interval Wiper and Defroster | Standard |
| Wheels w/Machined w/Painted Accents Accents | Optional |
| Steel Spare Wheel | Standard |
| Body-Colored Power Heated Side Mirrors w/Manual Folding and Turn Signal Indicator | Standard |
| Wheels: 17" Madrid Alloy | Optional |
| Roof Rack Rails Only | Standard |
| Body-Colored Front Bumper | Standard |
| Black Grille | Standard |
| Body-Colored Rear Bumper | Standard |
| Tires: 17" All-Season | Optional |
| Body-Colored Door Handles | Standard |
| Fully Galvanized Steel Panels | Standard |
| Auto On/Off Reflector Halogen Daytime Running Headlamps | Optional |
| Compact Spare Tire Mounted Inside Under Cargo | Standard |
| Speed Sensitive Rain Detecting Variable Intermittent Wipers w/Heated Jets | Optional |
| Chrome Side Windows Trim and Black Front Windshield Trim | Optional |
| Liftgate Rear Cargo Access | Standard |
| Leather Gear Shifter Material | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination | Standard |
| Valet Function | Standard |
| Front Cupholder | Standard |
| V-Tex Leatherette Seating Surfaces | Optional |
| Power Rear Windows and Fixed 3rd Row Windows | Standard |
| VW Car-Net Selective Service Internet Access | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button | Standard |
| Interior Trim -inc: Metal-Look Instrument Panel Insert, Metal-Look Door Panel Insert and Metal-Look Interior Accents | Standard |
| Compass | Standard |
| 2 12V DC Power Outlets and 1 120V AC Power Outlet | Standard |
| Manual Tilt/Telescoping Steering Column | Standard |
| Power 1st Row Windows w/Front And Rear 1-Touch Up/Down | Standard |
| Day-Night Rearview Mirror | Standard |
| Proximity Key For Doors And Push Button Start | Standard |
| Roll-Up Cargo Cover | Standard |
| Cargo Space Lights | Standard |
| Cloth Door Trim Insert | Standard |
| Instrument Panel Covered Bin, Refrigerated/Cooled Box Located In The Glovebox, Driver / Passenger And Rear Door Bins | Standard |
| Front Center Armrest and Rear Center Armrest w/Pass-Thru w/Storage | Standard |
| Immobilizer III Immobilizer | Standard |
| Adaptive w/Traffic Stop-Go | Optional |
| Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage, 2 12V DC Power Outlets and 1 120V AC Power Outlet | Standard |
| HVAC -inc: Underseat Ducts and Console Ducts | Standard |
| 60-40 Folding Bench Front Facing Fold Forward Seatback Rear Seat | Standard |
| Driver Foot Rest | Standard |
| Fade-To-Off Interior Lighting | Standard |
| Manual Air Conditioning | Standard |
| Seats w/Leatherette Back Material | Optional |
| Power Door Locks w/Autolock Feature | Standard |
| 2 Seatback Storage Pockets | Standard |
| Trip Computer | Standard |
| Manual Anti-Whiplash Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints | Standard |
| Power Fuel Flap Locking Type | Standard |
| Carpet Floor Trim | Standard |
| Leather Steering Wheel | Standard |
| Smart Device Integration | Standard |
| Driver Seat | Standard |
| Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats | Standard |
| Redundant Digital Speedometer | Standard |
| Analog Appearance | Standard |
| Passenger Seat | Standard |
| Illuminated Locking Glove Box | Standard |
| Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer | Standard |
| Cargo Area Concealed Storage | Standard |
| Rear Cupholder | Standard |
| Heated Comfort Front Seats -inc: manually adjustable front seats w/manual lumbar support and power recline | Optional |
| Outside Temp Gauge | Standard |
| Full Cloth Headliner | Standard |
| FOB Controls -inc: Cargo Access | Standard |
| Air Filtration | Standard |
| 2 12V DC Power Outlets | Standard |
| Cruise Control w/Steering Wheel Controls | Standard |
| Driver Information Center | Standard |
| Remote Releases -Inc: Power Fuel | Standard |
| Perimeter Alarm | Standard |
| Front And Rear Map Lights | Standard |
| 3.87 Axle Ratio | Optional |
| Front-Wheel Drive | Standard |
| 60-Amp/Hr 480CCA Maintenance-Free Battery w/Run Down Protection | Standard |
| Engine Oil Cooler | Standard |
| Front And Rear Anti-Roll Bars | Standard |
| 140 Amp Alternator | Standard |
| 13.2 Gal. Fuel Tank | Standard |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control | Standard |
| Single Stainless Steel Exhaust | Standard |
| Transmission w/Driver Selectable Mode | Optional |
| Transmission: 6-Speed Automatic w/Tiptronic -inc: steering wheel mounted shift paddles | Optional |
| Engine: 1.8T 4 Cylinder Turbocharged | Optional |
| Multi-Link Rear Suspension w/Coil Springs | Optional |
| Gas-Pressurized Shock Absorbers | Standard |
| Strut Front Suspension w/Coil Springs | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners | Standard |
| Back-Up Camera | Standard |
| Side Curtain Protection Curtain 1st And 2nd Row Airbags | Standard |
| Low Tire Pressure Warning | Standard |
| Airbag Occupancy Sensor | Standard |
| Front Assist w/Autonomous Emergency Braking and Rear Cross Traffic Alert | Optional |
| Blind Spot Monitor Blind Spot | Optional |
| Side Impact Beams | Standard |
| Collision Mitigation-Front | Optional |
| VW Car-Net Emergency Sos | Standard |
| Electronic Stability Control (ESC) | Standard |
| ABS And Driveline Traction Control | Standard |
| Rear Child Safety Locks | Standard |
