2006 GMC Canyon Work Truck specs & colors

$14,730
Starting MSRP
Current listing price

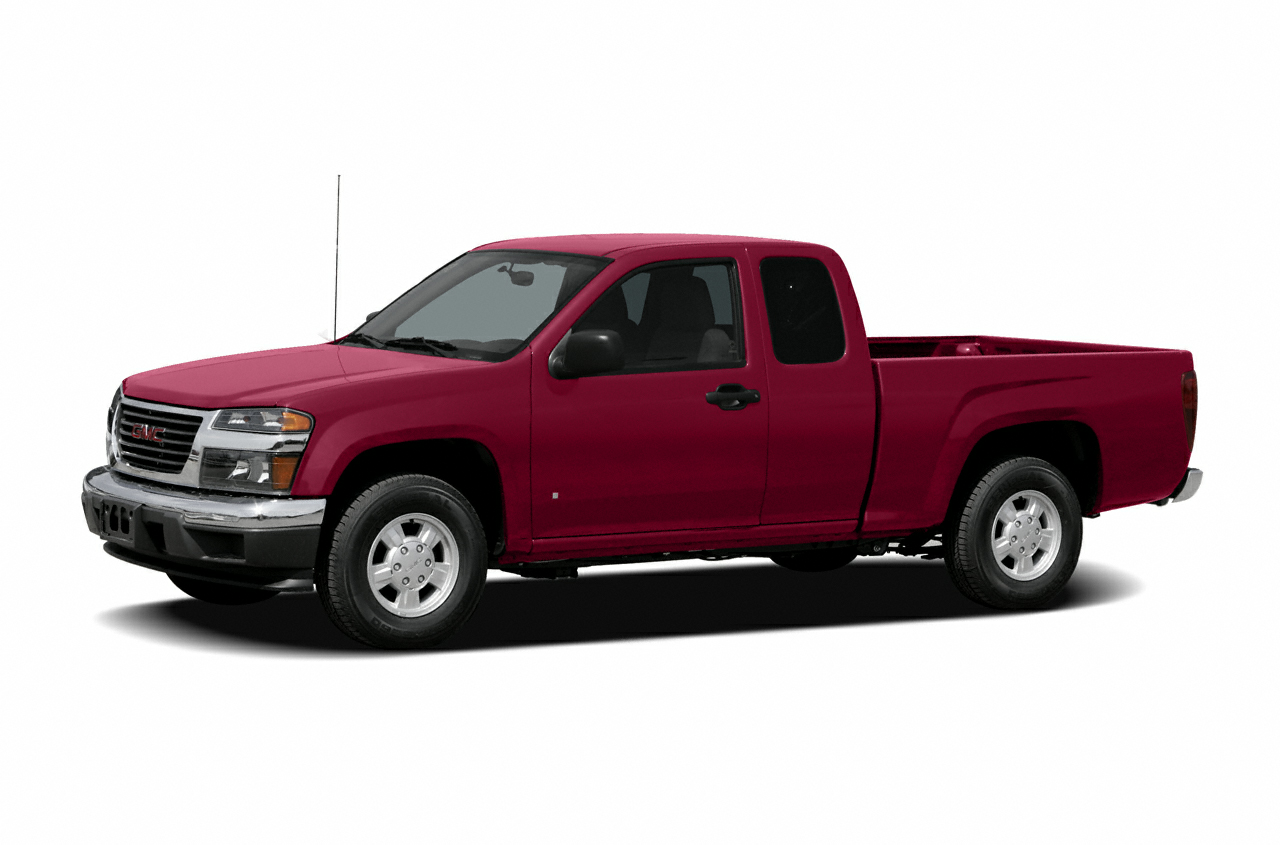

2006 GMC Canyon Work Truck

Showing the 2006 GMC Canyon Reg Cab 111.2" WB 2WD Work Truck

Shop Now

Key specs

Color options

Interior

Black


Charcoal


Sage


Pewter Gray


Packages

Specifications

Front Wheel Size 15 x 6 in
Rear Wheel Size 15 x 6 in
Spare Wheel Size Compact in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel
Cold Cranking Amps @ 0° F (Primary) 690
Maximum Alternator Capacity (amps) 100
Engine Type Gas I4
Displacement 2.8L/169
SAE Net Horsepower @ RPM 175 @ 5600
SAE Net Torque @ RPM 185 @ 2800
Engine Oil Cooler Not Available
EPA Fuel Economy Est - Hwy 27 MPG
Cruising Range - City N/A mi
EPA Fuel Economy Est - City 20 MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy N/A mi
Estimated Battery Range N/A mi
Drivetrain Rear Wheel Drive
Trans Type 5
Trans Description Cont. Manual w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 3.75
Second Gear Ratio (:1) 2.26
Third Gear Ratio (:1) 1.37
Fourth Gear Ratio (:1) 1.00
Fifth Gear Ratio (:1) 0.73
Reverse Ratio (:1) 3.67
Trans Power Take Off Not Available
Final Drive Axle Ratio (:1) N/A
Transfer Case Model Not Available
Transfer Case Gear Ratio (:1), High Not Available
Transfer Case Gear Ratio (:1), Low Not Available
Transfer Case Power Take Off Not Available
Suspension Type - Front Coil Springs
Suspension Type - Rear 2-Stage Multi-Leaf
Axle Type - Front N/A
Axle Type - Rear Semi-Floating
Frame Type Ladder
Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) Not Available
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Not Available
Front Brake Rotor Diam x Thickness 11.2 x 1.6 in
Rear Brake Rotor Diam x Thickness Not Available in
Drum - Rear (Yes or ) Yes
Fuel Tank Capacity, Approx 19 gal
Aux Fuel Tank Capacity, Approx N/A gal
Steering Type Pwr
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 39.4 ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size P205/75R15
Rear Tire Size P205/75R15
Spare Tire Size Compact
Dead Weight Hitch - Max Trailer Wt. 4000 lbs
Dead Weight Hitch - Max Tongue Wt. 600 lbs
Wt Distributing Hitch - Max Trailer Wt. 1800 lbs
Wt Distributing Hitch - Max Tongue Wt. 270 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity N/A lbs
Base Curb Weight N/A lbs
Curb Weight - Front 1823 lbs
Curb Weight - Rear 1376 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 3199.00 lbs
As Spec'd Payload 1651.00 lbs
Maximum Payload Capacity 1651.00 lbs
Gross Combined Wt Rating 5500 lbs
Gross Axle Weight Rating 5429.00 lbs
Curb Weight 3199.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 4850.00 lbs
Passenger Capacity 3
Front Head Room 39.6 in
Front Leg Room 42.2 in
Front Shoulder Room 57.1 in
Front Hip Room 53.3 in
Second Head Room N/A in
Second Leg Room N/A in
Second Shoulder Room N/A in
Second Hip Room N/A in
Wheelbase 111.3 in
Length, Overall w/o rear bumper 192.4 in
Length, Overall w/rear bumper N/A in
Length, Overall N/A in
Width, Max w/o mirrors 67.6 in
Height, Overall 65.5 in
Overhang, Front 33.9 in
Overhang, Rear w/o bumper N/A in
Cab to End of Frame N/A in
Ground to Top of Load Floor 27.5 in
Ground Clearance, Front N/A in
Ground Clearance, Rear N/A in
Cargo Box Length @ Floor 72.8 in
Cargo Box Width @ Top, Rear Not Available in
Cargo Box Width @ Floor 57.2 in
Cargo Box Width @ Wheelhousings 42.6 in
Cargo Box (Area) Height 18.6 in
Tailgate Width 52.4 in
Cargo Volume 44.0 ft³
Ext'd Cab Cargo Volume Not Available ft³
Suspension, front, independent coil springs (Standard on 2WD Models only) Standard
City 17/hwy 23 (2.8L engine/4-speed auto trans) Standard
Coat hooks, driver and passenger side Standard
GVWR, 4850 lbs. (2200 kg) (Standard on TS15403 2WD Regular Cab Models. - Refer to the Engine and Axle section for compatibility requirements) Standard
Tires, P205/75R15, all-season, blackwall (2WD Models only) Standard
Mirror, inside rearview, prismatic Standard
Wipers, intermittent, front, includes washers Standard
Theft-deterrent system, PASSLock Standard
Air conditioning, front manual Standard
Battery, heavy-duty, 690 cold-cranking amps, includes rundown protection Standard
Pickup bed, Fleetside, all-welded steel with double wall construction and corrosion protection with 6 cargo tie-downs Standard
Alternator, 100 amps Standard
Warning tones, headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on and critical Driver Information Center active Standard
Daytime running lamps, includes automatic exterior lamp control Standard
SL Decor Standard
Steering, power, rack-and-pinion Standard
Daytime running lamps, includes automatic exterior lamp control Standard
Safety belts, 3-point, outboard, driver and front passenger, adjustable (center position lap belt with bench seat only) Standard
Visors, padded, Cloth, includes vanity mirror, passenger-side Standard
Air dam, Ebony Standard
Fascia, front, Dark Smoke Gray Standard
Comfort Convenience Package, Tilt-Wheel and cruise control Standard
Seats, front SL Cloth 60/40 split-bench, integral outboard head restraints and dual cupholders (Upgradeable to (92D) Pewter SL Cloth trim) Standard
Steering wheel, 4-spoke Standard
Door trim, with integral armrest, driver and passenger side map pockets Standard
Windows, manual, driver and front passenger Standard
Instrumentation, analog, includes speedometer, odometer with trip odometer, fuel level, engine temperature, tachometer and Driver Information Center Standard
Brakes, 4-wheel antilock, front disc/rear drum Standard
Wheels, 4 - 15" x 6" (38.1 cm x 15.2 cm) steel Standard
Mirrors, outside rearview, foldaway, manual Standard
Tire, spare, compact, located at rear underbody of vehicle Standard
Air bags, frontal, driver and right front passenger, includes passenger sensing system (Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information) Standard
Brakes, 4-wheel antilock, front disc/rear drum Standard
Power outlets, auxiliary, dual, covered, 12-volt Standard
Door locks, manual Standard
Transmission, 5-speed manual with overdrive (Refer to the Engine and Axle section for compatibility requirements. Must specify. Upgradeable to (M30) transmission, 4-speed automatic) Standard
City 20/hwy 27 (2.8L engine/5-speed manual trans) Standard
Suspension, rear, semi-floating axle with 2-stage multi-leaf springs Standard
LATCH system, (Lower Anchors and Top tethers for CHildren) Standard
Floor covering, rubberized vinyl full width floor covering (Upgradeable to (B30) Floor covering, color-keyed carpeting. Not available with (AJ2) Seats, driver and passenger side rear on TS15653 Extended Cab and TT15653 Extended Cab Models) Standard
Sound system, ETR AM/FM stereo, includes seek-and-scan and digital clock (Upgradeable to (US8) Sound system, ETR AM/FM stereo with CD/MP3 player) Standard
City 19/hwy 24 (3.5L engine/4-speed auto trans) Standard
Engine, 2.8L DOHC, 4-cylinder, MFI (175 HP [130.5 kW] @ 5600 rpm, 185 lb.-ft. [249.7 N-m] @ 2800 rpm) (Refer to the Engine and Axle section for compatibility requirements. Must specify. Upgradeable to (L52) Engine, 3.5L DOHC, 5-cylinder, MFI) Standard
City 19/hwy 25 (3.5L engine/5-speed manual trans) Standard
Bumpers, front and rear, chrome, rear step includes Dark Smoke Gray pad Standard
Rear wheel drive Standard
Tailgate, locking, 2-position Standard
Suspension Package, Heavy-Duty Standard
