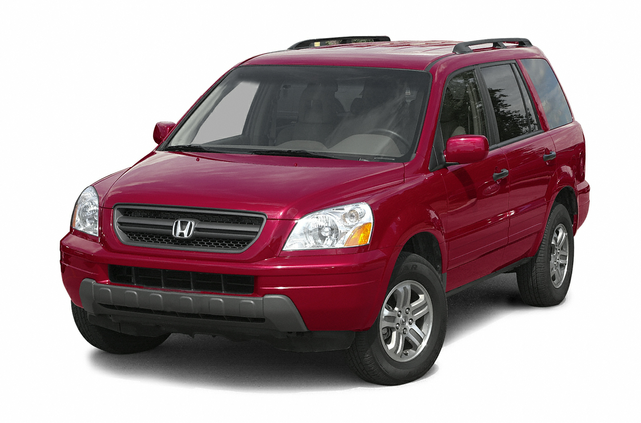

2003 Honda Pilot LX specs & colors
Sport Utility
Key Specs
Color options
Interior
Fern
Light Gray / Gray
Gray
Packages
Specifications
| EPA Classification | Special Purpose Vehicle |
| Spare Wheel Material | N/A |
| Rear Wheel Size | 16 x -TBD- in |
| Front Wheel Size | 16 x -TBD- in |
| Rear Wheel Material | Steel |
| Front Wheel Material | Steel |
| Spare Wheel Size | N/A in |
| Cold Cranking Amps @ 0° F (Primary) | N/A |
| Maximum Alternator Capacity (amps) | N/A |
| SAE Net Torque @ RPM | 242 @ 4500 |
| Engine Type | Gas V6 |
| SAE Net Horsepower @ RPM | 240 @ 5400 |
| Displacement | 3.5L/214 |
| EPA Fuel Economy Est - Hwy | 22 MPG |
| Cruising Range - Hwy | 422.40 mi |
| EPA MPG Equivalent - City | N/A |
| Estimated Battery Range | N/A mi |
| Cruising Range - City | 326.40 mi |
| EPA MPG Equivalent - Hwy | N/A |
| EPA MPG Equivalent - Combined | N/A |
| EPA Fuel Economy Est - City | 17 MPG |
| Fuel Economy Est-Combined | N/A MPG |
| Fourth Gear Ratio (:1) | 0.727 |
| Fifth Gear Ratio (:1) | 0.520 |
| Trans Description Cont. | Automatic w/OD |
| Second Gear Ratio (:1) | 1.552 |
| Third Gear Ratio (:1) | 1.021 |
| Drivetrain | 4-Wheel Drive |
| Trans Type | 5 |
| First Gear Ratio (:1) | 2.563 |
| Reverse Ratio (:1) | 1.846 |
| Final Drive Axle Ratio (:1) | 4.428 |
| Suspension Type - Rear (Cont.) | w/Trailing Arm |
| Suspension Type - Front | Independent Strut |
| Suspension Type - Rear | Independent Multilink |
| Disc - Rear (Yes or ) | Yes |
| Rear Brake Rotor Diam x Thickness | 12.3 x -TBD- in |
| Brake ABS System | 4-Wheel |
| Disc - Front (Yes or ) | Yes |
| Brake ABS System (Second Line) | N/A |
| Front Brake Rotor Diam x Thickness | 11.8 x -TBD- in |
| Brake Type | Pwr |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Fuel Tank Capacity, Approx | 19.2 gal |
| Turning Diameter - Curb to Curb | 38.0 ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Lock to Lock Turns (Steering) | 3.22 |
| Steering Ratio (:1), Overall | 16.9 |
| Steering Type | Variable Pwr |
| Spare Tire Size | N/A |
| Front Tire Size | P235/70R16 |
| Rear Tire Size | P235/70R16 |
| Wt Distributing Hitch - Max Tongue Wt. | N/A lbs |
| Dead Weight Hitch - Max Trailer Wt. | 4500 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | N/A lbs |
| Dead Weight Hitch - Max Tongue Wt. | 450 lbs |
| Base Curb Weight | 4416 lbs |
| Passenger Volume | 170.7 ft³ |
| Front Leg Room | 41.4 in |
| Cargo Area Length @ Floor to Seat 1 | N/A in |
| Second Shoulder Room | 61.4 in |
| Track Width, Front | 66.3 in |
| Second Leg Room | 37.4 in |
| Track Width, Rear | 66.5 in |
| Second Hip Room | 56.6 in |
| Width, Max w/o mirrors | 77.3 in |
| Front Head Room | 41.9 in |
| Min Ground Clearance | 8.0 in |
| Cargo Box (Area) Height | N/A in |
| Cargo Area Length @ Floor to Seat 2 | N/A in |
| Wheelbase | 106.3 in |
| Length, Overall | 188.0 in |
| Front Shoulder Room | 61.6 in |
| Height, Overall | 70.6 in |
| Cargo Volume to Seat 2 | 48.7 ft³ |
| Third Shoulder Room | 58.8 in |
| Rear Door Opening Width | N/A in |
| Second Head Room | 40.9 in |
| Cargo Volume to Seat 1 | 90.3 ft³ |
| Front Hip Room | 57.5 in |
| Passenger Capacity | 8 |
| Third Hip Room | 49.0 in |
| Cargo Box Width @ Wheelhousings | N/A in |
| Cargo Volume to Seat 3 | 16.3 ft³ |
| Cargo Area Length @ Floor to Seat 3 | N/A in |
| Rear Door Opening Height | N/A in |
| Liftover Height | N/A in |
| Third Leg Room | 30.2 in |
| Cargo Area Width @ Beltline | N/A in |
| Trunk Volume | N/A ft³ |
| Third Head Room | 38.9 in |
| Anti-lock braking system (ABS) | Standard |
| ULEV certified (3.5L engine/5-speed auto trans/CA/NE emissions) | Standard |
| Head restraints at all seating positions | Standard |
| 4-wheel anti-lock braking system (ABS) | Standard |
| 2nd & 3rd row grab rails w/integrated maplights | Standard |
| Pwr door locks | Standard |
| 19.2 gallon fuel tank | Standard |
| Body-color front/rear bumpers | Standard |
| Coin box | Standard |
| Illuminated driver & front passenger visor vanity mirrors w/sliding extensions | Standard |
| Childproof rear door locks | Standard |
| 16" styled steel wheels | Standard |
| 2nd row lower anchors & tether for children (LATCH) | Standard |
| Immobilizer theft deterrent system | Standard |
| 105,000-mile tune-up interval | Standard |
| Remote fuel filler door release | Standard |
| Driver/front passenger side-impact airbags w/front passenger occupant position detection system (OPDS) | Standard |
| Air conditioning w/micron air-filtration system | Standard |
| AM/FM stereo w/CD-inc: (4) speakers | Standard |
| Direct ignition system | Standard |
| LEV certified (3.5L engine/5-speed auto trans/Fed emissions) | Standard |
| Rear under-floor storage compartment | Standard |
| 4-wheel fully-independent suspension w/front & rear stabilizer bars | Standard |
| Cargo area light | Standard |
| 2nd row 3-point seatbelts-inc: adjustable anchors | Standard |
| Multi-functional center console w/cell phone cradle | Standard |
| Cruise control | Standard |
| Black body-side moldings | Standard |
| Driver & front passenger lower seatback pockets | Standard |
| Variable intermittent windshield wipers | Standard |
| 5-speed automatic transmission | Standard |
| 3.5L PGM-FI SOHC 24-valve V6 engine w/Variable Valve Timing & Lift (VTEC) | Standard |
| 5-mph impact bumpers | Standard |
| 3rd row 3-point seatbelts | Standard |
| Sunglasses storage compartment | Standard |
| Pwr ventilated front/solid rear disc brakes | Standard |
| Integrated side-window antenna | Standard |
| (4) auxiliary pwr outlets | Standard |
| Rear window defogger w/timer | Standard |
| Side-impact door beams | Standard |
| Driver/front passenger dual-stage airbags (SRS) | Standard |
| 3rd row child-seat tether anchors | Standard |
| Front bucket seats w/manual driver seat adjustment | Standard |
| P235/70R16 all-season tires | Standard |
| City 17/hwy 22 (3.5L engine/5-speed auto trans) | Standard |
| Front 3-point seatbelts-inc: automatic tensioning system, adjustable anchors | Standard |
| Tilt steering wheel | Standard |
| Fully-automatic Variable Torque Management (VTM-4) all-wheel drive system | Standard |
| Courtesy door lights | Standard |
| Variable pwr rack & pinion steering | Standard |
| Intermittent rear window wiper/washer | Standard |
| Pwr mirrors | Standard |
| Front/rear floor mats | Standard |
| Cargo area tie-down anchors/hooks | Standard |
| (7) cup holders | Standard |
| Electronic brake distribution (EBD) | Standard |
| 2nd & 3rd row 60/40 split flat-folding seats | Standard |
| Pwr windows w/auto up/down driver window | Standard |
| Black rear roofline spoiler | Standard |
