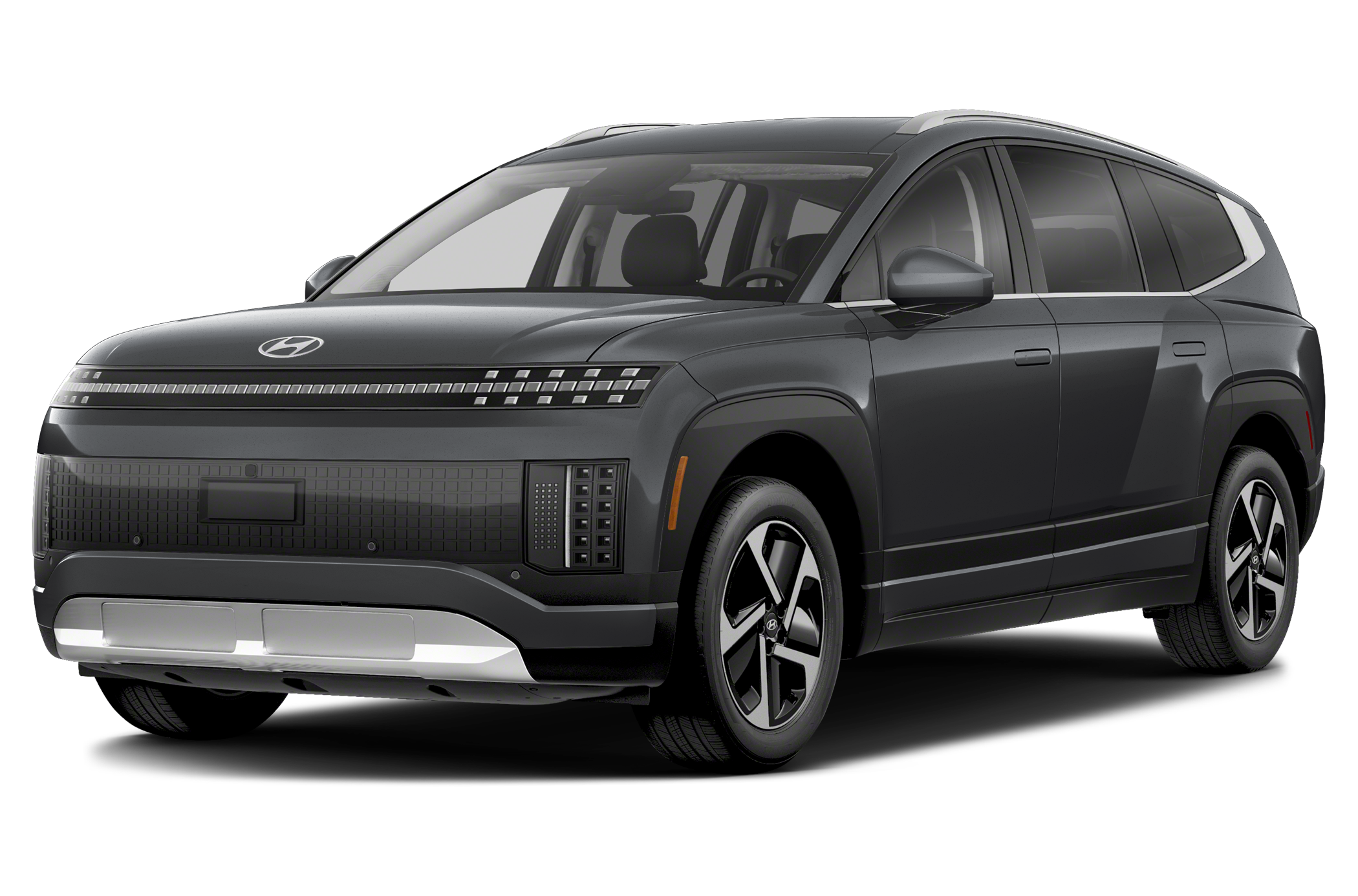

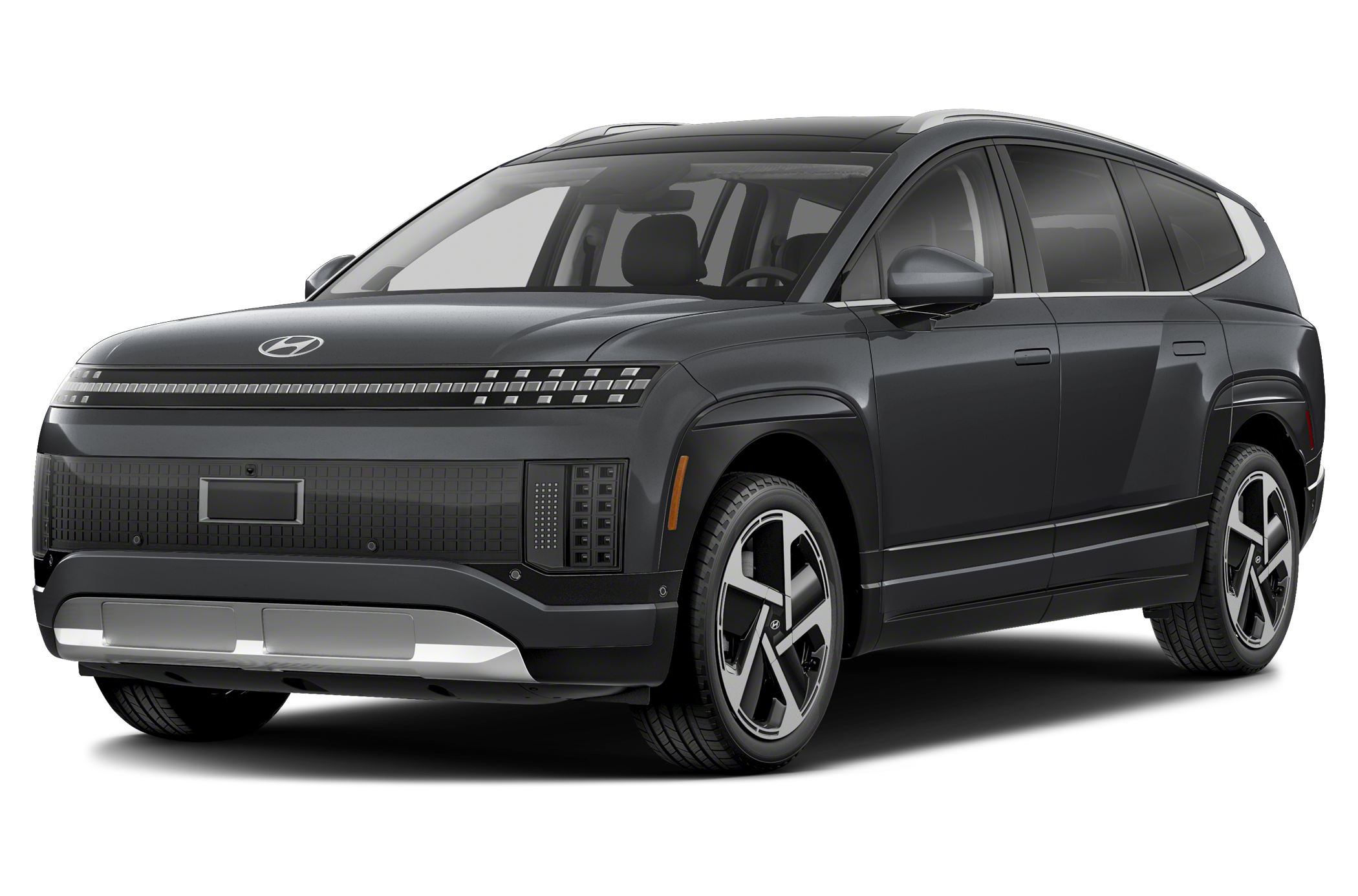

2026 Hyundai IONIQ 9 S specs & colors
Sport Utility
MSRP
- S RWD
- $58,955
- SE AWD
- $62,765
- SEL AWD
- $66,320
- Performance Limited AWD
- $71,250
- Performance Calligraphy AWD
- $74,990
- Performance Calligraphy Design AWD
- $76,490
Key specs
Color options
Interior
Black
Gray 2-Tone
Packages
$0
Starting MSRP
- standard equipment
$705
Starting MSRP
- Tow Hitch
- Ball Mount Kit
$265
Starting MSRP
- Cargo Tray
- Cargo Net
- First Aid Kit
Specifications
Highlights
|
Electric
Engine Type
|
|
-
MPG
|
|
215 hp
Horsepower
|
|
7
Seating Capacity
|
Brakes
|
4-Wheel Disc
Brake Type
|
|
14 in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
14 in
Rear Brake Rotor Diam x Thickness
|
|
N/A
Drum - Rear (Yes or )
|
|
4-Wheel
Brake ABS System
|
|
Yes
Disc - Front (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
Electrical
|
N/A
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
258
SAE Net Torque @ RPM
|
|
N/A
Displacement
|
|
215
SAE Net Horsepower @ RPM
|
|
Electric
Engine Type
|
|
1-Speed A/T
A/T Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
71 in
Height, Overall
|
|
40 in
Third Head Room
|
|
7
Passenger Capacity
|
|
55 in
Third Shoulder Room
|
|
67 in
Track Width, Front
|
|
N/A
Rear Door Opening Height
|
|
61 in
Second Shoulder Room
|
|
59 in
Front Hip Room
|
|
47 ft³
Cargo Volume to Seat 2
|
|
7 in
Min Ground Clearance
|
|
123 in
Wheelbase
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
58 in
Second Hip Room
|
|
N/A
Cargo Area Width @ Beltline
|
|
43 in
Second Leg Room
|
|
N/A
Liftover Height
|
|
87 ft³
Cargo Volume to Seat 1
|
|
42 in
Front Head Room
|
|
42 in
Third Hip Room
|
|
41 in
Second Head Room
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Rear Door Opening Width
|
|
61 in
Front Shoulder Room
|
|
22 ft³
Cargo Volume to Seat 3
|
|
68 in
Track Width, Rear
|
|
78 in
Width, Max w/o mirrors
|
|
41 in
Front Leg Room
|
|
N/A
Cargo Box (Area) Height
|
|
164 ft³
Passenger Volume
|
|
199 in
Length, Overall
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
32 in
Third Leg Room
|
Safety
|
Standard
Lane Departure Warning
|
|
Standard
Backup Camera
|
|
Standard
Blind Spot Monitor
|
|
Standard
Stability Control
|
|
Standard
Rear Cross Traffic Alert
|
Steering
|
N/A
Lock to Lock Turns (Steering)
|
|
N/A
Turning Diameter - Wall to Wall
|
|
Rack-Pinion
Steering Type
|
|
41 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
Suspension
|
Strut
Suspension Type - Front
|
|
Multi-Link
Suspension Type - Rear
|
|
Strut
Suspension Type - Front (Cont.)
|
|
Multi-Link
Suspension Type - Rear (Cont.)
|
Tires & Wheels
|
N/A
Spare Tire Size
|
|
P255/60HR19
Front Tire Size
|
|
N/A
Spare Wheel Size
|
|
19 X 8 in
Front Wheel Size
|
|
N/A
Spare Wheel Material
|
|
Aluminum
Front Wheel Material
|
|
P255/60HR19
Rear Tire Size
|
|
Aluminum
Rear Wheel Material
|
|
19 X 8 in
Rear Wheel Size
|
Weight & Capacity
|
350 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Fuel Tank Capacity, Approx
|
|
3,500 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
3,500 lbs
Maximum Trailering Capacity
|
|
0 lbs
Total Option Weight
|
|
5,507 lbs
Base Curb Weight
|
|
N/A
Curb Weight - Front
|
|
350 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
N/A
Maximum Payload Capacity
|
|
N/A
Curb Weight
|
|
3,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Curb Weight - Rear
|
