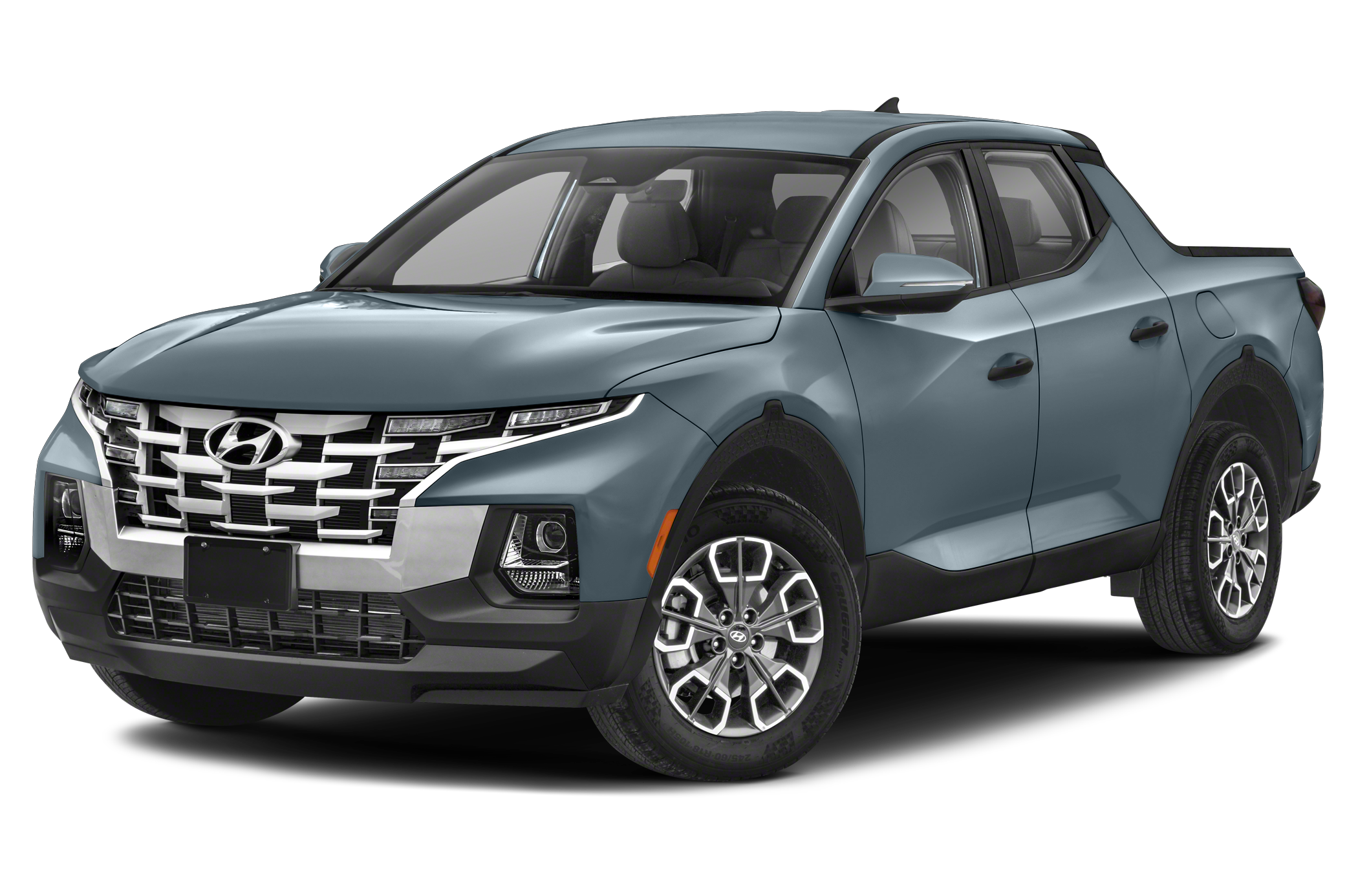

2022 Hyundai Santa Cruz SE specs & colors
Crew Cab Pickup
Change trim
MSRP
- SE FWD $24,440
- SE AWD $25,940
- SEL FWD $27,640
- SEL AWD $29,140
- SEL Premium AWD $36,130
- Limited AWD $40,170
Key specs
Color options
Interior
Black
Gray
Packages
$0
Starting MSRP
- standard equipment
$235
Starting MSRP
- Bed Mat
- Envelop Cargo Net
- First Aid Kit
$335
Starting MSRP
- Fitted Liners
- Mudguards
Specifications
| Front Wheel Size | 18 X 7.5 in |
| Rear Wheel Size | 18 X 7.5 in |
| Spare Wheel Size | Compact in |
| Front Wheel Material | Aluminum |
| Rear Wheel Material | Aluminum |
| Spare Wheel Material | Steel |
| Cold Cranking Amps @ 0° F (Primary) | N/A |
| Maximum Alternator Capacity (amps) | 150 |
| Engine Type | Regular Unleaded I-4 |
| Displacement | 2.5 L/152 |
| SAE Net Horsepower @ RPM | 191 @ 6100 |
| SAE Net Torque @ RPM | 181 @ 4000 |
| Engine Oil Cooler | None |
| EPA Fuel Economy Est - Hwy | 26 MPG |
| Cruising Range - City | 371.70 mi |
| EPA Fuel Economy Est - City | 21 MPG |
| Fuel Economy Est-Combined | 23 MPG |
| Cruising Range - Hwy | 460.20 mi |
| Estimated Battery Range | N/A mi |
| Drivetrain | Front Wheel Drive |
| Trans Type | 8 |
| Trans Description Cont. | Automatic w/OD |
| Trans Description Cont. Again | N/A |
| First Gear Ratio (:1) | 4.72 |
| Second Gear Ratio (:1) | 2.91 |
| Third Gear Ratio (:1) | 1.86 |
| Fourth Gear Ratio (:1) | 1.42 |
| Fifth Gear Ratio (:1) | 1.22 |
| Sixth Gear Ratio (:1) | 1.00 |
| Reverse Ratio (:1) | 3.24 |
| Trans Power Take Off | N/A |
| Final Drive Axle Ratio (:1) | N/A |
| Transfer Case Model | None |
| Transfer Case Gear Ratio (:1), High | N/A |
| Transfer Case Gear Ratio (:1), Low | N/A |
| Transfer Case Power Take Off | No |
| Seventh Gear Ratio (:1) | 0.79 |
| Eighth Gear Ratio (:1) | 0.64 |
| Suspension Type - Front | Strut |
| Suspension Type - Rear | Multi-Link |
| Axle Type - Front | Independent |
| Axle Type - Rear | Independent |
| Frame Type | N/A |
| Brake Type | 4-Wheel Disc |
| Brake ABS System | 4-Wheel |
| Brake ABS System (Second Line) | 4-Wheel |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 12.8 in |
| Rear Brake Rotor Diam x Thickness | 12.8 in |
| Drum - Rear (Yes or ) | N/A |
| Fuel Tank Capacity, Approx | 17.7 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Steering Type | Rack-Pinion |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Curb to Curb | 39.6 ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Front Tire Size | P245/60HR18 |
| Rear Tire Size | P245/60HR18 |
| Spare Tire Size | Compact |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 5000 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 500 lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | N/A lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | N/A lbs |
| Maximum Trailering Capacity | 5000 lbs |
| Base Curb Weight | 3704 lbs |
| Curb Weight - Front | N/A lbs |
| Curb Weight - Rear | N/A lbs |
| Option Weight - Front | 0.00 lbs |
| Option Weight - Rear | 0.00 lbs |
| As Spec'd Curb Weight | N/A lbs |
| As Spec'd Payload | N/A lbs |
| Maximum Payload Capacity | N/A lbs |
| Gross Combined Wt Rating | N/A lbs |
| Gross Axle Weight Rating | N/A lbs |
| Curb Weight | N/A lbs |
| Total Option Weight | 0.00 lbs |
| Gross Vehicle Weight Rating | 5610.00 lbs |
| Passenger Capacity | 5 |
| Front Head Room | 40.7 in |
| Front Leg Room | 41.4 in |
| Front Shoulder Room | 57.6 in |
| Front Hip Room | 54.5 in |
| Second Head Room | 40.1 in |
| Second Leg Room | 36.5 in |
| Second Shoulder Room | 56.1 in |
| Second Hip Room | 53.5 in |
| Wheelbase | 118.3 in |
| Length, Overall w/o rear bumper | N/A in |
| Length, Overall w/rear bumper | N/A in |
| Length, Overall | 195.7 in |
| Width, Max w/o mirrors | 75 in |
| Height, Overall | 66.7 in |
| Overhang, Front | N/A in |
| Overhang, Rear w/o bumper | N/A in |
| Cab to End of Frame | N/A in |
| Ground to Top of Load Floor | 31.6 in |
| Ground Clearance, Front | 8.6 in |
| Ground Clearance, Rear | 8.6 in |
| Cargo Box Length @ Floor | 48.4 in |
| Cargo Box Width @ Top, Rear | 53.9 in |
| Cargo Box Width @ Floor | 53.9 in |
| Cargo Box Width @ Wheelhousings | 42.7 in |
| Cargo Box (Area) Height | 19.2 in |
| Tailgate Width | N/A in |
| Cargo Volume | 27 ft³ |
| Ext'd Cab Cargo Volume | N/A ft³ |
| 2 LCD Monitors In The Front | Standard |
| Streaming Audio | Standard |
| Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls and Radio Data System | Standard |
| Integrated Roof Antenna | Standard |
| Radio: AM/FM Audio System -inc: low-cost display audio, 8" color touchscreen, 6 speakers, HD Radio, Bluetooth, wireless Apple CarPlay and Android Auto and dual front high-power USB outlets | Standard |
| Steel Spare Wheel | Standard |
| Variable Intermittent Wipers | Standard |
| Black Door Handles | Standard |
| Deep Tinted Glass | Standard |
| Black Bodyside Cladding and Black Wheel Well Trim | Standard |
| Body-Colored Front Bumper | Standard |
| Fully Galvanized Steel Panels | Standard |
| Wheels: 18" x 7.5J Alloy | Standard |
| Tailgate Rear Cargo Access | Standard |
| Headlights-Automatic Highbeams | Standard |
| Cargo Lamp w/High Mount Stop Light | Standard |
| Compact Spare Tire Stored Underbody w/Crankdown | Standard |
| Metal-Look Grille | Standard |
| Wheels w/Machined w/Painted Accents Accents | Standard |
| Lip Spoiler | Standard |
| Body-Colored Power Side Mirrors w/Manual Folding | Standard |
| Regular Composite Box Style | Standard |
| LED Brakelights | Standard |
| Integrated Storage | Standard |
| Tires: 245/60R18 | Standard |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Standard |
| Black Side Windows Trim, Black Front Windshield Trim and Black Rear Window Trim | Standard |
| Auto On/Off Projector Beam Halogen Daytime Running Auto High-Beam Headlamps w/Delay-Off | Standard |
| Black Rear Step Bumper | Standard |
| Fixed Rear Window w/Defroster | Standard |
| Front Bucket Seats -inc: 6-way manual driver seat w/manual height adjustment | Standard |
| Power 1st Row Windows w/Driver 1-Touch Down | Standard |
| Cruise Control w/Steering Wheel Controls | Standard |
| Full Cloth Headliner | Standard |
| HVAC -inc: Underseat Ducts | Standard |
| Full Carpet Floor Covering | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Auxiliary Mirror | Standard |
| Manual Tilt/Telescoping Steering Column | Standard |
| Outside Temp Gauge | Standard |
| Front Cupholder | Standard |
| Front Map Lights | Standard |
| Full Floor Console w/Covered Storage, Mini Overhead Console and 2 12V DC Power Outlets | Standard |
| Day-Night Rearview Mirror | Standard |
| Driver Seat | Standard |
| Front Center Armrest | Standard |
| 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat | Standard |
| 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement | Standard |
| Analog Appearance | Standard |
| Manual Air Conditioning | Standard |
| Stain & Odor Resistant Cloth Seat Trim | Standard |
| Power Door Locks w/Autolock Feature | Standard |
| Perimeter Alarm | Standard |
| Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints | Standard |
| Immobilizer | Standard |
| Power Rear Windows | Standard |
| Trip Computer | Standard |
| Interior Trim -inc: Piano Black/Metal-Look Instrument Panel Insert, Piano Black/Metal-Look Door Panel Insert, Piano Black Console Insert, Metal-Look Interior Accents and Piano Black Overhead Console Insert | Standard |
| 2 Seatback Storage Pockets | Standard |
| FOB Controls -inc: Cargo Access | Standard |
| Air Filtration | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button | Standard |
| Redundant Digital Speedometer | Standard |
| Driver Information Center | Standard |
| Pickup Cargo Box Lights | Standard |
| Seats w/Cloth Back Material | Standard |
| Driver Foot Rest | Standard |
| Power Fuel Flap Locking Type | Standard |
| Urethane Gear Shifter Material | Standard |
| Driver And Passenger Door Bins and 2nd Row Underseat Storage | Standard |
| Fade-To-Off Interior Lighting | Standard |
| 2 12V DC Power Outlets | Standard |
| Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer | Standard |
| Rear Cupholder | Standard |
| Gas-Pressurized Shock Absorbers | Standard |
| 3.648 Axle Ratio | Standard |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Descent Control, Hill Hold Control and Electric Parking Brake | Standard |
| 1906# Maximum Payload | Standard |
| Towing Equipment -inc: Trailer Sway Control | Standard |
| 150 Amp Alternator | Standard |
| Multi-Link Rear Suspension w/Coil Springs | Standard |
| Front And Rear Anti-Roll Bars | Standard |
| Transmission w/Driver Selectable Mode | Standard |
| Transmission: 8-Speed Automatic w/SHIFTRONIC -inc: shift-by-cable floor-console mounted transmission lever | Standard |
| Engine: 2.5L GDI MPI DOHC 16-Valve I4 CVVT | Standard |
| Strut Front Suspension w/Coil Springs | Standard |
| Battery w/Run Down Protection | Standard |
| Rear Auto-Leveling Suspension | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| GVWR: 5,610 lbs | Standard |
| Single Stainless Steel Exhaust | Standard |
| Front-Wheel Drive | Standard |
| 17.7 Gal. Fuel Tank | Standard |
| Tire Specific Low Tire Pressure Warning | Standard |
| Collision Mitigation-Front | Standard |
| Back-Up Camera | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Electronic Stability Control (ESC) | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Driver Monitoring-Alert | Standard |
| Curtain 1st And 2nd Row Airbags | Standard |
| Side Impact Beams | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners | Standard |
| Forward Collision-Avoidance Assist (FCA) w/Pedestrian Detection | Standard |
| Airbag Occupancy Sensor | Standard |
| Lane Following Assist (LFA) | Standard |
| Lane Keeping Assist (LKA) Lane Keeping Assist | Standard |
| Rear Child Safety Locks | Standard |
| ABS And Driveline Traction Control | Standard |
| Lane Keeping Assist (LKA) Lane Departure Warning | Standard |
