2022 Hyundai SANTA CRUZ Limited specs & colors

Crew Cab Pickup

Change trim
MSRP
SE FWD
$24,440
SE AWD
$25,940
SEL FWD
$27,640
SEL AWD
$29,140
SEL Premium AWD
$36,130
Limited AWD
$40,170
$40,170
Starting MSRP
Current listing price

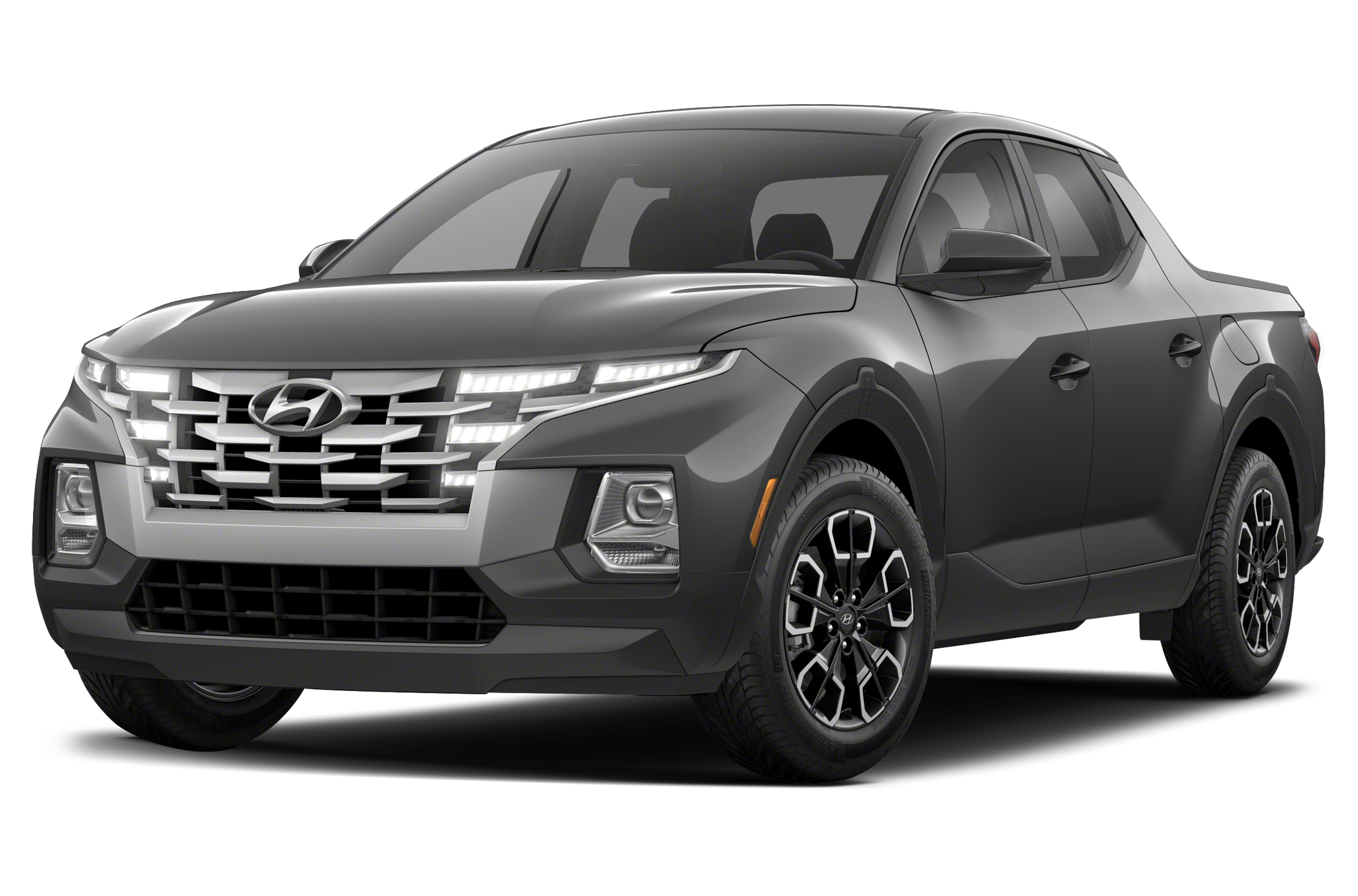

2022 Hyundai SANTA CRUZ Limited

Showing the 2022 Hyundai SANTA CRUZ Limited AWD

Shop Now

Key specs

Color options

Interior
Dark Gray w / Orange Accent
Black
Gray

Packages

  • $0

    Starting MSRP

    • standard equipment

  • $335

    Starting MSRP

    • Fitted Liners
    • Mudguards

  • $235

    Starting MSRP

    • Bed Mat
    • Envelop Cargo Net
    • First Aid Kit

  • $970

    Starting MSRP

    • Carpeted Floor Mats
    • Bed Cargo Net
    • First Aid Kit
    See more detail

    $970

    Starting MSRP

    • Carpeted Floor Mats
    • Bed Cargo Net
    • First Aid Kit
    • Bed Mat
    • Mudguards
    • Bed Fence

Specifications

Highlights

Intercooled Turbo Regular Unleaded I-4
Engine Type
19 City / 27 Hwy
MPG
281 hp
Horsepower
5
Seating Capacity

Brakes

N/A
Drum - Rear (Yes or )
4-Wheel Disc
Brake Type
Yes
Disc - Front (Yes or )
4-Wheel
Brake ABS System
4-Wheel
Brake ABS System (Second Line)
Yes
Disc - Rear (Yes or )
13 in
Rear Brake Rotor Diam x Thickness
13 in
Front Brake Rotor Diam x Thickness

Electrical

N/A
Cold Cranking Amps @ 0° F (Primary)
150
Maximum Alternator Capacity (amps)

Engine

281 @ 5800
SAE Net Horsepower @ RPM
2.5 L/152
Displacement
311 @ 1700
SAE Net Torque @ RPM
Intercooled Turbo Regular Unleaded I-4
Engine Type
8-Speed A/T
A/T
Transmission w/Dual Shift Mode
Transmission Options
19 City / 27 Hwy
MPG
N/A
Total Cooling System Capacity

Entertainment

Optional
Bluetooth®

Measurements

43 in
Cargo Box Width @ Wheelhousings
N/A
Cab to End of Frame
N/A
Tailgate Width
9 in
Ground Clearance, Front
54 in
Cargo Box Width @ Top, Rear
41 in
Front Head Room
56 in
Second Shoulder Room
9 in
Ground Clearance, Rear
196 in
Length, Overall
67 in
Height, Overall
40 in
Second Head Room
41 in
Front Leg Room
54 in
Second Hip Room
55 in
Front Hip Room
54 in
Cargo Box Width @ Floor
N/A
Overhang, Front
19 in
Cargo Box (Area) Height
37 in
Second Leg Room
118 in
Wheelbase
N/A
Length, Overall w/rear bumper
75 in
Width, Max w/o mirrors
48 in
Cargo Box Length @ Floor
27 ft³
Cargo Volume
N/A
Ext'd Cab Cargo Volume
5
Passenger Capacity
32 in
Ground to Top of Load Floor
N/A
Overhang, Rear w/o bumper
N/A
Length, Overall w/o rear bumper
58 in
Front Shoulder Room

Safety

Optional
Backup Camera
Optional
Rear Cross Traffic Alert
Standard
Stability Control
Standard
Lane Departure Warning
Optional
Blind Spot Monitor
Standard
Backup Camera

Steering

N/A
Turning Diameter - Wall to Wall
Rack-Pinion
Steering Type
40 ft
Turning Diameter - Curb to Curb
N/A
Steering Ratio (:1), Overall

Suspension

Independent
Axle Type - Rear
Independent
Axle Type - Front
Multi-Link
Suspension Type - Rear
Strut
Suspension Type - Front

Tires & Wheels

Aluminum
Front Wheel Material
Aluminum
Rear Wheel Material
20 X 7.5 in
Rear Wheel Size
Compact in
Spare Wheel Size
Compact
Spare Tire Size
P245/50HR20
Front Tire Size
P245/50HR20
Rear Tire Size
20 X 7.5 in
Front Wheel Size
Steel
Spare Wheel Material

Weight & Capacity

N/A
Aux Fuel Tank Capacity, Approx
4,164 lbs
Base Curb Weight
N/A
Curb Weight - Rear
500 lbs
Dead Weight Hitch - Max Tongue Wt.
5,732 lbs
Gross Vehicle Weight Rating
N/A
Fifth Wheel Hitch - Max Tongue Wt.
18 gal
Fuel Tank Capacity, Approx
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
5,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
N/A
As Spec'd Payload
5,000 lbs
Maximum Trailering Capacity
N/A
Curb Weight
500 lbs
Wt Distributing Hitch - Max Tongue Wt.
N/A
Curb Weight - Front
N/A
Gross Combined Wt Rating
N/A
As Spec'd Curb Weight
N/A
Maximum Payload Capacity
0 lbs
Option Weight - Rear
N/A
Fifth Wheel Hitch - Max Trailer Wt.
N/A
Gross Axle Weight Rating
0 lbs
Option Weight - Front
0 lbs
Total Option Weight

Compare trims

2022 Hyundai SANTA CRUZ Limited

Wondering which trim is right for you?

Our 2022 Hyundai SANTA CRUZ trim comparison will help you decide.
