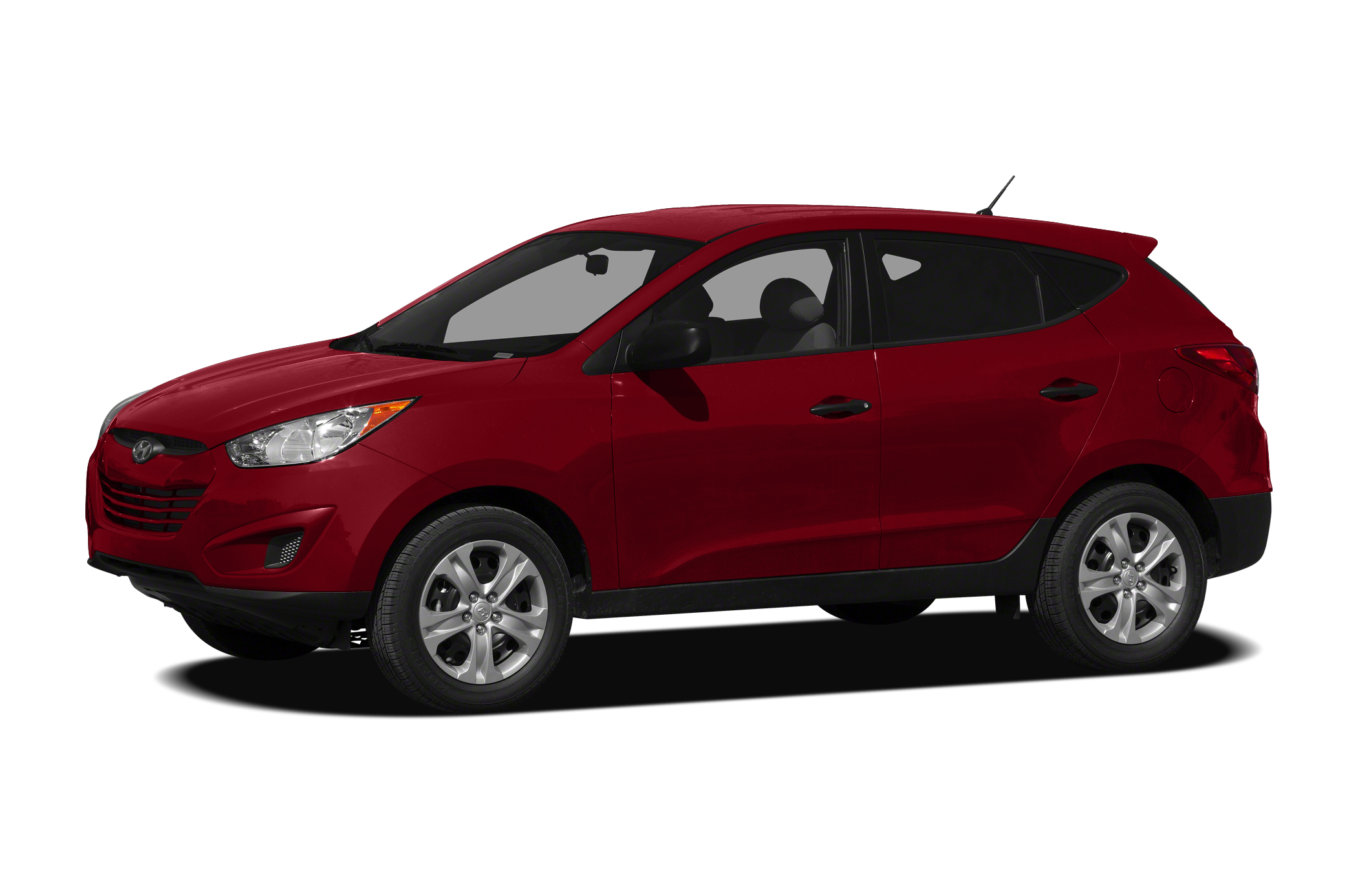

2012 Hyundai Tucson GL specs & colors
Sport Utility
Change trim
MSRP
- FWD 4dr Man GL $19,145
- FWD 4dr Auto GL $20,145
- FWD 4dr Auto GLS PZEV $22,295
- FWD 4dr Auto GLS $22,295
- AWD 4dr Auto GLS PZEV $23,945
- AWD 4dr Auto GLS $23,945
- FWD 4dr Auto Limited $24,995
- AWD 4dr Auto Limited $26,495
Key specs
Color options
Interior
Black
Taupe
Packages
$0
Starting MSRP
- base vehicle only
Specifications
| EPA Classification | 2WD Sport Utility |
| Front Wheel Size | 17 x 6.5 in |
| Rear Wheel Size | 17 x 6.5 in |
| Spare Wheel Size | Compact in |
| Front Wheel Material | Steel |
| Rear Wheel Material | Steel |
| Spare Wheel Material | Steel |
| Cold Cranking Amps @ 0° F (Primary) | N/A |
| Maximum Alternator Capacity (amps) | 110 |
| Engine Type | Gas I4 |
| Displacement | 2.0L/122 |
| SAE Net Horsepower @ RPM | 165 @ 6200 |
| SAE Net Torque @ RPM | 146 @ 4600 |
| EPA Fuel Economy Est - Hwy | 26 (Est) MPG |
| Cruising Range - City | 290.00 mi |
| EPA Fuel Economy Est - City | 20 (Est) MPG |
| Fuel Economy Est-Combined | 22 (Est) MPG |
| Cruising Range - Hwy | 377.00 mi |
| EPA MPG Equivalent - City | N/A |
| EPA MPG Equivalent - Hwy | N/A |
| EPA MPG Equivalent - Combined | N/A |
| Estimated Battery Range | N/A mi |
| Drivetrain | Front Wheel Drive |
| Trans Type | 5 |
| Trans Description Cont. | Manual |
| Trans Description Cont. Again | Not Available |
| First Gear Ratio (:1) | 3.27 |
| Second Gear Ratio (:1) | 1.79 |
| Third Gear Ratio (:1) | 1.54 |
| Fourth Gear Ratio (:1) | 1.18 |
| Fifth Gear Ratio (:1) | 0.97 |
| Reverse Ratio (:1) | 3.42 |
| Final Drive Axle Ratio (:1) | 3.74 |
| Suspension Type - Front | Independent |
| Suspension Type - Rear | Independent |
| Suspension Type - Front (Cont.) | MacPherson Strut |
| Suspension Type - Rear (Cont.) | Multi-Link |
| Brake Type | Pwr |
| Brake ABS System | 4-wheel |
| Brake ABS System (Second Line) | N/A |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 11.02 x 1.02 in |
| Rear Brake Rotor Diam x Thickness | 10.31 x 0.39 in |
| Drum - Rear (Yes or ) | Not Available |
| Fuel Tank Capacity, Approx | 14.5 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Steering Type | Pwr Rack & Pinion |
| Steering Ratio (:1), Overall | 15.9 |
| Lock to Lock Turns (Steering) | 3.0 |
| Turning Diameter - Curb to Curb | 34.7 ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Front Tire Size | P225/60R17 |
| Rear Tire Size | P225/60R17 |
| Spare Tire Size | Compact |
| Dead Weight Hitch - Max Trailer Wt. | 2000 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 200 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | Not Available lbs |
| Wt Distributing Hitch - Max Tongue Wt. | Not Available lbs |
| Base Curb Weight | 3179 lbs |
| Passenger Capacity | 5 |
| Passenger Volume | 101.9 ft³ |
| Front Head Room | 39.4 in |
| Front Leg Room | 42.1 in |
| Front Shoulder Room | 57.1 in |
| Front Hip Room | 55.5 in |
| Second Head Room | 39.1 in |
| Second Leg Room | 38.7 in |
| Second Shoulder Room | 55.1 in |
| Second Hip Room | 53.4 in |
| Wheelbase | 103.9 in |
| Length, Overall | 173.2 in |
| Width, Max w/o mirrors | 71.7 in |
| Height, Overall | 65.2 in |
| Track Width, Front | 62.4 in |
| Track Width, Rear | 62.4 in |
| Min Ground Clearance | 6.7 in |
| Rear Door Opening Height | N/A in |
| Rear Door Opening Width | N/A in |
| Cargo Area Length @ Floor to Seat 1 | N/A in |
| Cargo Area Length @ Floor to Seat 2 | N/A in |
| Cargo Area Length @ Floor to Seat 3 | N/A in |
| Cargo Area Width @ Beltline | N/A in |
| Cargo Box Width @ Wheelhousings | N/A in |
| Cargo Box (Area) Height | N/A in |
| Liftover Height | N/A in |
| Cargo Volume to Seat 1 | 55.8 ft³ |
| Cargo Volume to Seat 2 | 25.7 ft³ |
| Cargo Volume to Seat 3 | Not Available ft³ |
| Trunk Volume | N/A ft³ |
| Driver/front passenger side curtain air bags -inc: rollover sensors | Standard |
| 17" steel wheels w/full wheel covers | Standard |
| Instrument meters/gauges -inc: speedometer, tachometer, coolant temp, fuel level, odometer, trip odometer | Standard |
| Downhill brake control (DBC) | Standard |
| Hillstart assist control (HAC) | Standard |
| Front visor vanity mirrors -inc: covers, driver-side ticket holder | Standard |
| Compact spare tire | Standard |
| Roof-mounted center high-mount stop lamp | Standard |
| 4-wheel disc brakes | Standard |
| Trip computer -inc: EcoShift indicator | Standard |
| Lighting -inc: center dome w/auto cut-off, front map w/sunglass holder, cargo area, illuminated pwr window switches | Standard |
| Body-color bumpers | Standard |
| Non-reversible cargo floor cover | Standard |
| Air conditioning w/cabin air filter | Standard |
| Front seatback pockets | Standard |
| 2.0L DOHC MPI 16-valve CVVT I4 engine | Standard |
| Variable intermittent front windshield wipers | Standard |
| Advanced driver/front passenger air bags -inc: occupant classification system | Standard |
| Remote keyless entry w/alarm -inc: (2) key fobs | Standard |
| Rear door child safety locks | Standard |
| Tilt steering wheel | Standard |
| 54-amp/hr battery w/battery saver | Standard |
| Roof-mounted antenna | Standard |
| Rear coat hanger | Standard |
| Tire pressure monitoring system (TPMS) | Standard |
| EZ lane change assist turn signals | Standard |
| Black fold-away pwr mirrors | Standard |
| Lower anchors & upper tether anchors (LATCH) | Standard |
| Front/rear stabilizer bars | Standard |
| Deluxe cloth front bucket seats -inc: 6-way adjustable driver seat, active front head restraints | Standard |
| Warning chimes -inc: key-in-ignition w/door ajar, seatbelt | Standard |
| Body-color grille | Standard |
| Front wheel drive | Standard |
| Front/rear door map pockets w/bottle holders | Standard |
| 160-watt AM/FM/XM stereo w/CD/MP3 player -inc: (6) speakers, aux input jack, iPod cable | Standard |
| Pwr windows -inc: driver auto down | Standard |
| 60/40 split fold-down rear seat -inc: adjustable head restraints, rear seat bag hook | Standard |
| 5-speed manual transmission | Standard |
| Solar glass | Standard |
| 4-wheel anti-lock brakes (ABS) -inc: electronic brake force distribution (EBD), brake assist | Standard |
| Rear seat heat ducts | Standard |
| (4) assist grips | Standard |
| Multi-link rear suspension | Standard |
| (6) luggage net holders | Standard |
| 2.5 MPH bumpers | Standard |
| Rear center armrest w/cupholders | Standard |
| Front center console -inc: fixed armrest, storage box, (2) cupholders | Standard |
| Driver/front passenger side impact air bags | Standard |
| Indicators -inc: cruise, turn signal/hazard, high beam, fog lights, parking brake, triple turn signal | Standard |
| 110-amp alternator | Standard |
| Cargo area 12V pwr outlet | Standard |
| Warning lights -inc: oil pressure, battery charge, door ajar, air bag, seatbelt, low fuel, trunk lid open, brake oil, check engine, ABS, TPMS, ESC, EPS | Standard |
| Locking glove compartment | Standard |
| Traction control system (TCS) w/electronic stability control (ESC) | Standard |
| Black door handles | Standard |
| Rear intermittent wiper w/washer | Standard |
| Body-color rear spoiler w/LED lights | Standard |
| 3-point seatbelts for all positions -inc: front pretensioners, front load limiters | Standard |
| MacPherson strut front suspension w/coil springs | Standard |
| Front crumple zone | Standard |
| (2) front 12V pwr outlet | Standard |
| Black side sill molding | Standard |
| Pwr door & liftgate locks | Standard |
| P225/60R17 LRR tires | Standard |
| Rear window defogger w/timer | Standard |
| Motor driven pwr rack & pinion engine-rpm-sensing steering (MDPS) | Standard |
