2024 Jeep Grand Wagoneer specs & colors

$91,945
Starting MSRP
Current listing price
2024 Jeep Grand Wagoneer

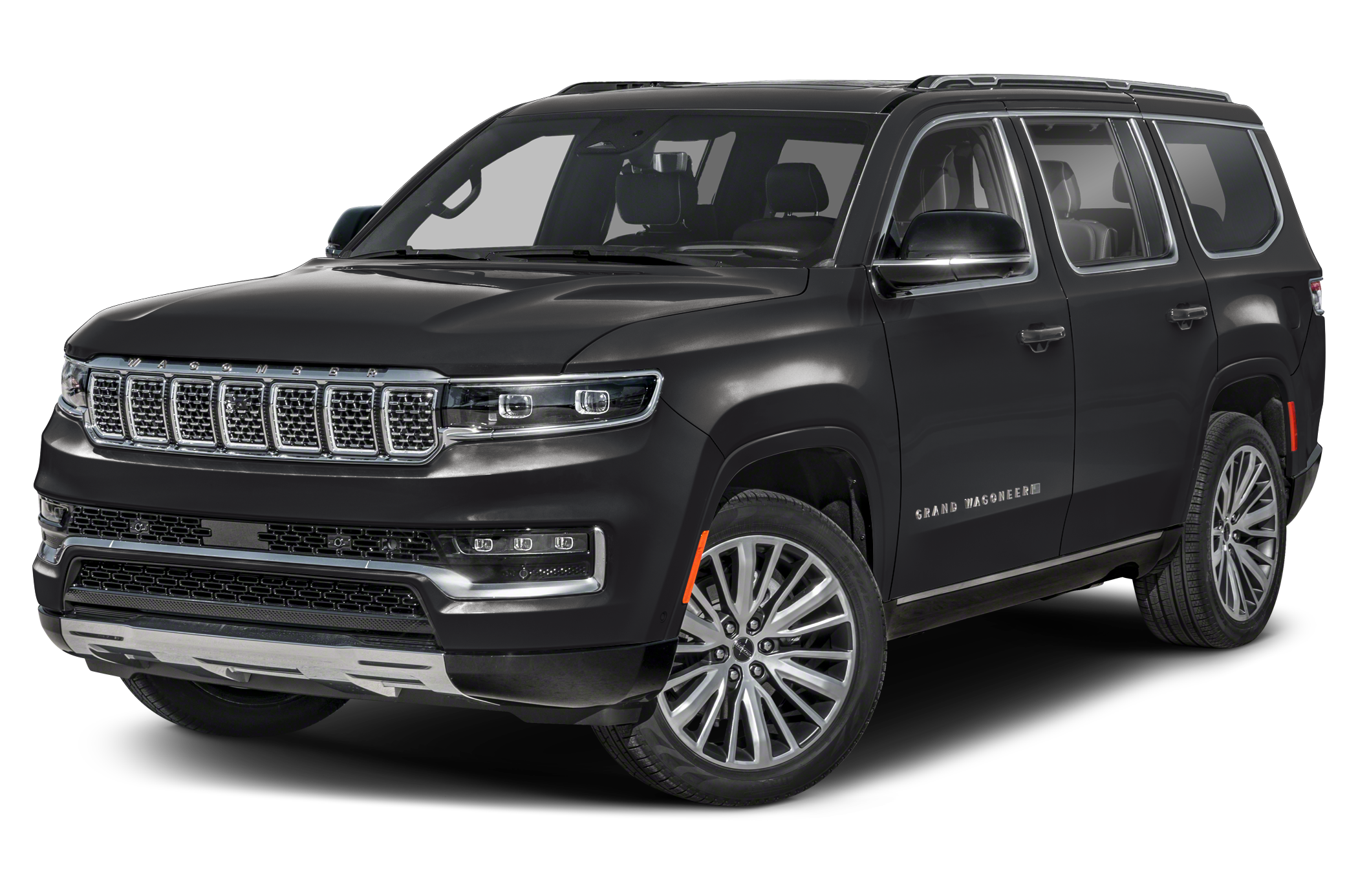

Showing the 2024 Jeep Grand Wagoneer 4x4

Shop Now

Key specs

Color options

Interior

Sea Salt / Black


Black / Alloy / Black


Packages

$0

Starting MSRP

  • Engine: 3.0L I6 Hurricane HO Twin Turbo ESS
  • Transmission: 8-Speed Automatic (8HP75)

$595

Starting MSRP

  • 2nd Row Dual Charge-Only USB Ports
  • 8 Passenger Seating
  • GVWR: 7,800 lbs

Flexible Seating Group

$4,495

Starting MSRP

  • Active Driving Assist System
  • Drowsy Driver Detection
  • Intersection Collision Assist System

Convenience Group III

See all packages

$1,870

Starting MSRP

  • Chrome Tow Hooks
  • Trailer Brake Control
  • Locking In-Vehicle Safe

HD Trailer Tow Package

$395

Starting MSRP

  • All-Season Floor Mats
  • Cargo Tray

$2,595

Starting MSRP

  • Video USB Port
  • Seatback Video Screens
  • Amazon Fire TV Built-In

Specifications

Front Wheel Size 20 X 9 in
Rear Wheel Size 20 X 9 in
Spare Wheel Size Full-Size in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Aluminum
Cold Cranking Amps @ 0° F (Primary) 700
Maximum Alternator Capacity (amps) 230
Engine Type Twin Turbo Premium Unleaded I-6
Displacement 3.0 L/183
SAE Net Horsepower @ RPM 510 @ 5700
SAE Net Torque @ RPM 500 @ 3500
Engine Oil Cooler None
EPA Fuel Economy Est - Hwy 20 MPG
Cruising Range - City 371.00 mi
EPA Fuel Economy Est - City 14 MPG
Fuel Economy Est-Combined 17 MPG
Cruising Range - Hwy 530.00 mi
Estimated Battery Range N/A mi
Drivetrain Four Wheel Drive
Trans Type 8
Trans Description Cont. Automatic w/OD
Trans Description Cont. Again N/A
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans Power Take Off N/A
Final Drive Axle Ratio (:1) N/A
Transfer Case Model Electronic
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A
Transfer Case Power Take Off No
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67
Suspension Type - Front Short And Long Arm
Suspension Type - Rear Multi-Link
Axle Type - Front Independent
Axle Type - Rear Independent
Frame Type N/A
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.9 in
Rear Brake Rotor Diam x Thickness 14.8 in
Drum - Rear (Yes or ) N/A
Fuel Tank Capacity, Approx 26.5 gal
Aux Fuel Tank Capacity, Approx N/A gal
Steering Type Rack-Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 38 ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size P275/55TR20
Rear Tire Size P275/55TR20
Spare Tire Size Full-Size
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Wt Distributing Hitch - Max Trailer Wt. 8200 lbs
Wt Distributing Hitch - Max Tongue Wt. 820 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity 8200 lbs
Base Curb Weight 6412 lbs
Curb Weight - Front N/A lbs
Curb Weight - Rear N/A lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight N/A lbs
As Spec'd Payload N/A lbs
Maximum Payload Capacity N/A lbs
Gross Combined Wt Rating 15000 lbs
Gross Axle Weight Rating N/A lbs
Curb Weight N/A lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 7700.00 lbs
Passenger Capacity 7
Front Head Room 41.3 in
Front Leg Room 40.9 in
Front Shoulder Room 66.1 in
Front Hip Room 63.4 in
Second Head Room 40 in
Second Leg Room 42.7 in
Second Shoulder Room 65.2 in
Second Hip Room 63 in
Third Head Room 39 in
Third Leg Room 36.6 in
Third Shoulder Room 64.4 in
Third Hip Room 51.6 in
Wheelbase 123 in
Length, Overall w/rear bumper N/A in
Length, Overall 214.7 in
Width, Max w/o mirrors 83.6 in
Height, Overall 75.6 in
Track Width, Front 68.5 in
Track Width, Rear 68.3 in
Overhang, Front N/A in
Overhang, Rear w/o bumper N/A in
Cab to End of Frame N/A in
Ground to Top of Load Floor N/A in
Ground Clearance, Front N/A in
Ground Clearance, Rear N/A in
Min Ground Clearance 10 in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Cargo Area Length @ Floor to Seat 1 N/A in
Cargo Area Length @ Floor to Seat 2 N/A in
Cargo Area Length @ Floor to Seat 3 N/A in
Cargo Box Width @ Top, Rear N/A in
Cargo Area Width @ Beltline N/A in
Cargo Box Width @ Floor N/A in
Cargo Box Width @ Wheelhousings N/A in
Cargo Box (Area) Height N/A in
Liftover Height 31.9 in
Tailgate Width N/A in
Cargo Volume N/A ft³
Cargo Volume to Seat 1 94.2 ft³
Cargo Volume to Seat 2 70.9 ft³
Cargo Volume to Seat 3 27.4 ft³
Ext'd Cab Cargo Volume N/A ft³
19 McIntosh Speakers Standard
950w Regular Amplifier Standard
Radio: Uconnect 5 Nav w/12.0" Display Standard
3 LCD Monitors In The Front Standard
Integrated Roof Antenna Standard
Connected Travel & Traffic Services Real-Time Traffic Display Standard
Streaming Audio Standard
AM/FM/HD/Satellite w/Seek-Scan, Clock, Speed Compensated Volume Control, Aux Audio Input Jack, Steering Wheel Controls, Voice Activation, Radio Data System and External Memory Control Standard
Digital Signal Processor Standard
Stainless Steel Side Windows Trim and Chrome Rear Window Trim Standard
Roof Rack Rails Only Standard
Body-Colored Rear Step Bumper w/Chrome Rub Strip/Fascia Accent Standard
Perimeter/Approach Lights Standard
Black Power w/Tilt Down Heated Side Mirrors w/Driver Auto Dimming, Power Folding and Turn Signal Indicator Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Standard
Power Liftgate Rear Cargo Access Standard
Laminated Glass Standard
Express Open/Close Sliding And Tilting Glass 1st And 2nd Row Sunroof w/Power Sunshade Standard
Headlights-Automatic Highbeams Standard
Full-Size Spare Tire Mounted Inside Under Cargo Standard
Body-Colored Door Handles Standard
LED Brakelights Standard
Auto On/Off Projector Beam Led Low/High Beam Auto High-Beam Daytime Running Lights Preference Setting Headlamps w/Delay-Off Standard
Chrome Grille Standard
Tires: 275/55R20 BSW All Season (STD) Standard
Fixed Glass 3rd Row Sunroof w/Power Sunshade Standard
Galvanized Steel/Aluminum Panels Standard
Wheels: 20" x 9.0" Premium 3 Aluminum (STD) Standard
Power Running Boards Standard
Front Fog Lamps Standard
Chrome Bodyside Insert and Body-Colored Fender Flares Standard
Fixed Rear Window w/Fixed Interval Wiper, Heated Wiper Park and Defroster Standard
Cornering Lights Standard
Deep Tinted Glass Standard
Body-Colored Front Bumper w/Chrome Rub Strip/Fascia Accent and Chrome Bumper Insert Standard
Aluminum Spare Wheel Standard
Speed Sensitive Rain Detecting Variable Intermittent Wipers w/Heated Wiper Park Standard
FOB Controls -inc: Cargo Access, Remote Start and Air Suspension Standard
HVAC -inc: Underseat Ducts, Headliner/Pillar Ducts and Console Ducts Standard
Full Cloth Headliner Standard
Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage, Conversation Mirror, Rear Console w/Storage, 3 12V DC Power Outlets and 1 120V AC Power Outlet Standard
Day-Night Auto-Dimming Rearview Mirror Standard
Fade-To-Off Interior Lighting Standard
Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats Standard
Illuminated Locking Glove Box Standard
3 12V DC Power Outlets Standard
Interior Trim -inc: Genuine Wood Instrument Panel Insert, Genuine Wood Door Panel Insert, Genuine Wood Console Insert and Chrome/Metal-Look Interior Accents Standard
Outside Temp Gauge Standard
Power Anti-Whiplash w/Tilt Front Head Restraints and Fixed Rear Head Restraints Standard
Remote Releases -Inc: Proximity Cargo Access Standard
Illuminated Front Cupholder Standard
Memory Settings -inc: Driver Seat, Door Mirrors, Steering Wheel, Audio and Pedals Standard
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Inclinometer, Altimeter, Oil Temperature, Transmission Fluid Temp, Engine Hour Meter, Trip Odometer and Trip Computer Standard
Cargo Features -inc: Cargo Tray/Organizer Standard
Compass Standard
Instrument Panel Covered Bin, Driver / Passenger And Rear Door Bins Standard
Heated Leather Steering Wheel Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button Standard
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination Standard
Redundant Digital Speedometer Standard
Power Door Locks w/Autolock Feature Standard
Power Tilt/Telescoping Steering Column Standard
Head-Up Display Standard
Rear HVAC w/Separate Controls Standard
Cargo Area Concealed Storage Standard
Power 1st Row Windows w/Front And Rear 1-Touch Up/Down Standard
Trip Computer Standard
Smart Device Remote Engine Start Standard
14-Way Power Passenger Seat -inc: Power Recline, Height Adjustment, Fore/Aft Movement, Cushion Extension, Cushion Tilt, Massaging Lumbar Support and Power Cushion Side Bolster Support Standard
Leather Door Trim Insert Standard
Driver Foot Rest Standard
Carpet Floor Trim, Carpet And Rubber Mat Standard
Driver And Passenger Heated-Cushion, Driver And Passenger Heated-Seatback and Ventilated Front Seats Standard
Front And Rear Map Lights Standard
Perimeter Alarm Standard
Cruise Control w/Steering Wheel Controls Standard
14-Way Power Driver Seat -inc: Power Recline, Height Adjustment, Cushion Extension, Seatback Side Bolster Support, Fore/Aft Movement, Cushion Tilt, Massaging Lumbar Support and Power Cushion Side Bolster Support Standard
Driver And Front Passenger Armrests Front Center Armrest w/Storage and Rear Center Armrest w/Storage Standard
Garage Door Transmitter Standard
Air Filtration Standard
Valet Function Standard
Fixed 60-40 Bench Leather 3rd Row Seat Front, Power Recline, 3 Power and Adjustable Head Restraints Standard
Power Adjustable Pedals Standard
Bucket Folding Bucket Front Facing Heated Power Reclining Fold Forward Seatback Leather Rear Seat w/Power Fore/Aft and Power Cushion Tilt Standard
Adaptive w/Traffic Stop-Go Standard
4G LTE Wi-Fi Hot Spot Mobile Hotspot Internet Access Standard
Front Seats w/Massaging Driver Lumbar Standard
Digital/Analog Appearance Standard
Driver Information Center Standard
Sentry Key Immobilizer Standard
3 12V DC Power Outlets and 1 120V AC Power Outlet Standard
2 Seatback Storage Pockets Standard
Power Fuel Flap Locking Type Standard
Jeep Connect Tracker System Standard
Cargo Net Standard
Voice Activated Dual Zone Front And Rear Automatic Air Conditioning Standard
Cargo Space Lights Standard
Smart Device Integration Standard
Leather Trimmed Bucket Seats Standard
Rear Cupholder Standard
Power Rear Windows, Fixed 3rd Row Windows and w/Manual 2nd Row Sun Blinds Standard
Proximity Key For Doors And Push Button Start Standard
Trailer Wiring Harness Standard
Gas-Pressurized Shock Absorbers Standard
Engine Auto Stop-Start Feature Standard
Automatic Full-Time Four-Wheel Drive Standard
230 Amp Alternator Standard
Transmission w/Driver Selectable Mode and Sequential Shift Control w/Steering Wheel Controls Standard
Front And Rear Anti-Rolls Standard
700CCA Maintenance-Free Battery w/Run Down Protection Standard
26.5 Gal. Fuel Tank Standard
Class IV Towing Equipment -inc: Hitch and Trailer Sway Control Standard
Electronic Transfer Case Standard
Transmission: 8-Speed Automatic (8HP75) (STD) Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Descent Control, Hill Hold Control and Electric Parking Brake Standard
Electric Power-Assist Speed-Sensing Steering Standard
Electro-Mechanical Limited Slip Differential Standard
3.92 Rear Axle Ratio Standard
Multi-Link Rear Suspension w/Air Springs Standard
Short And Long Arm Front Suspension w/Air Springs Standard
Engine: 3.0L I6 Hurricane HO Twin Turbo ESS (STD) Standard
GVWR: 7,700 lbs (STD) Standard
Automatic w/Driver Control Height Adjustable Adaptive Suspension Standard
Permanent Locking Hubs Standard
1470# Maximum Payload Standard
Normal Duty Suspension Standard
Dual Stainless Steel Exhaust Standard
4-Corner Auto-Leveling Suspension Standard
Collision Mitigation-Rear Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Surround View Back-Up Camera w/Washer Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners Standard
Side Impact Beams Standard
Front Camera Standard
Collision Mitigation-Front Standard
Active Lane Management Lane Departure Warning Standard
Driver And Passenger Knee Airbag Standard
Tire Specific Low Tire Pressure Warning Standard
Curtain 1st, 2nd And 3rd Row Airbags Standard
Aerial View Camera System Standard
Right Side Camera Standard
Left Side Camera Standard
Selec-Terrain ABS And Driveline Traction Control Standard
Wagoneer Connect Emergency Sos Standard
ParkSense Automated Parking Sensors Standard
Forward Collision Warning-Plus Standard
Active Lane Management Lane Keeping Assist Standard
Blind Spot Detection Blind Spot Standard
Dual Stage Driver And Passenger Front Airbags Standard
Airbag Occupancy Sensor Standard
Rear Child Safety Locks Standard
Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard

Compare trims

2024 Jeep Grand Wagoneer

Wondering which trim is right for you?
