2002 Mercury Villager Value specs & colors

Starting MSRP
Current listing price

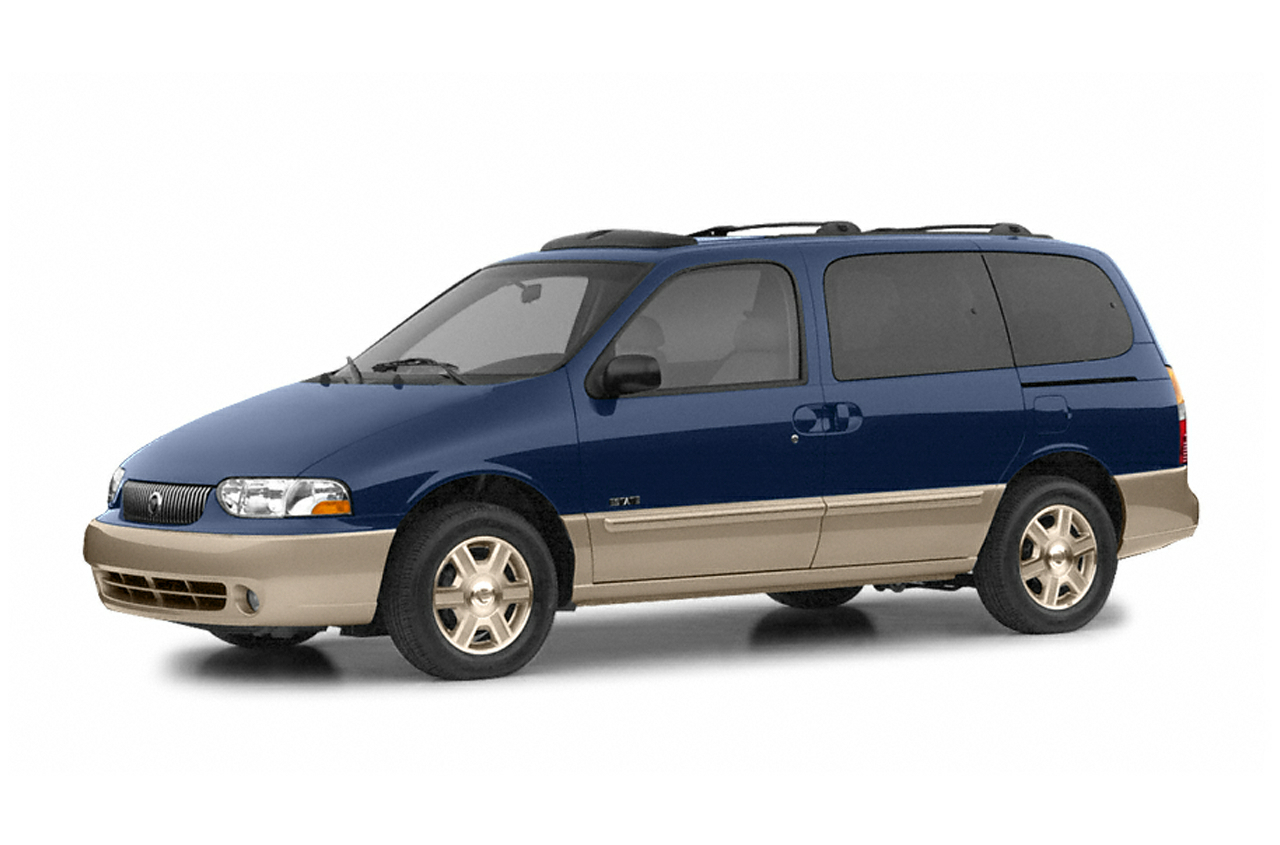

Showing the 2002 Mercury Villager 5dr Wgn Value

Shop Now

Key specs

Color options



Medium Mocha



Starting MSRP


EPA Classification Minivans

Front Wheel Material Steel
Rear Wheel Size 15 x 5.5 in
Spare Wheel Material Steel
Front Wheel Size 15 x 5.5 in
Spare Wheel Size 16 x 4.0 in
Rear Wheel Material Steel

Maximum Alternator Capacity (amps) 125
Cold Cranking Amps @ 0° F (Primary) 450

Displacement 3.3L/201
SAE Net Horsepower @ RPM 170 @ 4800
SAE Net Torque @ RPM 200 @ 2800
Engine Type Gas V6

Cruising Range - Hwy 460.00 mi
EPA Fuel Economy Est - Hwy 23 MPG
Estimated Battery Range N/A mi
EPA Fuel Economy Est - City 17 MPG
EPA MPG Equivalent - Combined N/A
Fuel Economy Est-Combined N/A MPG
EPA MPG Equivalent - City N/A
Cruising Range - City 340.00 mi
EPA MPG Equivalent - Hwy N/A

Fourth Gear Ratio (:1) 0.69
Drivetrain Front Wheel Drive
Trans Description Cont. Automatic w/OD
Final Drive Axle Ratio (:1) 3.789
Reverse Ratio (:1) 2.27
Trans Description Cont. Again Not Available
Trans Type 4
Second Gear Ratio (:1) 1.55
Third Gear Ratio (:1) 1.00
First Gear Ratio (:1) 2.79

Suspension Type - Front (Cont.) w/Lower Control Arm
Suspension Type - Rear Leaf Spring
Suspension Type - Rear (Cont.) w/Beam Axle
Suspension Type - Front MacPherson Strut

Brake ABS System Not Available
Rear Brake Rotor Diam x Thickness Not Available in
Disc - Front (Yes or ) Yes
Brake Type Power
Drum - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 10.8 x 1.02 in
Brake ABS System (Second Line) N/A
Disc - Rear (Yes or ) Not Available

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 20.0 gal

Turning Diameter - Wall to Wall N/A ft
Lock to Lock Turns (Steering) 3.0
Steering Ratio (:1), Overall 17.5
Turning Diameter - Curb to Curb 39.9 ft
Steering Type Power Rack & Pinion

Spare Tire Size T135/90D16
Front Tire Size P215/70R15
Rear Tire Size P215/70R15

Dead Weight Hitch - Max Trailer Wt. 2000 lbs
Wt Distributing Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. 200 lbs

Base Curb Weight 3997 lbs

Third Hip Room 49.0 in
Min Ground Clearance 5.4 in
Track Width, Rear 63.4 in
Track Width, Front 63.4 in
Width, Max w/o mirrors 74.9 in
Cargo Volume to Seat 2 66.7 ft³
Second Shoulder Room 64.6 in
Third Shoulder Room 62.4 in
Rear Door Opening Width 50.6 in
Height, Overall 70.1 in
Passenger Volume 161.2 ft³
Front Hip Room 56.5 in
Cargo Box Width @ Wheelhousings 48.8 in
Front Shoulder Room 62.3 in
Cargo Volume to Seat 3 25.3 ft³
Front Leg Room 39.9 in
Cargo Area Width @ Beltline 76.2 in
Cargo Area Length @ Floor to Seat 3 N/A in
Second Leg Room 36.4 in
Front Head Room 39.7 in
Third Leg Room 36.3 in
Cargo Box (Area) Height 46.1 in
Cargo Volume to Seat 1 127.6 ft³
Third Head Room 38.0 in
Second Hip Room 64.9 in
Wheelbase 112.2 in
Trunk Volume N/A ft³
Length, Overall 194.9 in
Cargo Area Length @ Floor to Seat 1 88.8 in
Rear Door Opening Height 40.4 in
Second Head Room 40.1 in
Liftover Height N/A in
Passenger Capacity 7
Cargo Area Length @ Floor to Seat 2 54.8 in

Warning chimes-inc: safety belt, headlamps-on when door ajar Standard
Front wheel drive Standard
Rear pwr point outlet Standard
20 gallon fuel tank w/tether strapped fuel cap Standard
Color-keyed body-side moldings Standard
Fixed rear liftgate window Standard
Rear window defroster Standard
Front/rear cargo net Standard
4-speed automatic transaxle w/OD Standard
Color-keyed rear header w/red reflex finisher/satin aluminum nomenclature Standard
Cruise control w/fingertip controls, tap-up/tap-down feature Standard
Front side combination cornering lamps Standard
Under floor-mounted temporary mini spare tire Standard
Front side window defoggers Standard
Front floor mats w/driver side positive retention Standard
3rd row 3-passenger bench seat w/integrated armrests in rear trim panel, adjustable outboard head restraints Standard
LH 2nd row coat hook Standard
Full coverage rear floor mats Standard
Molded rear quarter trim panels Standard
Brake/shift interlock system Standard
AM/FM stereo radio w/cassette-inc: 4-speakers, 24-watts Standard
Dual-note horn Standard
City 17/hwy 23 (3.3L engine/4-speed auto trans) Standard
LEV certified (3.3L engine/4-speed auto trans) Standard
Battery saver feature (automatically turns off door-activated lights) Standard
Front passenger & RH/LH sliding door entry assist handles Standard
Black luggage rack w/side rails Standard
Front passenger underseat storage drawer w/mat Standard
Front air conditioning Standard
Full-length passenger/cargo compartment carpeting Standard
Rear liftgate w/gas-assist struts, pull-down assist handle Standard
Dual visors w/illuminated covered vanity mirrors Standard
Glove box w/lamp Standard
Remote keyless entry for doors & interior lamps-inc: 2 transmitters Standard
LH/RH sliding doors w/assist/grip locks, reflector markers Standard
Manual flip-out 2nd/3rd row body-side windows Standard
Rear window fixed interval wiper w/washer Standard
Cup holders-inc: (2) instrument panel slide out, (2) 2nd row, (3) 3rd row, (2) more w/2nd row bench folded down, (2) more w/3rd row bench folded down Standard
Satin aluminum plated grille w/new flying M emblem Standard
Interval windshield wipers w/cowl-mounted washer nozzles Standard
Child proof sliding door locks Standard
Remote hood release Standard
Dual interlock fuel filler door w/manual open Standard
Fuel pump shut-off switch (deactivates fuel pump when involved in a collision) Standard
Pwr rack & pinion steering Standard
Side door anti-intrusion beams Standard
Outboard automatic locking retractor seat belts (except driver) Standard
Driver & front passenger airbag Supplemental Restraint System (SRS) Standard
RH 3rd row open storage bin Standard
125-amp alternator Standard
Black instrument cluster gauges w/black mask Standard
Flat rear load floor Standard
Rear combination lamp w/single integral white back-up/red stopping/amber turning lens Standard
Color-keyed 5-mph front/rear bumpers Standard
Front passenger seatback map pocket Standard
MacPherson strut front suspension w/front stabilizer bar Standard
7-passenger seating Standard
3.3L (201) SOHC SMPI V6 engine Standard
Pwr door locks w/central locking, illuminated switches, anti-lockout feature Standard
Day/night rearview mirror Standard
15" wheels w/full wheel covers Standard
P215/70R15 all-season SBR BSW tires Standard
Column-mounted shift lever w/on/off OD button Standard
75 amp/hr maintenance-free battery Standard
Front door pwr windows-inc: illuminated switches, accessory delay & driver-side express down Standard
Child seat anchor points-inc: (2) in 2nd row, (2) outboard in 3rd row Standard
1st row outboard color-keyed 3-point safety belts w/pretensioners Standard
Instrument panel storage-inc: pull-out drawer, center console w/covered lid Standard
Front fixed antenna Standard
Leaf spring rear suspension w/gas-pressurized shocks, beam axle Standard
Pwr front disc/rear drum brakes w/self-adjusters Standard
Front door map pockets & upper storage bin Standard
Tripod half-shafts Standard
Front shoulder height adjustable belt Standard
Dual pwr outside mirrors Standard
5-mph front/rear bumpers Standard
3.79 axle ratio Standard
Lights-inc: front dome w/time delay, 2nd row dome, RH/LH sliding door step lamps w/time delay, LH liftgate lamp Standard
Positive shut-off registers (except center vent) Standard
Brake/shift interlock system Standard
Platinum tipped spark plugs Standard
3rd row center color-keyed lap safety belt Standard
Anti-theft system w/alarm & starter interrupt Standard
Monotone paint Standard
Wrap around instrument panel Standard
Flush-mounted solar tinted glass Standard
2nd row 2-passenger bench seat Standard
Aerodynamic halogen complex reflector headlamps w/integral turning lamps Standard
Tilt steering column Standard
Jack tool storage bag located under 3rd row seat Standard
2nd/3rd row outboard color-keyed 3-point safety belts Standard
High-capacity radiator w/tethered cap Standard
Analog instrument cluster-inc: 105-mph speedometer, trip odometer, tachometer, fuel/coolant temp gauges Standard
Molded full cloth headliner Standard
Cloth reclining front bucket seats-inc: adjustable head restraints Standard
Warning lamps-inc: brakes, battery, check engine, door ajar, seat belt, airbag readiness, cruise control indicator, OD, low fuel, low washer fluid, high beams Standard
