2016 Nissan NV200 S specs & colors

$20,870
Starting MSRP
Current listing price

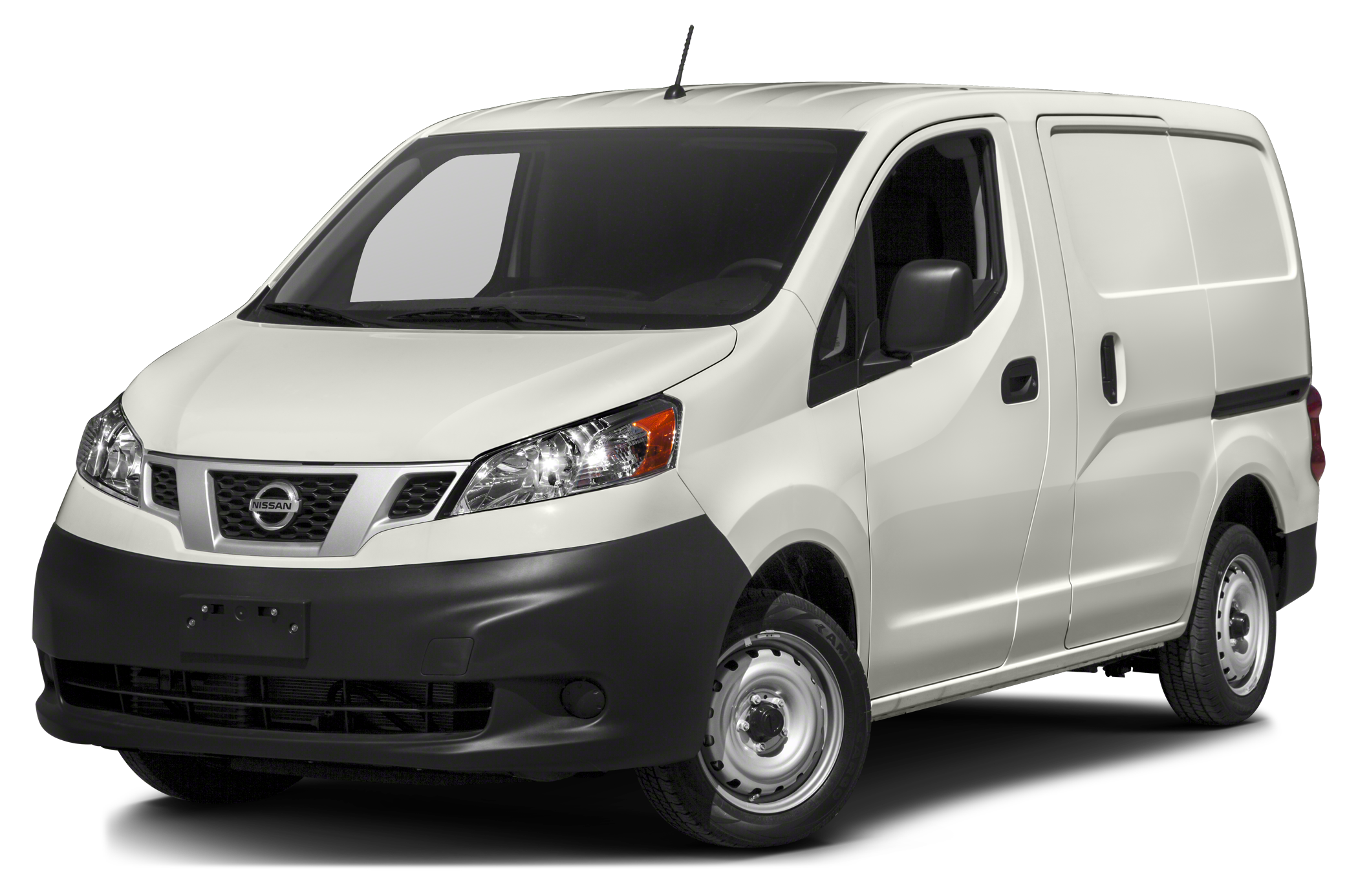

2016 Nissan NV200 S

Showing the 2016 Nissan NV200 I4 S

Shop Now

Key specs

Color options

Interior

Charcoal


Packages

$190

Starting MSRP

  • back door glass w/privacy
  • Back Door Glass Defroster
  • Interior Rear View Mirror

Specifications

Rear Door Type Split Swing-Out
Front Wheel Size 15 X 5.5 in
Rear Wheel Size 15 X 5.5 in
Spare Wheel Size Full-Size in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel
Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) 110
Engine Type Regular Unleaded I-4
Displacement 2.0 L/122
SAE Net Horsepower @ RPM 131 @ 5200
SAE Net Torque @ RPM 139 @ 4800
Engine Oil Cooler None
EPA Fuel Economy Est - Hwy 26 (Est) MPG
Cruising Range - City 348.00 mi
EPA Fuel Economy Est - City 24 (Est) MPG
Fuel Economy Est-Combined 25 (Est) MPG
Cruising Range - Hwy 377.00 mi
Estimated Battery Range N/A mi
Drivetrain Front Wheel Drive
Trans Type 1
Trans Description Cont. CVT w/OD
Trans Description Cont. Again N/A
First Gear Ratio (:1) 2.35 - 0.39
Reverse Ratio (:1) 1.75
Trans Power Take Off N/A
Final Drive Axle Ratio (:1) N/A
Transfer Case Model None
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A
Transfer Case Power Take Off No
Suspension Type - Front Strut
Suspension Type - Rear Leaf
Axle Type - Front Independent
Axle Type - Rear Non-Independent
Frame Type N/A
Side Door Type Sliding
Brake Type Front Disc/Rear Drum
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) N/A
Front Brake Rotor Diam x Thickness 11.1 in
Rear Brake Rotor Diam x Thickness 9 in
Drum - Rear (Yes or ) Yes
Fuel Tank Capacity, Approx 14.5 gal
Aux Fuel Tank Capacity, Approx N/A gal
Steering Type Rack-Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 36.7 ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size P185/60TR15
Rear Tire Size P185/60TR15
Spare Tire Size Full-Size
Dead Weight Hitch - Max Trailer Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. N/A lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity N/A lbs
Base Curb Weight 3252 lbs
Curb Weight - Front 1980 lbs
Curb Weight - Rear 1272 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 3252.00 lbs
As Spec'd Payload 1499.00 lbs
Maximum Payload Capacity 1499.00 lbs
Gross Combined Wt Rating N/A lbs
Gross Axle Weight Rating N/A lbs
Curb Weight 3252.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 4751.00 lbs
Passenger Capacity 2
Front Head Room 41.7 in
Front Leg Room 42.6 in
Front Shoulder Room 54.1 in
Front Hip Room 51.3 in
Second Head Room N/A in
Second Leg Room N/A in
Second Shoulder Room N/A in
Second Hip Room N/A in
Wheelbase 115.2 in
Length, Overall w/rear bumper N/A in
Length, Overall 186.3 in
Width, Max w/o mirrors 68.1 in
Height, Overall 73.7 in
Overhang, Front N/A in
Overhang, Rear w/o bumper N/A in
Cab to End of Frame N/A in
Ground to Top of Load Floor 21.1 in
Ground Clearance, Front 6.5 in
Ground Clearance, Rear 6.5 in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Side Door Opening Height N/A in
Side Door Opening Width N/A in
Step Up Height - Front N/A in
Step Up Height - Side N/A in
Cargo Area Length @ Floor to Console N/A in
Cargo Area Length @ Floor to Seat 1 82.8 in
Cargo Box Width @ Top, Rear N/A in
Cargo Area Width @ Beltline 54.8 in
Cargo Box Width @ Floor N/A in
Cargo Box Width @ Wheelhousings 48 in
Cargo Box (Area) Height 53 in
Tailgate Width N/A in
Cargo Volume 122.7 ft³
Ext'd Cab Cargo Volume N/A ft³
Radio: AM/FM/CD -inc: auxiliary input and 2 front door mounted speakers Standard
Radio w/Seek-Scan and Clock Standard
Integrated Roof Antenna Standard
Steel Spare Wheel Standard
Black Rear Bumper Standard
Fixed Interval Wipers Standard
Light Tinted Glass Standard
Black Front Bumper Standard
Silver Grille Standard
Wheels: 15" Steel w/Center Caps Standard
Split Swing-Out Rear Cargo Access Standard
Fully Galvanized Steel Panels Standard
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Black Door Handles Standard
Sliding Rear Doors Standard
Wheels w/Silver Accents Standard
Aero-Composite Halogen Daytime Running Headlamps Standard
Black Manual Remote Side Mirrors w/Convex Spotter and Manual Folding Standard
Black Side Windows Trim Standard
Tires: 185/60R15 High-Load AS Standard
Air Filtration Standard
Fade-To-Off Interior Lighting Standard
Full Carpet Floor Covering Standard
6-Way Driver Seat Standard
Full Cloth Headliner Standard
Front Cupholder Standard
1 12V DC Power Outlet Standard
Analog Appearance Standard
Immobilizer Standard
Trip Computer Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Standard
Full Floor Console w/Storage and 1 12V DC Power Outlet Standard
Front Map Lights Standard
Cloth Seat Trim Standard
Front Bucket Seats -inc: Driver 6-way adjustable seat w/manual lumbar and armrest, passenger 4-way adjustable seat and height-adjustable front head restraints Standard
Manual Air Conditioning Standard
Cargo Space Lights Standard
4-Way Passenger Seat -inc: Fold Flat Standard
Vinyl/Rubber Floor Trim Standard
Gauges -inc: Speedometer, Odometer, Trip Odometer and Trip Computer Standard
Urethane Gear Shifter Material Standard
Dashboard Storage, Driver And Passenger Door Bins and 1st Row Underseat Storage Standard
Driver Foot Rest Standard
1500# Maximum Payload Standard
Single Stainless Steel Exhaust Standard
Leaf Rear Suspension w/Leaf Springs Standard
Engine: 2.0L DOHC 16-Valve 4 Cylinder Standard
14.5 Gal. Fuel Tank Standard
Strut Front Suspension w/Coil Springs Standard
Front-Wheel Drive Standard
GVWR: 4,751 lbs Standard
49-Amp/Hr Maintenance-Free Battery w/Run Down Protection Standard
5.407 Axle Ratio Standard
Front Disc/Rear Drum Brakes w/4-Wheel ABS, Front Vented Discs and Brake Assist Standard
Transmission: Xtronic Continuously Variable (CVT) Standard
Gas-Pressurized Shock Absorbers Standard
Front Anti-Roll Bar Standard
Electric Power-Assist Speed-Sensing Steering Standard
110 Amp Alternator Standard
Dual Stage Driver And Passenger Front Airbags Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Electronic Stability Control (ESC) Standard
Low Tire Pressure Warning Standard
ABS And Driveline Traction Control Standard
Airbag Occupancy Sensor Standard
Curtain 1st Row Airbags Standard
Side Impact Beams Standard
