2013 Nissan NV Passenger NV3500 HD S specs & colors

Full-size Passenger Van

Change trim
MSRP
3500 V6 S
$31,990
3500 V8 S
$32,890
3500 V6 SV
$34,190
3500 V8 SV
$35,090
3500 V8 SL
$37,690
$31,990
Starting MSRP
Current listing price

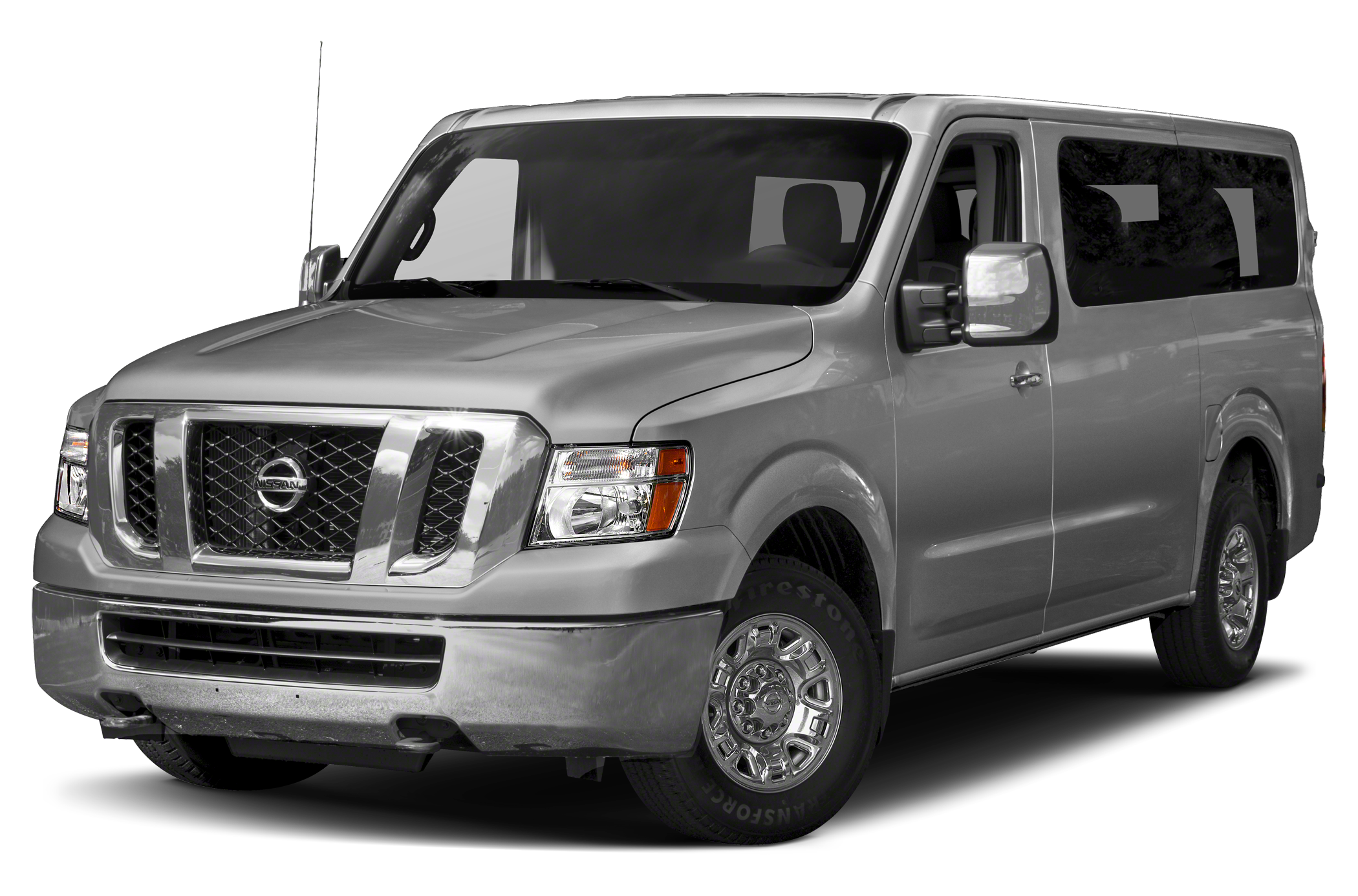

2013 Nissan NV Passenger NV3500 HD S

Showing the 2013 Nissan NV Passenger NV3500 HD 3500 V6 S

Shop Now

Key specs

Color options

Interior
Medium Mocha

Packages

Specifications

Highlights

Gas V6
Engine Type
-
MPG
261 hp
Horsepower
12
Seating Capacity

Brakes

Not Available
Drum - Rear (Yes or )
N/A
Rear Brake Rotor Diam x Thickness
N/A
Front Brake Rotor Diam x Thickness
Yes
Disc - Rear (Yes or )
Yes
Disc - Front (Yes or )
Not Available
Brake ABS System (Second Line)
4-Wheel
Brake ABS System
Pwr
Brake Type

Electrical

N/A
Maximum Alternator Capacity (amps)
N/A
Cold Cranking Amps @ 0° F (Primary)

Engine

281 @ 4000
SAE Net Torque @ RPM
261 @ 5600
SAE Net Horsepower @ RPM
4.0L/241
Displacement
Gas V6
Engine Type
A/T
5-Speed A/T
Transmission Options
-
MPG
N/A
Total Cooling System Capacity

Measurements

N/A
Ext'd Cab Cargo Volume
N/A
Cargo Volume to Seat 4
N/A
Cargo Volume to Seat 3
N/A
Cargo Volume to Seat 2
N/A
Cargo Volume to Seat 1
N/A
Cargo Volume
N/A
Tailgate Width
56 in
Cargo Box (Area) Height
54 in
Cargo Box Width @ Wheelhousings
N/A
Cargo Box Width @ Floor
70 in
Cargo Area Width @ Beltline
N/A
Cargo Box Width @ Top, Rear
N/A
Cargo Area Length @ Floor to Seat 3
N/A
Cargo Area Length @ Floor to Seat 2
N/A
Cargo Area Length @ Floor to Seat 1
122 in
Cargo Area Length @ Floor to Console
20 in
Step Up Height - Side
19 in
Step Up Height - Front
N/A
Side Door Opening Width
N/A
Side Door Opening Height
62 in
Rear Door Opening Width
N/A
Rear Door Opening Height
8 in
Ground Clearance, Rear
8 in
Ground Clearance, Front
29 in
Ground to Top of Load Floor
N/A
Cab to End of Frame
N/A
Overhang, Rear w/o bumper
N/A
Overhang, Front
85 in
Height, Overall
80 in
Width, Max w/o mirrors
N/A
Length, Overall
241 in
Length, Overall w/rear bumper
146 in
Wheelbase
N/A
Fourth Hip Room
N/A
Fourth Shoulder Room
N/A
Fourth Leg Room
N/A
Fourth Head Room
N/A
Third Hip Room
N/A
Third Shoulder Room
N/A
Third Leg Room
N/A
Third Head Room
N/A
Second Hip Room
N/A
Second Shoulder Room
N/A
Second Leg Room
N/A
Second Head Room
N/A
Front Hip Room
N/A
Front Shoulder Room
N/A
Front Leg Room
N/A
Front Head Room
12
Passenger Capacity

Steering

N/A
Turning Diameter - Wall to Wall
N/A
Turning Diameter - Curb to Curb
N/A
Steering Ratio (:1), Overall
Hyrdaulic Recirculating Ball
Steering Type

Suspension

Solid Axle
Axle Type - Rear
Not Available
Axle Type - Front
Solid Axle
Suspension Type - Rear
Double Wishbone
Suspension Type - Front

Tires & Wheels

Steel
Spare Wheel Material
Steel
Rear Wheel Material
Steel
Front Wheel Material
17 x -TBD- in
Spare Wheel Size
17 x -TBD- in
Rear Wheel Size
17 x -TBD- in
Front Wheel Size
N/A
Spare Tire Size
N/A
Rear Tire Size
N/A
Front Tire Size

Weight & Capacity

0 lbs
Gross Vehicle Weight Rating
0 lbs
Total Option Weight
6,696 lbs
Curb Weight
N/A
Gross Axle Weight Rating
Not Available gal
Aux Fuel Tank Capacity, Approx
28 gal
Fuel Tank Capacity, Approx
N/A
Maximum Trailering Capacity
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
N/A
Wt Distributing Hitch - Max Tongue Wt.
N/A
Wt Distributing Hitch - Max Trailer Wt.
N/A
Dead Weight Hitch - Max Tongue Wt.
N/A
Dead Weight Hitch - Max Trailer Wt.
16,000 lbs
Gross Combined Wt Rating
-6,696 lbs
Maximum Payload Capacity
-6,696 lbs
As Spec'd Payload
6,696 lbs
As Spec'd Curb Weight
0 lbs
Option Weight - Rear
0 lbs
Option Weight - Front
3,013 lbs
Curb Weight - Rear
3,683 lbs
Curb Weight - Front
N/A
Base Curb Weight
