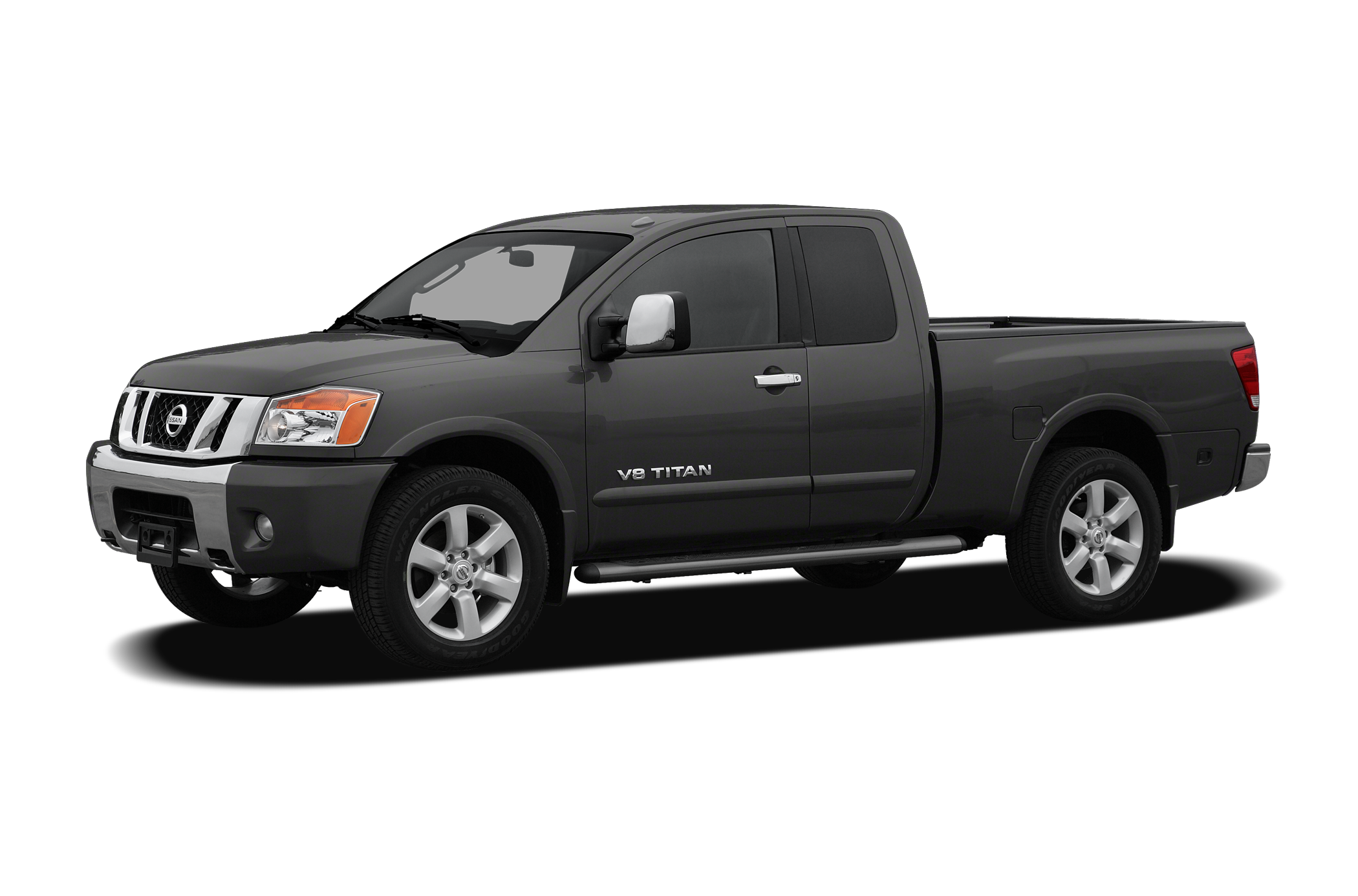

Showing the 2010 Nissan Titan 2WD King Cab SWB XE
Shop NowInterior
Dark Pumice
Medium Grey
| Front Wheel Size | 18 x 8.0 in |
| Rear Wheel Material | Steel |
| Rear Wheel Size | 18 x 8.0 in |
| Front Wheel Material | Steel |
| Spare Wheel Material | Steel |
| Spare Wheel Size | 18 x 8.0 in |
| Maximum Alternator Capacity (amps) | 130 |
| Cold Cranking Amps @ 0° F (Primary) | 650 |
| Engine Oil Cooler | Not Available |
| SAE Net Horsepower @ RPM | 317 @ 5200 |
| SAE Net Torque @ RPM | 385 @ 3400 |
| Engine Type | Gas V8 |
| Displacement | 5.6L/-TBD- |
| Cruising Range - Hwy | 476.00 mi |
| Fuel Economy Est-Combined | 14 MPG |
| EPA Fuel Economy Est - Hwy | 17 MPG |
| Cruising Range - City | 364.00 mi |
| EPA Fuel Economy Est - City | 13 MPG |
| Estimated Battery Range | N/A mi |
| Trans Type | 5 |
| Second Gear Ratio (:1) | 2.37 |
| Fifth Gear Ratio (:1) | 0.83 |
| Fourth Gear Ratio (:1) | 1.00 |
| Third Gear Ratio (:1) | 1.52 |
| Trans Description Cont. Again | Not Available |
| Transfer Case Gear Ratio (:1), Low | Not Available |
| Reverse Ratio (:1) | 2.61 |
| First Gear Ratio (:1) | 3.83 |
| Final Drive Axle Ratio (:1) | N/A |
| Transfer Case Gear Ratio (:1), High | Not Available |
| Transfer Case Power Take Off | Not Available |
| Transfer Case Model | Not Available |
| Trans Power Take Off | Not Available |
| Trans Description Cont. | Automatic w/OD |
| Drivetrain | Rear Wheel Drive |
| Suspension Type - Front | Double Wishbone |
| Axle Type - Front | N/A |
| Axle Type - Rear | Solid |
| Suspension Type - Rear | Multi-leaf |
| Frame Type | Fully-boxed |
| Brake ABS System | 4-Wheel |
| Front Brake Rotor Diam x Thickness | 13.8 x 1.2 in |
| Rear Brake Rotor Diam x Thickness | 12.6 x 0.6 in |
| Disc - Rear (Yes or ) | Yes |
| Brake Type | Pwr |
| Brake ABS System (Second Line) | Not Available |
| Disc - Front (Yes or ) | Yes |
| Drum - Rear (Yes or ) | Not Available |
| Aux Fuel Tank Capacity, Approx | Not Available gal |
| Fuel Tank Capacity, Approx | 28 gal |
| Steering Type | Pwr Rack & Pinion |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Wall to Wall | N/A ft |
| Turning Diameter - Curb to Curb | 45.6 ft |
| Front Tire Size | P265/70R18 |
| Rear Tire Size | P265/70R18 |
| Spare Tire Size | Full-Size |
| Fifth Wheel Hitch - Max Tongue Wt. | Not Available lbs |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Maximum Trailering Capacity | N/A lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 9500 lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | Not Available lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 950 lbs |
| Gross Axle Weight Rating | 7899.00 lbs |
| Total Option Weight | 0.00 lbs |
| As Spec'd Curb Weight | 4987.00 lbs |
| Base Curb Weight | N/A lbs |
| Gross Vehicle Weight Rating | 7000.00 lbs |
| Maximum Payload Capacity | 2013.00 lbs |
| Curb Weight | 4987.00 lbs |
| Curb Weight - Front | 2792 lbs |
| As Spec'd Payload | 2013.00 lbs |
| Gross Combined Wt Rating | 15099 lbs |
| Option Weight - Rear | 0.00 lbs |
| Curb Weight - Rear | 2195 lbs |
| Option Weight - Front | 0.00 lbs |
| Cab to End of Frame | N/A in |
| Wheelbase | 139.8 in |
| Length, Overall w/rear bumper | N/A in |
| Second Hip Room | 60.3 in |
| Length, Overall w/o rear bumper | 224.6 in |
| Overhang, Rear w/o bumper | N/A in |
| Ground Clearance, Front | 10.2 in |
| Cargo Box Width @ Wheelhousings | 50.0 in |
| Ground Clearance, Rear | 10.2 in |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Second Leg Room | 33.0 in |
| Cargo Box (Area) Height | N/A in |
| Width, Max w/o mirrors | 79.5 in |
| Front Shoulder Room | 65.1 in |
| Passenger Capacity | 6 |
| Overhang, Front | N/A in |
| Ground to Top of Load Floor | N/A in |
| Cargo Volume | N/A ft³ |
| Front Leg Room | 41.8 in |
| Cargo Box Length @ Floor | 79.1 in |
| Cargo Box Width @ Top, Rear | N/A in |
| Second Shoulder Room | 64.9 in |
| Height, Overall | 74.6 in |
| Front Head Room | 41.0 in |
| Cargo Box Width @ Floor | 63.8 in |
| Length, Overall | N/A in |
| Tailgate Width | N/A in |
| Second Head Room | 38.9 in |
| Front Hip Room | 61.3 in |
| Solar tint glass | Standard |
| Energy absorbing steering column | Standard |
| Cloth 40/20/40 front bench seat -inc: 4-way manual adjusters, flip-down center armrest, active head restraints | Standard |
| Pwr front/rear disc brakes | Standard |
| Black folding manual outside mirrors | Standard |
| Body-color front bumper | Standard |
| 5-speed automatic transmission -inc: tow/haul mode | Standard |
| Vehicle dynamic control (VDC) | Standard |
| (3) Assist handles | Standard |
| Driver & front passenger dual-stage airbags w/occupant sensor | Standard |
| Independent double wishbone front suspension | Standard |
| Vinyl floor covering | Standard |
| Variable intermittent windshield wipers | Standard |
| Cargo area high mount lamp | Standard |
| Front/rear door pockets | Standard |
| Removable locking tailgate | Standard |
| Fixed rear window | Standard |
| Manual door locks | Standard |
| Battery saver | Standard |
| Fixed rod antenna | Standard |
| Folding 60/40 rear bench seat -inc: flip-up seat cushions , 3-way height adjustable head restraints | Standard |
| (4) fixed tie down points inside bed | Standard |
| 12V pwr outlets | Standard |
| Instrumentation -inc: tachometer, tire pressure warning, coolant temp | Standard |
| 3-point seat belts for all positions | Standard |
| Driver & front passenger seat-mounted side-impact air bags | Standard |
| Full size conventional spare tire & wheel | Standard |
| Manual windows | Standard |
| 18" x 8" silver painted steel wheels | Standard |
| Electronic brake force distribution (EBD) | Standard |
| Front air conditioning w/manual temp control | Standard |
| 650 CCA battery | Standard |
| Manual day/night rearview mirror | Standard |
| Bucket type glove box | Standard |
| Multi-leaf rear suspension w/solid Dana axle | Standard |
| Rear wheel drive | Standard |
| Engine speed-sensitive pwr rack-&-pinion steering | Standard |
| Transmission oil cooler | Standard |
| Manual tilt steering column | Standard |
| 4-wheel anti-lock braking system (ABS) | Standard |
| 5.6L DOHC 32-valve V8 engine | Standard |
| AM/FM stereo w/CD player , (6) speakers | Standard |
| P265/70R18 all-season BSW tires | Standard |
| Lower anchors & tethers for children (LATCH) | Standard |
| Black grille | Standard |
| Active brake limited slip (ABLS) | Standard |
| 130 amp alternator | Standard |
| Roof-mounted curtain side-impact air bags w/rollover sensor | Standard |
| Stainless steel exhaust | Standard |
| Black door handles | Standard |
| (6) cup holders & (2) bottle holders | Standard |
| Bedside & tailgate top moldings | Standard |
| Front seat belt pretensioners & load limiters | Standard |
| Black rear step bumper | Standard |
| Front stabilizer bar | Standard |
| Tire pressure monitoring system | Standard |
