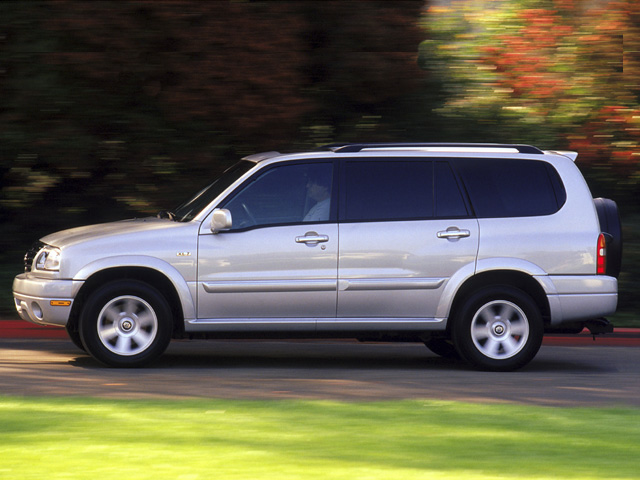

2002 Suzuki XL7 Standard specs & colors

Starting MSRP
Current listing price

Showing the 2002 Suzuki XL7 4dr Standard Manual 2WD

Shop Now

Key specs

Color options


No colors available



EPA Classification Sport Utility

Front Wheel Size 16 x 7 in
Rear Wheel Size 16 x 7 in
Spare Wheel Size 16 x 7 in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) 80

Engine Type Gas V6
Displacement 2.7L/167
SAE Net Horsepower @ RPM 183 @ 6000
SAE Net Torque @ RPM 180 @ 4000

EPA Fuel Economy Est - Hwy 20 MPG
Cruising Range - City 304.20 mi
EPA Fuel Economy Est - City 18 MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy 338.00 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi

Drivetrain Two Wheel Drive
Trans Type 5
Trans Description Cont. Manual w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 3.70
Second Gear Ratio (:1) 2.02
Third Gear Ratio (:1) 1.37
Fourth Gear Ratio (:1) 1.00
Fifth Gear Ratio (:1) 0.80
Reverse Ratio (:1) 4.47
Final Drive Axle Ratio (:1) 4.30
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A

Suspension Type - Front Independent Strut
Suspension Type - Rear 5-Link
Suspension Type - Front (Cont.) w/coil spring
Suspension Type - Rear (Cont.) w/coil spring

Brake Type Power
Brake ABS System Not Available
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Not Available
Front Brake Rotor Diam x Thickness N/A in
Rear Brake Rotor Diam x Thickness Not Available in
Drum - Rear (Yes or ) Yes

Fuel Tank Capacity, Approx 16.9 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Power
Steering Ratio (:1), Overall 20.5
Lock to Lock Turns (Steering) 3.8
Turning Diameter - Curb to Curb 38.7 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P235/60R16
Rear Tire Size P235/60R16
Spare Tire Size P235/60R16

Dead Weight Hitch - Max Trailer Wt. 3000 lbs
Dead Weight Hitch - Max Tongue Wt. 300 lbs
Wt Distributing Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity N/A lbs

Base Curb Weight 3560 lbs
Curb Weight - Front N/A lbs
Curb Weight - Rear N/A lbs
Maximum Payload Capacity N/A lbs
Curb Weight N/A lbs
Total Option Weight 0.00 lbs

Passenger Capacity 5
Passenger Volume 120.9 ft³
Front Head Room 40.0 in
Front Leg Room 41.4 in
Front Shoulder Room 52.8 in
Front Hip Room 50.7 in
Second Head Room 39.2 in
Second Leg Room 36.4 in
Second Shoulder Room 53.0 in
Second Hip Room 50.6 in
Third Head Room 38.9 in
Third Leg Room 31.3 in
Third Shoulder Room 49.6 in
Third Hip Room N/A in
Wheelbase 110.2 in
Length, Overall 183.6 in
Width, Max w/o mirrors 70.1 in
Height, Overall 67.5 in
Track Width, Front 59.1 in
Track Width, Rear 59.1 in
Min Ground Clearance 7.0 in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Cargo Area Length @ Floor to Seat 1 71.6 in
Cargo Area Length @ Floor to Seat 2 N/A in
Cargo Area Length @ Floor to Seat 3 N/A in
Cargo Area Width @ Beltline N/A in
Cargo Box Width @ Wheelhousings 42.5 in
Cargo Box (Area) Height 33.9 in
Liftover Height N/A in
Cargo Volume to Seat 1 73.0 ft³
Cargo Volume to Seat 2 42.0 ft³
Cargo Volume to Seat 3 6.6 ft³

Pwr mirrors Standard
Five-link solid axle w/coil springs Standard
Pwr front disc/rear drum brakes Standard
(7) position tilt steering wheel Standard
2.7L DOHC 24-valve V6 engine Standard
5-speed manual transmission w/OD Standard
Pwr door locks Standard
2nd row 60/40 split bench seat Standard
16" styled steel wheels Standard
Remote keyless entry Standard
Liquid-filled motor mounts Standard
Rear window defroster Standard
Independent strut front suspension w/stabilizer bar, coil springs Standard
P235/60R16 SBR all-season tires Standard
Pwr rack and pinion steering Standard
Rear door child safety locks Standard
Micron air filtration system Standard
Spare tire cover Standard
3-point seatbelts at all outboard seating positions Standard
LEV certified (2.7L engine/5-speed manual trans) Standard
Daytime running lamps Standard
Chrome plated door handles Standard
ETR AM/FM stereo w/in-dash CD player Standard
2nd row center lap belt Standard
Cruise control Standard
Full size spare Standard
Intermittent windshield wipers Standard
Roof rails Standard
Daytime running lights Standard
Privacy glass Standard
Automatic lighting system Standard
Driver & front passenger airbags Standard
Self-adjusting timing chain Standard
Front air conditioning Standard
Rear window wiper/washer Standard
Integrated crumple zones Standard
16.9 gallon fuel tank Standard
Steel ladder frame w/boxed rails Standard
Child seat tether anchors Standard
Front bucket seats w/adjustable armrests Standard
Rear wheel drive Standard
Pwr windows Standard
City 18/hwy 20 (2.7L engine/5-speed manual trans) Standard
Direct ignition system Standard
