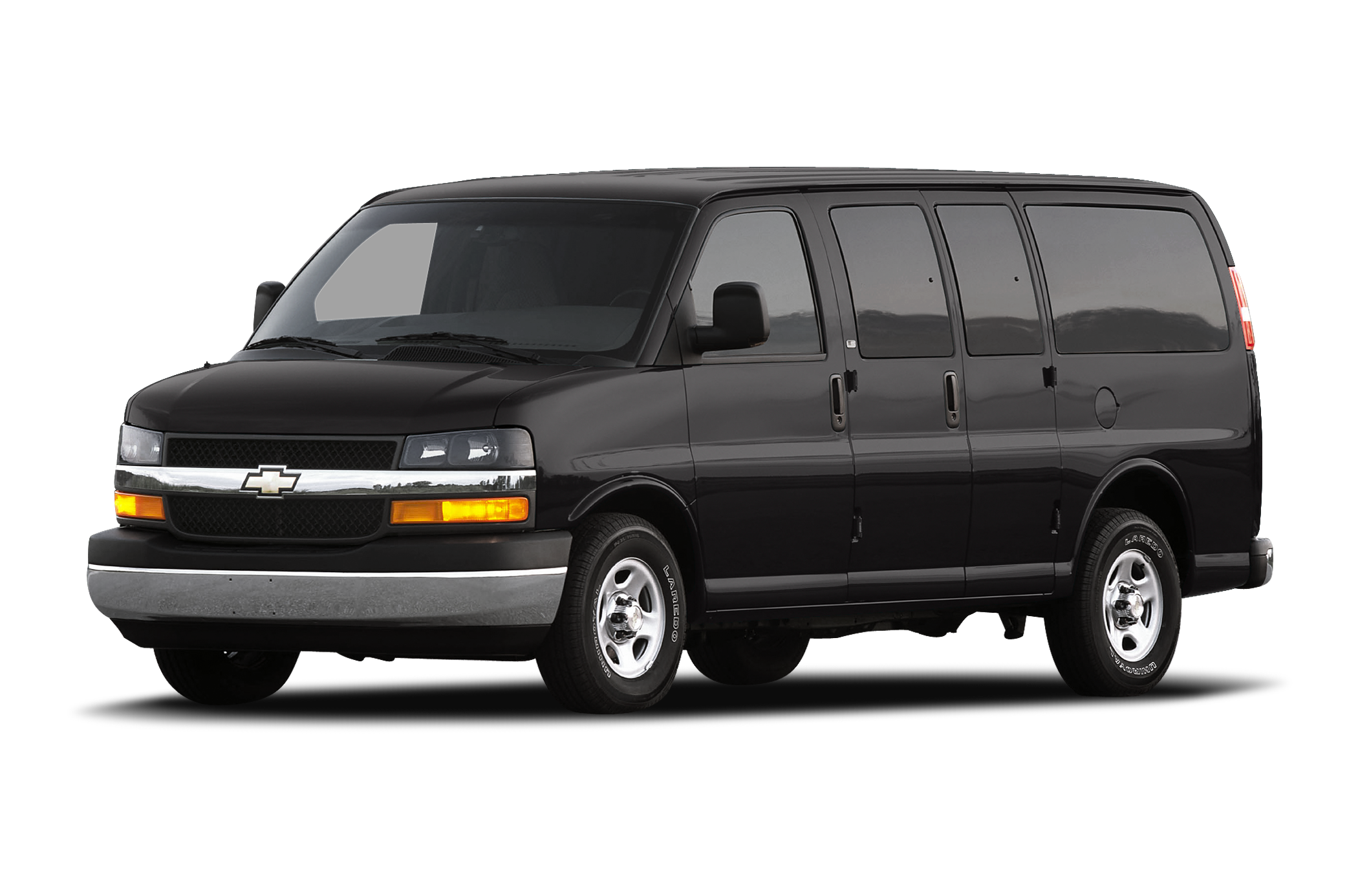

2007 Chevrolet Express 3500 specs & colors
Full-size Cargo Van
Change trim
MSRP
- RWD 3500 135" Y3H Paratransit $25,934
- RWD 3500 135" Y3G Mobility $25,934
- RWD 3500 135" $25,934
- RWD 3500 155" Y3H Paratransit $26,849
- RWD 3500 155" $26,849
- RWD 3500 135" $29,039
- RWD 3500 155" $30,704
$25,934
Starting MSRP
Current listing price
Current listing price
Showing the 2007 Chevrolet Express 3500 RWD 3500 135"
Shop NowKey specs
Color options
Interior
Taupe
Dark Pewter
Packages
Specifications
| Rear Door Type | Dual Swing-out |
| Front Wheel Size | 16 x -TBD- in |
| Rear Wheel Size | 16 x -TBD- in |
| Spare Wheel Size | 16 x -TBD- in |
| Front Wheel Material | Steel |
| Rear Wheel Material | Steel |
| Spare Wheel Material | Steel |
| Cold Cranking Amps @ 0° F (Primary) | 600 |
| Maximum Alternator Capacity (amps) | 105 |
| Engine Type | Gas V8 |
| Displacement | 4.8L/293 |
| SAE Net Horsepower @ RPM | 285 @ 5200 |
| SAE Net Torque @ RPM | 295 @ 4000 |
| Engine Oil Cooler | Yes |
| EPA Fuel Economy Est - Hwy | Not Available MPG |
| Cruising Range - City | 0.00 mi |
| EPA Fuel Economy Est - City | Not Available MPG |
| Fuel Economy Est-Combined | N/A MPG |
| Cruising Range - Hwy | 0.00 mi |
| Estimated Battery Range | N/A mi |
| Drivetrain | Rear Wheel Drive |
| Trans Type | 4 |
| Trans Description Cont. | HD Automatic w/OD |
| Trans Description Cont. Again | Not Available |
| First Gear Ratio (:1) | 2.48 |
| Second Gear Ratio (:1) | 1.48 |
| Third Gear Ratio (:1) | 1.00 |
| Fourth Gear Ratio (:1) | 0.75 |
| Reverse Ratio (:1) | 2.07 |
| Trans Power Take Off | Not Available |
| Final Drive Axle Ratio (:1) | N/A |
| Transfer Case Model | Not Available |
| Transfer Case Gear Ratio (:1), High | Not Available |
| Transfer Case Gear Ratio (:1), Low | Not Available |
| Transfer Case Power Take Off | Not Available |
| Suspension Type - Front | Independent Coil |
| Suspension Type - Rear | Hypoid Multi-Leaf |
| Axle Type - Front | Independent |
| Axle Type - Rear | Full-Floating |
| Frame Type | Ladder |
| Side Door Type | Swing-out |
| Brake Type | Pwr |
| Brake ABS System | 4-Wheel |
| Brake ABS System (Second Line) | Not Available |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 12.8 x 1.5 in |
| Rear Brake Rotor Diam x Thickness | 13 x 1.1 in |
| Drum - Rear (Yes or ) | Not Available |
| Fuel Tank Capacity, Approx | 31 gal |
| Aux Fuel Tank Capacity, Approx | Not Available gal |
| Steering Type | Pwr-Assisted |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Curb to Curb | N/A ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Front Tire Size | LT245/75R16E |
| Rear Tire Size | LT245/75R16E |
| Spare Tire Size | LT245/75R16E |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 6200 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 930 lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | Not Available lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | Not Available lbs |
| Maximum Trailering Capacity | N/A lbs |
| Base Curb Weight | N/A lbs |
| Curb Weight - Front | 2934 lbs |
| Curb Weight - Rear | 2305 lbs |
| Option Weight - Front | 0.00 lbs |
| Option Weight - Rear | 0.00 lbs |
| As Spec'd Curb Weight | 5239.00 lbs |
| As Spec'd Payload | 4361.00 lbs |
| Maximum Payload Capacity | 4361.00 lbs |
| Gross Combined Wt Rating | 12000 lbs |
| Gross Axle Weight Rating | 10384.00 lbs |
| Curb Weight | 5239.00 lbs |
| Total Option Weight | 0.00 lbs |
| Gross Vehicle Weight Rating | 9600.00 lbs |
| Passenger Capacity | 2 |
| Front Head Room | 40.2 in |
| Front Leg Room | 41.3 in |
| Front Shoulder Room | 68.8 in |
| Front Hip Room | 65.5 in |
| Second Head Room | N/A in |
| Second Leg Room | N/A in |
| Second Shoulder Room | N/A in |
| Second Hip Room | N/A in |
| Wheelbase | 135 in |
| Length, Overall w/rear bumper | 224.1 in |
| Length, Overall | N/A in |
| Width, Max w/o mirrors | 79.4 in |
| Height, Overall | 81.6 in |
| Overhang, Front | N/A in |
| Overhang, Rear w/o bumper | N/A in |
| Cab to End of Frame | N/A in |
| Ground to Top of Load Floor | 27.7 in |
| Ground Clearance, Front | 8.6 in |
| Ground Clearance, Rear | 7.6 in |
| Rear Door Opening Height | 49.4 in |
| Rear Door Opening Width | 57.0 in |
| Side Door Opening Height | 47.9 in |
| Side Door Opening Width | 44.1 in |
| Step Up Height - Front | 20.1 in |
| Step Up Height - Side | 20.9 in |
| Cargo Area Length @ Floor to Console | 153.6 in |
| Cargo Area Length @ Floor to Seat 1 | 127.8 in |
| Cargo Box Width @ Top, Rear | N/A in |
| Cargo Area Width @ Beltline | N/A in |
| Cargo Box Width @ Floor | N/A in |
| Cargo Box Width @ Wheelhousings | 52.7 in |
| Cargo Box (Area) Height | 51.9 in |
| Tailgate Width | N/A in |
| Cargo Volume | 225.1 ft³ |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Assist handle, front passenger | Standard |
| Air conditioning, single-zone manual | Standard |
| Headliner, cloth, over driver and passenger | Standard |
| Brakes, 4-wheel antilock, 4-wheel disc | Standard |
| Suspension, front independent with coil springs and stabilizer bar (Requires *G***05 models.) | Standard |
| Door, swing-out passenger-side, 60/40 split | Standard |
| Alternator, 105 amps (Not available with (LMM) Duramax 6.6L Turbo Diesel V8 engine.) | Standard |
| Daytime Running Lamps | Standard |
| Seats, front bucket with vinyl trim and outboard head restraints (Requires (**W) interior trim.) | Standard |
| Seating arrangement, driver and front passenger high-back buckets, adjustable with head restraints and vinyl or cloth trim | Standard |
| Air bag deactivation switch, frontal, passenger-side (Requires (C6P) 8600 lbs. (3901 kg) GVWR or (C6Y) 9600 lbs. (4354 kg) GVWR. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.) | Standard |
| Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (PCH) Hotel Shuttle Package.) | Standard |
| Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.) | Standard |
| Body, standard | Standard |
| Rear axle, 3.73 ratio (Standard on the *G23*05 and *G33*05 models. Available on **13405 models with (LM7) Vortec 5.3L V8 SFI engine, or (L59) Vortec 5.3L V8 SFI FlexFuel engine. Reference the Engine/Axle page for availability.) | Standard |
| Suspension, rear hypoid drive axle with multi-leaf springs | Standard |
| Floor covering, full length Black rubberized-vinyl (Not available with (YF2) Ambulance Package.) | Standard |
| Power outlets, 2 auxiliary on engine console cover with covers, 12-volt | Standard |
| Cup holders, 3 on the engine console cover | Standard |
| Theft-deterrent system, vehicle, PASSlock | Standard |
| Tow/haul mode selector, instrument panel-mounted | Standard |
| Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.) | Standard |
| Rear wheel drive | Standard |
| GVWR, 9600 lbs. (4354 kg) (Standard on *G33*05 models. Reference the Engine/Axle page for availability.) | Standard |
| Tire, spare LT245/75R16E all-season, blackwall, located at rear underbody of vehicle (Standard on the *G23*05 and *G33*05 models.) | Standard |
| Frame, full-length box ladder-type | Standard |
| Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power | Standard |
| Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver side only frontal air bag. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.) | Standard |
| Brakes, 4-wheel antilock, 4-wheel disc | Standard |
| Console, engine cover with open storage bin | Standard |
| Steering wheel, steel sleeve column with theft-deterrent locking feature, Black | Standard |
| Tires, rear LT245/75R16E all-season, blackwall (Standard on the *G23*05 and *G33*05 models.) | Standard |
| Tires, front LT245/75R16E all-season, blackwall (Standard on the *G23*05 and *G33*05 models.) | Standard |
| Brake/transmission shift interlock, for automatic transmissions | Standard |
| Wipers, front intermittent wet-arm with pulse washers | Standard |
| Daytime Running Lamps | Standard |
| Warning tones, headlamp on and key-in-ignition | Standard |
| Transmission, 4-speed automatic, heavy-duty, electronically controlled with overdrive, tow/haul mode and internal transmission oil cooler (Required and standard when ordered with (LR4) Vortec 4.8L V8 SFI engine or (LQ4) Vortec 6.0L V8 SFI engine. Not available with (LMM) Duramax 6.6L Turbo Diesel V8 engine. Reference the Engine/Axle page for availability.) | Standard |
| Mirrors, outside manual, Black (If the van is an extended Model (*G**7**), or if the van has no rear windows, then the van will get a flat right-side mirror. All other vans will have a convex right-side mirror.) | Standard |
| Bumpers, front and rear painted Black with step-pad (Not available with (ZR7) Chrome Appearance Package.) | Standard |
| Brake/transmission shift interlock, for automatic transmissions | Standard |
| Oil life monitor | Standard |
| Steering, power | Standard |
| Wheels, Gray-painted, includes Gray center caps and steel spare | Standard |
| Mirror, inside rearview manual day/night | Standard |
| License plate kit, front | Standard |
| Defogger, side windows | Standard |
| Engine, Vortec 4.8L V8 SFI (285 hp [212.6 kW] @ 5200 rpm, 295 lb-ft of torque [398.3 N-m] @ 4000 rpm) (Includes external engine oil cooler. Standard on *G23*05 models and *G33*05 models. Reference the Engine/Axle page for availability.) | Standard |
| Visors, driver and front passenger, padded | Standard |
| Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches | Standard |
| Exhaust, aluminized stainless-steel muffler and tailpipe | Standard |
| Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure | Standard |
| Door beams, steel-side | Standard |
| Glass, Solar-Ray light-tinted, all windows | Standard |
| Paint, solid | Standard |
