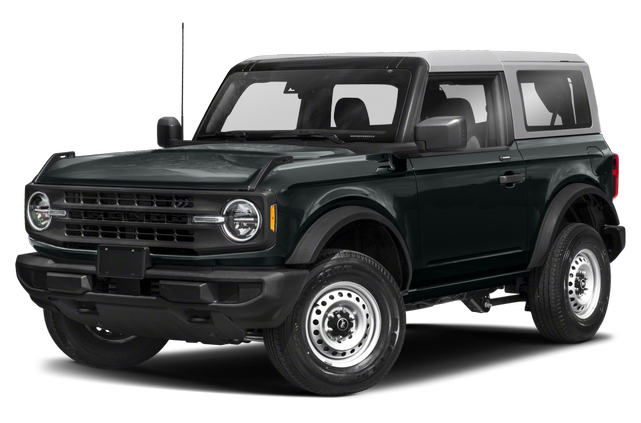

2022 Ford Bronco Base specs & colors

Sport Utility

Change trim
$31,300
Starting MSRP
Current listing price

Showing the 2022 Ford Bronco Base 2 Door 4x4

Shop Now

Key specs

Color options

Interior

Beige

Packages

$0

Starting MSRP

Specifications

Spare Wheel Size Full-Size in
Spare Wheel Material Steel
Front Wheel Material Styled Steel
Rear Wheel Size 16 X 7 in
Rear Wheel Material Styled Steel
Front Wheel Size 16 X 7 in

Cold Cranking Amps @ 0° F (Primary) 800
Maximum Alternator Capacity (amps) 250

Engine Oil Cooler None
Displacement 2.3 L/140
SAE Net Torque @ RPM 315 @ 3400
SAE Net Horsepower @ RPM 275 @ 5700
Engine Type Intercooled Turbo Regular Unleaded I-4

EPA Fuel Economy Est - City 20 MPG
Estimated Battery Range N/A mi
Cruising Range - Hwy 354.90 mi
Fuel Economy Est-Combined 20 MPG
Cruising Range - City 338.00 mi
EPA Fuel Economy Est - Hwy 21 MPG

Sixth Gear Ratio (:1) 0.65
Trans Description Cont. Again N/A
Fourth Gear Ratio (:1) 1.00
Third Gear Ratio (:1) 1.45
Seventh Gear Ratio (:1) N/A
Second Gear Ratio (:1) 2.37
Trans Power Take Off N/A
First Gear Ratio (:1) 4.28
Trans Description Cont. Manual w/OD
Transfer Case Power Take Off No
Transfer Case Gear Ratio (:1), High N/A
Fifth Gear Ratio (:1) 0.78
Final Drive Axle Ratio (:1) N/A
Transfer Case Model Electronic
Drivetrain Four Wheel Drive
Transfer Case Gear Ratio (:1), Low N/A
Trans Type 7
Reverse Ratio (:1) 5.62

Axle Type - Rear Rigid Axle
Axle Type - Front Independent
Suspension Type - Rear Multi-Link
Suspension Type - Front Short And Long Arm

Frame Type N/A

Brake Type 4-Wheel Disc
Rear Brake Rotor Diam x Thickness 12.1 in
Front Brake Rotor Diam x Thickness 12.2 in
Brake ABS System (Second Line) 4-Wheel
Brake ABS System 4-Wheel
Disc - Rear (Yes or ) Yes
Drum - Rear (Yes or ) N/A
Disc - Front (Yes or ) Yes

Fuel Tank Capacity, Approx 16.9 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Ratio (:1), Overall N/A
Steering Type Rack-Pinion
Turning Diameter - Wall to Wall N/A ft
Turning Diameter - Curb to Curb N/A ft

Front Tire Size P255/70TR16
Spare Tire Size Full-Size
Rear Tire Size P255/70TR16

Wt Distributing Hitch - Max Trailer Wt. 3500 lbs
Dead Weight Hitch - Max Trailer Wt. 3500 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. 350 lbs
Dead Weight Hitch - Max Tongue Wt. 350 lbs
Maximum Trailering Capacity 3500 lbs

Curb Weight - Front 2334 lbs
Gross Axle Weight Rating 5900.00 lbs
Option Weight - Front 0.00 lbs
As Spec'd Curb Weight 4286.00 lbs
Maximum Payload Capacity 1254.00 lbs
Curb Weight 4286.00 lbs
Base Curb Weight 4286 lbs
Gross Vehicle Weight Rating 5540.00 lbs
As Spec'd Payload 1254.00 lbs
Option Weight - Rear 0.00 lbs
Total Option Weight 0.00 lbs
Gross Combined Wt Rating 8780 lbs
Curb Weight - Rear 1952 lbs

Second Leg Room 35.7 in
Second Head Room 39.8 in
Tailgate Width N/A in
Cargo Area Length @ Floor to Seat 1 N/A in
Cargo Area Length @ Floor to Seat 2 N/A in
Cargo Volume to Seat 1 52.3 ft³
Ext'd Cab Cargo Volume N/A ft³
Track Width, Rear 65 in
Overhang, Front N/A in
Cargo Volume to Seat 2 22.4 ft³
Ground to Top of Load Floor N/A in
Length, Overall 173.7 in
Cargo Box (Area) Height N/A in
Ground Clearance, Front N/A in
Overhang, Rear w/o bumper N/A in
Rear Door Opening Width N/A in
Cargo Area Width @ Beltline N/A in
Cargo Box Width @ Wheelhousings N/A in
Cargo Volume N/A ft³
Cargo Box Width @ Top, Rear N/A in
Wheelbase 100.4 in
Passenger Capacity 4
Cargo Box Width @ Floor N/A in
Track Width, Front 65 in
Front Hip Room 56.3 in
Liftover Height N/A in
Second Hip Room 43.3 in
Ground Clearance, Rear N/A in
Length, Overall w/rear bumper N/A in
Cargo Volume to Seat 3 22.4 ft³
Cab to End of Frame N/A in
Front Leg Room 43.1 in
Front Shoulder Room 57.1 in
Second Shoulder Room 51.8 in
Rear Door Opening Height N/A in
Width, Max w/o mirrors 75.9 in
Front Head Room 41 in
Height, Overall 71.9 in
Min Ground Clearance 8.4 in
Cargo Area Length @ Floor to Seat 3 N/A in

SYNC 4 -inc: 8" LCD capacitive touchscreen w/swipe capability, wireless phone connection, cloud connected, AppLink w/app catalog, 911 Assist, wireless Apple CarPlay and Android Auto compatibility and digital owner's manual Standard
SiriusXM Radio w/360L -inc: super categories/live sports categories, for you recommendations and SiriusXM listener profiles, a 3-month prepaid subscription, Service is not available in Alaska and Hawaii, Trial length and service availability may vary by model, model year or trim, SiriusXM audio and data services each require a subscription sold separately, or as a package, by SiriusXM radio inc, Your SiriusXM service will automatically stop at the end of your trial unless you decide to subscribe, If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates, Fees and taxes apply, To cancel you must call SiriusXM at 1-866-635-2349, See SiriusXM customer agreement for complete terms at www.siriusxm.com, All fees and programming subject to change, Not all vehicles or devices are capable of receiving all services offered by SiriusXM, Current information and features may not be available in all locations, or on all receivers, Satellite and streaming lineups vary slightly, 2020 SiriusXM radio inc Sirius, XM, SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc Standard
Fixed Antenna Standard
Streaming Audio Standard
Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls and Radio Data System Standard
2 LCD Monitors In The Front Standard
Radio: AM/FM Stereo -inc: 6 speakers Standard

Black Power Heated Side Mirrors w/Convex Spotter and Manual Folding Standard
Wheels: 16" Bright Polished Silver-Painted Steel Standard
Wheels w/Hub Covers Standard
Tires: P255/70R16 A/S -inc: full size spare tire w/TPMS Standard
Variable Intermittent Wipers Standard
Flip-Up Rear Window w/Fixed Interval Wiper and Defroster Standard
Manual Convertible Hard Top w/Glass Rear Window and Fixed Roll-Over Protection Standard
Headlights-Automatic Highbeams Standard
Black Grille Standard
Black Door Handles Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Standard
Swing-Out Rear Cargo Access Standard
Black Front Bumper w/2 Tow Hooks Standard
Spare Tire Mounted Outside Rear Standard
Ford Co-Pilot360 - Autolamp Auto On/Off Aero-Composite Led Low/High Beam Auto High-Beam Daytime Running Lights Preference Setting Headlamps w/Delay-Off Standard
Light Tinted Glass Standard
Steel Spare Wheel Standard
Black Side Windows Trim Standard
Black Rear Step Bumper w/1 Tow Hook Standard
Black Fender Flares Standard
Manual Targa Composite 1st Row Sunroof Standard
Fully Galvanized Steel Panels Standard

Day-Night Rearview Mirror Standard
Manual Adjustable Front Head Restraints and Foldable Rear Head Restraints Standard
Interior Trim -inc: Metal-Look Interior Accents Standard
Trip Computer Standard
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Inclinometer, Trip Odometer and Trip Computer Standard
Cruise Control w/Steering Wheel Controls Standard
Urethane Gear Shifter Material Standard
2 12V DC Power Outlets Standard
Seats w/Cloth Back Material Standard
Removable Rear Windows Standard
Smart Device Remote Engine Start Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Standard
Full Carpet Floor Covering -inc: Carpet Front Floor Mats Standard
Front Map Lights Standard
Manual Tilt/Telescoping Steering Column Standard
Air Filtration Standard
Rear Cupholder Standard
Driver Foot Rest Standard
Tracker System Standard
Manual Air Conditioning Standard
Cargo Space Lights Standard
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Auxiliary Mirror Standard
Passenger Seat -inc: Manual Rear Seat Easy Entry Standard
Cloth Bucket Seats -inc: 6-way manual driver and passenger including fore/aft, up/down and recline Standard
Driver Seat -inc: Manual Rear Seat Easy Entry Standard
Proximity Key For Push Button Start Only Standard
Locking Glove Box Standard
2 Seatback Storage Pockets Standard
50-50 Folding Split-Bench Front Facing Fold Forward Seatback Cloth Rear Seat Standard
HVAC -inc: Underseat Ducts Standard
Carpet Floor Trim Standard
Driver Information Center Standard
Immobilizer Standard
Power Door Locks w/Autolock Feature Standard
Front Center Armrest Standard
Full Floor Console w/Locking Storage, Mini Overhead Console w/Storage and 2 12V DC Power Outlets Standard
Outside Temp Gauge Standard
Dashboard Storage, Driver And Passenger Door Bins Standard
Perimeter Alarm Standard
Digital/Analog Appearance Standard
Redundant Digital Speedometer Standard
Front Cupholder Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button Standard
Fade-To-Off Interior Lighting Standard
Compass Standard

Electric Power-Assist Steering Standard
Short And Long Arm Front Suspension w/Coil Springs Standard
Electronic Transfer Case Standard
Gas-Pressurized Shock Absorbers Standard
Part And Full-Time Four-Wheel Drive Standard
Regenerative 250 Amp Alternator Standard
16.9 Gal. Fuel Tank Standard
Off-Road Suspension Standard
Solid Axle Rear Suspension w/Coil Springs Standard
1254# Maximum Payload Standard
Auto Locking Hubs Standard
Engine Auto Stop-Start Feature Standard
4.46 Axle Ratio (STD) Standard
Single Stainless Steel Exhaust Standard
Towing Equipment -inc: Trailer Sway Control Standard
50 State Emissions System Standard
Transmission: 7-Speed Manual -inc: granny gear and crank in gear function and Hill Descent Control (STD) Standard
Engine: 2.3L EcoBoost I-4 (STD) Standard
GVWR: 5,540 lbs Standard
80-Amp/Hr 800CCA Maintenance-Free Battery w/Run Down Protection Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake Standard
Front Anti-Roll Bar Standard

Side Impact Beams Standard
AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard
Collision Mitigation-Front Standard
Ford Co-Pilot360 - Pre-Collision Assist with Pedestrian Detection Standard
Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Pretensioners Standard
Personal Safety System Airbag Occupancy Sensor Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Dual Stage Driver And Passenger Front Airbags Standard
Back-Up Camera Standard
ABS And Driveline Traction Control Standard
Safety Canopy System Curtain 1st And 2nd Row Airbags Standard
