2010 Ford F-450 King Ranch specs & colors

Crew Cab Pickup

Change trim
MSRP
2WD Crew Cab 176" WB 60" CA XL
$35,300
2WD Crew Cab 200" WB 84" CA XL
$35,465
2WD Crew Cab 176" WB 60" CA XLT
$38,770
2WD Crew Cab 200" WB 84" CA XLT
$38,940
2WD Crew Cab 176" WB 60" CA Lariat
$42,310
2WD Crew Cab 200" WB 84" CA Lariat
$42,475
2WD Crew Cab 172" XL
$44,720
4WD Crew Cab 172" XL
$46,375
2WD Crew Cab 172" XLT
$49,525
4WD Crew Cab 172" XLT
$51,020
2WD Crew Cab 172" King Ranch
$52,965
2WD Crew Cab 172" Lariat
$52,965
4WD Crew Cab 172" King Ranch
$55,660
4WD Crew Cab 172" Lariat
$55,660
4WD Crew Cab 172" Harley-Davidson
$55,660
$52,965
Starting MSRP
Current listing price

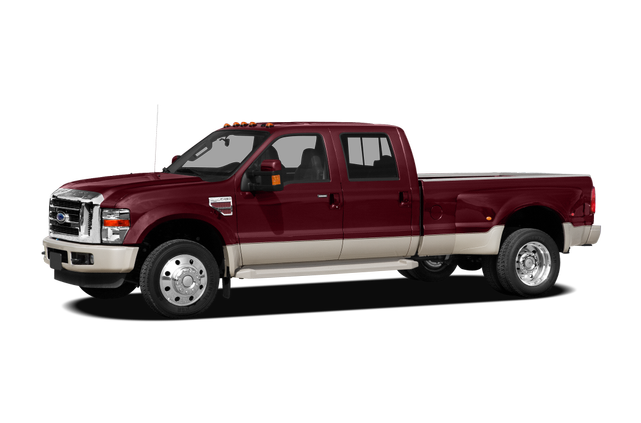

2010 Ford F-450 King Ranch

Showing the 2010 Ford F-450 2WD Crew Cab 172" King Ranch

Shop Now

Key specs

Color options

Interior
Savanna Beige

Packages

  • $0

    Starting MSRP

Specifications

Highlights

Turbo Diesel V8
Engine Type
-
MPG
325 hp
Horsepower
5
Seating Capacity

Brakes

Not Available
Drum - Rear (Yes or )
15.35 x 0.47 in
Rear Brake Rotor Diam x Thickness
14.53 x 0.47 in
Front Brake Rotor Diam x Thickness
Yes
Disc - Rear (Yes or )
Yes
Disc - Front (Yes or )
Not Available
Brake ABS System (Second Line)
4-Wheel
Brake ABS System
Pwr
Brake Type

Electrical

HD 135
Maximum Alternator Capacity (amps)
750
Cold Cranking Amps @ 0° F (Primary)

Engine

600 @ 2000
SAE Net Torque @ RPM
325 @ 3000
SAE Net Horsepower @ RPM
6.4L/391
Displacement
Turbo Diesel V8
Engine Type
Transmission Overdrive Switch
A/T
5-Speed A/T
Transmission Options
-
MPG
30.5 qts
Total Cooling System Capacity

Entertainment

Optional
Bluetooth®

Measurements

60 ft³
Ext'd Cab Cargo Volume
77 ft³
Cargo Volume
61 in
Tailgate Width
20 in
Cargo Box (Area) Height
51 in
Cargo Box Width @ Wheelhousings
69 in
Cargo Box Width @ Floor
64 in
Cargo Box Width @ Top, Rear
98 in
Cargo Box Length @ Floor
8 in
Ground Clearance, Rear
8 in
Ground Clearance, Front
97 in
Cab to End of Frame
52 in
Overhang, Rear w/o bumper
38 in
Overhang, Front
80 in
Height, Overall
96 in
Width, Max w/o mirrors
N/A
Length, Overall
N/A
Length, Overall w/rear bumper
262 in
Length, Overall w/o rear bumper
172 in
Wheelbase
67 in
Second Hip Room
68 in
Second Shoulder Room
42 in
Second Leg Room
41 in
Second Head Room
68 in
Front Hip Room
68 in
Front Shoulder Room
41 in
Front Leg Room
41 in
Front Head Room
5
Passenger Capacity
35 in
Ground to Top of Load Floor

Safety

Optional
Backup Camera

Steering

50 ft
Turning Diameter - Wall to Wall
48 ft
Turning Diameter - Curb to Curb
N/A
Steering Ratio (:1), Overall
Pwr
Steering Type

Suspension

Dana Full-Floating
Axle Type - Rear
Dana Monobeam
Axle Type - Front
2-Stage Leaf
Suspension Type - Rear
Coil
Suspension Type - Front

Tires & Wheels

N/A
Spare Wheel Material
Aluminum
Rear Wheel Material
Aluminum
Front Wheel Material
225/70R19.5 in
Spare Wheel Size
19.5 x 6.0 in
Rear Wheel Size
19.5 x 6.0 in
Front Wheel Size
N/A
Spare Tire Size
225/70R19.5G
Rear Tire Size
225/70R19.5G
Front Tire Size

Weight & Capacity

14,500 lbs
Gross Vehicle Weight Rating
0 lbs
Total Option Weight
8,226 lbs
Curb Weight
15,100 lbs
Gross Axle Weight Rating
Not Available gal
Aux Fuel Tank Capacity, Approx
38 gal
Fuel Tank Capacity, Approx
N/A
Maximum Trailering Capacity
6,150 lbs
Fifth Wheel Hitch - Max Tongue Wt.
24,600 lbs
Fifth Wheel Hitch - Max Trailer Wt.
2,400 lbs
Wt Distributing Hitch - Max Tongue Wt.
16,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
500 lbs
Dead Weight Hitch - Max Tongue Wt.
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
33,000 lbs
Gross Combined Wt Rating
6,274 lbs
Maximum Payload Capacity
6,274 lbs
As Spec'd Payload
8,226 lbs
As Spec'd Curb Weight
0 lbs
Option Weight - Rear
0 lbs
Option Weight - Front
3,548 lbs
Curb Weight - Rear
4,678 lbs
Curb Weight - Front
N/A
Base Curb Weight
