2024 Hyundai Santa Cruz SEL specs & colors

$31,150
Starting MSRP
Current listing price

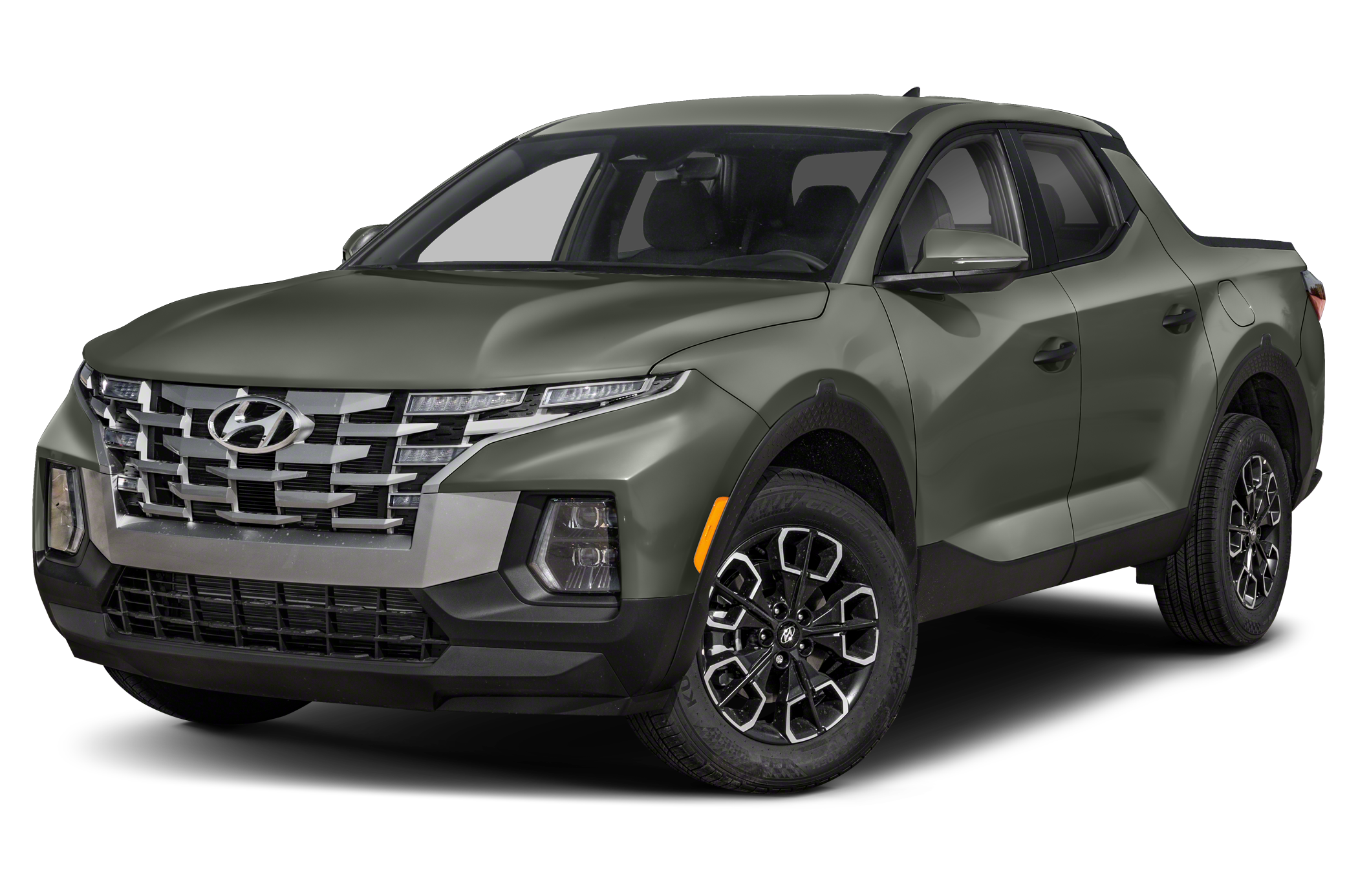

2024 Hyundai Santa Cruz SEL

Showing the 2024 Hyundai Santa Cruz SEL AWD

Shop Now

Key specs

Color options

Interior

Black


Gray


Packages

$240

Starting MSRP

  • Bed Mat
  • Envelope Cargo Net
  • First Aid Kit

$0

Starting MSRP

  • standard equipment

$3,660

Starting MSRP

  • Option Group 02
  • Roof Side Rails
  • Rear Sliding Glass Window w/Defroster

Activity Package

See all packages

$350

Starting MSRP

  • Fitted Liners
  • Mud Guards

Specifications

Rear Wheel Material Aluminum
Front Wheel Material Aluminum
Spare Wheel Material Steel
Spare Wheel Size Compact in
Front Wheel Size 18 X 7.5 in
Rear Wheel Size 18 X 7.5 in
Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) 150
SAE Net Horsepower @ RPM 191 @ 6100
Displacement 2.5 L/152
Engine Oil Cooler None
Engine Type Regular Unleaded I-4
SAE Net Torque @ RPM 181 @ 4000
Cruising Range - Hwy 442.50 mi
Cruising Range - City 371.70 mi
EPA Fuel Economy Est - City 21 MPG
Fuel Economy Est-Combined 23 MPG
EPA Fuel Economy Est - Hwy 25 MPG
Estimated Battery Range N/A mi
Final Drive Axle Ratio (:1) N/A
First Gear Ratio (:1) 4.72
Transfer Case Model Electronic
Seventh Gear Ratio (:1) 0.79
Second Gear Ratio (:1) 2.91
Fourth Gear Ratio (:1) 1.42
Transfer Case Gear Ratio (:1), High N/A
Sixth Gear Ratio (:1) 1.00
Third Gear Ratio (:1) 1.86
Transfer Case Power Take Off No
Trans Description Cont. Automatic w/OD
Drivetrain All Wheel Drive
Trans Type 8
Eighth Gear Ratio (:1) 0.64
Reverse Ratio (:1) 3.24
Fifth Gear Ratio (:1) 1.22
Transfer Case Gear Ratio (:1), Low N/A
Trans Description Cont. Again N/A
Trans Power Take Off N/A
Axle Type - Front Independent
Suspension Type - Rear Multi-Link
Axle Type - Rear Independent
Suspension Type - Front Strut
Frame Type N/A
Brake ABS System 4-Wheel
Front Brake Rotor Diam x Thickness 12.8 in
Brake Type 4-Wheel Disc
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Brake ABS System (Second Line) 4-Wheel
Rear Brake Rotor Diam x Thickness 12.8 in
Drum - Rear (Yes or ) N/A
Fuel Tank Capacity, Approx 17.7 gal
Aux Fuel Tank Capacity, Approx N/A gal
Turning Diameter - Curb to Curb 39.6 ft
Steering Type Rack-Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Wall to Wall N/A ft
Spare Tire Size Compact
Front Tire Size P245/60HR18
Rear Tire Size P245/60HR18
Maximum Trailering Capacity 3500 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. 350 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Dead Weight Hitch - Max Trailer Wt. 3500 lbs
Wt Distributing Hitch - Max Trailer Wt. 3500 lbs
Dead Weight Hitch - Max Tongue Wt. 350 lbs
Curb Weight N/A lbs
Curb Weight - Rear N/A lbs
As Spec'd Curb Weight N/A lbs
Option Weight - Front 0.00 lbs
Total Option Weight 0.00 lbs
Maximum Payload Capacity N/A lbs
Gross Combined Wt Rating N/A lbs
Gross Axle Weight Rating N/A lbs
Curb Weight - Front N/A lbs
Gross Vehicle Weight Rating 5611.00 lbs
As Spec'd Payload N/A lbs
Base Curb Weight 3928 lbs
Option Weight - Rear 0.00 lbs
Cargo Volume 27 ft³
Cargo Box Width @ Floor 53.9 in
Cargo Box Width @ Wheelhousings 42.7 in
Overhang, Front N/A in
Front Hip Room 54.5 in
Cargo Box Width @ Top, Rear 53.9 in
Second Leg Room 36.5 in
Length, Overall 195.7 in
Ext'd Cab Cargo Volume N/A ft³
Width, Max w/o mirrors 75 in
Passenger Capacity 5
Height, Overall 66.7 in
Second Hip Room 53.5 in
Wheelbase 118.3 in
Front Head Room 40.2 in
Cab to End of Frame N/A in
Cargo Box (Area) Height 19.2 in
Front Shoulder Room 57.6 in
Overhang, Rear w/o bumper N/A in
Length, Overall w/rear bumper N/A in
Front Leg Room 41.4 in
Cargo Box Length @ Floor 48.4 in
Ground to Top of Load Floor 31.6 in
Ground Clearance, Front 8.6 in
Second Shoulder Room 56.1 in
Tailgate Width N/A in
Ground Clearance, Rear 8.6 in
Second Head Room 39.6 in
Length, Overall w/o rear bumper N/A in
Radio: AM/FM/HD Audio System -inc: 8" color touchscreen, 6 speakers, SiriusXM satellite radio w/3-month trial subscription, Bluelink + connected car system, Bluetooth hands-free w/wireless audio streaming, wired Apple CarPlay and Android Auto and USB connectivity Optional
Integrated Roof Antenna Standard
Streaming Audio Standard
AM/FM/HD/Satellite w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls and Radio Data System Optional
Turn-By-Turn Navigation Directions Standard
Bluetooth Wireless Phone Connectivity Optional
2 LCD Monitors In The Front Standard
Metal-Look Grille Standard
Tires: 245/60R18 Standard
Compact Spare Tire Stored Underbody w/Crankdown Standard
Body-Colored Power Heated Side Mirrors w/Manual Folding and Turn Signal Indicator Optional
Black Bodyside Cladding and Black Wheel Well Trim Standard
Deep Tinted Glass Standard
Steel Spare Wheel Standard
Integrated Storage Standard
Black Rear Step Bumper Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Standard
Wheels: 18" x 7.5J Alloy Standard
Black Side Windows Trim, Black Front Windshield Trim and Black Rear Window Trim Standard
Regular Composite Box Style Standard
Auto On/Off Projector Beam Led Low/High Beam Daytime Running Auto High-Beam Headlamps w/Delay-Off Standard
Cargo Lamp w/High Mount Stop Light Standard
LED Brakelights Standard
Lip Spoiler Standard
Tailgate Rear Cargo Access Standard
Black Door Handles Standard
Body-Colored Front Bumper Standard
Variable Intermittent Wipers Standard
Fully Galvanized Steel Panels Standard
Fixed Rear Window w/Defroster Standard
Headlights-Automatic Highbeams Standard
Redundant Digital Speedometer Standard
2 12V DC Power Outlets Standard
Driver Foot Rest Standard
Smart Device Remote Engine Start Optional
Air Filtration Standard
Full Cloth Headliner Standard
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror Optional
Seats w/Cloth Back Material Standard
HVAC -inc: Underseat Ducts Standard
Driver Information Center Standard
FOB Controls -inc: Cargo Access and Remote Start Optional
Front Cupholder Standard
Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints Standard
Immobilizer Standard
Driver And Passenger Door Bins and 2nd Row Underseat Storage Standard
Day-Night Rearview Mirror Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button Standard
Stain & Odor Resistant Cloth Seat Trim Standard
Front Map Lights Standard
Power Door Locks w/Autolock Feature Standard
Perimeter Alarm Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Optional
60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat Standard
Urethane Gear Shifter Material Standard
Manual Tilt/Telescoping Steering Column Standard
Pickup Cargo Box Lights Standard
Power Rear Windows Standard
Front Center Armrest Standard
Proximity Key For Doors And Push Button Start Optional
Dual Zone Front Automatic Air Conditioning Optional
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer Standard
Fade-To-Off Interior Lighting Standard
Dual C-Channel Utility Tracks on Bed Side -inc: (Rail system), cleats for each side Optional
Full Floor Console w/Covered Storage, Mini Overhead Console and 2 12V DC Power Outlets Standard
Cruise Control w/Steering Wheel Controls Standard
Full Carpet Floor Covering Standard
Analog Appearance Standard
Driver Seat Standard
Trip Computer Standard
Power Fuel Flap Locking Type Standard
Heated Front Bucket Seats -inc: 8-way power driver's seat w/2-way power lumbar support Optional
Rear Cupholder Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement Standard
Outside Temp Gauge Standard
Interior Trim -inc: Piano Black/Metal-Look Instrument Panel Insert, Piano Black/Metal-Look Door Panel Insert, Piano Black Console Insert, Metal-Look Interior Accents and Piano Black Overhead Console Insert Standard
2 Seatback Storage Pockets Standard
Bluelink+ Connected Car Tracker System Standard
Gas-Pressurized Shock Absorbers Standard
Electronic Transfer Case Standard
Multi-Link Rear Suspension w/Coil Springs Standard
Engine: 2.5L GDI MPI DOHC 16-Valve I4 CVVT Standard
Front And Rear Anti-Rolls Standard
Towing Equipment -inc: Trailer Sway Control Standard
Single Stainless Steel Exhaust Standard
GVWR: 5,611 lbs Standard
17.7 Gal. Fuel Tank Standard
150 Amp Alternator Standard
Automatic Full-Time All-Wheel Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Descent Control, Hill Hold Control and Electric Parking Brake Standard
Rear Auto-Leveling Suspension Standard
Permanent Locking Hubs Standard
1683# Maximum Payload Optional
Transmission: 8-Speed Automatic w/SHIFTRONIC -inc: shift-by-cable floor-console mounted transmission lever Standard
4.081 Axle Ratio Standard
Electric Power-Assist Speed-Sensing Steering Standard
Strut Front Suspension w/Coil Springs Standard
Battery w/Run Down Protection Standard
Transmission w/Driver Selectable Mode Standard
Lane Following Assist (LFA) Standard
ABS And Driveline Traction Control Standard
Collision Mitigation-Front Standard
Rear Child Safety Locks Standard
Curtain 1st And 2nd Row Airbags Standard
Tire Specific Low Tire Pressure Warning Standard
Back-Up Camera Standard
Side Impact Beams Standard
Lane Keeping Assist (LKA) Lane Keeping Assist Standard
Collision Mitigation-Rear Standard
Rear Side-Impact Airbag Standard
Lane Keeping Assist (LKA) Lane Departure Warning Standard
Bluelink+ Emergency Sos Optional
Electronic Stability Control (ESC) Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
Airbag Occupancy Sensor Standard
Dual Stage Driver And Passenger Front Airbags Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Driver Monitoring-Alert Standard
Blind-Spot Collision-Avoidance Assist (BCA) Blind Spot Standard
Forward Collision-Avoidance Assist (FCA) w/Pedestrian Detection Standard
