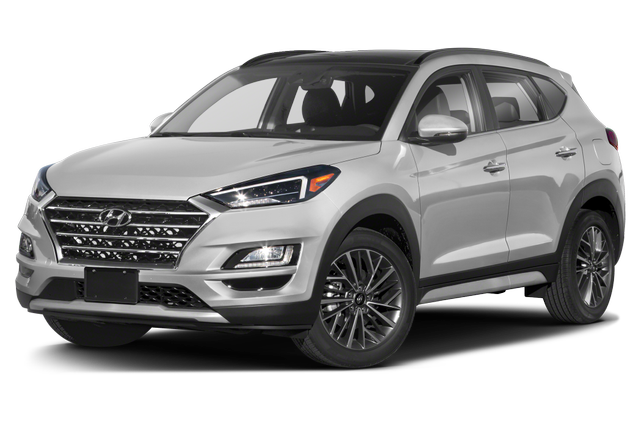

2020 Hyundai Tucson Ultimate specs & colors

Sport Utility

Change trim

MSRP

SE FWD $23,550
SE AWD $24,950
Value FWD $25,000
SEL FWD $25,950
Value AWD $26,400
SEL AWD $27,350
Sport FWD $28,100
Limited FWD $29,250
Sport AWD $29,500
Limited AWD $30,650
Ultimate FWD $31,900
Ultimate AWD $33,300

Change trim

$33,300

Starting MSRP
Current listing price

Showing the 2020 Hyundai Tucson Ultimate AWD

Shop Now

Color options

Exterior

Interior

Black

Black / Beige

Packages

Winter Weather Package

$285

Starting MSRP

Mudguards
All Weather Floor Mats

Cargo Package

$195

Starting MSRP

Reversible Cargo Tray
rubber-like non-slip protective cover for rear cargo compartment
Cargo Net

Option Group 01

$0

Starting MSRP

Specifications

EPA MPG Equivalent - Hwy	N/A
Estimated Battery Range	N/A mi
Fuel Economy Est-Combined	23 MPG
EPA Fuel Economy Est - Hwy	26 MPG
EPA Fuel Economy Est - City	21 MPG
Cruising Range - City	344.40 mi
EPA MPG Equivalent - Combined	N/A
Cruising Range - Hwy	426.40 mi
EPA MPG Equivalent - City	N/A

Trans Type	6
Trans Description Cont.	Automatic w/OD
Fourth Gear Ratio (:1)	1.39
Second Gear Ratio (:1)	2.83
Trans Description Cont. Again	N/A
Final Drive Axle Ratio (:1)	3.19
Third Gear Ratio (:1)	1.84
First Gear Ratio (:1)	4.64
Fifth Gear Ratio (:1)	1.00
Drivetrain	All Wheel Drive
Reverse Ratio (:1)	3.38
Transfer Case Gear Ratio (:1), High	N/A
Sixth Gear Ratio (:1)	0.77
Transfer Case Gear Ratio (:1), Low	N/A

Drum - Rear (Yes or )	N/A
Disc - Front (Yes or )	Yes
Brake Type	4-Wheel Disc
Front Brake Rotor Diam x Thickness	12 in
Brake ABS System	4-Wheel
Brake ABS System (Second Line)	N/A
Disc - Rear (Yes or )	Yes
Rear Brake Rotor Diam x Thickness	11.9 in

Maximum Trailering Capacity	1000 lbs
Wt Distributing Hitch - Max Tongue Wt.	100 lbs
Wt Distributing Hitch - Max Trailer Wt.	1000 lbs
Dead Weight Hitch - Max Tongue Wt.	100 lbs
Dead Weight Hitch - Max Trailer Wt.	1000 lbs

Second Leg Room	38.2 in
Cargo Volume to Seat 3	31 ft³
Rear Door Opening Width	N/A in
Track Width, Front	63.3 in
Track Width, Rear	63.8 in
Cargo Volume to Seat 2	31 ft³
Length, Overall	176.4 in
Cargo Area Length @ Floor to Seat 1	N/A in
Front Hip Room	55.6 in
Front Shoulder Room	57.1 in
Second Head Room	38.1 in
Liftover Height	N/A in
Second Shoulder Room	55.5 in
Front Leg Room	41.5 in
Cargo Box Width @ Wheelhousings	N/A in
Cargo Area Length @ Floor to Seat 3	N/A in
Cargo Area Width @ Beltline	N/A in
Passenger Capacity	5
Front Head Room	37.9 in
Min Ground Clearance	6.4 in
Rear Door Opening Height	N/A in
Cargo Area Length @ Floor to Seat 2	N/A in
Cargo Volume to Seat 1	61.9 ft³
Second Hip Room	54.5 in
Wheelbase	105.1 in
Height, Overall	64.8 in
Width, Max w/o mirrors	72.8 in
Cargo Box (Area) Height	N/A in
Passenger Volume	102.2 ft³

Radio w/Seek-Scan, Clock, Speed Compensated Volume Control and Steering Wheel Controls	Standard
2 LCD Monitors In The Front	Optional
Integrated Roof Antenna	Standard
Radio: Infinity Audio System w/Navigation -inc: 315-Watt, 8" color touchscreen, Apple CarPlay, Android Auto, 8 speakers, USB/AUX input jack, Bluetooth hands-free phone system, SiriusXM satellite radio, HD Radio, VR, Blue Link connected car system, Clari-Fi music restoration technology, external amplifier and wireless device charging	Optional

Auto On/Off Projector Beam Led Low/High Beam Daytime Running Auto High-Beam Headlamps w/Delay-Off	Optional
Rain Detecting Variable Intermittent Wipers w/Heated Wiper Park	Optional
Power Liftgate Rear Cargo Access	Optional
LED Brakelights	Optional
Tailgate/Rear Door Lock Included w/Power Door Locks	Standard
Lip Spoiler	Standard
Compact Spare Tire Mounted Inside Under Cargo	Standard
Steel Spare Wheel	Standard
Body-Colored Rear Bumper w/Black Rub Strip/Fascia Accent and Metal-Look Bumper Insert	Optional
Express Open/Close Sliding And Tilting Glass 1st And 2nd Row Sunroof w/Power Sunshade	Optional
Tires: 225/55R18	Optional
Perimeter/Approach Lights	Standard
Wheels: 18" x 7.0J Alloy	Optional
Chrome Door Handles	Optional
Metal-Look Bodyside Insert, Black Bodyside Cladding and Black Wheel Well Trim	Optional
Body-Colored Power Heated Side Mirrors w/Manual Folding and Turn Signal Indicator	Optional
Deep Tinted Glass	Standard
Roof Rack Rails Only	Optional
Front Fog Lamps	Optional
Chrome Grille	Optional
Fully Galvanized Steel Panels	Standard
Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent and Metal-Look Bumper Insert	Optional
Headlights-Automatic Highbeams	Optional
Front Windshield -inc: Sun Visor Strip	Standard
Chrome Side Windows Trim and Black Front Windshield Trim	Optional
Fixed Rear Window w/Fixed Interval Wiper, Heated Wiper Park and Defroster	Standard

Leatherette Door Trim Insert	Optional
Power Door Locks w/Autolock Feature	Standard
Smart Device Remote Engine Start	Optional
Front Center Armrest and Rear Center Armrest	Standard
Systems Monitor	Standard
Immobilizer	Optional
Interior Trim -inc: Leatherette Instrument Panel Insert and Metal-Look Interior Accents	Optional
Driver Seat	Standard
3 12V DC Power Outlets	Standard
HVAC -inc: Underseat Ducts and Console Ducts	Optional
Driver / Passenger And Rear Door Bins	Standard
Analog Appearance	Standard
Manual Tilt/Telescoping Steering Column	Standard
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer	Standard
Front And Rear Map Lights	Optional
Full Cloth Headliner	Standard
Driver Foot Rest	Standard
Passenger Seat	Optional
Cargo Area Concealed Storage	Standard
Proximity Key For Doors And Push Button Start	Optional
Power Rear Windows and Fixed 3rd Row Windows	Standard
Cruise Control w/Steering Wheel Controls	Standard
Front Cupholder	Standard
Leather Gear Shifter Material	Optional
Heated & Ventilated Front Bucket Seats -inc: 8-way power adjustable front seats w/driver 2-way power lumbar support and height adjustment	Optional
2 Seatback Storage Pockets	Standard
Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage and 3 12V DC Power Outlets	Standard
Rear Cupholder	Standard
Carpet Floor Trim	Standard
Fade-To-Off Interior Lighting	Standard
Perimeter Alarm	Standard
HomeLink Garage Door Transmitter	Optional
Valet Function	Optional
Distance Pacing w/Traffic Stop-Go	Optional
Heated Leather/Metal-Look Steering Wheel	Optional
Remote Releases -Inc: Smart Liftgate Proximity Cargo Access and Mechanical Fuel	Optional
Full Carpet Floor Covering	Standard
Trip Computer	Standard
Manual w/Tilt Front Head Restraints and Manual Adjustable Rear Head Restraints	Standard
Outside Temp Gauge	Standard
Day-Night Auto-Dimming Rearview Mirror	Optional
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button	Standard
Dual Zone Front Automatic Air Conditioning	Optional
Trunk/Hatch Auto-Latch	Optional
Cargo Space Lights	Standard
Illuminated Glove Box	Optional
60-40 Folding Bench Front Facing Heated Manual Reclining Fold Forward Seatback Rear Seat	Optional
Air Filtration	Standard
Leather Seat Trim	Optional
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror	Optional
Power 1st Row Windows w/Driver 1-Touch Up/Down	Optional

Strut Front Suspension w/Coil Springs	Standard
SACHS Gas-Pressurized Shock Absorbers	Standard
Transmission w/Driver Selectable Mode	Standard
1098# Maximum Payload	Optional
16.4 Gal. Fuel Tank	Standard
Multi-Link Rear Suspension w/Coil Springs	Standard
68-Amp/Hr Maintenance-Free Battery w/Run Down Protection	Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Descent Control, Hill Hold Control and Electric Parking Brake	Optional
Permanent Locking Hubs	Optional
GVWR: 4,850 lbs	Optional
Single Stainless Steel Exhaust w/Chrome Tailpipe Finisher	Optional
Electronic Transfer Case	Optional
Brake Actuated Limited Slip Differential	Optional
Electric Power-Assist Speed-Sensing Steering	Standard
Automatic Full-Time All-Wheel	Optional
Transmission: 6-Speed Automatic w/SHIFTRONIC	Standard
Front And Rear Anti-Roll Bars	Standard
Engine: 2.4L GDI DOHC 16 Valve I4 CVVT	Optional
Axle Ratio: 3.195	Optional

Lane Keep Assist (LKA) Lane Departure Warning	Standard
Blind Spot Collision Warning (BCW) Blind Spot	Optional
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners	Standard
Collision Mitigation-Front	Standard
Dual Stage Driver And Passenger Front Airbags	Standard
Aerial View Camera System	Optional
Left Side Camera	Optional
Forward Collision-Avoidance Assist (FCA) w/Pedestrian Detection and Rear Cross-Traffic Collision Warning (RCCW)	Optional
Tire Specific Low Tire Pressure Warning	Standard
Back-Up Camera	Standard
Airbag Occupancy Sensor	Standard
Front Camera	Optional
Dual Stage Driver And Passenger Seat-Mounted Side Airbags	Standard
ABS And Driveline Traction Control	Standard
Side Impact Beams	Standard
Lane Keep Assist (LKA) Lane Keeping Assist	Standard
Right Side Camera	Optional
Rear Child Safety Locks	Standard
Curtain 1st And 2nd Row Airbags	Standard
Electronic Stability Control (ESC)	Standard
Driver Monitoring-Alert	Standard

Compare trims

Wondering which trim is right for you?

Our 2020 Hyundai Tucson trim comparison will help you decide.

Front Wheel Material	Aluminum
Rear Wheel Material	Aluminum
Front Wheel Size	18 X 7 in
Spare Wheel Material	Steel
Rear Wheel Size	18 X 7 in
Spare Wheel Size	Compact in

SAE Net Horsepower @ RPM	181 @ 6000
Engine Type	Regular Unleaded I-4
Displacement	2.4 L/144
SAE Net Torque @ RPM	175 @ 4000

Aux Fuel Tank Capacity, Approx	N/A gal
Fuel Tank Capacity, Approx	16.4 gal

Steering Ratio (:1), Overall	N/A
Turning Diameter - Curb to Curb	34.9 ft
Turning Diameter - Wall to Wall	N/A ft
Lock to Lock Turns (Steering)	N/A
Steering Type	Rack-Pinion

Front Tire Size	P225/55HR18
Spare Tire Size	Compact
Rear Tire Size	P225/55HR18

Maximum Alternator Capacity (amps)	N/A
Cold Cranking Amps @ 0° F (Primary)	N/A

Suspension Type - Front (Cont.)	Strut
Suspension Type - Rear (Cont.)	Multi-Link
Suspension Type - Front	Strut
Suspension Type - Rear	Multi-Link

Base Curb Weight	3732 lbs
Curb Weight - Front	N/A lbs
Maximum Payload Capacity	N/A lbs
Curb Weight	N/A lbs
Total Option Weight	0.00 lbs
Curb Weight - Rear	N/A lbs
