Change trim
MSRP
- Club Manual $33,045
- Club Auto $33,645
- Grand Touring Manual $34,525
- Grand Touring Auto $35,050

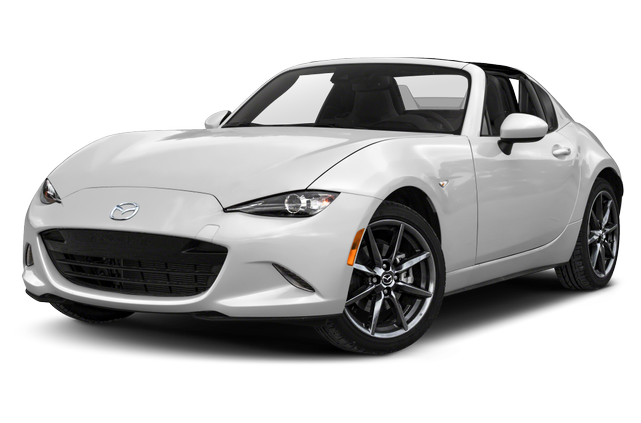

2021 Mazda MX-5 Miata RF Grand Touring specs & colors
2dr Car
$34,525
Starting MSRP
Current listing price
Current listing price
Showing the 2021 Mazda MX-5 Miata RF Grand Touring Manual
Shop NowKey specs
Color options
Interior
Black w / Red Stitching
Black
White
Packages
$795
Starting MSRP
- White Nappa Leather
- Machine Gray Metallic Paint Charge,
$895
Starting MSRP
- Soul Red Crystal Paint Charge
- White Nappa Leather
$300
Starting MSRP
Specifications
| EPA Classification | Two Seaters |
| Spare Wheel Material | N/A |
| Front Wheel Size | 17 X 7 in |
| Rear Wheel Material | Aluminum |
| Rear Wheel Size | 17 X 7 in |
| Spare Wheel Size | N/A in |
| Front Wheel Material | Aluminum |
| Maximum Alternator Capacity (amps) | 100 |
| Cold Cranking Amps @ 0° F (Primary) | N/A |
| SAE Net Torque @ RPM | 151 @ 4000 |
| Engine Type | Premium Unleaded I-4 |
| Displacement | 2.0 L/122 |
| SAE Net Horsepower @ RPM | 181 @ 7000 |
| EPA MPG Equivalent - Combined | N/A |
| Fuel Economy Est-Combined | 29 MPG |
| EPA MPG Equivalent - City | N/A |
| EPA Fuel Economy Est - City | 26 MPG |
| EPA Fuel Economy Est - Hwy | 34 MPG |
| Cruising Range - Hwy | 404.60 mi |
| Cruising Range - City | 309.40 mi |
| Estimated Battery Range | N/A mi |
| EPA MPG Equivalent - Hwy | N/A |
| Trans Description Cont. | Manual |
| Final Drive Axle Ratio (:1) | 2.87 |
| Fourth Gear Ratio (:1) | 1.59 |
| First Gear Ratio (:1) | 5.09 |
| Fifth Gear Ratio (:1) | 1.29 |
| Drivetrain | Rear Wheel Drive |
| Third Gear Ratio (:1) | 2.04 |
| Trans Description Cont. Again | N/A |
| Trans Type | 6 |
| Sixth Gear Ratio (:1) | 1.00 |
| Second Gear Ratio (:1) | 2.99 |
| Reverse Ratio (:1) | 4.70 |
| Suspension Type - Rear | Multi-Link |
| Suspension Type - Front (Cont.) | Double Wishbone |
| Suspension Type - Rear (Cont.) | Multi-Link |
| Suspension Type - Front | Double Wishbone |
| Rear Brake Rotor Diam x Thickness | 11 in |
| Brake Type | 4-Wheel Disc |
| Brake ABS System (Second Line) | N/A |
| Drum - Rear (Yes or ) | N/A |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 11 in |
| Brake ABS System | 4-Wheel |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Fuel Tank Capacity, Approx | 11.9 gal |
| Steering Type | Rack-Pinion |
| Turning Diameter - Curb to Curb | 30.8 ft |
| Lock to Lock Turns (Steering) | N/A |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Wall to Wall | N/A ft |
| Spare Tire Size | N/A |
| Front Tire Size | P205/45WR17 |
| Rear Tire Size | P205/45WR17 |
| Wt Distributing Hitch - Max Tongue Wt. | N/A lbs |
| Dead Weight Hitch - Max Trailer Wt. | N/A lbs |
| Wt Distributing Hitch - Max Trailer Wt. | N/A lbs |
| Dead Weight Hitch - Max Tongue Wt. | N/A lbs |
| Base Curb Weight | 2452 lbs |
| Track Width, Front | 58.9 in |
| Front Hip Room | 52 in |
| Front Leg Room | 43.1 in |
| Second Leg Room | N/A in |
| Second Hip Room | N/A in |
| Length, Overall | 154.1 in |
| Trunk Volume | 4.5 ft³ |
| Wheelbase | 90.9 in |
| Height, Overall | 49 in |
| Width, Max w/o mirrors | 68.3 in |
| Passenger Capacity | 2 |
| Front Head Room | 36.8 in |
| Track Width, Rear | 59.2 in |
| Front Shoulder Room | 52.2 in |
| Passenger Volume | N/A ft³ |
| Second Head Room | N/A in |
| Liftover Height | N/A in |
| Min Ground Clearance | 5.3 in |
| Second Shoulder Room | N/A in |
| Radio: Bose Audio System w/AudioPilot -inc: Android Auto, wireless Apple CarPlay, auxiliary-audio input jack, Bluetooth hands free phone and audio, 9 speakers, driver and passenger headrest speakers and subwoofer, Mazda navigation system, SiriusXM satellite radio w/4-month trial (n/a in AK and HI), SiriusXM 3-year traffic and travel link subscription (current information for traffic, weather, sport scores, fuel prices and nearby parking or parking by destination), speed-sensing automatic volume control and 2 USB audio inputs | Optional |
| Digital Signal Processor | Standard |
| 1 LCD Monitor In The Front | Standard |
| Fixed Antenna | Standard |
| MAZDA CONNECT Infotainment System -inc: 7" full color touch screen, multi function commander control, infotainment system voice command, radio broadcast data system program information, HD Radio, Aha, Pandora, Stitcher internet radio integration, SMS text message audio delivery and relay and E911 automatic emergency notification | Standard |
| Regular Amplifier | Standard |
| Radio w/Seek-Scan, Clock and Steering Wheel Controls | Standard |
| Tire Mobility Kit | Standard |
| Body-Colored Rear Bumper | Standard |
| Tires: P205/45R17 High-Performance Summer | Standard |
| LED Brakelights | Standard |
| Headlights-Automatic Highbeams | Optional |
| Body-Colored Power Heated Side Mirrors w/Driver Auto Dimming and Manual Folding | Optional |
| Light Tinted Glass | Standard |
| Black Side Windows Trim, Black Front Windshield Trim and Black Rear Window Trim | Standard |
| Trunk Rear Cargo Access | Standard |
| Body-Colored Front Bumper | Optional |
| Perimeter/Approach Lights | Standard |
| Wheels: 17" x 7" Dark Silver Aluminum Alloy | Optional |
| Galvanized Steel/Aluminum Panels | Standard |
| Black Grille | Standard |
| Power Convertible Retractable Hard Top w/Lining, Glass Rear Window and Windblocker Fixed Wind Blocker | Standard |
| Auto On/Off Projector Beam Led Low/High Beam Auto-Leveling Directionally Adaptive Auto High-Beam Daytime Running Lights Preference Setting Headlamps w/Delay-Off | Optional |
| Body-Colored Door Handles | Standard |
| Power Rear Window w/Defroster | Standard |
| Rain Detecting Variable Intermittent Wipers | Optional |
| Day-Night Auto-Dimming Rearview Mirror | Optional |
| 6-Way Driver Seat | Standard |
| Front Center Armrest | Standard |
| Cruise Control w/Steering Wheel Controls | Standard |
| Full Carpet Floor Covering -inc: Carpet Front Floor Mats | Standard |
| Proximity Key For Doors And Push Button Start | Standard |
| Cargo Space Lights | Standard |
| Immobilizer | Standard |
| Power Fuel Flap Locking Type | Standard |
| Seats w/Leatherette Back Material | Optional |
| Instrument Panel Bin and Locking Interior Concealed Storage | Standard |
| HomeLink Garage Door Transmitter | Optional |
| Fade-To-Off Interior Lighting | Standard |
| FOB Controls -inc: Cargo Access and Windows | Standard |
| Automatic Air Conditioning | Optional |
| 1 12V DC Power Outlet | Standard |
| Remote Releases -Inc: Power Cargo Access | Standard |
| Driver Foot Rest | Standard |
| Trip Computer | Standard |
| Driver Information Center | Standard |
| Leather Gear Shifter Material | Standard |
| Carpet Floor Trim | Standard |
| Leather Upholstery w/Light Gray Stitching | Optional |
| Manual Tilt/Telescoping Steering Column | Standard |
| Interior Trim -inc: Leatherette Instrument Panel Insert, Body-Colored Door Panel Insert and Chrome/Metal-Look Interior Accents | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button | Standard |
| Leatherette Door Trim Insert | Standard |
| Style Leather/Metal-Look Steering Wheel | Standard |
| Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer | Standard |
| Air Filtration | Standard |
| Power 1st Row Windows w/Driver And Passenger 1-Touch Down | Standard |
| Analog Appearance | Standard |
| Front Cupholder | Standard |
| Full Floor Console w/Covered Storage and 1 12V DC Power Outlet | Standard |
| 4-Way Passenger Seat | Standard |
| Full Cloth Headliner | Standard |
| Power Door Locks w/Autolock Feature | Standard |
| Cargo Features -inc: Tire Mobility Kit | Standard |
| 3-Level Heated Front Bucket Seats -inc: reclining and forward/back slide feature, driver side front tilt and integrated headrests | Standard |
| Driver And Passenger Visor Vanity Mirrors | Standard |
| Outside Temp Gauge | Standard |
| Single Stainless Steel Exhaust w/Chrome Tailpipe Finisher | Standard |
| Front And Rear Anti-Roll Bars | Standard |
| Double Wishbone Front Suspension w/Coil Springs | Standard |
| Engine Oil Cooler | Standard |
| 100 Amp Alternator | Standard |
| 11.9 Gal. Fuel Tank | Standard |
| Engine: SKYACTIV-G 2.0L DOHC 16-Valve 4-Cylinder | Standard |
| Mechanical Limited Slip Differential | Standard |
| Multi-Link Rear Suspension w/Coil Springs | Standard |
| 45-Amp/Hr Maintenance-Free Battery | Standard |
| Bilstein Brand Name Shock Absorbers | Standard |
| 2.87 Axle Ratio | Standard |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control | Standard |
| Sport Tuned Suspension | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| Transmission: SKYACTIV-MT 6-Speed Manual -inc: short throw shifter | Standard |
| Rear-Wheel Drive | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Pretensioners | Standard |
| Lane Departure Warning System (LDWS) Lane Departure Warning | Standard |
| Side Impact Beams | Standard |
| Smart City Brake Support (SCBS) and Rear Cross Traffic Alert (RCTA) | Standard |
| Airbag Occupancy Sensor | Standard |
| Electronic Stability Control (ESC) | Standard |
| ABS And Driveline Traction Control | Standard |
| Blind Spot Monitoring (BSM) Blind Spot | Standard |
| Collision Mitigation-Front | Standard |
| Back-Up Camera | Standard |
| Driver And Passenger Side Airbag Head Extension | Standard |
| Low Tire Pressure Warning | Standard |
