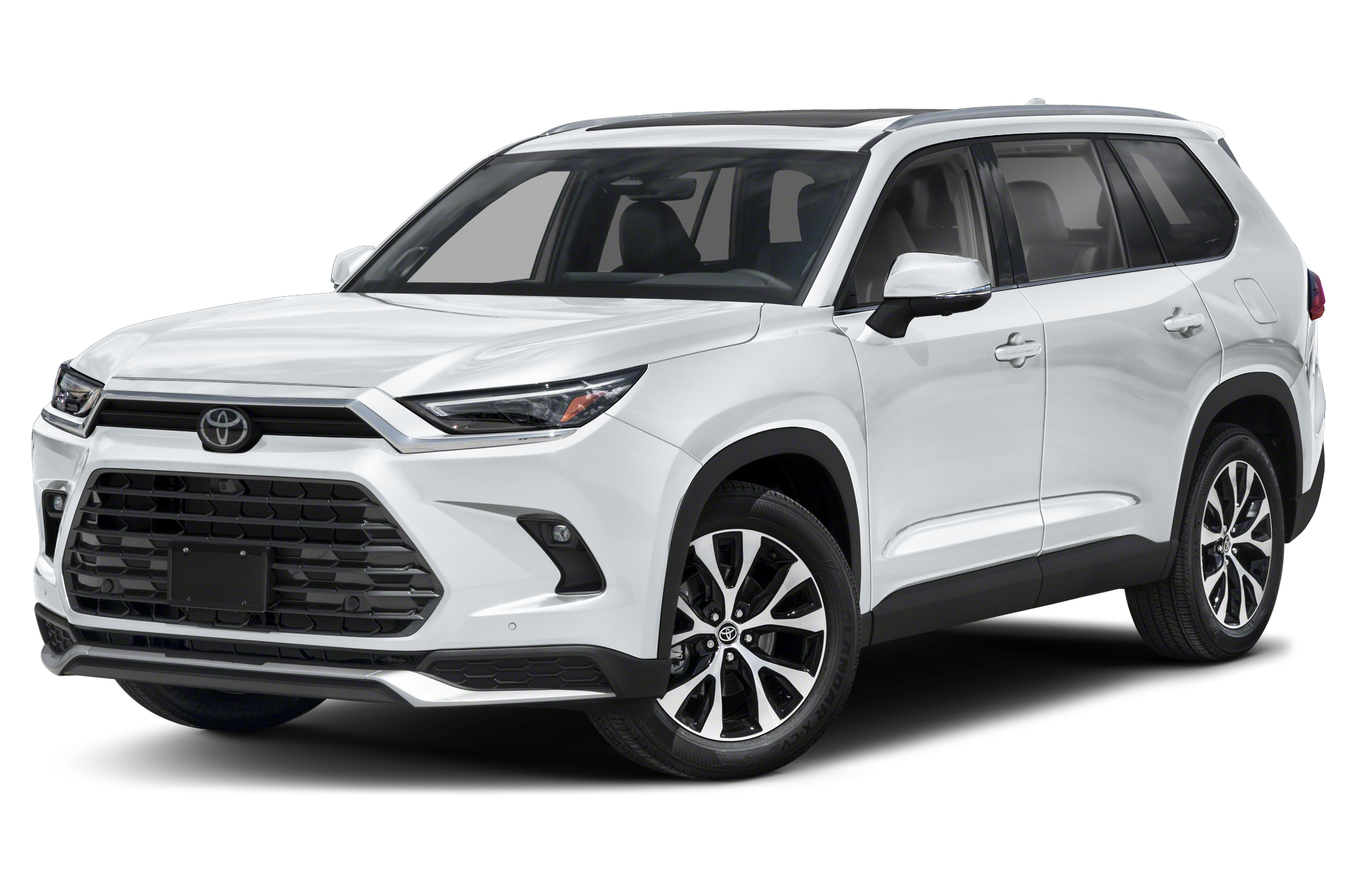

2024 Toyota Grand Highlander Hybrid Hybrid XLE specs & colors
Sport Utility
Change trim
MSRP
- Hybrid XLE FWD (GS) $45,020
- Hybrid XLE FWD (SE) $45,020
- Hybrid XLE FWD (Natl) $45,020
- Hybrid XLE AWD (GS) $46,620
- Hybrid XLE AWD (SE) $46,620
- Hybrid XLE AWD (Natl) $46,620
- Hybrid Limited AWD (GS) $51,410
- Hybrid Limited AWD (SE) $51,410
- Hybrid Limited AWD (Natl) $51,410
- Hybrid MAX Limited AWD (GS) $54,390
- Hybrid MAX Limited AWD (Natl) $54,390
- Hybrid MAX Limited AWD (SE) $54,390
- Hybrid MAX Platinum AWD (Natl) $58,475
- Hybrid MAX Platinum AWD (SE) $58,475
- Hybrid MAX Platinum AWD (GS) $58,475
$45,020
Starting MSRP
Current listing price
Current listing price
Showing the 2024 Toyota Grand Highlander Hybrid Hybrid XLE FWD (Natl)
Shop NowKey specs
Color options
Interior
Black
Ash
Packages
Specifications
| Front Wheel Size | 18 X 8 in |
| Rear Wheel Size | 18 X 8 in |
| Spare Wheel Size | Compact in |
| Front Wheel Material | Aluminum |
| Rear Wheel Material | Aluminum |
| Spare Wheel Material | Steel |
| Cold Cranking Amps @ 0° F (Primary) | N/A |
| Maximum Alternator Capacity (amps) | N/A |
| Engine Type | Gas/Electric I-4 |
| Displacement | 2.5 L/152 |
| SAE Net Horsepower @ RPM | 245 @ 6000 |
| SAE Net Torque @ RPM | 175 @ 4300 |
| Engine Oil Cooler | Regular Duty |
| EPA Fuel Economy Est - Hwy | 34 MPG |
| Cruising Range - City | 636.40 mi |
| EPA Fuel Economy Est - City | 37 MPG |
| Fuel Economy Est-Combined | 36 MPG |
| Cruising Range - Hwy | 584.80 mi |
| Estimated Battery Range | N/A mi |
| Drivetrain | Front Wheel Drive |
| Trans Type | 1 |
| Trans Description Cont. | CVT w/OD |
| Trans Description Cont. Again | N/A |
| First Gear Ratio (:1) | N/A |
| Reverse Ratio (:1) | N/A |
| Trans Power Take Off | N/A |
| Final Drive Axle Ratio (:1) | N/A |
| Transfer Case Model | None |
| Transfer Case Gear Ratio (:1), High | N/A |
| Transfer Case Gear Ratio (:1), Low | N/A |
| Transfer Case Power Take Off | No |
| Suspension Type - Front | Strut |
| Suspension Type - Rear | Multi-Link |
| Axle Type - Front | Independent |
| Axle Type - Rear | Independent |
| Frame Type | N/A |
| Brake Type | 4-Wheel Disc |
| Brake ABS System | 4-Wheel |
| Brake ABS System (Second Line) | 4-Wheel |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 13.3 in |
| Rear Brake Rotor Diam x Thickness | 13.3 in |
| Drum - Rear (Yes or ) | N/A |
| Fuel Tank Capacity, Approx | 17.2 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Steering Type | Rack-Pinion |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Curb to Curb | 38.1 ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Front Tire Size | P255/65VR18 |
| Rear Tire Size | P255/65VR18 |
| Spare Tire Size | Compact |
| Dead Weight Hitch - Max Trailer Wt. | 3500 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 350 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 3500 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 350 lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | N/A lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | N/A lbs |
| Maximum Trailering Capacity | 3500 lbs |
| Base Curb Weight | 4455 lbs |
| Curb Weight - Front | N/A lbs |
| Curb Weight - Rear | N/A lbs |
| Option Weight - Front | 0.00 lbs |
| Option Weight - Rear | 0.00 lbs |
| As Spec'd Curb Weight | N/A lbs |
| As Spec'd Payload | N/A lbs |
| Maximum Payload Capacity | N/A lbs |
| Gross Combined Wt Rating | N/A lbs |
| Gross Axle Weight Rating | N/A lbs |
| Curb Weight | N/A lbs |
| Total Option Weight | 0.00 lbs |
| Gross Vehicle Weight Rating | 6030.00 lbs |
| Passenger Capacity | 7 |
| Front Head Room | 41.5 in |
| Front Leg Room | 41.7 in |
| Front Shoulder Room | 60.2 in |
| Front Hip Room | 56.5 in |
| Second Head Room | 40.2 in |
| Second Leg Room | 39.5 in |
| Second Shoulder Room | 58.8 in |
| Second Hip Room | 57 in |
| Third Head Room | 37.2 in |
| Third Leg Room | 33.5 in |
| Third Shoulder Room | 57.5 in |
| Third Hip Room | 45.7 in |
| Wheelbase | 116.1 in |
| Length, Overall w/rear bumper | N/A in |
| Length, Overall | 201.4 in |
| Width, Max w/o mirrors | 78.3 in |
| Height, Overall | 70.1 in |
| Track Width, Front | 65.3 in |
| Track Width, Rear | 65.4 in |
| Overhang, Front | N/A in |
| Overhang, Rear w/o bumper | N/A in |
| Cab to End of Frame | N/A in |
| Ground to Top of Load Floor | N/A in |
| Ground Clearance, Front | N/A in |
| Ground Clearance, Rear | N/A in |
| Min Ground Clearance | N/A in |
| Rear Door Opening Height | N/A in |
| Rear Door Opening Width | N/A in |
| Cargo Area Length @ Floor to Seat 1 | N/A in |
| Cargo Area Length @ Floor to Seat 2 | N/A in |
| Cargo Area Length @ Floor to Seat 3 | N/A in |
| Cargo Box Width @ Top, Rear | N/A in |
| Cargo Area Width @ Beltline | N/A in |
| Cargo Box Width @ Floor | N/A in |
| Cargo Box Width @ Wheelhousings | N/A in |
| Cargo Box (Area) Height | N/A in |
| Liftover Height | N/A in |
| Tailgate Width | N/A in |
| Cargo Volume | N/A ft³ |
| Cargo Volume to Seat 1 | 97.5 ft³ |
| Cargo Volume to Seat 2 | 57.9 ft³ |
| Cargo Volume to Seat 3 | 20.6 ft³ |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Real-Time Traffic Display | Standard |
| Radio w/Seek-Scan, Clock, Speed Compensated Volume Control and Steering Wheel Controls | Standard |
| Turn-By-Turn Navigation Directions | Standard |
| 2 LCD Monitors In The Front | Standard |
| Radio: 12.3" Toyota Audio Multimedia -inc: 6 speakers, voice activated commands, dual Bluetooth phone connectivity, wireless Apple CarPlay and Android Auto compatibility, HD Radio, USB and SiriusXM w/3-month platinum plan trial subscription | Standard |
| Window Grid Diversity Antenna | Standard |
| Perimeter/Approach Lights | Standard |
| Variable Intermittent Wipers w/Heated Wiper Park | Standard |
| Black Bodyside Cladding and Black Wheel Well Trim | Standard |
| Auto On/Off Projector Beam Led Low/High Beam Auto High-Beam Daytime Running Lights Preference Setting Headlamps w/Delay-Off | Standard |
| Front License Plate Bracket | Standard |
| Body-Colored Door Handles | Standard |
| Headlights-Automatic Highbeams | Standard |
| Roof Rack Rails Only | Standard |
| Compact Spare Tire Stored Underbody w/Crankdown | Standard |
| Lip Spoiler | Standard |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Standard |
| Steel Spare Wheel | Standard |
| Deep Tinted Glass | Standard |
| Wheels: 18" Aluminum Alloy | Standard |
| Black Grille | Standard |
| Body-Colored Power Heated Side Mirrors w/Manual Folding and Turn Signal Indicator | Standard |
| LED Brakelights | Standard |
| Power Liftgate Rear Cargo Access | Standard |
| Chrome Side Windows Trim | Standard |
| Fully Galvanized Steel Panels | Standard |
| Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent | Standard |
| Laminated Glass | Standard |
| Body-Colored Rear Bumper w/Black Rub Strip/Fascia Accent | Standard |
| Fixed Rear Window w/Fixed Interval Wiper and Defroster | Standard |
| Tires: 255/65R18 M+S | Standard |
| Full Carpet Floor Covering | Standard |
| Safety Connect (up to 10-year trial subscription) Tracker System | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror | Standard |
| Power Door Locks w/Autolock Feature | Standard |
| Drive Connect Cloud Navigation (1-year trial subscription) Integrated Navigation System w/Voice Activation | Standard |
| Front Center Armrest and Rear Seat Mounted Armrest | Standard |
| Roll-Up Cargo Cover | Standard |
| Carpet Floor Trim | Standard |
| Rear HVAC w/Separate Controls | Standard |
| Analog Appearance | Standard |
| SofTex Seat Trim | Standard |
| Leather/Metal-Look Gear Shifter Material | Standard |
| Driver Foot Rest | Standard |
| Remote Releases -Inc: Power Cargo Access and Power Fuel | Standard |
| Driver Information Center | Standard |
| 2 12V DC Power Outlets | Standard |
| Passenger Seat | Standard |
| FOB Controls -inc: Cargo Access | Standard |
| Power 1st Row Windows w/Front And Rear 1-Touch Up/Down | Standard |
| Locking Glove Box | Standard |
| Proximity Key For Doors And Push Button Start | Standard |
| Perimeter Alarm | Standard |
| Dual Zone Front Automatic Air Conditioning | Standard |
| Manual Tilt/Telescoping Steering Column | Standard |
| Bucket Folding Captain Front Facing Manual Reclining Fold Forward Seatback Rear Seat w/Manual Fore/Aft | Standard |
| 8-Way Driver Seat | Standard |
| Outside Temp Gauge | Standard |
| Trip Computer | Standard |
| Air Filtration | Standard |
| Cargo Area Concealed Storage | Standard |
| Front And Rear Map Lights | Standard |
| Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Traction Battery Level, Power/Regen, Trip Odometer and Trip Computer | Standard |
| Full Cloth Headliner | Standard |
| HVAC -inc: Underseat Ducts and Headliner/Pillar Ducts | Standard |
| Instrument Panel Bin, Driver / Passenger And Rear Door Bins | Standard |
| Trunk/Hatch Auto-Latch | Standard |
| 2 Seatback Storage Pockets | Standard |
| Leather Steering Wheel | Standard |
| Leatherette Door Trim Insert | Standard |
| Immobilizer | Standard |
| Adaptive | Standard |
| Power Rear Windows, Fixed 3rd Row Windows and w/Manual 2nd Row Sun Blinds | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, 4 Door Curb/Courtesy, Illuminated Entry, Illuminated Ignition Switch and Panic Button | Standard |
| Front Cupholder | Standard |
| Rear Cupholder | Standard |
| Heated Front Seats -inc: 10-way power driver and 8-way power passenger seats | Standard |
| Seats w/Leatherette Back Material | Standard |
| Smart Device Remote Engine Start | Standard |
| Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints | Standard |
| Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage, Rear Console w/Storage and 2 12V DC Power Outlets | Standard |
| Cargo Space Lights | Standard |
| Fixed 60-40 Split-Bench 3rd Row Seat Front, Manual Recline, Manual Fold Into Floor, 3 Manual and Adjustable Head Restraints | Standard |
| Fade-To-Off Interior Lighting | Standard |
| Interior Trim -inc: Metal-Look Instrument Panel Insert, Metal-Look Door Panel Insert, Metal-Look Console Insert and Chrome/Metal-Look Interior Accents | Standard |
| Day-Night Auto-Dimming Rearview Mirror | Standard |
| Wi-Fi Connect with 30-day or up to 3GB trial subscription Mobile Hotspot Internet Access | Standard |
| HomeLink Garage Door Transmitter | Standard |
| Cruise Control w/Steering Wheel Controls | Standard |
| Transmission: Continuously Variable (ECVT) | Standard |
| Transmission w/Driver Selectable Mode, Sequential Shift Control and Oil Cooler | Standard |
| Gas-Pressurized Shock Absorbers | Standard |
| Strut Front Suspension w/Coil Springs | Standard |
| Front And Rear Anti-Roll Bars | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| GVWR: 6,030 lbs | Standard |
| Towing Equipment -inc: Trailer Sway Control | Standard |
| Engine Auto Stop-Start Feature | Standard |
| Multi-Link Rear Suspension w/Coil Springs | Standard |
| TBD Axle Ratio | Standard |
| Regenerative 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake | Standard |
| Hybrid Electric Motor | Standard |
| Battery w/Run Down Protection | Standard |
| Front-Wheel Drive | Standard |
| 17.2 Gal. Fuel Tank | Standard |
| Engine Oil Cooler | Standard |
| Quasi-Dual Stainless Steel Exhaust | Standard |
| Nickel Metal Hydride (nimh) Traction Battery | Standard |
| Engine: 2.5L 4-Cylinder Hybrid | Standard |
| Evasion Assist | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Driver Monitoring-Alert | Standard |
| Electronic Stability Control (ESC) | Standard |
| Driver Knee Airbag and Passenger Cushion Front Airbag | Standard |
| Lane Departure Alert (LDA) w/Steering Assist Lane Departure Warning | Standard |
| Pre-Collision System (PCS) w/Intersection Support and Rear Cross-Traffic Alert (RCTA) Front Cross-Traffic Alert (FCTA) | Standard |
| Lane Change Assist (LCA)/Lane Tracing Assist (LTA) | Standard |
| Lane Departure Alert (LDA) w/Steering Assist Lane Keeping Assist | Standard |
| Back-Up Camera w/Washer | Standard |
| Tire Specific Low Tire Pressure Warning | Standard |
| ABS And Driveline Traction Control | Standard |
| Safety Connect (up to 10-year trial subscription) Emergency Sos | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners | Standard |
| Airbag Occupancy Sensor | Standard |
| Blind Spot Monitor (BSM) Blind Spot | Standard |
| Curtain 1st, 2nd And 3rd Row Airbags | Standard |
| Rear Child Safety Locks | Standard |
| Side Impact Beams | Standard |
| Collision Mitigation-Front | Standard |
Compare trims
Wondering which trim is right for you?
Our 2024 Toyota Grand Highlander Hybrid trim comparison will help you decide.
