2010 Toyota Highlander Base specs & colors

Starting MSRP
Current listing price

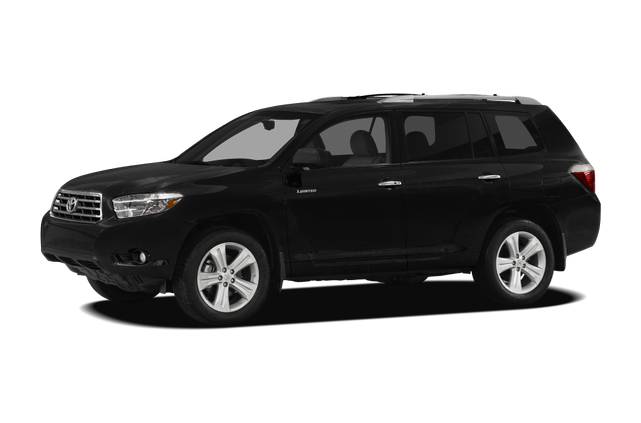

2010 Toyota Highlander Base

Showing the 2010 Toyota Highlander FWD 4dr L4 Base (Natl)

Shop Now

Key specs

Color options






EPA Classification 2WD Sport Utility Vehicle
Rear Wheel Size 19 x 7.5 in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Front Wheel Size 17 x 7.5 in
Spare Wheel Size 17 x 7.5 in
Spare Wheel Material Aluminum
Maximum Alternator Capacity (amps) N/A
Cold Cranking Amps @ 0° F (Primary) N/A
Engine Type Gas I4
SAE Net Torque @ RPM 186 @ 4100
Displacement 2.7L/163
SAE Net Horsepower @ RPM 187 @ 5800
EPA Fuel Economy Est - City 20 MPG
Cruising Range - City 384.00 mi
Fuel Economy Est-Combined 22 MPG
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Cruising Range - Hwy 518.40 mi
EPA MPG Equivalent - City N/A
Estimated Battery Range N/A mi
EPA Fuel Economy Est - Hwy 27 MPG
Transfer Case Gear Ratio (:1), Low Not Available
Trans Description Cont. Again Not Available
Trans Type 6
Transfer Case Gear Ratio (:1), High Not Available
Final Drive Axle Ratio (:1) 4.36
Drivetrain Front Wheel Drive
First Gear Ratio (:1) 3.30
Fifth Gear Ratio (:1) 0.71
Reverse Ratio (:1) 4.15
Fourth Gear Ratio (:1) 1.00
Third Gear Ratio (:1) 1.42
Second Gear Ratio (:1) 1.90
Trans Description Cont. Automatic
Sixth Gear Ratio (:1) 0.61
Suspension Type - Rear (Cont.) Not Available
Suspension Type - Front (Cont.) Not Available
Suspension Type - Front Independent
Suspension Type - Rear Independent
Rear Brake Rotor Diam x Thickness 12.2 x -TBD- in
Drum - Rear (Yes or ) Not Available
Disc - Front (Yes or ) Yes
Front Brake Rotor Diam x Thickness 12.9 x -TBD- in
Brake ABS System (Second Line) N/A
Brake ABS System 4-Wheel
Brake Type Pwr
Disc - Rear (Yes or ) Yes
Fuel Tank Capacity, Approx 19.2 gal
Aux Fuel Tank Capacity, Approx N/A gal
Steering Type Pwr Rack & Pinion
Lock to Lock Turns (Steering) 3.1
Turning Diameter - Wall to Wall N/A ft
Steering Ratio (:1), Overall 17.1
Turning Diameter - Curb to Curb 38.7 ft
Spare Tire Size P245/65R17
Rear Tire Size P245/65R17
Front Tire Size P245/65R17
Wt Distributing Hitch - Max Tongue Wt. 150 lbs
Wt Distributing Hitch - Max Trailer Wt. 1500 lbs
Maximum Trailering Capacity N/A lbs
Dead Weight Hitch - Max Trailer Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. 1500 lbs
Base Curb Weight 3847 lbs
Curb Weight N/A lbs
Maximum Payload Capacity N/A lbs
Curb Weight - Rear N/A lbs
Total Option Weight 0.00 lbs
Curb Weight - Front N/A lbs
Cargo Area Width @ Beltline N/A in
Height, Overall 68.1 in
Front Leg Room 43.2 in
Passenger Capacity 5
Width, Max w/o mirrors 75.2 in
Passenger Volume 145.7 ft³
Second Head Room 40.1 in
Second Hip Room 56.5 in
Third Hip Room 42.3 in
Third Leg Room 29.9 in
Liftover Height N/A in
Second Shoulder Room 59.5 in
Second Leg Room 38.3 in
Cargo Volume to Seat 1 95.4 ft³
Front Hip Room 56.7 in
Cargo Volume to Seat 2 42.3 ft³
Cargo Box Width @ Wheelhousings N/A in
Cargo Box (Area) Height N/A in
Cargo Volume to Seat 3 10.3 ft³
Length, Overall 188.4 in
Front Shoulder Room 59.7 in
Cargo Area Length @ Floor to Seat 1 N/A in
Rear Door Opening Height N/A in
Cargo Area Length @ Floor to Seat 3 N/A in
Third Head Room 36.3 in
Rear Door Opening Width N/A in
Track Width, Rear 64.2 in
Third Shoulder Room 55.0 in
Wheelbase 109.8 in
Track Width, Front 64.0 in
Front Head Room 39.7 in
Cargo Area Length @ Floor to Seat 2 N/A in
Min Ground Clearance 7.8 in
Driver & front passenger front seat-mounted side airbags Standard
Color-keyed front/rear bumpers Standard
Front wheel drive Standard
Anti-lock brake system (ABS) w/brake assist Standard
Enhanced Vehicle Stability Control (VSC) w/cutoff switch Standard
Optitron red-illuminated instrument cluster -inc: speedometer, tachometer, water temp, fuel, LCD odometer w/dual tripmeters Standard
Cruise control Standard
Washer-linked variable intermittent windshield wipers Standard
6-speed ECT-i automatic transmission Standard
Pwr windows -inc: driver auto up/down, jam protection Standard
Color-keyed foldable pwr mirrors Standard
Center console -inc: (6) cupholders, storage compartments, 2nd row seat vents, silver trim Standard
Cargo area tie down hooks Standard
Collapsible steering column Standard
Door pockets w/cup/bottle holders Standard
Traction control (TRAC) Standard
Front seatbelt pretensioners w/force limiters, adjustable belt anchors Standard
Overhead console -inc: map lights, conversation mirror, sunglass holder Standard
12V aux pwr outlets -inc: (2) front, (1) cargo area Standard
Digital clock Standard
17" x 7.5" 6-spoke machined-finish aluminum alloy wheels Standard
Direct tire pressure monitoring system (TPMS) Standard
Side-impact door beams Standard
Full-size spare w/aluminum wheel Standard
Fixed mast antenna Standard
Pwr ventilated front/solid rear disc brakes Standard
(6) passenger assist grips Standard
Front & rear energy-absorbing crumple zones Standard
Pwr door locks w/auto shifter activation Standard
Color-keyed door handles Standard
Illuminated entry Standard
3-row roll-sensing side curtain airbags Standard
3-point shoulder belts in all seating positions -inc: drivers emergency locking retractor (ELR), automatic locking retractor (ALR) & emergency locking retractor (ELR) for all passenger positions Standard
Child protector rear door locks Standard
Cloth front captains chairs -inc: 8-way manual driver seat, 4-way manual front passenger seat, 2-way active head restraints Standard
Manual defroster-linked air conditioning w/air filter Standard
Silver-tone interior trim Standard
Energy-dissipating interior trim Standard
Rear privacy glass Standard
Driver & front passenger advanced airbag system w/occupant classification sensor Standard
Tilt/telescopic adjustable steering wheel Standard
Remote hood & fuel filler door releases Standard
Drivers knee airbag Standard
UV reduction glass windshield Standard
Child restraint system (CRS) top tether anchors for all rear seating positions Standard
Remote keyless entry system Standard
Silver-painted grille Standard
Cloth 40/20/40 2nd row fold-flat slide & recline seat -inc: Center Stow seat & console, one-touch right hand walk-in function, outboard armrests Standard
Electronic Brake-force distribution (EBD) Standard
ISO-FIX child restraint system (CRS) anchors for outboard seating positions Standard
2.7L DOHC 16-valve VVT-i I4 engine Standard
P245/65R17 all-season tires Standard
4-wheel independent Macpherson strut suspension Standard
Dual visors -inc: vanity mirrors, sliding extensions Standard
Rear window defogger Standard
Hill Start Assist Control (HAC) Standard
Electric pwr rack & pinion steering w/pwr assist (EPS) Standard
Warning lights -inc: seatbelt disconnect, airbag, door-ajar, battery, oil pressure, brake, VSC, ABS, check engine, maintenance indicator, low-fuel Standard
Multi-reflector halogen headlamps w/auto-off feature, clear headlamp bezels Standard
Under floor storage in rear cargo area Standard
Color-keyed rear spoiler w/integrated lamp Standard
Front & rear stabilizer bars Standard
Rear intermittent wiper Standard
Collision fuel cut-off sensor Standard
AM/FM stereo w/CD player -inc: (6) speakers, MP3/WMA playback, aux input Standard
