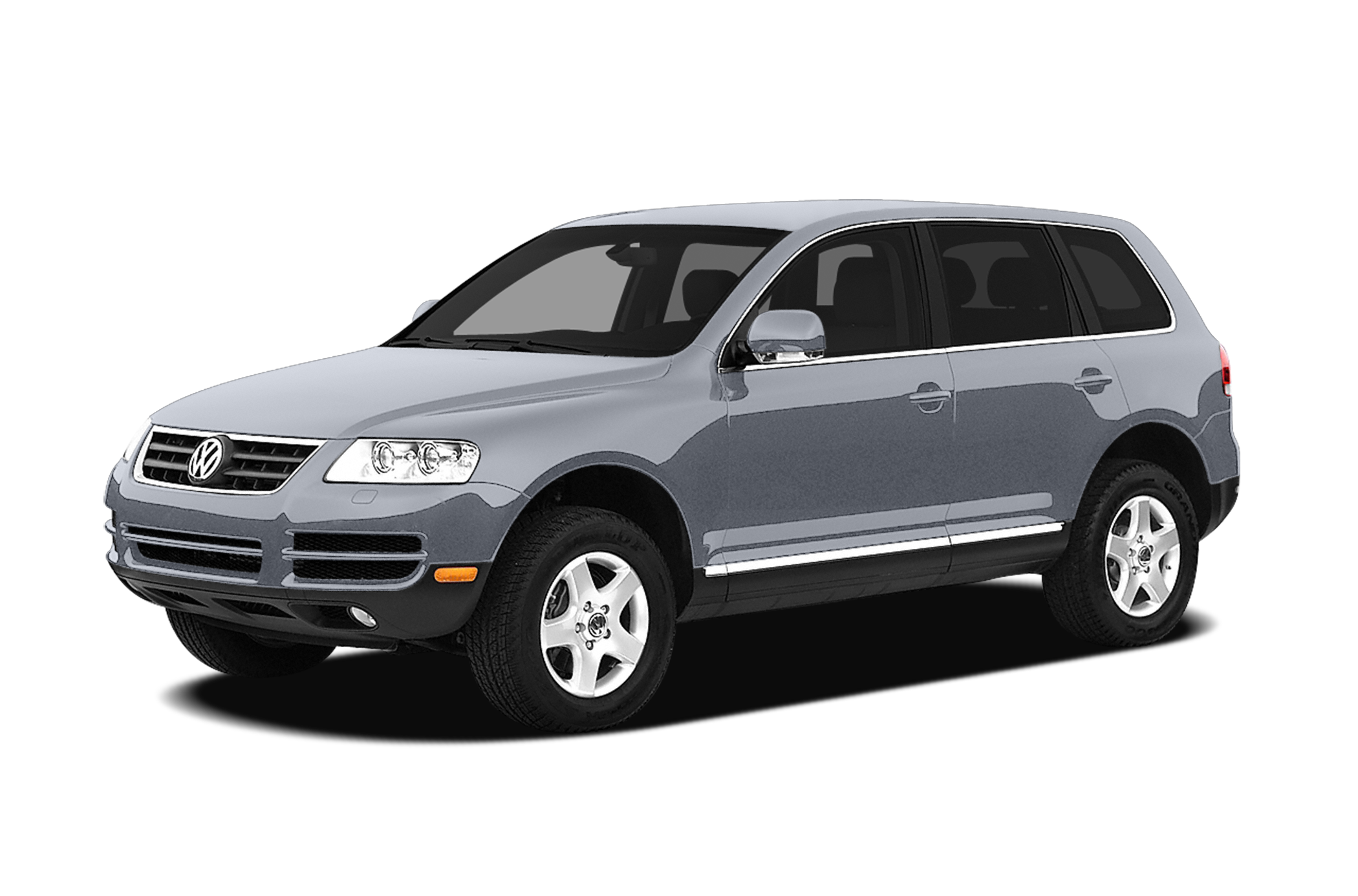

2005 Volkswagen Touareg specs & colors
Sport Utility
MSRP
- 4dr V6 Special Order
- $37,140
- 4dr V6
- $37,140
- 4dr V8 Special Order
- $44,260
- 4dr V8
- $44,260
- 4dr V10 Special Order *Ltd Avail*
- $58,490
- 4dr V10 *Ltd Avail*
- $58,490
Key specs
Color options
Interior
White
Medium Mocha
Gray
Mocha
Cordovan
Packages
Specifications
Highlights
|
Gas V6
Engine Type
|
|
16 City / 21 Hwy
MPG
|
|
240 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
Pwr
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
N/A
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
13.0 x 1.26 in
Front Brake Rotor Diam x Thickness
|
|
13.0 x 1.10 in
Rear Brake Rotor Diam x Thickness
|
|
Not Available
Drum - Rear (Yes or )
|
Electrical
|
450
Cold Cranking Amps @ 0° F (Primary)
|
|
150
Maximum Alternator Capacity (amps)
|
Engine
|
Gas V6
Engine Type
|
|
3.2L/195
Displacement
|
|
240 @ 6000
SAE Net Horsepower @ RPM
|
|
229 @ 3200
SAE Net Torque @ RPM
|
|
6-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
16 City / 21 Hwy
MPG
|
|
18 qts
Total Cooling System Capacity
|
Measurements
|
5
Passenger Capacity
|
|
99 ft³
Passenger Volume
|
|
Not Available ft³
Cargo Volume to Seat 3
|
|
31 ft³
Cargo Volume to Seat 2
|
|
71 ft³
Cargo Volume to Seat 1
|
|
N/A
Liftover Height
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Area Width @ Beltline
|
|
Not Available in
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Rear Door Opening Width
|
|
N/A
Rear Door Opening Height
|
|
8 in
Min Ground Clearance
|
|
66 in
Track Width, Rear
|
|
65 in
Track Width, Front
|
|
68 in
Height, Overall
|
|
76 in
Width, Max w/o mirrors
|
|
187 in
Length, Overall
|
|
112 in
Wheelbase
|
|
N/A
Second Hip Room
|
|
57 in
Second Shoulder Room
|
|
36 in
Second Leg Room
|
|
38 in
Second Head Room
|
|
N/A
Front Hip Room
|
|
58 in
Front Shoulder Room
|
|
41 in
Front Leg Room
|
|
39 in
Front Head Room
|
Steering
|
Pwr Rack & Pinion
Steering Type
|
|
15
Steering Ratio (:1), Overall
|
|
3
Lock to Lock Turns (Steering)
|
|
38 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Independent
Suspension Type - Front
|
|
Independent
Suspension Type - Rear
|
|
Double Wishbone
Suspension Type - Front (Cont.)
|
|
Four Link
Suspension Type - Rear (Cont.)
|
Tires & Wheels
|
P255/60HR17
Front Tire Size
|
|
P255/60HR17
Rear Tire Size
|
|
P195/80R17
Spare Tire Size
|
|
17 x 7.5 in
Front Wheel Size
|
|
17 x 7.5 in
Rear Wheel Size
|
|
17 x -TBD- in
Spare Wheel Size
|
|
Alloy
Front Wheel Material
|
|
Alloy
Rear Wheel Material
|
|
N/A
Spare Wheel Material
|
Weight & Capacity
|
5,086 lbs
Base Curb Weight
|
|
N/A
Curb Weight - Front
|
|
N/A
Curb Weight - Rear
|
|
N/A
Maximum Payload Capacity
|
|
N/A
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Dead Weight Hitch - Max Tongue Wt.
|
|
7,716 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
772 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
26 gal
Fuel Tank Capacity, Approx
|
|
0 lbs
Total Option Weight
|
|
N/A
Curb Weight
|
