2013 Ford Flex Limited specs & colors

Starting MSRP
Current listing price

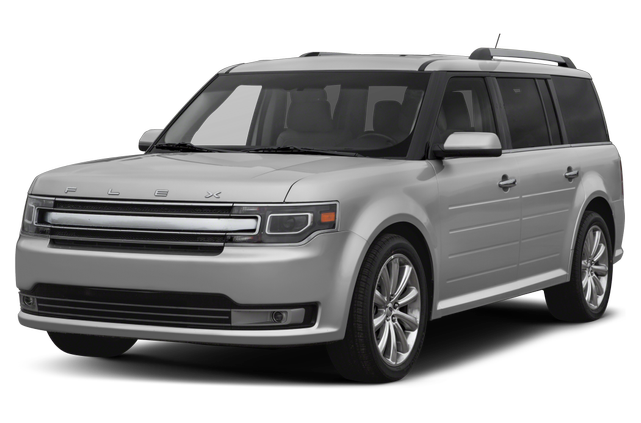

Showing the 2013 Ford Flex 4dr Limited AWD

Shop Now

Key specs

Color options




Medium pebble



Starting MSRP

  • receiver hitch
  • wiring harness w/4 & 7 pin connectors
  • engine oil cooler

Trailer tow pkg class III


Starting MSRP

  • base vehicle


Starting MSRP

  • active park assist
  • adaptive cruise control w/collision mitigation & brake support
  • 3rd row 50/50 split fold-flat vinyl bench w/1-touch PowerFold & tumble

301A equipment group order code


EPA Classification 4WD Sport Utility Vehicle

Rear Wheel Size 19 x -TBD- in
Front Wheel Size 19 x -TBD- in
Spare Wheel Size Compact in
Spare Wheel Material N/A
Rear Wheel Material Aluminum
Front Wheel Material Aluminum

Maximum Alternator Capacity (amps) N/A
Cold Cranking Amps @ 0° F (Primary) N/A

Displacement 3.5L/213
SAE Net Torque @ RPM 254 @ 4500
Engine Type Gas V6
SAE Net Horsepower @ RPM 287 @ 6250

EPA MPG Equivalent - Combined N/A
Fuel Economy Est-Combined 18 MPG
Cruising Range - Hwy 427.80 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA Fuel Economy Est - Hwy 23 MPG
Estimated Battery Range N/A mi
Cruising Range - City 297.60 mi
EPA Fuel Economy Est - City 16 MPG

Third Gear Ratio (:1) 1.840
Transfer Case Gear Ratio (:1), High 1.000
Transfer Case Gear Ratio (:1), Low N/A
Trans Description Cont. Again N/A
Trans Description Cont. Automatic
Drivetrain All Wheel Drive
Sixth Gear Ratio (:1) 0.740
Fourth Gear Ratio (:1) 1.410
Second Gear Ratio (:1) 2.870
Fifth Gear Ratio (:1) 1.000
First Gear Ratio (:1) 4.480
Final Drive Axle Ratio (:1) 3.650
Reverse Ratio (:1) 2.880
Trans Type 6

Suspension Type - Rear (Cont.) w/Coil Springs
Suspension Type - Front MacPherson strut
Suspension Type - Rear Multi-link
Suspension Type - Front (Cont.) w/Coil Springs

Drum - Rear (Yes or ) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 12.800 x -TBD- in
Brake ABS System (Second Line) N/A
Brake Type Pwr
Rear Brake Rotor Diam x Thickness 13.000 x -TBD- in
Brake ABS System 4-Wheel

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 18.600 gal

Turning Diameter - Wall to Wall N/A ft
Lock to Lock Turns (Steering) N/A
Turning Diameter - Curb to Curb 40.700 ft
Steering Ratio (:1), Overall 17.000
Steering Type Pwr Rack & Pinion

Rear Tire Size P235/55R19
Front Tire Size P235/55R19
Spare Tire Size Compact

Maximum Trailering Capacity N/A lbs
Dead Weight Hitch - Max Trailer Wt. 2000 lbs
Wt Distributing Hitch - Max Tongue Wt. 200 lbs
Wt Distributing Hitch - Max Trailer Wt. 2000 lbs
Dead Weight Hitch - Max Tongue Wt. 200 lbs

Curb Weight - Rear N/A lbs
Curb Weight N/A lbs
Base Curb Weight 4643 lbs
Total Option Weight 0.00 lbs
Curb Weight - Front N/A lbs
Maximum Payload Capacity N/A lbs

Second Leg Room 44.300 in
Track Width, Front 65.400 in
Min Ground Clearance N/A in
Third Head Room 38.700 in
Passenger Capacity 7
Second Head Room 40.500 in
Cargo Volume to Seat 2 43.200 ft³
Liftover Height N/A in
Rear Door Opening Width N/A in
Cargo Area Width @ Beltline N/A in
Third Hip Room 41.100 in
Cargo Area Length @ Floor to Seat 3 N/A in
Third Leg Room 33.300 in
Front Head Room 41.800 in
Cargo Box (Area) Height N/A in
Front Leg Room 40.800 in
Height, Overall 68.000 in
Front Shoulder Room 58.400 in
Front Hip Room 55.500 in
Rear Door Opening Height N/A in
Wheelbase 117.900 in
Cargo Box Width @ Wheelhousings N/A in
Cargo Volume to Seat 1 83.200 ft³
Cargo Volume to Seat 3 20.000 ft³
Passenger Volume 155.8 ft³
Cargo Area Length @ Floor to Seat 1 N/A in
Width, Max w/o mirrors 75.900 in
Length, Overall 201.800 in
Third Shoulder Room 50.800 in
Second Hip Room 55.000 in
Track Width, Rear 65.400 in
Second Shoulder Room 58.100 in
Cargo Area Length @ Floor to Seat 2 N/A in

SYNC w/MyFord Touch -inc: (2) driver configurable 4.2" color LCD display in instrument cluster, 8" LCD touch-screen in center-stack, media hub w/(2) USB ports, SD card reader, A/V input jacks, 5-way steering wheel controls, Bluetooth capability, steering wheel audio controls, 911 assist, vehicle health report, SYNC services 3-year prepaid subscription w/GPS based turn-by-turn driving directions & traffic reports & info services Optional
Voice-activated navigation -inc: in-dash screen, SIRIUS Travel Link w/6-month subscription Optional
Sony AM/FM stereo w/CD player -inc: MP3 capability, 360-watt amplifier, (12) speakers, HD Radio Optional
SIRIUS satellite radio *SIRIUS 6 months programming included where available* Optional

P235/55R19 BSW tires Optional
19" painted aluminum wheels Optional
Bright stainless steel beltline Optional
Front rain sensing speed sensitive intermittent wipers Optional
Satin aluminum grille Optional
Pwr liftgate w/satin aluminum applique Optional
Rear privacy glass Standard
Lower grille w/kast silver strips Optional
HID auto headlamps Optional
Fog lamps w/kast silver trim ring Optional
Chrome door handles Optional
LED taillamps Optional
Body-color heated pwr mirrors w/PowerFold -inc: security approach lamps, memory Optional
Rear 2-speed wipers Standard

Leather-wrapped shift knob Standard
Pwr windows w/driver one-touch up/down Standard
SecuriCode invisible keyless entry keypad on drivers door Standard
Rear A/C vents Standard
Manual tilt-adjustable/telescoping steering column Standard
Cargo net Optional
4-way adjustable head restraints Standard
110V inverter Optional
1st & 2nd row carpeted floor mats Standard
Cruise control w/steering wheel controls Standard
Heated front perforated leather-trimmed bucket seats -inc: 10-way pwr driver seat w/pwr lumbar, 6-way pwr passenger seat w/lumbar, driver seat memory, fold-down armrest w/dual cupholders Optional
Intelligent access w/push button start Optional
Ambient lighting Optional
Front floor console storage bin Standard
Illuminated entry Standard
Front seat back map pockets Standard
2nd row coat hooks Standard
Overhead console w/sunglass holder -inc: map light Standard
Reading lamps for 2nd & 3rd rows Standard
3rd row 50/50 fold in floor bench seat Standard
SecuriLock passive anti-theft system Standard
Grocery bag hooks in cargo area Standard
Black scuff plates w/aluminum insert Optional
1st & 2nd row door storage pockets Standard
Remote start Optional
Perimeter anti-theft alarm Standard
Accessory pwr delay Standard
(3) roof grab handles Standard
Auto-dimming rearview mirror Standard
2nd row 60/40 split bench seat -inc: autofold feature on passenger "40", center flip out armrest w/(2) cupholders Optional
Locking glove box Standard
(10) cup holders Standard
Pwr adjustable pedals w/memory Optional
Pwr locks w/autolock Standard
7-passenger seating (STD) Optional
Leather-wrapped steering wheel -inc: audio controls, wood inlay Optional
Universal garage door opener Optional
Driver & front passenger sunvisors w/illuminated mirrors Standard
Dual-zone electronic auto temp control air conditioning Optional
Yoho maple wood grain appearance IP/door applique Optional
(4) 12V pwr outlets Standard
Remote keyless entry Standard
Rear defroster Standard

Easy Fuel capless fuel-filler Standard
All-wheel drive Optional
Battery saver Standard
6-speed SelectShift automatic transmission w/shifter-button activation (STD) Standard
3.5L Ti-VCT V6 engine (STD) Standard
Battery management system Standard
3.65 axle ratio Optional
Electronic pwr assisted steering (EPAS) Standard
Quasi-dual exhaust w/chrome tips Standard

4-wheel anti-lock disc brakes Standard
Passenger sensing system Standard
SOS Post-Crash Alert System Standard
2nd/3rd row Safety Canopy w/rollover sensor Standard
Rearview camera Optional
Blind spot monitoring (BLIS) w/cross-traffic alert Optional
Side-impact airbags Standard
Reverse sensing system Standard
Dual front airbags w/Personal Safety System Standard
Rear child safety locks Standard
MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute Standard
Rear seat lower anchors & tethers for children (LATCH) Standard
Tire pressure monitoring system Standard
Advance Trac w/roll stability control (RSC) Standard
