2020 Ford Explorer ST specs & colors

Sport Utility

Change trim

MSRP

Base RWD $32,765
Base 4WD $34,765
XLT RWD $36,925
XLT 4WD $38,925
Limited RWD $48,380
Limited 4WD $50,380
ST 4WD $54,740
Platinum 4WD $58,250

Change trim

$54,740

Starting MSRP
Current listing price

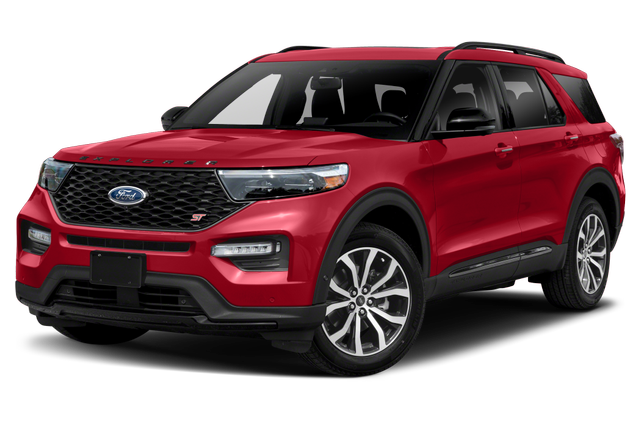

Showing the 2020 Ford Explorer ST 4WD

Shop Now

Color options

Exterior

Interior

Ebony

Packages

ST High-Performance Pack

$1,595

Starting MSRP

Wheels: 21" Aluminum
Tires: P275/45R21 AS BSW
Performance Front & Rear Brakes

ST Street Pack

$995

Starting MSRP

Wheels: 21" Aluminum
Tires: P275/45R21 AS BSW
Performance Front & Rear Brakes

Premium Technology Package

$995

Starting MSRP

10.1" LCD Capacitive Portrait Touchscreen
Located in center stack w/swipe and pinch-to-zoom capability
2 Additional Speakers

See all packages

Equipment Group 400A

$0

Starting MSRP

Specifications

EPA MPG Equivalent - Combined	N/A
Fuel Economy Est-Combined	20 MPG
EPA MPG Equivalent - Hwy	N/A
Cruising Range - City	392.40 mi
EPA MPG Equivalent - City	N/A
EPA Fuel Economy Est - City	18 MPG
Estimated Battery Range	N/A mi
EPA Fuel Economy Est - Hwy	24 MPG
Cruising Range - Hwy	523.20 mi

Trans Description Cont.	Automatic w/OD
Transfer Case Gear Ratio (:1), High	N/A
Drivetrain	Four Wheel Drive
Eighth Gear Ratio (:1)	0.85
Transfer Case Gear Ratio (:1), Low	N/A
Fourth Gear Ratio (:1)	1.77
Sixth Gear Ratio (:1)	1.27
Third Gear Ratio (:1)	2.15
Trans Type	10
Trans Description Cont. Again	N/A
Reverse Ratio (:1)	4.88
First Gear Ratio (:1)	4.71
Tenth Gear Ratio (:1)	N/A
Second Gear Ratio (:1)	3.00
Ninth Gear Ratio (:1)	N/A
Final Drive Axle Ratio (:1)	3.58
Seventh Gear Ratio (:1)	1.00
Fifth Gear Ratio (:1)	1.52

Rear Brake Rotor Diam x Thickness	12.8 in
Brake Type	4-Wheel Disc
Front Brake Rotor Diam x Thickness	13.6 in
Drum - Rear (Yes or )	N/A
Disc - Front (Yes or )	Yes
Disc - Rear (Yes or )	Yes
Brake ABS System (Second Line)	N/A
Brake ABS System	4-Wheel

Dead Weight Hitch - Max Tongue Wt.	500 lbs
Wt Distributing Hitch - Max Trailer Wt.	5600 lbs
Wt Distributing Hitch - Max Tongue Wt.	560 lbs
Maximum Trailering Capacity	5600 lbs
Dead Weight Hitch - Max Trailer Wt.	5000 lbs

Rear Door Opening Width	N/A in
Third Head Room	38.9 in
Second Leg Room	39 in
Passenger Capacity	6
Third Hip Room	40.9 in
Third Leg Room	32.2 in
Second Shoulder Room	61.9 in
Cargo Area Length @ Floor to Seat 3	20.8 in
Min Ground Clearance	8.2 in
Cargo Volume to Seat 2	47.9 ft³
Cargo Volume to Seat 1	87.8 ft³
Wheelbase	119.1 in
Front Head Room	40.7 in
Width, Max w/o mirrors	78.9 in
Cargo Box (Area) Height	32.8 in
Cargo Area Length @ Floor to Seat 1	83.9 in
Cargo Area Length @ Floor to Seat 2	49.8 in
Rear Door Opening Height	N/A in
Cargo Volume to Seat 3	18.2 ft³
Front Shoulder Room	61.8 in
Front Leg Room	43 in
Second Head Room	40.5 in
Second Hip Room	59.1 in
Liftover Height	32.8 in
Passenger Volume	152.7 ft³
Third Shoulder Room	54.6 in
Length, Overall	198.8 in
Track Width, Front	66.9 in
Height, Overall	70.2 in
Front Hip Room	59.2 in
Cargo Area Width @ Beltline	59 in
Cargo Box Width @ Wheelhousings	48.1 in
Track Width, Rear	66.9 in

Radio: B&O Sound System by Bang & Olufsen -inc: MP3 capability, 12 speakers, 980 watt, HD Radio, speed-compensated volume and SiriusXM radio w/a 6 month prepaid subscription, Service is not available in Alaska and Hawaii SiriusXM audio and data services each require a subscription sold separately, or as a package, by Sirius XM radio inc. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call SiriusXM at 1-866-635-2349. See SiriusXM customer agreement for complete terms at www.siriusxm.com. All fees and programming.	Optional
Bluetooth Wireless Phone Connectivity	Standard
2 LCD Monitors In The Front	Standard
Radio w/Seek-Scan, Clock, Steering Wheel Controls, Radio Data System and Internal Memory	Optional
Integrated Roof Antenna	Standard
SYNC 3 Communications & Entertainment System -inc: enhanced voice recognition, 8" LCD capacitive touchscreen in center stack w/swipe capability, AppLink, 911 Assist, Apple Car Play and Android Auto compatibility and 1 smart-charging multimedia USB port in the media hub,	Standard
Digital Signal Processor	Optional
Streaming Audio	Standard

Perimeter/Approach Lights	Optional
Front Fog Lamps	Optional
Tires: P255/55R20 AS BSW (STD)	Optional
Power Liftgate Rear Cargo Access	Standard
Autolamp Auto On/Off Aero-Composite Led Low/High Beam Auto High-Beam Daytime Running Lights Preference Setting Headlamps w/Delay-Off	Standard
Body-Colored Front Bumper w/Black Bumper Insert	Optional
Laminated Glass	Optional
Black Power Heated Side Mirrors w/Driver Auto Dimming, Power Folding and Turn Signal Indicator	Optional
Black Bodyside Insert, Black Bodyside Cladding and Black Wheel Well Trim	Optional
Body-Colored Rear Bumper w/Black Rub Strip/Fascia Accent and Black Bumper Insert	Optional
Fixed Rear Window w/Fixed Interval Wiper, Heated Wiper Park and Defroster	Standard
Roof Rack Rails Only	Optional
Body-Colored Door Handles	Optional
Steel Spare Wheel	Standard
Headlights-Automatic Highbeams	Standard
Galvanized Steel/Aluminum Panels	Standard
Black Grille	Standard
Speed Sensitive Rain Detecting Variable Intermittent Wipers	Optional
Deep Tinted Glass	Standard
Black Side Windows Trim, Black Front Windshield Trim and Black Rear Window Trim	Standard
Wheels: 20" Machined Aluminum w/Painted Pockets	Optional
Tailgate/Rear Door Lock Included w/Power Door Locks	Standard
Lip Spoiler	Standard
Compact Spare Tire Mounted Inside Under Cargo	Optional
LED Brakelights	Standard

Distance Pacing w/Traffic Stop-Go	Optional
Perimeter Alarm	Optional
Keypad	Optional
Front Cupholder	Standard
Interior Trim -inc: Simulated Carbon Fiber/Metal-Look Instrument Panel Insert, Metal-Look/Piano Black Door Panel Insert, Metal-Look Console Insert and Chrome/Metal-Look Interior Accents	Optional
Memory Settings -inc: Door Mirrors and Steering Wheel	Optional
Power Rear Windows, Fixed 3rd Row Windows and w/Manual Sun Blinds	Optional
Front Center Armrest and Rear Seat Mounted Armrest Outboard Only	Optional
Driver Foot Rest	Standard
Cargo Space Lights	Standard
Voice-Activated Touchscreen Navigation System -inc: pinch-to-zoom capability, SiriusXM Traffic and Travel Link, Note: SiriusXM Traffic and Travel Link includes a 5-year prepaid subscription, SiriusXM Traffic and Travel Link service is not available in Alaska or Hawaii, Note: SiriusXM audio and data services each require a subscription sold separately, or as a package, by SiriusXM radio inc, If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates, Fees and taxes apply, To cancel you must call SiriusXM at 1-866-635-2349, See SiriusXM customer agreement for complete terms at www.siriusxm.com, All fees and programming subject to change, Sirius, XM and all related marks and logos are trademarks of SiriusXM radio inc	Optional
3 12V DC Power Outlets	Optional
Illuminated Locking Glove Box	Optional
Power Door Locks w/Autolock Feature	Standard
Remote Releases -Inc: Proximity Cargo Access	Optional
Cargo Features -inc: Cargo Tray/Organizer	Optional
Redundant Digital Speedometer	Optional
Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats	Standard
Compass	Standard
Manual Adjustable Rear Head Restraints	Standard
Cargo Area Concealed Storage	Standard
Driver / Passenger And Rear Door Bins	Standard
3 12V DC Power Outlets and 1 120V AC Power Outlet	Optional
Cruise Control w/Steering Wheel Controls	Standard
Front And Rear Map Lights	Standard
Power Tilt/Telescoping Steering Column	Optional
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Oil Level, Trip Odometer and Trip Computer	Standard
Proximity Key For Doors And Push Button Start	Optional
Systems Monitor	Standard
Rear Cupholder	Standard
Outside Temp Gauge	Standard
Sport Heated Leather/Metal-Look Steering Wheel	Optional
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror	Standard
Bucket Folding Captain Front Facing Heated Manual Reclining Fold Forward Seatback Leather Rear Seat w/Manual Fore/Aft	Optional
Full Cloth Headliner	Standard
Leatherette Door Trim Insert	Optional
8-Way Driver Seat	Optional
Trunk/Hatch Auto-Latch	Standard
Fade-To-Off Interior Lighting	Standard
Voice Activated Dual Zone Front Automatic Air Conditioning	Standard
2 Seatback Storage Pockets	Standard
FordPass Connect -inc: 4G LTE Wi-Fi hotspot connects up to 10 devices w/wireless data trial that begins upon AT&T activation and expires at the end of 3 months or when 3GB of data is used, whichever comes first, but cannot extend beyond the trial subscription period for remote features, To activate, go to www.att.com/ford), remotely start, lock and unlock vehicle, schedule specific times to remotely start vehicle, locate parked vehicle and check vehicle status (FordPass Connect, the Ford Pass App, and Complimentary Connected Services are required for remote features (see FordPass terms for details), Connected Service and features depend on compatible AT&T network availability, Evolving technology/cellular networks/vehicle capability may limit functionality and prevent operation of connected features, Connected services excludes Wi-Fi hotspot.), Note: Ford Telematics and data services prep included for fleet only: FordPass Connect 4G Wi-Fi modem provides data to support telematics and data services including but not limited to vehicle location, speed, idle time, fuel, vehicle diagnostics and maintenance alerts, Device enables telematics services through Ford or authorized providers, Activate at www.fleet.ford.com or call 833-FCS-Ford, (833-327-3673)	Optional
8-Way Passenger Seat	Optional
Rear HVAC w/Separate Controls	Standard
Leather Htd/Ventilated Sport Captain's Chairs -inc: micro perforation and city silver accent stitching and ST logo, 10-way power driver's seat w/power lumbar, recline and memory, 10-way power front passenger seat w/power lumbar and power recline and 4-way manually adjustable driver and front passenger head restraints (2-way up/down when dual-headrest rear seat entertainment system (50S) is ordered)	Optional
Trip Computer	Standard
Day-Night Auto-Dimming Rearview Mirror	Optional
Fixed 50-50 Bench Leather 3rd Row Seat Front, Power Fold Into Floor and 2 Fixed Head Restraints	Optional
HomeLink Garage Door Transmitter	Optional
Air Filtration	Standard
Remote Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button	Optional
HVAC -inc: Underseat Ducts and Headliner/Pillar Ducts	Standard
Securilock Anti-Theft Ignition (pats) Immobilizer	Standard
Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage, Rear Console w/Storage, 3 12V DC Power Outlets and 1 120V AC Power Outlet	Optional
Carpet Floor Trim	Standard
FOB Controls -inc: Cargo Access	Optional
Digital/Analog Appearance	Optional
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down	Standard

3.58 Non-Limited-Slip Rear Axle Ratio	Standard
Auto Locking Hubs	Optional
Transmission w/Driver Selectable Mode	Standard
Automatic Full-Time Four-Wheel Drive	Optional
Trailer Wiring Harness	Optional
Regenerative Alternator	Standard
Front And Rear Anti-Roll Bars	Standard
Gas-Pressurized Shock Absorbers	Standard
GVWR: 6,160 lbs	Optional
Engine: 3.0L EcoBoost V6 -inc: auto start-stop technology (STD)	Optional
Class III Towing Equipment -inc: Hitch and Trailer Sway Control	Optional
Sport Tuned Suspension	Optional
Engine Oil Cooler	Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Descent Control, Hill Hold Control and Electric Parking Brake	Optional
Strut Front Suspension w/Coil Springs	Standard
Electric Power-Assist Speed-Sensing Steering	Standard
21.8 Gal. Fuel Tank	Optional
Transmission: 10-Speed Automatic w/SelectShift -inc: Active Transmission Warm-Up (ATWU) (STD)	Standard
Multi-Link Rear Suspension w/Coil Springs	Standard
Battery w/Run Down Protection	Standard
50 State Emissions System Flexible Fuel Vehicle (FFV) system is standard equipment for vehicles with the 3.3L Ti-VCT V6 FFV engine.	Optional
Dual Stainless Steel Exhaust w/Chrome Tailpipe Finisher	Optional

Side Impact Beams	Standard
Tire Specific Low Tire Pressure Warning	Standard
Safety Canopy System Curtain 1st, 2nd And 3rd Row Airbags	Standard
Collision Mitigation-Front	Standard
Right Side Camera	Optional
Back-Up Camera w/Washer	Standard
Driver And Passenger Knee Airbag	Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags	Standard
Evasion Assist	Optional
Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute	Standard
Left Side Camera	Optional
Ford Co-Pilot360 Assist 2.0 - Lane Centering	Optional
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners	Optional
Lane Keeping Alert Lane Departure Warning	Standard
Dual Stage Driver And Passenger Front Airbags	Standard
Ford Co-Pilot360 - Pre-Collision Assist with Pedestrian Detection	Optional
Ford Co-Pilot360 - Blind Spot Information System (BLIS) Blind Spot	Standard
Driver Monitoring-Alert	Standard
Aerial View Camera System	Optional
Terrain Management System ABS And Driveline Traction Control	Optional
AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)	Standard
Front Camera w/Washer	Optional
Airbag Occupancy Sensor	Standard
Active Park Assist Automated Parking Sensors	Optional
Collision Mitigation-Rear	Optional
Lane Keeping Alert Lane Keeping Assist	Standard
Rear Child Safety Locks	Standard

Compare trims

Wondering which trim is right for you?

Our 2020 Ford Explorer trim comparison will help you decide.

Spare Wheel Size	Compact in
Rear Wheel Material	Aluminum
Spare Wheel Material	Steel
Front Wheel Material	Aluminum
Front Wheel Size	20 X 8 in
Rear Wheel Size	20 X 8 in

SAE Net Torque @ RPM	415 @ 3500
Engine Type	Twin Turbo Premium Unleaded V-6
SAE Net Horsepower @ RPM	400 @ 5500
Displacement	3.0 L/183

Fuel Tank Capacity, Approx	21.8 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Turning Diameter - Curb to Curb	N/A ft
Lock to Lock Turns (Steering)	N/A
Turning Diameter - Wall to Wall	N/A ft
Steering Type	Rack-Pinion
Steering Ratio (:1), Overall	N/A

Spare Tire Size	Compact
Front Tire Size	P255/55VR20
Rear Tire Size	P255/55VR20

Cold Cranking Amps @ 0° F (Primary)	N/A
Maximum Alternator Capacity (amps)	N/A

Suspension Type - Rear (Cont.)	Multi-Link
Suspension Type - Front	Strut
Suspension Type - Front (Cont.)	Strut
Suspension Type - Rear	Multi-Link

Maximum Payload Capacity	N/A lbs
Base Curb Weight	4701 lbs
Total Option Weight	0.00 lbs
Curb Weight	N/A lbs
Curb Weight - Rear	N/A lbs
Curb Weight - Front	N/A lbs

2020 Ford Explorer ST specs & colors

Sport Utility

Key specs

Color options

Packages

Specifications

Vehicle

Wheels

Electrical

Engine

Mileage

Transmission

Suspension

Brakes

Fuel Tank

Steering

Tires

Trailering

Weight Information

Dimensions

Entertainment

Exterior

Interior

Mechanical

Safety

Compare trims
