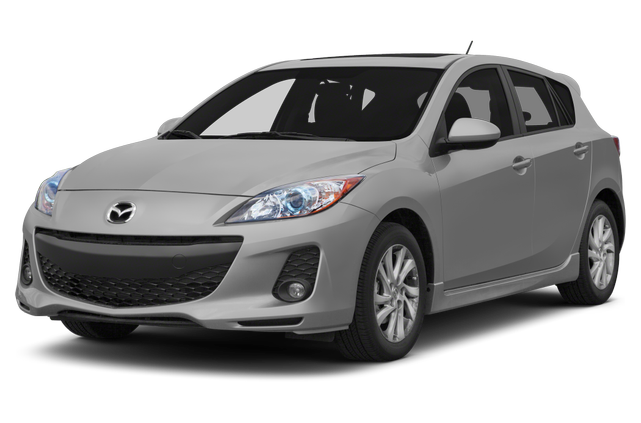

2012 Mazda Mazda3 s Touring specs & colors

Starting MSRP
Current listing price

Showing the 2012 Mazda Mazda3 5dr HB Man s Touring *Ltd Avail*

Shop Now

Key specs

Color options






EPA Classification Compact

Front Wheel Size 17 x 7.0 in
Rear Wheel Size 17 x 7.0 in
Spare Wheel Size 16 x -TBD- in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) 100

Engine Type Gas I4
Displacement 2.5L/152
SAE Net Horsepower @ RPM 167 @ 6000
SAE Net Torque @ RPM 168 @ 4000

EPA Fuel Economy Est - Hwy 28 MPG
Cruising Range - City 318.00 mi
EPA Fuel Economy Est - City 20 MPG
Fuel Economy Est-Combined 23 MPG
Cruising Range - Hwy 445.20 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi

Drivetrain Front Wheel Drive
Trans Type 6
Trans Description Cont. Manual
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 3.45
Second Gear Ratio (:1) 2.05
Third Gear Ratio (:1) 1.39
Fourth Gear Ratio (:1) 1.03
Fifth Gear Ratio (:1) 0.83
Sixth Gear Ratio (:1) 0.71
Reverse Ratio (:1) 3.19
Final Drive Axle Ratio (:1) 4.10

Suspension Type - Front MacPherson Strut
Suspension Type - Rear Multi-link
Suspension Type - Front (Cont.) w/Coil Springs
Suspension Type - Rear (Cont.) w/Coil Springs

Brake Type Pwr
Brake ABS System 4-wheel
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 11.8 x -TBD- in
Rear Brake Rotor Diam x Thickness 11.0 x -TBD- in
Drum - Rear (Yes or ) Not Available

Fuel Tank Capacity, Approx 15.9 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall 16.2
Lock to Lock Turns (Steering) 2.94
Turning Diameter - Curb to Curb 34.2 ft
Turning Diameter - Wall to Wall 35.8 ft

Front Tire Size P205/50VR17
Rear Tire Size P205/50VR17
Spare Tire Size T125/70D16

Dead Weight Hitch - Max Trailer Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs

Base Curb Weight 3048 lbs

Passenger Capacity 5
Passenger Volume 94.6 ft³
Front Head Room 38.9 in
Front Leg Room 42.0 in
Front Shoulder Room 54.9 in
Front Hip Room 53.7 in
Second Head Room 38.0 in
Second Leg Room 36.2 in
Second Shoulder Room 54.0 in
Second Hip Room 52.2 in
Wheelbase 103.9 in
Length, Overall 177.4 in
Width, Max w/o mirrors 69.1 in
Height, Overall 57.9 in
Track Width, Front 60.2 in
Track Width, Rear 59.6 in
Min Ground Clearance 4.7 in
Liftover Height N/A in
Cargo Volume with Rear Seat Up 17.0 ft³
Cargo Volume with Rear Seat Down 42.8 ft³
Trunk Volume N/A ft³

Front/rear stabilizer bars Standard
Driver illuminated window switch Standard
Silver driver & passenger side decoration panels & door handles Standard
(3) passenger assist grips Standard
Halogen fog lights Standard
Distributor-less ignition Standard
Remote releases -inc: fuel door, hood Standard
Rear window defogger Standard
Fixed-intermittent rear window wiper Standard
Gray molded cloth headliner Standard
T115/70D15 temporary spare tire Standard
Body-color door handles Standard
Variable pwr rack & pinion steering Standard
Reclining sport-type front bucket seats Standard
Stainless steel exhaust -inc: manifold, main silencer, pipe, dual outlet w/bright tip Standard
Front wheel drive Standard
Body-color fuel door Standard
Front independent MacPherson strut suspension w/coil springs Standard
Body-color sport-type front/rear bumpers Standard
265-watt Bose AM/FM stereo w/CD/MP3 player -inc: Centerpoint surround sound audio system, (10) speakers, AudioPilot noise compensation technology, aux audio input jack Standard
60/40 split fold-down rear seat Standard
Electro-hydraulic pwr assist steering (EHPAS) system Standard
Center console w/covered storage compartments, sliding padded armrest Standard
Sport-type glossy grille insert & trim Standard
Body-color manual-folding pwr mirrors Standard
Black roof molding Standard
Multi-reflector taillights Standard
Full carpeting Standard
P205/50VR17 all-season tires Standard
Tire pressure monitoring system Standard
Tilt/telescopic steering column Standard
2.5L DOHC EFI 16-valve I4 engine -inc: variable valve timing (VVT) Standard
Front/rear outboard adjustable headrests Standard
Removable rigid cargo cover Standard
Collapsible steering column Standard
Rear independent multi-link suspension w/coil springs Standard
Cargo area light -inc: on/off switch Standard
(2) coat hooks Standard
Rear seat child safety seat lower anchors & upper tethers (LATCH) Standard
Black urethane engine cover Standard
Dual vinyl-covered visors -inc: covered illuminated vanity mirrors Standard
Warning lamps -inc: brake system, high-beam on, turn signals on, hazard warning on, check engine, engine oil pressure, battery charge, defogger-on, air bags, front seat belt pretensioner system, door-ajar, low fuel, low coolant temp, ABS system, cruise control on, tire pressure monitoring system Standard
Advanced illuminated keyless entry w/push button start -inc: answer back feature, panic button Standard
Pwr front ventilated/rear solid disc brakes Standard
Cigarette lighter Standard
Driver foot rest Standard
Cloth door trim -inc: front/rear bottle holders, front storage pockets Standard
3-point seat belts for all positions Standard
Pwr windows w/driver side 1-touch up/down feature Standard
Lighting -inc: front map lights, dome light, ignition keyhole Standard
Anti-lock brake system w/electronic brakeforce distribution (EBD), brake assist Standard
Dual front cupholders w/lids Standard
Halogen headlights Standard
Side sill extensions Standard
Dynamic stability control (DSC) w/traction control system (TCS) Standard
Underhood insulator pad Standard
Parking brake w/bright release button Standard
Front/rear side curtain air bags Standard
Body-color rear roof-mounted spoiler Standard
Silver center console panel Standard
Child safety rear door locks Standard
(2) 12-volt pwr outlets Standard
Front seat mounted driver/front passenger side-impact air bags (SRS) Standard
Multi-info display (MID) -inc: driver info system w/outside temp display, trip computer, maintenance reminder, audio info Standard
Dual zone auto climate control w/pollen filter Standard
Passenger side seatback pocket Standard
4-function trip computer -inc: current fuel economy, average fuel economy, approximate distance-to-empty, average vehicle speed Standard
Delayed courtesy lights -inc: front map & dome Standard
Front seat belt pretensioners w/force limiters, height adjustable Standard
2-speed variable-intermittent front windshield wipers Standard
Driver side storage bin Standard
Full cargo area trim Standard
Driver/front passenger advanced airbags (SRS) -inc: crash zone, drivers seat position, passenger weight sensors Standard
Triple-H construction Standard
Satellite radio prewire *Requires additional dealer-installed hardware* Standard
Silver steering wheel switch bezel Standard
6-speed manual transmission w/OD Standard
Leather-wrapped black shift knob w/silver insert Standard
Rear heater ducts Standard
Cruise control w/steering wheel mounted controls Standard
Illuminated glove box Standard
Front/rear carpet floor mats Standard
Gauges & controls illumination w/dial-type dimming control Standard
Illuminated welcome mode Standard
17" x 7.0" alloy wheels Standard
Black gauges -inc: white lettering, red nighttime illumination Standard
Front/rear side-impact door beams Standard
Pwr door locks -inc: 2-stage unlocking, central locking, speed & transmission sensitive auto door lock Standard
Rear center armrest w/(2) cupholders Standard
Engine immobilizer anti-theft system Standard
3-spoke leather wrapped steering wheel -inc: audio, cruise, Bluetooth controls Standard
100-amp alternator Standard
Crashable brake pedal Standard
Cloth seat trim Standard
Instrumentation -inc: speedometer, tachometer, (2) resettable trip odometers Standard
Front side window demisters Standard
Bluetooth hands-free phone & audio Standard
Aluminum alloy engine block Standard
Pwr moonroof -inc: 1-touch/global open/close, interior sunshade Standard
Roof-mounted aerodynamic short antenna Standard
Whiplash-reducing active front headrests Standard
