2012 Mazda Mazda3 i Touring specs & colors

Starting MSRP
Current listing price

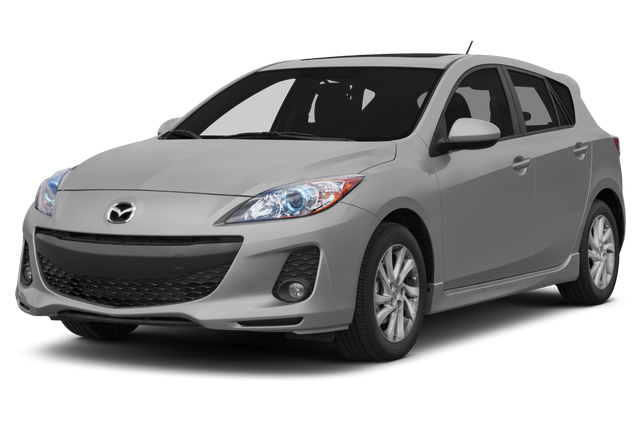

2012 Mazda Mazda3 i Touring

Showing the 2012 Mazda Mazda3 5dr HB Man i Touring

Shop Now

Key specs

Color options






EPA Classification Compact
Rear Wheel Material Aluminum
Front Wheel Material Aluminum
Front Wheel Size 16 x 6.5 in
Spare Wheel Material Steel
Spare Wheel Size 15 x -TBD- in
Rear Wheel Size 16 x 6.5 in
Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) 100
SAE Net Torque @ RPM 148 @ 4100
SAE Net Horsepower @ RPM 155 @ 6000
Engine Type Gas I4
Displacement 2.0L/122
Cruising Range - Hwy 551.00 mi
Cruising Range - City 391.50 mi
EPA MPG Equivalent - City N/A
Fuel Economy Est-Combined 31 MPG
EPA Fuel Economy Est - City 27 MPG
Estimated Battery Range N/A mi
EPA MPG Equivalent - Hwy N/A
EPA Fuel Economy Est - Hwy 38 MPG
EPA MPG Equivalent - Combined N/A
Sixth Gear Ratio (:1) 0.64
Trans Type 6
Trans Description Cont. Again Not Available
Trans Description Cont. Manual
Fifth Gear Ratio (:1) 0.79
Third Gear Ratio (:1) 1.30
Final Drive Axle Ratio (:1) 4.10
Reverse Ratio (:1) 3.38
Fourth Gear Ratio (:1) 0.97
First Gear Ratio (:1) 3.36
Drivetrain Front Wheel Drive
Second Gear Ratio (:1) 1.94
Suspension Type - Front MacPherson Strut
Suspension Type - Rear (Cont.) w/Coil Springs
Suspension Type - Front (Cont.) w/Coil Springs
Suspension Type - Rear Multi-link
Brake Type Pwr
Front Brake Rotor Diam x Thickness 10.9 x -TBD- in
Rear Brake Rotor Diam x Thickness 10.4 x -TBD- in
Drum - Rear (Yes or ) Not Available
Brake ABS System (Second Line) N/A
Disc - Rear (Yes or ) Yes
Brake ABS System 4-wheel
Disc - Front (Yes or ) Yes
Fuel Tank Capacity, Approx 14.5 gal
Aux Fuel Tank Capacity, Approx N/A gal
Turning Diameter - Curb to Curb 34.2 ft
Lock to Lock Turns (Steering) 2.94
Turning Diameter - Wall to Wall 35.8 ft
Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall 16.2
Spare Tire Size T115/70D15
Front Tire Size P205/55HR16
Rear Tire Size P205/55HR16
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs
Dead Weight Hitch - Max Tongue Wt. N/A lbs
Dead Weight Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Base Curb Weight 2896 lbs
Track Width, Rear 59.8 in
Passenger Volume 94.6 ft³
Wheelbase 103.9 in
Front Head Room 38.9 in
Cargo Volume with Rear Seat Up 17.0 ft³
Second Head Room 38.0 in
Min Ground Clearance 4.7 in
Front Hip Room 53.7 in
Width, Max w/o mirrors 69.1 in
Liftover Height N/A in
Second Leg Room 36.2 in
Height, Overall 57.9 in
Second Hip Room 52.2 in
Second Shoulder Room 54.0 in
Front Leg Room 42.0 in
Front Shoulder Room 54.9 in
Passenger Capacity 5
Length, Overall 177.4 in
Track Width, Front 60.4 in
Cargo Volume with Rear Seat Down 42.8 ft³
Trunk Volume N/A ft³
Multi-info display (MID) -inc: driver info system w/outside temp display, trip computer, maintenance reminder, audio info Standard
Multi-reflector taillights Standard
Parking brake w/silver button Standard
Engine immobilizer anti-theft system Standard
Body-color door handles Standard
Front/rear outboard adjustable headrests Standard
Dynamic stability control (DSC) w/traction control system (TCS) Standard
3-spoke leather wrapped steering wheel -inc: audio, cruise, Bluetooth controls Standard
2.0L DOHC 16-valve SKYACTIV-G I4 engine -inc: variable valve timing (VVT) Standard
Whiplash-reducing active front headrests Standard
Rear seat child safety seat lower anchors & upper tethers (LATCH) Standard
Warning lamps -inc: brake system, high-beam on, turn signals on, hazard warning on, check engine, engine oil pressure, battery charge, defogger-on, air bags, front seat belt pretensioner system, door-ajar, low fuel, low coolant temp, ABS system, cruise control on, tire pressure monitoring system Standard
Tire pressure monitoring system Standard
16" x 6.5" alloy wheels Standard
Black gauges -inc: white lettering, blue accents Standard
Air conditioning w/pollen filter Standard
Underhood insulator pad Standard
Stainless steel exhaust -inc: manifold, main silencer, pipe, single outlet w/bright tip Standard
Roof-mounted aerodynamic short antenna Standard
Leather-wrapped black shift knob w/silver insert Standard
Pwr door locks -inc: 2-stage unlocking, central locking, speed & transmission sensitive auto door lock Standard
Cruise control w/steering wheel mounted controls Standard
Dual front cupholders w/lids Standard
Driver illuminated window switch Standard
(3) passenger assist grips Standard
Front seat mounted driver/front passenger side-impact air bags (SRS) Standard
Pwr front ventilated/rear solid disc brakes Standard
Full carpeting Standard
Electro-hydraulic pwr assist steering (EHPAS) system Standard
Front/rear side-impact door beams Standard
Delayed courtesy lights -inc: front map & dome Standard
Distributor-less ignition Standard
Gray molded cloth headliner Standard
Removable rigid cargo cover Standard
Front/rear stabilizer bars Standard
2-speed variable-intermittent front windshield wipers Standard
Triple-H construction Standard
Illuminated glove box Standard
Driver side storage bin Standard
Black urethane engine cover Standard
Side sill extensions Standard
Cloth seat trim Standard
Rear independent multi-link suspension w/coil springs Standard
Driver/front passenger advanced airbags (SRS) -inc: crash zone, drivers seat position, passenger weight sensors Standard
Rear heater ducts Standard
Collapsible steering column Standard
Black steering wheel switch bezel Standard
(2) 12-volt pwr outlets Standard
Lighting -inc: front map lights, dome light, ignition keyhole Standard
Aluminum alloy engine block Standard
Cloth door trim -inc: front/rear bottle holders, front storage pockets Standard
Full cargo area trim Standard
Body-color rear roof-mounted spoiler Standard
Halogen headlights Standard
P205/55HR16 all-season tires Standard
Gauges & controls illumination w/dial-type dimming control Standard
Driver foot rest Standard
Center console w/covered storage compartments Standard
Variable pwr rack & pinion steering Standard
Instrumentation -inc: speedometer, tachometer, (2) resettable trip odometers Standard
Silver driver & passenger side decoration panels & door handles Standard
Child safety rear door locks Standard
Silver center console panel Standard
Pwr windows w/driver side 1-touch up/down feature Standard
Front wheel drive Standard
Crashable brake pedal Standard
Sport-type matte grille insert & trim Standard
Cigarette lighter Standard
Front side window demisters Standard
(2) coat hooks Standard
Body-color fuel door Standard
Bluetooth hands-free phone & audio Standard
6-speed SKYACTIV manual transmission w/OD Standard
Reclining front bucket seats Standard
Front seat belt pretensioners w/force limiters, height adjustable Standard
Front/rear carpet floor mats Standard
Tilt/telescopic steering column Standard
Front/rear side curtain air bags Standard
Anti-lock brake system w/electronic brakeforce distribution (EBD), brake assist Standard
Body-color front/rear bumpers Standard
Fixed-intermittent rear window wiper Standard
3-point seat belts for all positions Standard
Front independent MacPherson strut suspension w/coil springs Standard
T115/70D15 temporary spare tire Standard
Remote releases -inc: fuel door, hood Standard
Remote keyless illuminated entry w/answer back feature, panic button Standard
Black roof molding Standard
Satellite radio prewire *Requires additional dealer-installed hardware* Standard
Dual vinyl-covered visors -inc: covered vanity mirrors Standard
Passenger side seatback pocket Standard
Cargo area light -inc: on/off switch Standard
Body-color manual-folding pwr mirrors Standard
60/40 split fold-down rear seat Standard
AM/FM stereo w/CD/MP3 player -inc: (6) speakers, automatic level control (ALC), digital clock, aux audio input jack Standard
100-amp alternator Standard
Rear window defogger Standard
Rear center armrest w/(2) cupholders Standard
