2016 Toyota 4Runner TRD Pro specs & colors
Sport Utility
Change trim
MSRP
- RWD 4dr V6 SR5 (Natl) $34,010
- 4WD 4dr V6 SR5 (Natl) $35,885
- RWD 4dr V6 SR5 Premium (Natl) $36,690
- 4WD 4dr V6 Trail (Natl) $36,915
- 4WD 4dr V6 SR5 Premium (Natl) $38,565
- 4WD 4dr V6 Trail Premium (Natl) $39,595
- 4WD 4dr V6 TRD Pro (Natl) $41,850
- RWD 4dr V6 Limited (Natl) $42,325
- 4WD 4dr V6 Limited (Natl) $44,360
$41,850
Starting MSRP
Current listing price
Current listing price

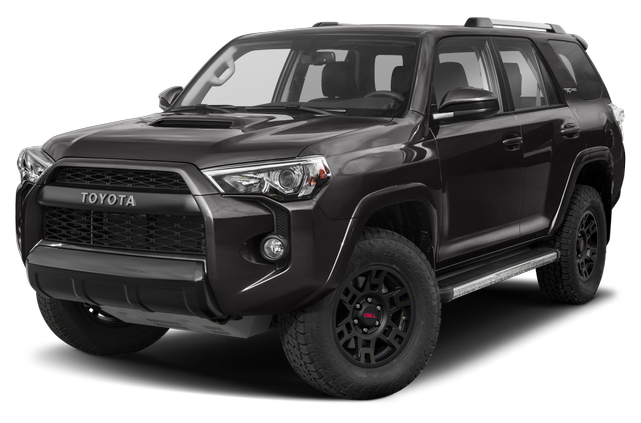

Showing the 2016 Toyota 4Runner 4WD 4dr V6 TRD Pro (Natl)
Shop NowKey specs
Color options
Interior
Black
Packages
$0
Starting MSRP
Specifications
| Rear Wheel Size | 17 X 7 in |
| Front Wheel Material | Aluminum |
| Front Wheel Size | 17 X 7 in |
| Spare Wheel Size | Full-Size in |
| Rear Wheel Material | Aluminum |
| Spare Wheel Material | Steel |
| Cold Cranking Amps @ 0° F (Primary) | 750 |
| Maximum Alternator Capacity (amps) | N/A |
| Engine Type | Regular Unleaded V-6 |
| Engine Oil Cooler | None |
| SAE Net Horsepower @ RPM | 270 @ 5600 |
| SAE Net Torque @ RPM | 278 @ 4400 |
| Displacement | 4.0 L/241 |
| Cruising Range - City | 391.00 mi |
| EPA Fuel Economy Est - Hwy | 21 MPG |
| Estimated Battery Range | N/A mi |
| Fuel Economy Est-Combined | 18 MPG |
| EPA Fuel Economy Est - City | 17 MPG |
| Cruising Range - Hwy | 483.00 mi |
| Third Gear Ratio (:1) | 1.40 |
| Transfer Case Gear Ratio (:1), Low | N/A |
| Fourth Gear Ratio (:1) | 1.00 |
| Trans Power Take Off | N/A |
| Fifth Gear Ratio (:1) | 0.72 |
| Transfer Case Gear Ratio (:1), High | N/A |
| First Gear Ratio (:1) | 3.52 |
| Trans Description Cont. | Automatic w/OD |
| Final Drive Axle Ratio (:1) | N/A |
| Reverse Ratio (:1) | 3.22 |
| Transfer Case Model | Manual |
| Second Gear Ratio (:1) | 2.04 |
| Drivetrain | Four Wheel Drive |
| Trans Type | 5 |
| Transfer Case Power Take Off | No |
| Trans Description Cont. Again | N/A |
| Axle Type - Rear | Rigid Axle |
| Axle Type - Front | Independent |
| Suspension Type - Rear | Multi-Link |
| Suspension Type - Front | Double Wishbone |
| Frame Type | N/A |
| Rear Brake Rotor Diam x Thickness | 12.3 in |
| Brake ABS System (Second Line) | 4-Wheel |
| Drum - Rear (Yes or ) | N/A |
| Brake ABS System | 4-Wheel |
| Disc - Rear (Yes or ) | Yes |
| Disc - Front (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 13.3 in |
| Brake Type | 4-Wheel Disc |
| Fuel Tank Capacity, Approx | 23 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Turning Diameter - Wall to Wall | N/A ft |
| Steering Ratio (:1), Overall | N/A |
| Steering Type | Rack-Pinion |
| Turning Diameter - Curb to Curb | 37.4 ft |
| Rear Tire Size | P265/70SR17 |
| Front Tire Size | P265/70SR17 |
| Spare Tire Size | Full-Size |
| Wt Distributing Hitch - Max Tongue Wt. | 500 lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | N/A lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 5000 lbs |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | N/A lbs |
| Maximum Trailering Capacity | 5000 lbs |
| As Spec'd Curb Weight | N/A lbs |
| Curb Weight | N/A lbs |
| Total Option Weight | 0.00 lbs |
| Curb Weight - Rear | N/A lbs |
| Gross Axle Weight Rating | 6437.00 lbs |
| Gross Combined Wt Rating | N/A lbs |
| Option Weight - Front | 0.00 lbs |
| As Spec'd Payload | N/A lbs |
| Option Weight - Rear | 0.00 lbs |
| Gross Vehicle Weight Rating | 6300.00 lbs |
| Base Curb Weight | 4789 lbs |
| Maximum Payload Capacity | N/A lbs |
| Curb Weight - Front | N/A lbs |
| Cargo Area Length @ Floor to Seat 2 | N/A in |
| Track Width, Rear | 63.2 in |
| Cargo Volume | N/A ft³ |
| Height, Overall | 71.5 in |
| Length, Overall w/rear bumper | N/A in |
| Overhang, Front | N/A in |
| Second Hip Room | 55.7 in |
| Ground Clearance, Front | N/A in |
| Cargo Box (Area) Height | N/A in |
| Front Head Room | 38.6 in |
| Track Width, Front | 63.2 in |
| Cargo Area Length @ Floor to Seat 3 | N/A in |
| Cab to End of Frame | N/A in |
| Min Ground Clearance | 9.6 in |
| Cargo Volume to Seat 2 | 46.3 ft³ |
| Width, Max w/o mirrors | 75.8 in |
| Ground to Top of Load Floor | N/A in |
| Cargo Box Width @ Floor | N/A in |
| Passenger Capacity | 5 |
| Front Shoulder Room | 57.8 in |
| Cargo Volume to Seat 3 | 46.3 ft³ |
| Cargo Area Length @ Floor to Seat 1 | N/A in |
| Second Head Room | 38.6 in |
| Front Hip Room | 56.5 in |
| Cargo Area Width @ Beltline | N/A in |
| Tailgate Width | N/A in |
| Ground Clearance, Rear | N/A in |
| Rear Door Opening Height | N/A in |
| Liftover Height | N/A in |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Length, Overall | 191.3 in |
| Second Leg Room | 32.9 in |
| Rear Door Opening Width | N/A in |
| Wheelbase | 109.8 in |
| Cargo Volume to Seat 1 | 88.8 ft³ |
| Overhang, Rear w/o bumper | N/A in |
| Cargo Box Width @ Top, Rear | N/A in |
| Front Leg Room | 41.7 in |
| Second Shoulder Room | 57.8 in |
| Cargo Box Width @ Wheelhousings | N/A in |
| Radio w/Seek-Scan, MP3 Player, Clock and Voice Activation | Optional |
| HD Predictive Traffic Real-Time Traffic Display | Optional |
| Radio: Entune Premium Audio w/Navigation -inc: Entune Multimedia bundle (6.1", high resolution touch-screen w/split screen display, AM/FM CD player, 8 speakers, auxiliary audio jack, USB 2.0 port w/iPod connectivity and control, advanced voice recognition, hands-free phone capability, phone book access and music streaming via Bluetooth wireless technology), Siri Eyes Free, HD Radio, HD predictive traffic and Doppler weather overlay, AM/FM cache radio, SiriusXM All Access Radio w/3-month complimentary trial, Gracenotes album cover art and integrated backup camera display w/projected path, Entune App Suite includes Destination Search, Facebook Places, iHeartRadio, MovieTickets.com, OpenTable, Pandora, Yelp and Slacker Radio; real-time info including traffic, weather, fuel prices, sports and stocks Access to Entune services is subscription free. See toyota.com/entune for details. | Optional |
| Window Grid Diversity Antenna | Standard |
| Bluetooth Wireless Phone Connectivity | Optional |
| 8 Speakers | Standard |
| Black Grille | Optional |
| Fully Galvanized Steel Panels | Standard |
| Deep Tinted Glass | Standard |
| LED Brakelights | Standard |
| Steel Spare Wheel | Standard |
| Lip Spoiler | Standard |
| Black Side Windows Trim, Black Front Windshield Trim and Black Rear Window Trim | Standard |
| Power Rear Window w/Fixed Interval Wiper and Defroster | Standard |
| Splash Guards | Optional |
| Full-Size Spare Tire Stored Underbody w/Crankdown | Standard |
| Body-Colored Rear Step Bumper w/Black Rub Strip/Fascia Accent | Optional |
| Wheels: TRD 17" Matte Black Alloy -inc: wheel installation kit | Optional |
| Black Power Heated Side Mirrors w/Manual Folding and Turn Signal Indicator | Optional |
| Variable Intermittent Wipers w/Heated Wiper Park | Standard |
| Body-Colored Fender Flares | Optional |
| Perimeter/Approach Lights | Standard |
| Auto Off Projector Beam Halogen Daytime Running Headlamps | Standard |
| Tires: P265/70R17 AT | Optional |
| Body-Colored Door Handles | Optional |
| Front Fog Lamps | Standard |
| Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent and 1 Tow Hook | Optional |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Standard |
| TRD Badging | Optional |
| Liftgate Rear Cargo Access | Standard |
| Immobilizer | Standard |
| Valet Function | Standard |
| Full Carpet Floor Covering | Standard |
| Front Map Lights | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror | Standard |
| Integrated Navigation System w/Voice Activation | Optional |
| FOB Controls -inc: Windows and Sunroof/Convertible Roof | Optional |
| Instrument Panel Covered Bin, Driver / Passenger And Rear Door Bins | Standard |
| TRD Shift Knob | Optional |
| 40-20-40 Folding Split-Bench Front Facing Manual Reclining Fold Forward Seatback Rear Seat | Standard |
| Garage Door Opener | Optional |
| Cargo Space Lights | Standard |
| Manual Tilt/Telescoping Steering Column | Standard |
| Driver Foot Rest | Standard |
| Cargo Area Concealed Storage | Optional |
| Black Roof Rails -inc: silver cover | Optional |
| Power 1st Row Windows w/Front And Rear 1-Touch Up/Down | Standard |
| Power Door Locks w/Autolock Feature | Standard |
| Outside Temp Gauge | Standard |
| Leatherette Door Trim Insert | Standard |
| Compass | Optional |
| Day-Night Rearview Mirror | Standard |
| Carpet Floor Trim | Standard |
| Fade-To-Off Interior Lighting | Standard |
| HVAC -inc: Underseat Ducts and Console Ducts | Standard |
| 5 12V DC Power Outlets and 1 120V AC Power Outlet | Standard |
| Locking Glove Box | Standard |
| Smart Device Integration | Optional |
| Manual Anti-Whiplash Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints | Standard |
| Gauges -inc: Speedometer, Odometer, Voltmeter, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer | Standard |
| Cruise Control w/Steering Wheel Controls | Standard |
| 2 Seatback Storage Pockets | Standard |
| Analog Appearance | Standard |
| Rear Cupholder | Standard |
| 8-Way Driver Seat | Standard |
| Perimeter Alarm | Optional |
| Air Filtration | Standard |
| 5 12V DC Power Outlets | Standard |
| TRD Pro Floor Mats | Optional |
| Front Center Armrest and Rear Center Armrest | Standard |
| Power Rear Windows and Fixed 3rd Row Windows | Standard |
| Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage, 5 12V DC Power Outlets and 1 120V AC Power Outlet | Standard |
| Interior Trim -inc: Metal-Look Instrument Panel Insert, Metal-Look Door Panel Insert, Metal-Look Console Insert and Metal-Look Interior Accents | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, 4 Door Curb/Courtesy, Illuminated Entry, Illuminated Ignition Switch and Panic Button | Standard |
| Auto-Dimming Rearview Mirror | Optional |
| Trip Computer | Standard |
| Manual Air Conditioning | Standard |
| Leather/Metal-Look Steering Wheel | Optional |
| Heated Front Bucket Seats -inc: 8-way power-adjustable driver's seat w/power lumbar support and 4-way power-adjustable front passenger seat | Optional |
| Front Cupholder | Standard |
| Driver Information Center | Standard |
| Softex Synthetic Leather Seat Trim | Optional |
| 4-Way Passenger Seat | Standard |
| Full Cloth Headliner | Standard |
| Manual Transfer Case | Optional |
| GVWR: 6,300 lbs | Optional |
| 23 Gal. Fuel Tank | Standard |
| Hydraulic Power-Assist Speed-Sensing Steering | Standard |
| Engine: 4.0L V6 DOHC SMPI | Standard |
| Double Wishbone Front Suspension w/Coil Springs | Standard |
| Solid Axle Rear Suspension w/Coil Springs | Standard |
| Single Stainless Steel Exhaust | Standard |
| Auto Locking Hubs | Optional |
| Part And Full-Time Four-Wheel Drive | Optional |
| Trailer Wiring Harness | Standard |
| TRD Suspension Kit -inc: Bilstein shock absorbers | Optional |
| 72-Amp/Hr 750CCA Maintenance-Free Battery | Standard |
| Skid Plate | Optional |
| Transmission w/Sequential Shift Control and Oil Cooler | Standard |
| Transmission: Electronic 5-Speed Automatic w/OD | Standard |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Descent Control and Hill Hold Control | Optional |
| 1550# Maximum Payload | Optional |
| Driver Selectable Rear Locking Differential | Optional |
| Front And Rear Anti-Roll Bars | Standard |
| 3.727 Axle Ratio | Standard |
| Off-Road Suspension | Optional |
| Class III Towing Equipment -inc: Hitch | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Side Impact Beams | Standard |
| Driver And Passenger Knee Airbag | Standard |
| Curtain 1st, 2nd And 3rd Row Airbags | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Electronic Stability Control (ESC) | Standard |
| A-TRAC ABS And Driveline Traction Control | Optional |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners | Standard |
| Back-Up Camera | Standard |
| Rear Child Safety Locks | Standard |
| Low Tire Pressure Warning | Standard |
| Airbag Occupancy Sensor | Standard |
