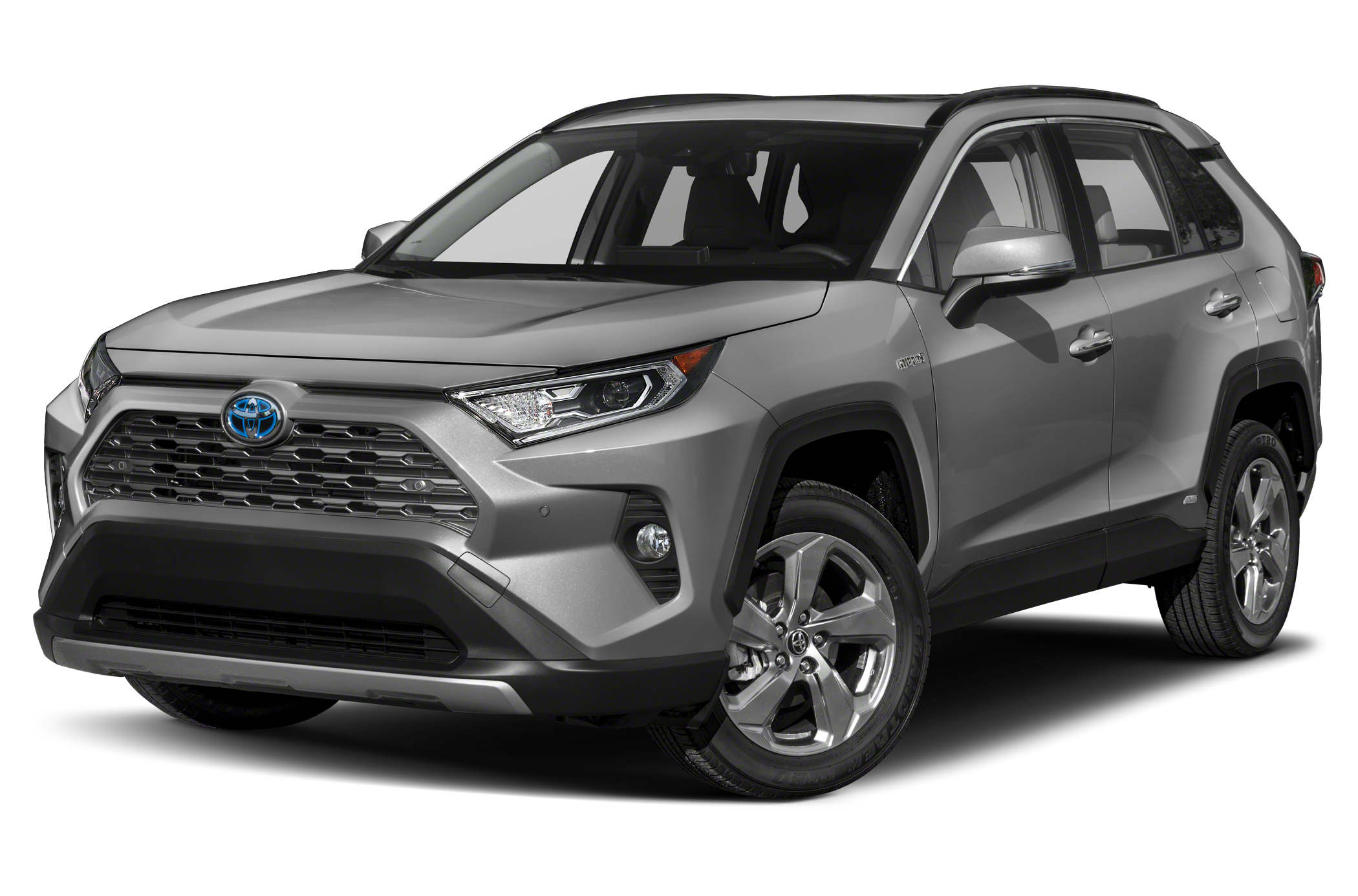

2020 Toyota RAV4 Hybrid Hybrid Limited specs & colors

Sport Utility

Change trim

MSRP

Hybrid LE AWD (Natl) *Ltd Avail* $28,350
Hybrid LE AWD (Natl) $28,350
Hybrid XLE AWD (Natl) *Ltd Avail* $29,645
Hybrid XLE AWD (Natl) $29,645
Hybrid XSE AWD (Natl) *Ltd Avail* $34,300
Hybrid XSE AWD (Natl) $34,300
Hybrid Limited AWD (Natl) *Ltd Avail* $36,880
Hybrid Limited AWD (Natl) $36,880

Change trim

$36,880

Starting MSRP
Current listing price

Showing the 2020 Toyota RAV4 Hybrid Hybrid Limited AWD (Natl) *Ltd Avail*

Shop Now

Color options

Exterior

Interior

Black

Ash

Latte

Packages

Protection Package

$543

Starting MSRP

Door Edge Guards
Mudguards
Body Side Moldings

All Weather Liner Package

$0

Starting MSRP

All Weather Floor Liners
Cargo Liner

Limited Grade Weather Package

$1,015

Starting MSRP

front ventilated seats
Rain Sensing Front Wipers
de-icer function

See all packages

Carpet Mat Package

$269

Starting MSRP

Carpet Cargo Mat
Carpet Floor Mats

Limited Advanced Technology Package

$1,025

Starting MSRP

Wireless Smartphone Charger
charge indicator light
Bird's Eye View Monitor

Specifications

Cruising Range - Hwy	551.00 mi
EPA MPG Equivalent - City	N/A
EPA Fuel Economy Est - City	41 MPG
EPA MPG Equivalent - Combined	N/A
Fuel Economy Est-Combined	40 MPG
Cruising Range - City	594.50 mi
Estimated Battery Range	N/A mi
EPA Fuel Economy Est - Hwy	38 MPG
EPA MPG Equivalent - Hwy	N/A

Transfer Case Gear Ratio (:1), High	N/A
Drivetrain	All Wheel Drive
Reverse Ratio (:1)	N/A
Trans Type	1
Trans Description Cont. Again	N/A
Final Drive Axle Ratio (:1)	N/A
Transfer Case Gear Ratio (:1), Low	N/A
Trans Description Cont.	CVT w/OD
First Gear Ratio (:1)	N/A

Brake Type	4-Wheel Disc
Disc - Front (Yes or )	Yes
Front Brake Rotor Diam x Thickness	12 in
Brake ABS System (Second Line)	N/A
Rear Brake Rotor Diam x Thickness	11.1 in
Disc - Rear (Yes or )	Yes
Drum - Rear (Yes or )	N/A
Brake ABS System	4-Wheel

Dead Weight Hitch - Max Tongue Wt.	175 lbs
Dead Weight Hitch - Max Trailer Wt.	1750 lbs
Maximum Trailering Capacity	1750 lbs
Wt Distributing Hitch - Max Trailer Wt.	1750 lbs
Wt Distributing Hitch - Max Tongue Wt.	175 lbs

Cargo Area Width @ Beltline	N/A in
Cargo Volume to Seat 3	37.5 ft³
Front Hip Room	54.3 in
Cargo Volume to Seat 1	69.8 ft³
Length, Overall	180.9 in
Second Hip Room	47.7 in
Min Ground Clearance	8.1 in
Cargo Volume to Seat 2	37.5 ft³
Height, Overall	67 in
Wheelbase	105.9 in
Front Shoulder Room	57.8 in
Cargo Box Width @ Wheelhousings	N/A in
Track Width, Rear	63.7 in
Rear Door Opening Height	N/A in
Cargo Area Length @ Floor to Seat 2	N/A in
Track Width, Front	63 in
Front Leg Room	41 in
Cargo Area Length @ Floor to Seat 1	N/A in
Liftover Height	N/A in
Second Shoulder Room	56.4 in
Cargo Area Length @ Floor to Seat 3	N/A in
Cargo Box (Area) Height	N/A in
Second Head Room	37.7 in
Second Leg Room	37.8 in
Rear Door Opening Width	N/A in
Passenger Volume	98.9 ft³
Passenger Capacity	5
Width, Max w/o mirrors	73 in
Front Head Room	37.7 in

Radio: Premium Audio w/Dynamic Nav & JBL -inc: 8" touch screen, AM/FM/HD Radio, 11 JBL speakers in 9 locations, including subwoofer and amplifier, USB media port, Dynamic Navigation w/up to 3-year trial, Dynamic POI Search, Dynamic Voice Recognition, hands-free phone capability and music streaming via Bluetooth wireless technology, Android Auto, Apple CarPlay and Amazon Alexa compatible, SiriusXM w/3-month all access trial, Toyota Connected Services Safety Connect w/1-year trial, Service Connect w/10-year trial, Remote Connect w/1-year trial, Wi-Fi Connect w/up to 2GB within 3-month trial and Destination Assist w/1-year trial	Optional
Integrated Roof Antenna	Standard
Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls and Radio Data System	Optional
Digital Signal Processor	Optional
Automatic Equalizer	Optional
3 LCD Monitors In The Front	Optional
11 JBL Speakers	Optional
Regular Amplifier	Optional

Roof Rack Rails Only	Standard
Power Liftgate Rear Cargo Access	Optional
Galvanized Steel/Aluminum Panels	Standard
Black Grille w/Body-Color Surround	Standard
Perimeter/Approach Lights	Optional
Variable Intermittent Wipers	Optional
Compact Spare Tire Mounted Inside Under Cargo	Standard
Lip Spoiler	Standard
Body-Colored Power Heated Side Mirrors w/Manual Folding and Turn Signal Indicator	Optional
Tailgate/Rear Door Lock Included w/Power Door Locks	Standard
Wheels: 18" x 7.0J Chrome-Finished Aluminum Alloy	Optional
Black Rear Bumper w/Metal-Look Rub Strip/Fascia Accent	Optional
Aluminum Spare Wheel	Optional
LED Brakelights	Standard
Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent and Metal-Look Bumper Insert	Optional
Chrome Side Windows Trim and Black Front Windshield Trim	Standard
Fixed Rear Window w/Fixed Interval Wiper and Defroster	Standard
Tires: 225/60R18 AS	Optional
Express Open/Close Sliding And Tilting Glass 1st Row Sunroof w/Sunshade	Optional
Headlights-Automatic Highbeams	Standard
Auto On/Off Projector Beam Led Low/High Beam Daytime Running Auto High-Beam Headlamps w/Delay-Off	Optional
Deep Tinted Glass	Standard
Chrome Door Handles	Optional
Battery	Standard
Front Fog Lamps	Optional
Laminated Glass	Standard
Black Bodyside Cladding and Black Wheel Well Trim	Standard

Rear Cupholder	Standard
Redundant Digital Speedometer	Optional
Tracker System	Standard
FOB Controls -inc: Cargo Access	Optional
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Power/Regen, Trip Odometer and Trip Computer	Standard
Dual Zone Front Automatic Air Conditioning	Standard
HVAC -inc: Underseat Ducts and Console Ducts	Standard
Integrated Navigation System w/Voice Activation	Optional
Seats w/Leatherette Back Material	Optional
60-40 Folding Split-Bench Front Facing Manual Reclining Fold Forward Seatback Rear Seat	Standard
Distance Pacing w/Traffic Stop-Go	Standard
Power Door Locks w/Autolock Feature	Standard
Power 1st Row Windows w/Front And Rear 1-Touch Up/Down	Standard
Instrument Panel Bin, Driver And Passenger Door Bins	Standard
Perimeter Alarm	Optional
Leatherette Door Trim Insert	Optional
Cargo Space Lights	Standard
Outside Temp Gauge	Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button	Standard
SofTex Seat Trim	Optional
Full Carpet Floor Covering	Standard
Immobilizer	Standard
Heated Front Seats -inc: 8-way power driver w/2-position memory and lumbar support, and 4-way adjustable passenger seats	Optional
Interior Trim -inc: Metal-Look Instrument Panel Insert and Metal-Look Interior Accents	Standard
2 12V DC Power Outlets	Standard
Day-Night Auto-Dimming Rearview Mirror	Optional
Roll-Up Cargo Cover	Optional
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror	Optional
Carpet Floor Trim	Standard
Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage and 2 12V DC Power Outlets	Standard
Driver Seat	Standard
Leather/Aluminum Gear Shifter Material	Optional
Trunk/Hatch Auto-Latch	Optional
Proximity Key For Doors And Push Button Start	Optional
Cruise Control w/Steering Wheel Controls	Standard
Systems Monitor	Standard
Remote Releases -Inc: Power Cargo Access and Mechanical Fuel	Optional
Full Cloth Headliner	Standard
Manual Tilt/Telescoping Steering Column	Standard
Cargo Area Concealed Storage	Standard
Digital/Analog Appearance	Optional
Front Cupholder	Standard
1 Seatback Storage Pocket	Standard
Fade-To-Off Interior Lighting	Standard
HomeLink Garage Door Transmitter	Optional
Air Filtration	Standard
Leather/Metal-Look Steering Wheel	Optional
Front Center Armrest and Rear Center Armrest	Standard
Trip Computer	Standard
Front Map Lights	Standard
Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints	Standard
Power Rear Windows and Fixed 3rd Row Windows	Standard
Driver Foot Rest	Standard
Passenger Seat	Standard

Hybrid Electric Motor	Standard
Quasi-Dual Stainless Steel Exhaust w/Chrome Tailpipe Finisher	Standard
Nickel Metal Hydride Traction Battery	Standard
Brake Actuated Limited Slip Differential	Standard
Regenerative 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake	Standard
550CCA Maintenance-Free Battery w/Run Down Protection	Standard
Axle Ratio: TBD	Standard
1120# Maximum Payload	Optional
Permanent Locking Hubs	Standard
Gas-Pressurized Shock Absorbers	Standard
Engine: 2.5L 4-Cylinder Atkinson Cycle	Standard
Towing Equipment -inc: Trailer Sway Control	Standard
Double Wishbone Rear Suspension w/Coil Springs	Standard
Engine Auto Stop-Start Feature	Standard
Electric Power-Assist Speed-Sensing Steering	Standard
Transmission w/Driver Selectable Mode and Sequential Shift Control	Standard
Automatic Full-Time All-Wheel	Standard
GVWR: 4,920 lbs	Standard
Strut Front Suspension w/Coil Springs	Standard
14.5 Gal. Fuel Tank	Standard
Transmission: ECVT (Continuously Variable)	Standard
Front And Rear Anti-Roll Bars	Standard

Intelligent Clearance Sonar (ICS) Front And Rear Parking Sensors	Optional
Lane Departure Alert with Steering Assist (LDA w/SA) Lane Keeping Assist	Standard
Lane Tracing Assist (LTA)	Standard
Airbag Occupancy Sensor	Standard
Safety Connect with 1-year trial Emergency Sos	Standard
Collision Mitigation-Rear	Optional
Collision Mitigation-Front	Standard
Tire Specific Low Tire Pressure Warning	Optional
Panoramic View Monitor Back-Up Camera	Optional
Driver Knee Airbag and Passenger Cushion Front Airbag	Standard
Dual Stage Driver And Passenger Front Airbags	Standard
Side Impact Beams	Standard
Curtain 1st And 2nd Row Airbags	Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags	Standard
Pre-Collision System (PCS)	Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners	Standard
ABS And Driveline Traction Control	Standard
Lane Departure Alert with Steering Assist (LDA w/SA) Lane Departure Warning	Standard
Blind Spot Monitor (BSM) Blind Spot	Optional
Electronic Stability Control (ESC)	Standard
Rear Child Safety Locks	Standard

Compare trims

Wondering which trim is right for you?

Our 2020 Toyota RAV4 Hybrid trim comparison will help you decide.

Rear Wheel Material	Aluminum
Spare Wheel Size	Compact in
Spare Wheel Material	Aluminum
Front Wheel Size	18 X 7 in
Rear Wheel Size	18 X 7 in
Front Wheel Material	Aluminum

SAE Net Torque @ RPM	163 @ 3600
Displacement	2.5 L/152
Engine Type	Gas/Electric I-4
SAE Net Horsepower @ RPM	219 @ 5700

Aux Fuel Tank Capacity, Approx	N/A gal
Fuel Tank Capacity, Approx	14.5 gal

Turning Diameter - Wall to Wall	N/A ft
Lock to Lock Turns (Steering)	N/A
Turning Diameter - Curb to Curb	36.1 ft
Steering Ratio (:1), Overall	N/A
Steering Type	Rack-Pinion

Front Tire Size	P225/60HR18
Rear Tire Size	P225/60HR18
Spare Tire Size	Compact

Maximum Alternator Capacity (amps)	N/A
Cold Cranking Amps @ 0° F (Primary)	550

Suspension Type - Front (Cont.)	Strut
Suspension Type - Front	Strut
Suspension Type - Rear (Cont.)	Double Wishbone
Suspension Type - Rear	Double Wishbone

Base Curb Weight	3800 lbs
Curb Weight - Rear	N/A lbs
Total Option Weight	0.00 lbs
Maximum Payload Capacity	N/A lbs
Curb Weight - Front	N/A lbs
Curb Weight	N/A lbs
