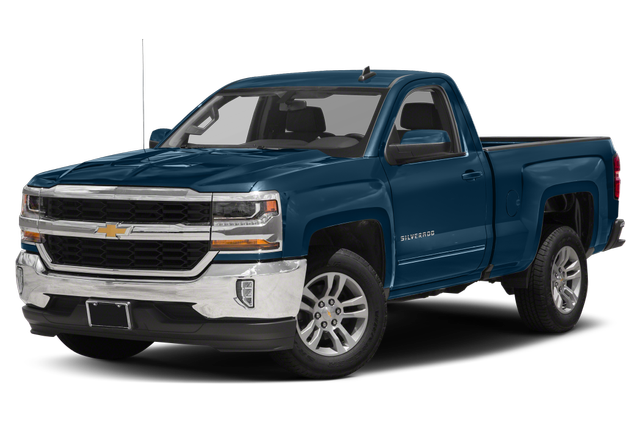

2016 Chevrolet Silverado 1500 LT specs & colors

Regular Cab Pickup

Change trim

MSRP
Change trim
$38,690
Starting MSRP
Current listing price

Showing the 2016 Chevrolet Silverado 1500 4WD Reg Cab 119.0" LT w/2LT

Shop Now

Key specs

Color options

Interior

Jet Black / Dark Ash

Cocoa / Dune

Jet Black

Packages

$795

Starting MSRP

  • includes (CGN) spray-on bedliner
  • (CTD) upper cargo tie downs and (SIE) Cross rails tiered storage system
  • LPO

$200

Starting MSRP

  • includes (VAV) all-weather floor mats
  • and (VBR) rubber bed mat

$0

Starting MSRP

  • includes standard equipment
See all packages

$295

Starting MSRP

  • includes (VQY) chrome recovery hooks
  • LPO and (VQZ) polished exhaust tip
  • LPO

$995

Starting MSRP

  • includes (VZX) Bedliner
  • LPO
  • (5JY) tonneau cover

LPO, Bed Protection Package

$995

Starting MSRP

  • includes (VZX) Bedliner
  • LPO
  • (5JY) tonneau cover
  • Soft cloth
  • folding
  • LPO and (CTD) upper tie downs,

Specifications

Front Wheel Size 18 x 8.5 in
Rear Wheel Material Aluminum
Front Wheel Material Aluminum
Spare Wheel Size 17 x 7.0 in
Rear Wheel Size 18 x 8.5 in
Spare Wheel Material Aluminum

Cold Cranking Amps @ 0° F (Primary) 730
Maximum Alternator Capacity (amps) 150

Engine Type Gas/Ethanol V6
SAE Net Torque @ RPM 305 @ 3900
Displacement 4.3L/262
SAE Net Horsepower @ RPM 285 @ 5300
Engine Oil Cooler Yes

EPA Fuel Economy Est - City 17 MPG
Fuel Economy Est-Combined 19 MPG
Estimated Battery Range N/A mi
EPA Fuel Economy Est - Hwy 22 MPG
Cruising Range - City 442.00 mi
Cruising Range - Hwy 572.00 mi

Final Drive Axle Ratio (:1) N/A
Fifth Gear Ratio (:1) 0.85
Trans Description Cont. Again N/A
Transfer Case Power Take Off N/A
Reverse Ratio (:1) 3.06
Trans Power Take Off N/A
Second Gear Ratio (:1) 2.36
First Gear Ratio (:1) 4.03
Third Gear Ratio (:1) 1.53
Transfer Case Model Magna MP3023/4
Transfer Case Gear Ratio (:1), Low 2.69
Fourth Gear Ratio (:1) 1.15
Drivetrain Four Wheel Drive
Sixth Gear Ratio (:1) 0.67
Transfer Case Gear Ratio (:1), High 1.00
Trans Type 6
Trans Description Cont. Automatic

Suspension Type - Front Independent
Axle Type - Rear N/A
Axle Type - Front N/A
Suspension Type - Rear 2-Stage Multi-Leaf

Frame Type Hydroformed

Rear Brake Rotor Diam x Thickness 13.6 x 0.79 in
Disc - Front (Yes or ) Yes
Drum - Rear (Yes or ) N/A
Brake Type Pwr
Brake ABS System 4-Wheel
Front Brake Rotor Diam x Thickness 13.0 x 1.18 in
Disc - Rear (Yes or ) Yes
Brake ABS System (Second Line) N/A

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 26 gal

Turning Diameter - Curb to Curb 40.0 ft
Turning Diameter - Wall to Wall N/A ft
Steering Ratio (:1), Overall N/A
Steering Type Electric Rack & Pinion

Spare Tire Size P265/70R17
Rear Tire Size P265/65R18
Front Tire Size P265/65R18

Wt Distributing Hitch - Max Tongue Wt. 760 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity 8600 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. 7600 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs

As Spec'd Payload N/A lbs
As Spec'd Curb Weight N/A lbs
Option Weight - Front 0.00 lbs
Base Curb Weight N/A lbs
Maximum Payload Capacity N/A lbs
Gross Vehicle Weight Rating 6700.00 lbs
Option Weight - Rear 0.00 lbs
Gross Combined Wt Rating 12800 lbs
Total Option Weight 0.00 lbs
Gross Axle Weight Rating 7800.00 lbs
Curb Weight N/A lbs
Curb Weight - Rear N/A lbs
Curb Weight - Front N/A lbs

Front Shoulder Room 66.03 in
Height, Overall 74.13 in
Front Head Room 42.40 in
Second Leg Room N/A in
Length, Overall w/rear bumper N/A in
Length, Overall N/A in
Ground Clearance, Front 8.60 in
Cab to End of Frame N/A in
Cargo Volume 61.0 ft³
Overhang, Front N/A in
Cargo Box (Area) Height 21.23 in
Cargo Box Length @ Floor 78.87 in
Width, Max w/o mirrors 80.0 in
Wheelbase 119.0 in
Ext'd Cab Cargo Volume N/A ft³
Overhang, Rear w/o bumper N/A in
Second Head Room N/A in
Length, Overall w/o rear bumper 205.57 in
Ground to Top of Load Floor 36.2 in
Tailgate Width 62.2 in
Passenger Capacity 3
Second Shoulder Room N/A in
Ground Clearance, Rear 8.60 in
Cargo Box Width @ Floor 64.6 in
Cargo Box Width @ Top, Rear N/A in
Front Hip Room 60.73 in
Second Hip Room N/A in
Front Leg Room 45.27 in
Cargo Box Width @ Wheelhousings 51.03 in

Audio system, Chevrolet MyLink Radio with 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone (STD) Optional
Radio, HD Optional
OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.) Optional
6-speaker audio system Optional
Bluetooth for phone, personal cell phone connectivity to vehicle audio system Optional
SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.) Optional
Single-slot CD/MP3 player Optional

Bumper, rear body-color, with CornerSteps Optional
Headlamps, high intensity discharge (HID) projector-beam with LED signature DRL Standard
Bumper, front body color Optional
Moldings, bodyside, body color Optional
Headlamp bezels, body-color Optional
Wheel, full-size spare, 17" x 7" (43.2 cm x 17.8 cm) aluminum (Included and only available with model K15543 and (L83) 5.3L EcoTec3 V8 engine or (LV3) 4.3L EcoTec3 V6 engine or model *15703 and (LV3) 4.3L EcoTec3 V6 engine. With 22" LPO wheels requires (LV3) 4.3L EcoTec3 V6 engine and CC15543 model.) Optional
Tailgate, EZ-Lift and Lower Optional
Recovery hooks, front, frame-mounted, black Standard
Fog lamps, thin profile LED Optional
Grille surround, body color Optional
Tires, P265/65R18 all-terrain, blackwall (Standard on Crew Cab and Regular Cab models.) (STD) Optional
Mirrors, outside heated power-adjustable (includes driver's side spotter mirror) (Body-color.) Optional
Glass, deep-tinted Optional
Door handles, body-color Optional
Remote Locking Tailgate Optional
Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door Standard
Mirror caps, body-color Optional
Wheels, 18" x 8.5" (45.7 cm x 21.6 cm) bright-machined aluminum (STD) Optional
Tire, spare P265/70R17 all-season, blackwall Optional
Lamps, cargo area, cab mounted with switch on center switch bank Standard
CornerStep, rear bumper Standard
Tailgate and bed rail protection cap, top Standard

Steering wheel, leather-wrapped with audio and cruise controls Optional
Cruise control, electronic with set and resume speed, steering wheel-mounted Standard
Steering column, Tilt-Wheel, manual with theft-deterrent locking feature Standard
Visors, driver and front passenger illuminated vanity mirrors Optional
Steering wheel audio controls Optional
Seats, front 40/20/40 split-bench, 3-passenger, available in cloth includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar, lockable storage compartment in seat cushion, and storage pockets. (STD) (Includes (AG1) driver 10-way power seat-adjuster with (PCM) LT Convenience Package, (PDA) Texas Edition or (PDU) All Star Edition.) Optional
Floor covering, color-keyed carpeting with rubberized vinyl floor mats Optional
Remote Keyless Entry, with 2 transmitters Optional
Assist handle, front passenger on A-pillar Standard
Door locks, power Standard
Air conditioning, single-zone Standard
Windows, power front and rear with driver express up and down and express down on all other windows Optional
Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information Optional
Instrumentation, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure Standard

Differential, heavy-duty locking rear Optional
Cooling, external engine oil cooler Standard
Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock Standard
Alternator, 150 amps Standard
Pickup box Standard
Engine, 4.3L FlexFuel EcoTec3 V6 with Active Fuel Management, Direct Injection and Variable Valve Timing includes aluminum block construction with (FHS) E85 FlexFuel capability, capable of running on unleaded or up to 85% ethanol (285 hp [212 kW] @ 5300 rpm, 305 lb-ft of torque [413 Nm] @ 3900 rpm) (STD) (Includes (FHS) E85 FlexFuel capability. Not available on C*15743 models.) Standard
Transfer case, electronic Autotrac with rotary dial control (Included with 4WD models only.) Optional
Rear axle, 3.42 ratio (Standard on 4WD (LV3) 4.3L EcoTec3 V6 engine. Available with (L83) 5.3L EcoTec3 V8 engine.) Standard
GVWR, 6700 lbs. (3039 kg) (STD) (Requires Regular Cab models.) Standard
Transmission, 6-speed automatic, electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD) Standard
Battery, heavy-duty 730 cold-cranking amps/70 Amp-hr, maintenance-free with rundown protection and retained accessory power Standard
Z71 Package, Off-Road (Requires 4WD model.), includes monotube Rancho brand shocks, (K47) air cleaner, (JHD) Hill Descent Control, (NZZ) underbody shield and (V76) recovery hooks. Also includes brushed metal Z71 door sill plate, unique Z71 gauge cluster, unique finish interior trim plates, unique lower bumper appearance, unique grille design with Z71 badge and Z71 pickup box decals (Includes (Z82) Trailering Package, (G80) locking rear differential and (RD1) 18" bright machined wheels and (RBX) 18" tires on Crew Cab and Regular Cab and (QXN) 18 " tires on Double Cab. Upgradeable to (RD4) 20" polished-aluminum wheels or 22" LPO wheels. Not available with exterior color (G1C) Slate Grey Metallic.) Optional
Vehicle control, hill descent Optional
Exhaust, aluminized stainless-steel muffler and tailpipe Standard
Four wheel drive Standard
Air cleaner, high-capacity Optional
Frame, fully-boxed, hydroformed front section Standard
Underbody shield, transfer case protection (Requires 4WD models.) Optional
Steering, Electric Power Steering (EPS) assist, rack-and-pinion Standard

Z71 Appearance Package Optional
Trailering Package includes trailer hitch, 7-pin and 4-pin connectors Optional

Daytime Running Lamps with automatic exterior lamp control Standard
OnStar Guidance plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.) Optional
Tire Pressure Monitoring System (does not apply to spare tire) Standard
Airbags, Dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) Standard
StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist Standard
