2016 Chevrolet Silverado 1500 Work Truck specs & colors

Crew Cab Pickup

Change trim

MSRP
Change trim
$37,040
Starting MSRP
Current listing price

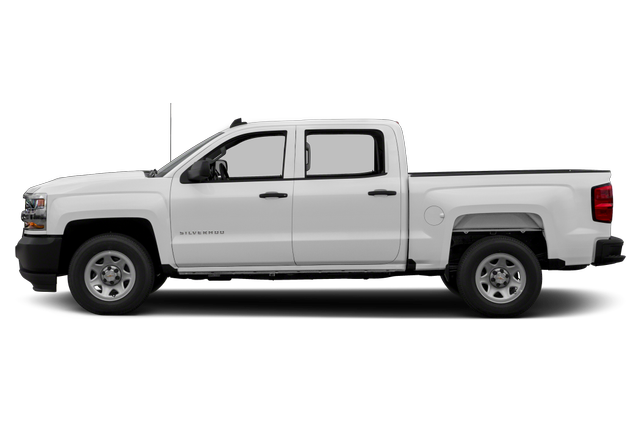

Showing the 2016 Chevrolet Silverado 1500 2WD Crew Cab 153.0" Work Truck

Shop Now

Key specs

Color options

Interior

Jet Black / Dark Ash

Jet Black

Packages

$250

Starting MSRP

  • includes (VAV) all-weather floor mats
  • and (VBR) rubber bed mat

$345

Starting MSRP

  • includes (VQY) chrome recovery hooks
  • LPO and (VQZ) polished exhaust tip
  • LPO

$795

Starting MSRP

  • includes (CGN) spray-on bedliner
  • (CTD) upper cargo tie downs and (SIE) Cross rails tiered storage system
  • LPO
See all packages

$0

Starting MSRP

  • includes standard equipment

$995

Starting MSRP

  • includes (VZX) Bedliner
  • LPO
  • (5JY) tonneau cover

LPO, Bed Protection Package

$995

Starting MSRP

  • includes (VZX) Bedliner
  • LPO
  • (5JY) tonneau cover
  • Soft cloth
  • folding
  • LPO and (CTD) upper tie downs,

Specifications

Spare Wheel Material Steel
Front Wheel Material Steel
Rear Wheel Material Steel
Front Wheel Size 17 x 8.0 in
Rear Wheel Size 17 x 8.0 in
Spare Wheel Size 17 x -TBD- in

Maximum Alternator Capacity (amps) 150
Cold Cranking Amps @ 0° F (Primary) 720

SAE Net Horsepower @ RPM 355 @ 5600
Displacement 5.3L/325
Engine Oil Cooler Yes
SAE Net Torque @ RPM 383 @ 4100
Engine Type Gas V8

Cruising Range - City 416.00 mi
Estimated Battery Range N/A mi
Fuel Economy Est-Combined 19 MPG
Cruising Range - Hwy 598.00 mi
EPA Fuel Economy Est - City 16 MPG
EPA Fuel Economy Est - Hwy 23 MPG

First Gear Ratio (:1) 4.03
Transfer Case Power Take Off N/A
Fifth Gear Ratio (:1) 0.85
Reverse Ratio (:1) 3.06
Trans Description Cont. Automatic
Second Gear Ratio (:1) 2.36
Trans Power Take Off N/A
Transfer Case Model N/A
Third Gear Ratio (:1) 1.53
Trans Type 6
Fourth Gear Ratio (:1) 1.15
Sixth Gear Ratio (:1) 0.67
Transfer Case Gear Ratio (:1), High N/A
Drivetrain Rear Wheel Drive
Transfer Case Gear Ratio (:1), Low N/A
Trans Description Cont. Again N/A
Final Drive Axle Ratio (:1) N/A

Axle Type - Front N/A
Suspension Type - Rear 2-Stage Multi-Leaf
Suspension Type - Front Independent
Axle Type - Rear N/A

Frame Type Hydroformed

Front Brake Rotor Diam x Thickness 13.0 x 1.18 in
Rear Brake Rotor Diam x Thickness 13.6 x 0.79 in
Drum - Rear (Yes or ) N/A
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Brake ABS System 4-Wheel
Brake Type Pwr

Fuel Tank Capacity, Approx 26 gal
Aux Fuel Tank Capacity, Approx N/A gal

Turning Diameter - Wall to Wall N/A ft
Steering Ratio (:1), Overall N/A
Steering Type Electric Rack & Pinion
Turning Diameter - Curb to Curb 48.6 ft

Front Tire Size P255/70R17
Rear Tire Size P255/70R17
Spare Tire Size P255/70R17

Maximum Trailering Capacity 11000 lbs
Wt Distributing Hitch - Max Trailer Wt. 6300 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Wt Distributing Hitch - Max Tongue Wt. 630 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs

Option Weight - Rear 0.00 lbs
Gross Vehicle Weight Rating 7000.00 lbs
As Spec'd Payload N/A lbs
Gross Axle Weight Rating 7800.00 lbs
As Spec'd Curb Weight N/A lbs
Maximum Payload Capacity N/A lbs
Gross Combined Wt Rating 12000 lbs
Curb Weight N/A lbs
Option Weight - Front 0.00 lbs
Curb Weight - Front N/A lbs
Curb Weight - Rear N/A lbs
Total Option Weight 0.00 lbs
Base Curb Weight N/A lbs

Length, Overall N/A in
Cargo Box Width @ Wheelhousings 51.03 in
Second Hip Room 60.27 in
Height, Overall 73.73 in
Width, Max w/o mirrors 80.0 in
Front Shoulder Room 66.03 in
Tailgate Width 62.2 in
Second Shoulder Room 65.73 in
Cargo Box (Area) Height 21.10 in
Length, Overall w/o rear bumper 239.57 in
Front Head Room 42.80 in
Cargo Volume 61.0 ft³
Cab to End of Frame N/A in
Cargo Box Width @ Floor 64.6 in
Ground to Top of Load Floor 34.4 in
Wheelbase 153.0 in
Second Leg Room 40.93 in
Ground Clearance, Rear 8.50 in
Length, Overall w/rear bumper N/A in
Overhang, Rear w/o bumper N/A in
Second Head Room 40.50 in
Overhang, Front N/A in
Ground Clearance, Front 8.50 in
Cargo Box Length @ Floor 78.87 in
Ext'd Cab Cargo Volume N/A ft³
Front Leg Room 45.27 in
Cargo Box Width @ Top, Rear N/A in
Front Hip Room 60.73 in
Passenger Capacity 6

Audio system, 4.2" diagonal color display, AM/FM stereo with USB port and auxiliary jack (Dynamic guidelines not available on IO3.) (STD) Standard
SiriusXM Satellite Radio, delete Standard
6-speaker audio system (Standard on Crew Cab and Double Cab models.) Standard

Tires, P255/70R17 all-season, blackwall (STD) Standard
Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door Standard
Lamps, cargo area, cab mounted with switch on center switch bank Standard
CornerStep, rear bumper Standard
Tire, spare P255/70R17 all-season, blackwall (Included and only available with (RBZ) P255/70R17 all-season, blackwall tires.) Standard
Mirrors, outside manual, Black Standard
Tailgate and bed rail protection cap, top Standard
Bumpers, front, Black Standard
Grille surround, chrome Standard
Door handles, Black Standard
Glass, solar absorbing, tinted Standard
Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel (STD) Standard
Tailgate, locking utilizes same key as ignition and door (Not available with (AQQ) Remote Keyless Entry.) Standard
Bumpers, rear, Black Standard
Headlamps, high intensity discharge (HID) projector-beam with LED signature DRL Standard
Wheel, full-size spare, 17" (43.2 cm) steel Standard

Floor covering, Graphite-colored rubberized-vinyl, no floor mats included Standard
Assist handle, front passenger on A-pillar Standard
Air conditioning, single-zone Standard
Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar. (STD) Standard
Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab model.) Standard
Door locks, power Standard
Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information Standard
Instrumentation, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure Standard
Steering column, Tilt-Wheel, manual with theft-deterrent locking feature Standard
Cruise control, electronic with set and resume speed, steering wheel-mounted Standard
Windows, power front and rear with driver express up and down and express down on all other windows (Standard on Crew Cab and Double Cab.) Standard

Pickup box Standard
Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock Standard
Frame, fully-boxed, hydroformed front section Standard
Steering, Electric Power Steering (EPS) assist, rack-and-pinion Standard
Cooling, auxiliary external transmission oil cooler (Included and only available with (L83) 5.3L EcoTec3 V8 engine.) Standard
Alternator, 150 amps Standard
GVWR, 7000 lbs. (3175 kg) (Crew Cab and Double Cab Requires 2WD models and (L83) 5.3L EcoTec3 V8 engine or (L86) 6.2L EcoTec3 V8 engine. Not available with (NHT) Max Trailering Package.) Standard
Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power (Included and only available with V8 engines.) Standard
Rear wheel drive Standard
Suspension Package, Handling/Trailering Standard
Transmission, 6-speed automatic, electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD) Standard
Exhaust, aluminized stainless-steel muffler and tailpipe Standard
Rear axle, 3.08 ratio (Requires (L83) 5.3L EcoTec3 V8 engine. Not available with (RD2) 20" chrome wheels or (RD4) 20" polished-aluminum wheels.) Standard
Cooling, external engine oil cooler Standard
Engine, 5.3L EcoTec3 V8 with Active Fuel Management, Direct Injection and Variable Valve Timing includes aluminum block construction (355 hp [265 kW] @ 5600 rpm, 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm) (STD) (Standard on C*15743 models.) Standard

Daytime Running Lamps with automatic exterior lamp control Standard
Tire Pressure Monitoring System (does not apply to spare tire) Standard
Airbags, Dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) Standard
OnStar, delete also deletes driver information center compass Standard
StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist Standard
