2017 Toyota Corolla XLE specs & colors

$21,825
Starting MSRP
Current listing price

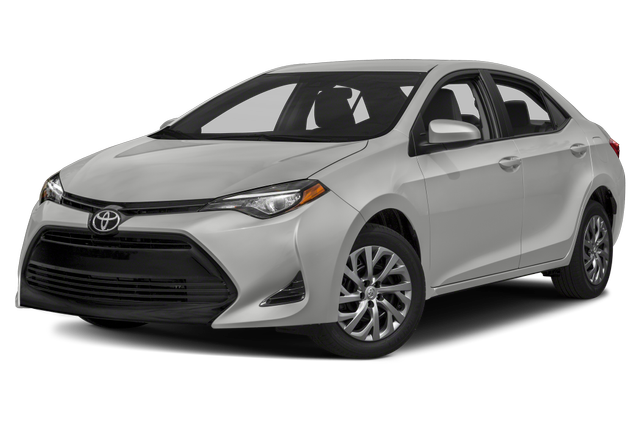

2017 Toyota Corolla XLE

Showing the 2017 Toyota Corolla XLE CVT (Natl)

Shop Now

Key specs

Color options

Interior

Black


Packages

$487

Starting MSRP

  • Rear Bumper Protector (TMS)
  • Door Sill Protectors
  • Body Side Moldings (TMS)

$352

Starting MSRP

  • Rear Bumper Protector (TMS)
  • Carpet Mat Package (TMS)
  • carpet floor mats & trunk mat

Protection Package

$325

Starting MSRP

  • All-Weather Floor Liners
  • Carpet Mat Package (TMS)
  • carpet floor mats & trunk mat
See all packages

$0

Starting MSRP

Specifications

EPA Classification Midsize Cars
Spare Wheel Size Compact in
Front Wheel Size 16 X 6.5 in
Rear Wheel Size 16 X 6.5 in
Front Wheel Material Aluminum
Spare Wheel Material Steel
Rear Wheel Material Aluminum
Cold Cranking Amps @ 0° F (Primary) 390
Maximum Alternator Capacity (amps) 80
SAE Net Horsepower @ RPM 132 @ 6000
Engine Type Regular Unleaded I-4
Displacement 1.8 L/110
SAE Net Torque @ RPM 128 @ 4400
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - City N/A
Cruising Range - Hwy 475.20 mi
Cruising Range - City 369.60 mi
EPA Fuel Economy Est - Hwy 36 MPG
Fuel Economy Est-Combined 32 MPG
EPA Fuel Economy Est - City 28 MPG
Estimated Battery Range N/A mi
EPA MPG Equivalent - Combined N/A
Drivetrain Front Wheel Drive
Trans Description Cont. Again N/A
Reverse Ratio (:1) 2.60
Final Drive Axle Ratio (:1) 4.76
Trans Description Cont. CVT w/OD
First Gear Ratio (:1) 2.48 - 0.40
Trans Type 1
Suspension Type - Rear (Cont.) Torsion Beam
Suspension Type - Rear Torsion Beam
Suspension Type - Front (Cont.) Strut
Suspension Type - Front Strut
Rear Brake Rotor Diam x Thickness 9 in
Brake ABS System 4-Wheel
Disc - Front (Yes or ) Yes
Brake ABS System (Second Line) N/A
Front Brake Rotor Diam x Thickness 10.8 in
Disc - Rear (Yes or ) N/A
Drum - Rear (Yes or ) Yes
Brake Type Front Disc/Rear Drum
Fuel Tank Capacity, Approx 13.2 gal
Aux Fuel Tank Capacity, Approx N/A gal
Turning Diameter - Curb to Curb 35.6 ft
Turning Diameter - Wall to Wall N/A ft
Steering Ratio (:1), Overall N/A
Lock to Lock Turns (Steering) N/A
Steering Type Rack-Pinion
Spare Tire Size Compact
Front Tire Size P205/55HR16
Rear Tire Size P205/55HR16
Dead Weight Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. N/A lbs
Dead Weight Hitch - Max Trailer Wt. N/A lbs
Base Curb Weight 2870 lbs
Width, Max w/o mirrors 69.9 in
Trunk Volume 13 ft³
Second Hip Room 43.9 in
Front Leg Room 42.3 in
Passenger Capacity 5
Second Shoulder Room 54.8 in
Length, Overall 183.1 in
Passenger Volume 97.1 ft³
Front Shoulder Room 54.8 in
Min Ground Clearance 6.7 in
Second Leg Room 41.4 in
Track Width, Front 59.8 in
Front Hip Room 53 in
Height, Overall 57.3 in
Liftover Height N/A in
Front Head Room 38 in
Second Head Room 37.1 in
Track Width, Rear 59.9 in
Wheelbase 106.3 in
Streaming Audio Standard
Automatic Equalizer Standard
2 LCD Monitors In The Front Optional
Radio w/Seek-Scan, In-Dash Mounted Single CD, MP3 Player, Clock, Speed Compensated Volume Control, Steering Wheel Controls, Voice Activation and Radio Data System Optional
Bluetooth Wireless Phone Connectivity Optional
Integrated Roof Antenna Optional
Radio: Entune Audio Plus w/Connected Navigation -inc: Entune Multimedia Bundle (7" high resolution touch-screen display, AM/FM CD player, 6 speakers, auxiliary audio jack, USB 2.0 port w/iPod connectivity and control, advanced voice recognition, hands-free phone capability, phone book access and music streaming via Bluetooth wireless technology), Connected Navigation Scout GPS Link App, Siri Eyes Free, SiriusXM All Access Radio w/3-month complimentary trial and Gracenote album cover art, HD Radio, HD Radio traffic and weather in major metro areas Optional
Headlights-Automatic Highbeams Standard
Black Side Windows Trim Standard
Body-Colored Door Handles Standard
Tires: P205/55R16 All-Season Optional
Fully Galvanized Steel Panels Standard
Body-Colored Power Heated Side Mirrors w/Manual Folding Optional
Trunk Rear Cargo Access Standard
Variable Intermittent Wipers Optional
Steel Spare Wheel Standard
Black Grille Standard
Body-Colored Front Bumper Standard
LED Daytime Running Lights (DRL) -inc: Integrated into bumper Optional
Fixed Rear Window w/Defroster Standard
Body-Colored Rear Bumper Standard
Light Tinted Glass Standard
Tilt & Slide Moonroof -inc: sliding sunshade Optional
Compact Spare Tire Mounted Inside Under Cargo Standard
Wheels: 16" x 6.5" Machined Alloy -inc: dark accents Optional
Auto On/Off Projector Beam Led Low/High Beam Auto High-Beam Headlamps w/Delay-Off Optional
Front Cupholder Standard
Air Filtration Standard
Heated Front Bucket Seats -inc: 8-way power adjustable driver's seat and 4-way adjustable front passenger seat Optional
Locking Glove Box Standard
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer Standard
Interior Trim -inc: Piano Black Instrument Panel Insert, Metal-Look Console Insert and Chrome Interior Accents Optional
4-Way Passenger Seat Standard
Urethane Gear Shifter Material Standard
Driver Foot Rest Standard
Manual Tilt/Telescoping Steering Column Standard
Analog Appearance Standard
Fade-To-Off Interior Lighting Standard
Full Cloth Headliner Standard
Automatic Air Conditioning Optional
Rear Cupholder Standard
Full Floor Console w/Covered Storage and 1 12V DC Power Outlet Standard
60-40 Folding Bench Front Facing Fold Forward Seatback Rear Seat Standard
Carpet Floor Trim and Carpet Trunk Lid/Rear Cargo Door Trim Standard
Power Rear Windows Standard
Cargo Space Lights Standard
Power 1st Row Windows w/Driver 1-Touch Up/Down Standard
Smart Key System w/Push Button Start -inc: panic and trunk releases Optional
Full Carpet Floor Covering Standard
Distance Pacing Standard
HVAC -inc: Underseat Ducts Standard
SofTex Leather Seat Trim Optional
Day-Night Rearview Mirror Standard
Immobilizer Standard
Remote Keyless Entry w/Illuminated Entry Optional
Outside Temp Gauge Standard
Seats w/Cloth Back Material Standard
Driver And Passenger Visor Vanity Mirrors Standard
Trip Computer Standard
Remote Releases -Inc: Mechanical Cargo Access and Mechanical Fuel Standard
Front Map Lights Standard
Instrument Panel Covered Bin, Driver / Passenger And Rear Door Bins Standard
Cruise Control w/Steering Wheel Controls Standard
Power Door Locks w/Autolock Feature Standard
1 12V DC Power Outlet Standard
Cloth Door Trim Insert Standard
Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints Standard
8-Way Driver Seat Optional
Front Center Armrest w/Storage and Rear Center Armrest Optional
Front And Rear Anti-Roll Bars Standard
4.76 Axle Ratio Standard
13.2 Gal. Fuel Tank Standard
Transmission: Continuously Variable (CVTi-S) Standard
Electric Power-Assist Speed-Sensing Steering Standard
Gas-Pressurized Shock Absorbers Standard
Front-Wheel Drive Standard
Torsion Beam Rear Suspension w/Coil Springs Standard
80 Amp Alternator Standard
Single Stainless Steel Exhaust Standard
390CCA Maintenance-Free Battery w/Run Down Protection Standard
Strut Front Suspension w/Coil Springs Standard
Engine: 1.8L I-4 DOHC Dual VVT-i Standard
Front Disc/Rear Drum Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control Standard
Driver Knee Airbag and Passenger Cushion Front Airbag Standard
Pre-Collision System (PCS) Standard
Airbag Occupancy Sensor Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Electronic Stability Control (ESC) Standard
Dual Stage Driver And Passenger Front Airbags Standard
Curtain 1st And 2nd Row Airbags Standard
Lane Departure Alert (LDA) w/Steering Assist Lane Departure Warning Standard
Low Tire Pressure Warning Standard
Rear Child Safety Locks Standard
Back-Up Camera Standard
Side Impact Beams Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
Collision Mitigation-Front Standard
ABS And Driveline Traction Control Standard
Lane Departure Alert (LDA) w/Steering Assist Lane Keeping Assist Standard
