2017 Toyota Corolla XSE specs & colors

$22,680
Starting MSRP
Current listing price

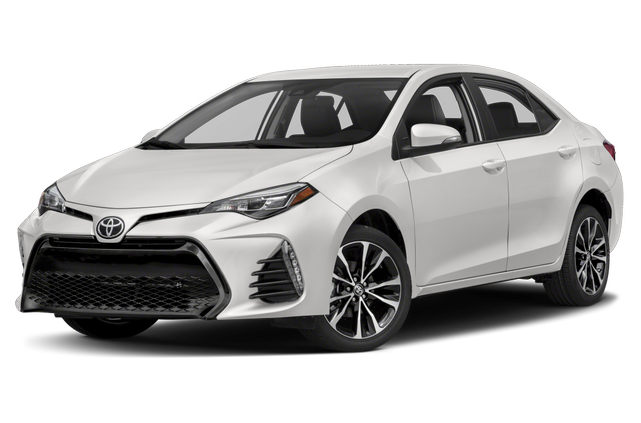

2017 Toyota Corolla XSE

Showing the 2017 Toyota Corolla XSE CVT (Natl)

Shop Now

Key specs

Color options

Interior

Black


Packages

$325

Starting MSRP

  • All-Weather Floor Liners
  • Carpet Mat Package (TMS)
  • carpet floor mats & trunk mat

$0

Starting MSRP

$352

Starting MSRP

  • Rear Bumper Protector (TMS)
  • Carpet Mat Package (TMS)
  • carpet floor mats & trunk mat

Protection Package

See all packages

$487

Starting MSRP

  • Rear Bumper Protector (TMS)
  • Door Sill Protectors
  • Body Side Moldings (TMS)

Specifications

EPA Classification Midsize Cars
Spare Wheel Size Compact in
Spare Wheel Material Steel
Front Wheel Material Aluminum
Front Wheel Size 17 X 7 in
Rear Wheel Material Aluminum
Rear Wheel Size 17 X 7 in
Maximum Alternator Capacity (amps) 80
Cold Cranking Amps @ 0° F (Primary) 390
SAE Net Horsepower @ RPM 132 @ 6000
SAE Net Torque @ RPM 128 @ 4400
Engine Type Regular Unleaded I-4
Displacement 1.8 L/110
EPA Fuel Economy Est - Hwy 35 MPG
Cruising Range - City 369.60 mi
Fuel Economy Est-Combined 31 MPG
Estimated Battery Range N/A mi
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Cruising Range - Hwy 462.00 mi
EPA Fuel Economy Est - City 28 MPG
EPA MPG Equivalent - City N/A
Trans Description Cont. Again N/A
Trans Description Cont. CVT w/OD
First Gear Ratio (:1) 2.48 - 0.40
Trans Type 1
Final Drive Axle Ratio (:1) 4.76
Reverse Ratio (:1) 2.60
Drivetrain Front Wheel Drive
Suspension Type - Front (Cont.) Strut
Suspension Type - Front Strut
Suspension Type - Rear (Cont.) Torsion Beam
Suspension Type - Rear Torsion Beam
Brake ABS System (Second Line) N/A
Front Brake Rotor Diam x Thickness 10.8 in
Disc - Rear (Yes or ) Yes
Rear Brake Rotor Diam x Thickness 10.2 in
Brake ABS System 4-Wheel
Disc - Front (Yes or ) Yes
Brake Type 4-Wheel Disc
Drum - Rear (Yes or ) N/A
Fuel Tank Capacity, Approx 13.2 gal
Aux Fuel Tank Capacity, Approx N/A gal
Turning Diameter - Curb to Curb 35.6 ft
Steering Ratio (:1), Overall N/A
Lock to Lock Turns (Steering) N/A
Steering Type Rack-Pinion
Turning Diameter - Wall to Wall N/A ft
Spare Tire Size Compact
Front Tire Size P215/45HR17
Rear Tire Size P215/45HR17
Dead Weight Hitch - Max Trailer Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. N/A lbs
Base Curb Weight 2885 lbs
Second Head Room 37.1 in
Second Hip Room 43.9 in
Passenger Capacity 5
Front Head Room 38 in
Length, Overall 183.1 in
Width, Max w/o mirrors 69.9 in
Passenger Volume 97.1 ft³
Front Shoulder Room 54.8 in
Min Ground Clearance 6.7 in
Track Width, Rear 59.9 in
Second Leg Room 41.4 in
Wheelbase 106.3 in
Height, Overall 57.3 in
Second Shoulder Room 54.8 in
Front Leg Room 42.3 in
Liftover Height N/A in
Trunk Volume 13 ft³
Front Hip Room 53 in
Track Width, Front 59.8 in
Radio w/Seek-Scan, In-Dash Mounted Single CD, MP3 Player, Clock, Speed Compensated Volume Control, Steering Wheel Controls, Voice Activation and Radio Data System Optional
Bluetooth Wireless Phone Connectivity Optional
2 LCD Monitors In The Front Optional
Streaming Audio Standard
Radio: Entune Audio Plus w/Connected Navigation -inc: Entune Multimedia Bundle (7" high resolution touch-screen display, AM/FM CD player, 6 speakers, auxiliary audio jack, USB 2.0 port w/iPod connectivity and control, advanced voice recognition, hands-free phone capability, phone book access and music streaming via Bluetooth wireless technology), Connected Navigation Scout GPS Link App, Siri Eyes Free, SiriusXM All Access Radio w/3-month complimentary trial and Gracenote album cover art, HD Radio, HD Radio traffic and weather in major metro areas Optional
Integrated Roof Antenna Optional
Automatic Equalizer Standard
Black Grille Standard
Compact Spare Tire Mounted Inside Under Cargo Standard
Body-Colored Power Heated Side Mirrors w/Manual Folding and Turn Signal Indicator Optional
Tilt & Slide Moonroof -inc: sliding sunshade Optional
Auto On/Off Projector Beam Led Low/High Beam Daytime Running Auto High-Beam Headlamps w/Delay-Off Standard
Light Tinted Glass Standard
Tires: P215/45R17 All-Season Optional
Body-Colored Rear Bumper Standard
Variable Intermittent Wipers Optional
Body-Colored Door Handles Standard
Body-Colored Front Bumper Standard
Wheels: 17" x 7.0" Machined Alloy -inc: black painted accents Optional
Lip Spoiler Optional
Trunk Rear Cargo Access Standard
Headlights-Automatic Highbeams Standard
Black Side Windows Trim Standard
Steel Spare Wheel Standard
Fully Galvanized Steel Panels Standard
Fixed Rear Window w/Defroster Standard
Air Filtration Standard
Remote Keyless Entry w/Illuminated Entry Optional
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer Standard
Smart Key System w/Push Button Start -inc: panic and trunk releases Optional
Remote Releases -Inc: Mechanical Cargo Access and Mechanical Fuel Standard
Cruise Control w/Steering Wheel Controls Standard
Rear Cupholder Standard
Fade-To-Off Interior Lighting Standard
Immobilizer Standard
Front Cupholder Standard
Instrument Panel Covered Bin, Driver / Passenger And Rear Door Bins Standard
Leather Steering Wheel Optional
Power 1st Row Windows w/Driver 1-Touch Up/Down Standard
Locking Glove Box Standard
Interior Trim -inc: Metal-Look Instrument Panel Insert, Metal-Look Door Panel Insert, Metal-Look Console Insert and Metal-Look Interior Accents Optional
Front Map Lights Standard
Power Rear Windows Standard
Front Center Armrest w/Storage and Rear Center Armrest Optional
Automatic Air Conditioning Optional
Analog Appearance Standard
Trip Computer Standard
Heated Front Bucket Seats -inc: 8-way power adjustable driver's seat and 4-way adjustable front passenger seat Optional
8-Way Driver Seat Optional
4-Way Passenger Seat Standard
60-40 Folding Bench Front Facing Fold Forward Seatback Rear Seat Standard
Carpet Floor Trim and Carpet Trunk Lid/Rear Cargo Door Trim Standard
Cargo Space Lights Standard
Distance Pacing Standard
Full Carpet Floor Covering Standard
Full Floor Console w/Covered Storage and 1 12V DC Power Outlet Standard
Urethane Gear Shifter Material Standard
HVAC -inc: Underseat Ducts Standard
Cloth Door Trim Insert Standard
Full Cloth Headliner Standard
Driver Foot Rest Standard
Power Door Locks w/Autolock Feature Standard
Outside Temp Gauge Standard
Day-Night Rearview Mirror Standard
1 12V DC Power Outlet Standard
Manual Tilt/Telescoping Steering Column Standard
Seats w/Cloth Back Material Standard
Driver And Passenger Visor Vanity Mirrors Standard
SofTex Leather Seat Trim Optional
Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control Optional
Engine: 1.8L I-4 DOHC Dual VVT-i Standard
Gas-Pressurized Shock Absorbers Standard
4.76 Axle Ratio Standard
390CCA Maintenance-Free Battery w/Run Down Protection Standard
Strut Front Suspension w/Coil Springs Standard
80 Amp Alternator Standard
13.2 Gal. Fuel Tank Standard
Front And Rear Anti-Roll Bars Standard
Electric Power-Assist Speed-Sensing Steering Standard
Single Stainless Steel Exhaust w/Chrome Tailpipe Finisher Optional
Torsion Beam Rear Suspension w/Coil Springs Standard
Transmission: Continuously Variable (CVTi-S) Standard
Front-Wheel Drive Standard
Transmission w/Driver Selectable Mode and Sequential Shift Control w/Steering Wheel Controls Optional
Back-Up Camera Standard
Lane Departure Alert (LDA) w/Steering Assist Lane Keeping Assist Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
ABS And Driveline Traction Control Standard
Low Tire Pressure Warning Standard
Rear Child Safety Locks Standard
Airbag Occupancy Sensor Standard
Side Impact Beams Standard
Curtain 1st And 2nd Row Airbags Standard
Pre-Collision System (PCS) Standard
Lane Departure Alert (LDA) w/Steering Assist Lane Departure Warning Standard
Electronic Stability Control (ESC) Standard
Collision Mitigation-Front Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
Dual Stage Driver And Passenger Front Airbags Standard
Driver Knee Airbag and Passenger Cushion Front Airbag Standard
