2009 Toyota Tundra LTD specs & colors

Crew Cab Pickup

Change trim

MSRP

Reg 4.0L V6 5-Spd AT (SE) $22,490
Reg 4.0L V6 5-Spd AT (GS) $22,490
Reg 4.0L V6 5-Spd AT (Natl) $22,490
Reg LB 4.0L V6 5-Spd AT (SE) $22,820
Reg LB 4.0L V6 5-Spd AT (GS) $22,820
Reg LB 4.0L V6 5-Spd AT (Natl) $22,820
Reg 4.7L V8 5-Spd AT (GS) $23,630
Reg 4.7L V8 5-Spd AT (SE) $23,630
Reg 4.7L V8 5-Spd AT (Natl) $23,630
Reg LB 4.7L V8 5-Spd AT (GS) $23,960
Reg LB 4.7L V8 5-Spd AT (SE) $23,960
Reg LB 4.7L V8 5-Spd AT (Natl) $23,960
Reg 5.7L V8 6-Spd AT (GS) $24,680
Reg 5.7L V8 6-Spd AT (SE) $24,680
Reg 5.7L V8 6-Spd AT (Natl) $24,680
Dbl 4.0L V6 5-Spd AT (GS) $24,945
Dbl 4.0L V6 5-Spd AT (SE) $24,945
Dbl 4.0L V6 5-Spd AT (Natl) $24,945
Reg LB 5.7L V8 6-Spd AT (GS) $25,010
Reg LB 5.7L V8 6-Spd AT (SE) $25,010
Reg LB 5.7L V8 6-Spd AT (Natl) $25,010
Dbl 4.7L V8 5-Spd AT (GS) $25,090
Dbl 4.7L V8 5-Spd AT (SE) $25,090
Dbl 4.7L V8 5-Spd AT (Natl) $25,090
Dbl LB 4.7L V8 5-Spd AT (GS) $26,020
Dbl LB 4.7L V8 5-Spd AT (SE) $26,020
Dbl LB 4.7L V8 5-Spd AT (Natl) $26,020
Dbl 4.0L V6 5-Spd AT SR5 (Natl) $26,305
Dbl 4.0L V6 5-Spd AT SR5 (SE) $26,305
Dbl 4.0L V6 5-Spd AT SR5 (GS) $26,305
Dbl 5.7L V8 6-Spd AT (GS) $26,390
Dbl 5.7L V8 6-Spd AT (SE) $26,390
Dbl 5.7L V8 6-Spd AT (Natl) $26,390
Reg 4.7L V8 5-Spd AT (GS) $26,680
Reg 4.7L V8 5-Spd AT (SE) $26,680
Reg 4.7L V8 5-Spd AT (Natl) $26,680
Reg LB 4.7L V8 5-Spd AT (GS) $27,010
Reg LB 4.7L V8 5-Spd AT (SE) $27,010
Reg LB 4.7L V8 5-Spd AT (Natl) $27,010
Dbl 4.7L V8 5-Spd AT SR5 (Natl) $27,050
Dbl 4.7L V8 5-Spd AT SR5 (SE) $27,050
Dbl 4.7L V8 5-Spd AT SR5 (GS) $27,050
Dbl LB 5.7L V8 6-Spd AT (GS) $27,380
Dbl LB 5.7L V8 6-Spd AT (SE) $27,380
Dbl LB 5.7L V8 6-Spd AT (Natl) $27,380
Reg 5.7L FFV V8 6-Spd AT (GS) $27,740
Reg 5.7L V8 6-Spd AT (GS) $27,740
Reg 5.7L FFV V8 6-Spd AT (SE) $27,740
Reg 5.7L V8 6-Spd AT (SE) $27,740
Reg 5.7L V8 6-Spd AT (Natl) $27,740
Reg 5.7L FFV V8 6-Spd AT (Natl) $27,740
CrewMax 4.7L V8 5-Spd AT (GS) $27,915
CrewMax 4.7L V8 5-Spd AT (SE) $27,915
CrewMax 4.7L V8 5-Spd AT (Natl) $27,915
Reg LB 5.7L V8 6-Spd AT (GS) $28,070
Reg LB 5.7L FFV V8 6-Spd AT (SE) $28,070
Reg LB 5.7L V8 6-Spd AT (SE) $28,070
Reg LB 5.7L FFV V8 6-Spd AT (GS) $28,070
Reg LB 5.7L V8 6-Spd AT (Natl) $28,070
Reg LB 5.7L FFV V8 6-Spd AT (Natl) $28,070
Dbl 4.7L V8 5-Spd AT (SE) $28,140
Dbl 4.7L V8 5-Spd AT (GS) $28,140
Dbl 4.7L V8 5-Spd AT (Natl) $28,140
Dbl 5.7L V8 6-Spd AT SR5 (Natl) $28,410
Dbl 5.7L V8 6-Spd AT SR5 (GS) $28,410
Dbl 5.7L V8 6-Spd AT SR5 (SE) $28,410
Dbl LB 4.7L V8 5-Spd AT (SE) $29,070
Dbl LB 4.7L V8 5-Spd AT (GS) $29,070
Dbl LB 4.7L V8 5-Spd AT (Natl) $29,070
CrewMax 5.7L V8 6-Spd AT (SE) $29,215
CrewMax 5.7L V8 6-Spd AT (GS) $29,215
CrewMax 5.7L V8 6-Spd AT (Natl) $29,215
Dbl 5.7L FFV V8 6-Spd AT (SE) $29,440
Dbl 5.7L V8 6-Spd AT (SE) $29,440
Dbl 5.7L V8 6-Spd AT (GS) $29,440
Dbl 5.7L FFV V8 6-Spd AT (GS) $29,440
Dbl 5.7L FFV V8 6-Spd AT (Natl) $29,440
Dbl 5.7L V8 6-Spd AT (Natl) $29,440
CrewMax 4.7L V8 5-Spd AT SR5 (GS) $29,875
CrewMax 4.7L V8 5-Spd AT SR5 (SE) $29,875
CrewMax 4.7L V8 5-Spd AT SR5 (Natl) $29,875
Dbl 4.7L V8 5-Spd AT SR5 (Natl) $30,100
Dbl 4.7L V8 5-Spd AT SR5 (SE) $30,100
Dbl 4.7L V8 5-Spd AT SR5 (GS) $30,100
Dbl LB 5.7L V8 6-Spd AT (GS) $30,430
Dbl LB 5.7L FFV V8 6-Spd AT (GS) $30,430
Dbl LB 5.7L FFV V8 6-Spd AT (SE) $30,430
Dbl LB 5.7L V8 6-Spd AT (SE) $30,430
Dbl LB 5.7L FFV V8 6-Spd AT (Natl) $30,430
Dbl LB 5.7L V8 6-Spd AT (Natl) $30,430
CrewMax 4.7L V8 5-Spd AT (SE) $30,965
CrewMax 4.7L V8 5-Spd AT (GS) $30,965
CrewMax 4.7L V8 5-Spd AT (Natl) $30,965
CrewMax 5.7L V8 6-Spd AT SR5 (SE) $31,235
CrewMax 5.7L V8 6-Spd AT SR5 (GS) $31,235
CrewMax 5.7L V8 6-Spd AT SR5 (Natl) $31,235
Dbl 5.7L FFV V8 6-Spd AT SR5 (Natl) $31,460
Dbl 5.7L V8 6-Spd AT SR5 (Natl) $31,460
Dbl 5.7L FFV V8 6-Spd AT SR5 (GS) $31,460
Dbl 5.7L FFV V8 6-Spd AT SR5 (SE) $31,460
Dbl 5.7L V8 6-Spd AT SR5 (GS) $31,460
Dbl 5.7L V8 6-Spd AT SR5 (SE) $31,460
CrewMax 5.7L V8 6-Spd AT (GS) $32,265
CrewMax 5.7L FFV V8 6-Spd AT (GS) $32,265
CrewMax 5.7L V8 6-Spd AT (SE) $32,265
CrewMax 5.7L FFV V8 6-Spd AT (SE) $32,265
CrewMax 5.7L V8 6-Spd AT (Natl) $32,265
CrewMax 5.7L FFV V8 6-Spd AT (Natl) $32,265
CrewMax 4.7L V8 5-Spd AT SR5 (SE) $32,925
CrewMax 4.7L V8 5-Spd AT SR5 (GS) $32,925
CrewMax 4.7L V8 5-Spd AT SR5 (Natl) $32,925
CrewMax 5.7L V8 6-Spd AT SR5 (GS) $34,285
CrewMax 5.7L V8 6-Spd AT SR5 (SE) $34,285
CrewMax 5.7L FFV V8 6-Spd AT SR5 (SE) $34,285
CrewMax 5.7L FFV V8 6-Spd AT SR5 (GS) $34,285
CrewMax 5.7L FFV V8 6-Spd AT SR5 (Natl) $34,285
CrewMax 5.7L V8 6-Spd AT SR5 (Natl) $34,285
Dbl 5.7L V8 6-Spd AT LTD (SE) $36,010
Dbl 5.7L V8 6-Spd AT LTD (Natl) $36,010
Dbl 5.7L V8 6-Spd AT LTD (GS) $36,010
CrewMax 5.7L V8 6-Spd AT LTD (GS) $38,545
CrewMax 5.7L V8 6-Spd AT LTD (SE) $38,545
CrewMax 5.7L V8 6-Spd AT LTD (Natl) $38,545
Dbl 5.7L FFV V8 6-Spd AT LTD (GS) $39,070
Dbl 5.7L FFV V8 6-Spd AT LTD (SE) $39,070
Dbl 5.7L V8 6-Spd AT LTD (GS) $39,070
Dbl 5.7L V8 6-Spd AT LTD (SE) $39,070
Dbl 5.7L V8 6-Spd AT LTD (Natl) $39,070
Dbl 5.7L FFV V8 6-Spd AT LTD (Natl) $39,070
CrewMax 5.7L FFV V8 6-Spd AT LTD (GS) $41,605
CrewMax 5.7L FFV V8 6-Spd AT LTD (SE) $41,605
CrewMax 5.7L V8 6-Spd AT LTD (SE) $41,605
CrewMax 5.7L V8 6-Spd AT LTD (GS) $41,605
CrewMax 5.7L V8 6-Spd AT LTD (Natl) $41,605
CrewMax 5.7L FFV V8 6-Spd AT LTD (Natl) $41,605

Change trim

$39,070

Starting MSRP
Current listing price

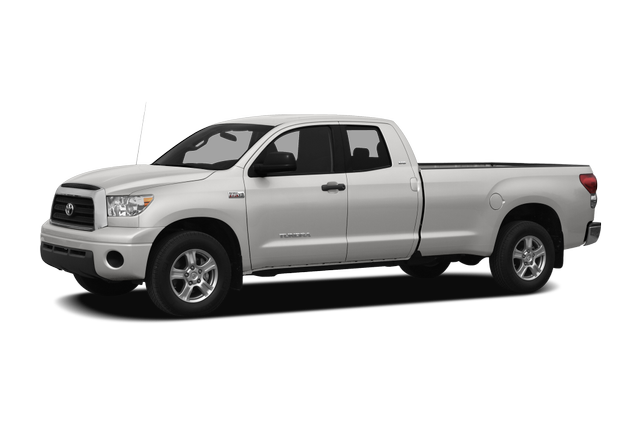

Showing the 2009 Toyota Tundra Dbl 5.7L V8 6-Spd AT LTD (Natl)

Shop Now

Color options

Exterior

Interior

Redrock

Graphite

Sand Beige

Sand beige

Packages

TRD OFF-ROAD PKG

$70

Starting MSRP

off-road suspension
unique 18" alloy wheels
BF Goodrich OWL all terrain tires

OPTION PKG NOT DESIRED

$0

Starting MSRP

Specifications

Cruising Range - City	343.20 mi
Fuel Economy Est-Combined	14 MPG
Estimated Battery Range	N/A mi
EPA Fuel Economy Est - Hwy	17 MPG
Cruising Range - Hwy	448.80 mi
EPA Fuel Economy Est - City	13 MPG

Trans Power Take Off	N/A
First Gear Ratio (:1)	3.33
Final Drive Axle Ratio (:1)	N/A
Transfer Case Power Take Off	N/A
Fourth Gear Ratio (:1)	1.00
Drivetrain	4-Wheel Drive
Trans Description Cont.	Automatic w/OD
Fifth Gear Ratio (:1)	0.73
Second Gear Ratio (:1)	1.96
Transfer Case Gear Ratio (:1), Low	1.00
Transfer Case Gear Ratio (:1), High	2.62
Sixth Gear Ratio (:1)	0.59
Reverse Ratio (:1)	3.06
Transfer Case Model	N/A
Third Gear Ratio (:1)	1.35
Trans Type	6

Rear Brake Rotor Diam x Thickness	13.6 x -TBD- in
Disc - Front (Yes or )	Yes
Disc - Rear (Yes or )	Yes
Brake ABS System	4-Wheel
Brake Type	Pwr
Front Brake Rotor Diam x Thickness	13.9 x -TBD- in

Fifth Wheel Hitch - Max Trailer Wt.	10300 lbs
Wt Distributing Hitch - Max Trailer Wt.	10300 lbs
Maximum Trailering Capacity	N/A lbs
Wt Distributing Hitch - Max Tongue Wt.	1030 lbs
Dead Weight Hitch - Max Tongue Wt.	500 lbs
Dead Weight Hitch - Max Trailer Wt.	5000 lbs
Fifth Wheel Hitch - Max Tongue Wt.	1030 lbs

Gross Combined Wt Rating	16000 lbs
Curb Weight - Rear	2320 lbs
As Spec'd Payload	1560.00 lbs
Curb Weight	5540.00 lbs
Option Weight - Front	0.00 lbs
Gross Vehicle Weight Rating	7100.00 lbs
Option Weight - Rear	0.00 lbs
As Spec'd Curb Weight	5540.00 lbs
Maximum Payload Capacity	1560.00 lbs
Base Curb Weight	N/A lbs
Total Option Weight	0.00 lbs
Gross Axle Weight Rating	8150.00 lbs
Curb Weight - Front	3220 lbs

Front Hip Room	63.0 in
Cargo Box (Area) Height	22.2 in
Second Shoulder Room	65.7 in
Tailgate Width	66.4 in
Front Leg Room	42.5 in
Width, Max w/o mirrors	79.9 in
Ext'd Cab Cargo Volume	N/A ft³
Ground Clearance, Front	N/A in
Cargo Box Length @ Floor	78.7 in
Ground to Top of Load Floor	N/A in
Second Leg Room	34.7 in
Height, Overall	76.2 in
Ground Clearance, Rear	N/A in
Cab to End of Frame	N/A in
Overhang, Rear w/o bumper	N/A in
Cargo Volume	N/A ft³
Length, Overall w/rear bumper	N/A in
Front Head Room	40.2 in
Second Hip Room	62.6 in
Second Head Room	38.7 in
Length, Overall w/o rear bumper	228.7 in
Cargo Box Width @ Top, Rear	N/A in
Length, Overall	N/A in
Front Shoulder Room	66.6 in
Overhang, Front	N/A in
Wheelbase	145.7 in
Passenger Capacity	5
Cargo Box Width @ Floor	N/A in
Cargo Box Width @ Wheelhousings	50.0 in

Auto-dimming interior mirror -inc: compass, HomeLink	Optional
Dual zone automatic air conditioning w/sync mode	Optional
Tire pressure monitor system	Standard
Pwr door locks	Standard
Roll-sensing side curtain airbags	Standard
Color-keyed bumpers	Optional
Anti-theft alarm system	Optional
Rear armrest	Standard
Tilt & telescopic steering wheel w/console shifter, audio controls	Optional
Deck rail system w/(4) adjustable tie-down cleats	Optional
Chrome door & black tailgate handles	Optional
Active traction control	Standard
Center console box	Optional
Rear outboard seat LATCH anchors	Standard
Deck rail caps	Standard
2-way adjustable headrests	Standard
Front leather heated bucket seats	Optional
Optitron gauges	Optional
Driver & front passenger advanced airbags	Standard
4WDemand 4-wheel drive system w/electronically controlled 2-speed transfer case	Standard
Independent coil-spring double wishbone front suspension w/low-pressure nitrogen gas shocks, stabilizer bar	Standard
Double visors w/extenders, illuminated mirrors	Optional
Rear air conditioning ducts	Standard
Front tow hooks	Standard
Illuminated entry system	Standard
Front & rear map lamps	Standard
P275/65R18 all season tires	Optional
Driver & front passenger seat mounted side airbags	Standard
Cigarette lighter & ashtray w/illumination	Standard
Trapezoidal multi-leaf live axle rear suspension w/staggered low-pressure nitrogen gas shocks	Standard
Glove box illumination	Standard
Tow pkg -inc: hitch receiver, trailer brake controller prewire, 4.3 axle ratio, TOW/HAUL mode switch, trans temp gauge, supplemental trans cooler, 7-pin connector	Optional
Hydraulic pwr rack & pinion steering	Standard
(2) front pwr points & (1) rear pwr point	Standard
Variable intermittent windshield wipers	Standard
Driver & front passenger seatback pockets	Standard
Tailgate assist	Standard
10-way driver & 4-way front passenger pwr adjustable seats w/driver & front passenger pwr lumbar & thigh supports, passenger-side fold flat	Optional
Remote keyless entry system	Standard
4-wheel anti-lock brakes (ABS) w/brake assist	Standard
5.7L DOHC 32-valve i-Force V8 engine -inc: dual independent variable valve timing w/intelligence, acoustically controlled induction	Optional
Pwr windows	Standard
Child-protector rear door locks	Standard
Chrome retractable pwr heated mirrors -inc: turn signals, auto-dimming, puddle lamps	Optional
Vehicle stability control	Standard
6-speed automatic transmission -inc: electronically controlled intelligence (ECT-i), sequential shift mode, uphill & downhill shift logic, TOW/HAUL mode	Optional
Overhead console	Optional
(4) front & (2) rear cup holders	Standard
Electronic brake-force distribution	Standard
Instrumentation -inc: tachometer, tripmeter, exterior temp gauge, digital clock	Standard
18" spare wheel & P255/70R18 tire	Standard
Engine immobilizer	Standard
3-point seatbelts in all seating positions w/automatic & emergency locking retractors, driver & front passenger pretensioners w/force limiters, driver emergency locking retractor	Standard
Chrome grille surround w/gray finish bars	Optional
Carpet flooring	Standard
Cruise control	Standard
Fog lamps	Optional
7,100# GVWR	Optional
Child restraint system top tether anchors for rear passenger seats	Standard
HomeLink universal transceiver	Optional
Sliding rear window w/privacy glass	Optional
Rear door privacy glass	Optional
18" alloy wheels	Optional
JBL AM/FM stereo w/6-disc CD changer -inc: (10) speakers, (8) channel 440W amp, Bluetooth capability, steering wheel mounted audio controls, aux audio inputs	Optional
Multi-information display -inc: current & average mpg, range, average speed, customizable features	Optional
Automatic limited-slip differential	Standard
Pwr vented disc brakes	Standard
Front & rear mudguards	Optional

Compare trims

Wondering which trim is right for you?

Our 2009 Toyota Tundra trim comparison will help you decide.

Rear Wheel Material	Alloy
Front Wheel Material	Alloy
Spare Wheel Material	N/A
Front Wheel Size	18 x -TBD- in
Spare Wheel Size	18 x -TBD- in
Rear Wheel Size	18 x -TBD- in

SAE Net Torque @ RPM	401 @ 3600
Displacement	5.7L/346
Engine Type	Gas V8
SAE Net Horsepower @ RPM	381 @ 5600

Steering Ratio (:1), Overall	N/A
Steering Type	Pwr Rack & Pinion
Turning Diameter - Curb to Curb	44.0 ft
Turning Diameter - Wall to Wall	N/A ft

Maximum Alternator Capacity (amps)	N/A
Cold Cranking Amps @ 0° F (Primary)	N/A

Axle Type - Rear	N/A
Suspension Type - Front	Independent
Axle Type - Front	N/A
Suspension Type - Rear	Trapezoidal

Spare Tire Size	P255/70R18
Rear Tire Size	P275/65R18
Front Tire Size	P275/65R18

2009 Toyota Tundra LTD specs & colors

Crew Cab Pickup

Key specs

Color options

Packages

Specifications

Wheels

Electrical

Engine

Mileage

Transmission

Suspension

Frame

Brakes

Fuel Tank

Steering

Tires

Trailering

Weight Information

Dimensions

Interior

Compare trims
