2009 Toyota Tundra specs & colors

Crew Cab Pickup

Change trim

MSRP

Reg 4.0L V6 5-Spd AT (SE) $22,490
Reg 4.0L V6 5-Spd AT (GS) $22,490
Reg 4.0L V6 5-Spd AT (Natl) $22,490
Reg LB 4.0L V6 5-Spd AT (SE) $22,820
Reg LB 4.0L V6 5-Spd AT (GS) $22,820
Reg LB 4.0L V6 5-Spd AT (Natl) $22,820
Reg 4.7L V8 5-Spd AT (GS) $23,630
Reg 4.7L V8 5-Spd AT (SE) $23,630
Reg 4.7L V8 5-Spd AT (Natl) $23,630
Reg LB 4.7L V8 5-Spd AT (GS) $23,960
Reg LB 4.7L V8 5-Spd AT (SE) $23,960
Reg LB 4.7L V8 5-Spd AT (Natl) $23,960
Reg 5.7L V8 6-Spd AT (GS) $24,680
Reg 5.7L V8 6-Spd AT (SE) $24,680
Reg 5.7L V8 6-Spd AT (Natl) $24,680
Dbl 4.0L V6 5-Spd AT (GS) $24,945
Dbl 4.0L V6 5-Spd AT (SE) $24,945
Dbl 4.0L V6 5-Spd AT (Natl) $24,945
Reg LB 5.7L V8 6-Spd AT (GS) $25,010
Reg LB 5.7L V8 6-Spd AT (SE) $25,010
Reg LB 5.7L V8 6-Spd AT (Natl) $25,010
Dbl 4.7L V8 5-Spd AT (GS) $25,090
Dbl 4.7L V8 5-Spd AT (SE) $25,090
Dbl 4.7L V8 5-Spd AT (Natl) $25,090
Dbl LB 4.7L V8 5-Spd AT (GS) $26,020
Dbl LB 4.7L V8 5-Spd AT (SE) $26,020
Dbl LB 4.7L V8 5-Spd AT (Natl) $26,020
Dbl 4.0L V6 5-Spd AT SR5 (Natl) $26,305
Dbl 4.0L V6 5-Spd AT SR5 (SE) $26,305
Dbl 4.0L V6 5-Spd AT SR5 (GS) $26,305
Dbl 5.7L V8 6-Spd AT (GS) $26,390
Dbl 5.7L V8 6-Spd AT (SE) $26,390
Dbl 5.7L V8 6-Spd AT (Natl) $26,390
Reg 4.7L V8 5-Spd AT (GS) $26,680
Reg 4.7L V8 5-Spd AT (SE) $26,680
Reg 4.7L V8 5-Spd AT (Natl) $26,680
Reg LB 4.7L V8 5-Spd AT (GS) $27,010
Reg LB 4.7L V8 5-Spd AT (SE) $27,010
Reg LB 4.7L V8 5-Spd AT (Natl) $27,010
Dbl 4.7L V8 5-Spd AT SR5 (Natl) $27,050
Dbl 4.7L V8 5-Spd AT SR5 (SE) $27,050
Dbl 4.7L V8 5-Spd AT SR5 (GS) $27,050
Dbl LB 5.7L V8 6-Spd AT (GS) $27,380
Dbl LB 5.7L V8 6-Spd AT (SE) $27,380
Dbl LB 5.7L V8 6-Spd AT (Natl) $27,380
Reg 5.7L FFV V8 6-Spd AT (GS) $27,740
Reg 5.7L V8 6-Spd AT (GS) $27,740
Reg 5.7L FFV V8 6-Spd AT (SE) $27,740
Reg 5.7L V8 6-Spd AT (SE) $27,740
Reg 5.7L V8 6-Spd AT (Natl) $27,740
Reg 5.7L FFV V8 6-Spd AT (Natl) $27,740
CrewMax 4.7L V8 5-Spd AT (GS) $27,915
CrewMax 4.7L V8 5-Spd AT (SE) $27,915
CrewMax 4.7L V8 5-Spd AT (Natl) $27,915
Reg LB 5.7L V8 6-Spd AT (GS) $28,070
Reg LB 5.7L FFV V8 6-Spd AT (SE) $28,070
Reg LB 5.7L V8 6-Spd AT (SE) $28,070
Reg LB 5.7L FFV V8 6-Spd AT (GS) $28,070
Reg LB 5.7L V8 6-Spd AT (Natl) $28,070
Reg LB 5.7L FFV V8 6-Spd AT (Natl) $28,070
Dbl 4.7L V8 5-Spd AT (SE) $28,140
Dbl 4.7L V8 5-Spd AT (GS) $28,140
Dbl 4.7L V8 5-Spd AT (Natl) $28,140
Dbl 5.7L V8 6-Spd AT SR5 (Natl) $28,410
Dbl 5.7L V8 6-Spd AT SR5 (GS) $28,410
Dbl 5.7L V8 6-Spd AT SR5 (SE) $28,410
Dbl LB 4.7L V8 5-Spd AT (SE) $29,070
Dbl LB 4.7L V8 5-Spd AT (GS) $29,070
Dbl LB 4.7L V8 5-Spd AT (Natl) $29,070
CrewMax 5.7L V8 6-Spd AT (SE) $29,215
CrewMax 5.7L V8 6-Spd AT (GS) $29,215
CrewMax 5.7L V8 6-Spd AT (Natl) $29,215
Dbl 5.7L FFV V8 6-Spd AT (SE) $29,440
Dbl 5.7L V8 6-Spd AT (SE) $29,440
Dbl 5.7L V8 6-Spd AT (GS) $29,440
Dbl 5.7L FFV V8 6-Spd AT (GS) $29,440
Dbl 5.7L FFV V8 6-Spd AT (Natl) $29,440
Dbl 5.7L V8 6-Spd AT (Natl) $29,440
CrewMax 4.7L V8 5-Spd AT SR5 (GS) $29,875
CrewMax 4.7L V8 5-Spd AT SR5 (SE) $29,875
CrewMax 4.7L V8 5-Spd AT SR5 (Natl) $29,875
Dbl 4.7L V8 5-Spd AT SR5 (Natl) $30,100
Dbl 4.7L V8 5-Spd AT SR5 (SE) $30,100
Dbl 4.7L V8 5-Spd AT SR5 (GS) $30,100
Dbl LB 5.7L V8 6-Spd AT (GS) $30,430
Dbl LB 5.7L FFV V8 6-Spd AT (GS) $30,430
Dbl LB 5.7L FFV V8 6-Spd AT (SE) $30,430
Dbl LB 5.7L V8 6-Spd AT (SE) $30,430
Dbl LB 5.7L FFV V8 6-Spd AT (Natl) $30,430
Dbl LB 5.7L V8 6-Spd AT (Natl) $30,430
CrewMax 4.7L V8 5-Spd AT (SE) $30,965
CrewMax 4.7L V8 5-Spd AT (GS) $30,965
CrewMax 4.7L V8 5-Spd AT (Natl) $30,965
CrewMax 5.7L V8 6-Spd AT SR5 (SE) $31,235
CrewMax 5.7L V8 6-Spd AT SR5 (GS) $31,235
CrewMax 5.7L V8 6-Spd AT SR5 (Natl) $31,235
Dbl 5.7L FFV V8 6-Spd AT SR5 (Natl) $31,460
Dbl 5.7L V8 6-Spd AT SR5 (Natl) $31,460
Dbl 5.7L FFV V8 6-Spd AT SR5 (GS) $31,460
Dbl 5.7L FFV V8 6-Spd AT SR5 (SE) $31,460
Dbl 5.7L V8 6-Spd AT SR5 (GS) $31,460
Dbl 5.7L V8 6-Spd AT SR5 (SE) $31,460
CrewMax 5.7L V8 6-Spd AT (GS) $32,265
CrewMax 5.7L FFV V8 6-Spd AT (GS) $32,265
CrewMax 5.7L V8 6-Spd AT (SE) $32,265
CrewMax 5.7L FFV V8 6-Spd AT (SE) $32,265
CrewMax 5.7L V8 6-Spd AT (Natl) $32,265
CrewMax 5.7L FFV V8 6-Spd AT (Natl) $32,265
CrewMax 4.7L V8 5-Spd AT SR5 (SE) $32,925
CrewMax 4.7L V8 5-Spd AT SR5 (GS) $32,925
CrewMax 4.7L V8 5-Spd AT SR5 (Natl) $32,925
CrewMax 5.7L V8 6-Spd AT SR5 (GS) $34,285
CrewMax 5.7L V8 6-Spd AT SR5 (SE) $34,285
CrewMax 5.7L FFV V8 6-Spd AT SR5 (SE) $34,285
CrewMax 5.7L FFV V8 6-Spd AT SR5 (GS) $34,285
CrewMax 5.7L FFV V8 6-Spd AT SR5 (Natl) $34,285
CrewMax 5.7L V8 6-Spd AT SR5 (Natl) $34,285
Dbl 5.7L V8 6-Spd AT LTD (SE) $36,010
Dbl 5.7L V8 6-Spd AT LTD (Natl) $36,010
Dbl 5.7L V8 6-Spd AT LTD (GS) $36,010
CrewMax 5.7L V8 6-Spd AT LTD (GS) $38,545
CrewMax 5.7L V8 6-Spd AT LTD (SE) $38,545
CrewMax 5.7L V8 6-Spd AT LTD (Natl) $38,545
Dbl 5.7L FFV V8 6-Spd AT LTD (GS) $39,070
Dbl 5.7L FFV V8 6-Spd AT LTD (SE) $39,070
Dbl 5.7L V8 6-Spd AT LTD (GS) $39,070
Dbl 5.7L V8 6-Spd AT LTD (SE) $39,070
Dbl 5.7L V8 6-Spd AT LTD (Natl) $39,070
Dbl 5.7L FFV V8 6-Spd AT LTD (Natl) $39,070
CrewMax 5.7L FFV V8 6-Spd AT LTD (GS) $41,605
CrewMax 5.7L FFV V8 6-Spd AT LTD (SE) $41,605
CrewMax 5.7L V8 6-Spd AT LTD (SE) $41,605
CrewMax 5.7L V8 6-Spd AT LTD (GS) $41,605
CrewMax 5.7L V8 6-Spd AT LTD (Natl) $41,605
CrewMax 5.7L FFV V8 6-Spd AT LTD (Natl) $41,605

Change trim

$24,945

Starting MSRP
Current listing price

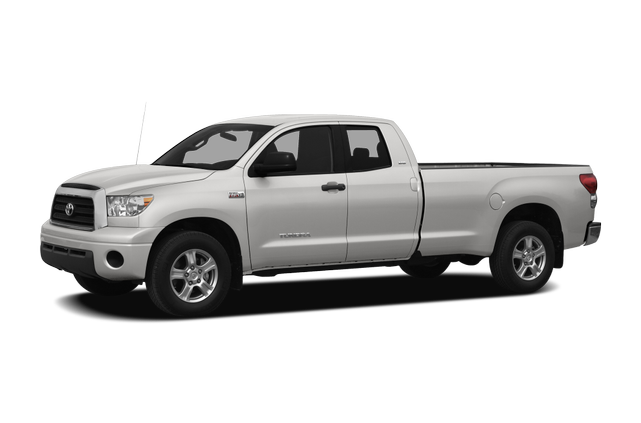

Showing the 2009 Toyota Tundra Dbl 4.0L V6 5-Spd AT (Natl)

Shop Now

Color options

Exterior

Interior

Graphite

Sand Beige

Black

Packages

STANDARD PKG W/REMOTE KEYLESS ENTRY

-$395

Starting MSRP

black grille surround
2-speed windshield wipers
manual exterior mirrors

STANDARD PKG

-$625

Starting MSRP

black grille surround
2-speed windshield wipers
manual exterior mirrors

OPTION PKG NOT DESIRED

$0

Starting MSRP

Specifications

Rear Wheel Material	Steel
Front Wheel Material	Steel
Rear Wheel Size	18 x -TBD- in
Spare Wheel Size	18 x -TBD- in
Spare Wheel Material	Steel
Front Wheel Size	18 x -TBD- in

Estimated Battery Range	N/A mi
EPA Fuel Economy Est - Hwy	19 MPG
EPA Fuel Economy Est - City	15 MPG
Fuel Economy Est-Combined	16 MPG
Cruising Range - Hwy	501.60 mi
Cruising Range - City	396.00 mi

Final Drive Axle Ratio (:1)	N/A
Fourth Gear Ratio (:1)	1.00
Trans Description Cont.	Automatic w/OD
Third Gear Ratio (:1)	1.40
Fifth Gear Ratio (:1)	0.72
First Gear Ratio (:1)	3.52
Second Gear Ratio (:1)	2.04
Reverse Ratio (:1)	3.22
Trans Power Take Off	N/A
Drivetrain	Rear Wheel Drive
Trans Type	5

Disc - Front (Yes or )	Yes
Brake Type	Pwr
Rear Brake Rotor Diam x Thickness	13.6 x -TBD- in
Front Brake Rotor Diam x Thickness	13.9 x -TBD- in
Brake ABS System	4-Wheel
Disc - Rear (Yes or )	Yes

Wt Distributing Hitch - Max Tongue Wt.	480 lbs
Dead Weight Hitch - Max Tongue Wt.	480 lbs
Dead Weight Hitch - Max Trailer Wt.	4800 lbs
Maximum Trailering Capacity	N/A lbs
Wt Distributing Hitch - Max Trailer Wt.	4800 lbs

Curb Weight - Rear	2165 lbs
As Spec'd Payload	1470.00 lbs
Curb Weight	4930.00 lbs
Total Option Weight	0.00 lbs
Option Weight - Front	0.00 lbs
As Spec'd Curb Weight	4930.00 lbs
Curb Weight - Front	2765 lbs
Option Weight - Rear	0.00 lbs
Gross Combined Wt Rating	10000 lbs
Gross Axle Weight Rating	7700.00 lbs
Gross Vehicle Weight Rating	6400.00 lbs
Maximum Payload Capacity	1470.00 lbs
Base Curb Weight	N/A lbs

Cargo Box Width @ Top, Rear	N/A in
Ground to Top of Load Floor	N/A in
Cab to End of Frame	N/A in
Cargo Box Width @ Floor	N/A in
Second Shoulder Room	65.7 in
Overhang, Rear w/o bumper	N/A in
Length, Overall w/o rear bumper	228.7 in
Ground Clearance, Rear	N/A in
Height, Overall	75.8 in
Width, Max w/o mirrors	79.9 in
Ground Clearance, Front	N/A in
Length, Overall w/rear bumper	N/A in
Second Hip Room	62.6 in
Front Leg Room	42.5 in
Cargo Box Width @ Wheelhousings	50.0 in
Passenger Capacity	6
Front Shoulder Room	66.6 in
Wheelbase	126.8 in
Front Hip Room	63.0 in
Cargo Box Length @ Floor	78.7 in
Overhang, Front	N/A in
Second Leg Room	34.7 in
Second Head Room	38.7 in
Cargo Volume	N/A ft³
Length, Overall	N/A in
Cargo Box (Area) Height	22.2 in
Front Head Room	40.2 in
Tailgate Width	66.4 in
Ext'd Cab Cargo Volume	N/A ft³

Visor mirrors w/extenders	Standard
Chrome steel bumpers w/color-keyed front upper cover	Standard
Cigarette lighter & ashtray w/illumination	Standard
Front & rear map lamps	Standard
6,400# GVWR	Standard
Font & rear roll-sensing side curtain airbags	Standard
Hydraulic pwr rack & pinion steering	Standard
Electronic Brake-force Distribution	Standard
High solar energy-absorbing rear glass	Standard
Tailgate assist	Standard
Fabric 40/20/40 split-&-fold bench seat	Standard
Black pwr exterior mirrors	Standard
Illuminated entry system	Standard
Cruise control	Standard
8-way adjustable driver & 4-way front passenger seats	Standard
18" spare wheel & P255/70R18 tire	Standard
4-wheel anti-lock brakes (ABS) w/brake assist	Standard
Traction control	Standard
Glove box illumination	Standard
Rear outboard seat LATCH anchors	Standard
Tilt steering wheel w/column shifter	Standard
Variable intermittent windshield wipers	Standard
2-way adjustable headrests	Standard
Child restraint system top tether anchors for all rear seating	Standard
Deck rail caps	Standard
Child-protector rear door locks	Standard
18" steel wheels	Standard
Vehicle stability control	Standard
5-speed automatic transmission -inc: electronically controlled intelligence, sequential shift mode, uphill & downhill shift logic	Standard
Automatic limited-slip differential	Standard
(4) front & (2) rear cup holders	Standard
Rear wheel drive	Standard
Black door & tailgate handles	Standard
Driver & front passenger seat mounted side airbags	Standard
Instrumentation -inc: exterior temp gauge, tripmeter, digital clock	Standard
Rear air conditioning ducts	Standard
4.0L DOHC 24-valve V6 engine -inc: variable valve timing w/intelligence, acoustically controlled induction	Standard
Driver & front passenger advanced airbags w/passenger cutoff switch	Standard
(2) front pwr points & (1) rear pwr point	Standard
Pwr locks	Standard
Pwr vented disc brakes	Standard
Dual zone air conditioning w/sync mode	Standard
Trapezoidal multi-leaf live axle rear suspension w/staggered low-pressure nitrogen gas shocks	Standard
Remote keyless entry system	Standard
AM/FM stereo w/CD/MP3/WMA player -inc: (6) speakers, aux audio input	Standard
3-point seatbelts in all seating positions w/passenger automatic & emergency locking retractors, driver & passenger pretensioners w/force limiters, driver emergency locking retractor	Standard
Rear armrest	Standard
Tire pressure monitor system	Standard
Independent coil-spring double wishbone front suspension w/low-pressure nitrogen gas shocks, stabilizer bar	Standard
Driver & front passenger seatback pockets	Standard
Pwr windows	Standard
P255/70R18 all season tires	Standard
Carpet flooring	Standard

Compare trims

Wondering which trim is right for you?

Our 2009 Toyota Tundra trim comparison will help you decide.

SAE Net Horsepower @ RPM	236 @ 5200
Engine Type	Gas V6
Displacement	4.0L/241
SAE Net Torque @ RPM	266 @ 4000
Engine Oil Cooler	6.3

Turning Diameter - Wall to Wall	N/A ft
Turning Diameter - Curb to Curb	44.0 ft
Steering Ratio (:1), Overall	N/A
Steering Type	Pwr Rack & Pinion

Maximum Alternator Capacity (amps)	N/A
Cold Cranking Amps @ 0° F (Primary)	N/A

Suspension Type - Rear	Trapezoidal
Axle Type - Rear	N/A
Suspension Type - Front	Independent
Axle Type - Front	N/A

Rear Tire Size	P255/70R18
Spare Tire Size	P255/70R18
Front Tire Size	P255/70R18

2009 Toyota Tundra specs & colors

Crew Cab Pickup

Key specs

Color options

Packages

Specifications

Wheels

Electrical

Engine

Mileage

Transmission

Suspension

Frame

Brakes

Fuel Tank

Steering

Tires

Trailering

Weight Information

Dimensions

Interior

Compare trims
