2014 GMC Sierra 3500 SRW Denali specs & colors

Crew Cab Pickup

Change trim

$49,145

Starting MSRP
Current listing price

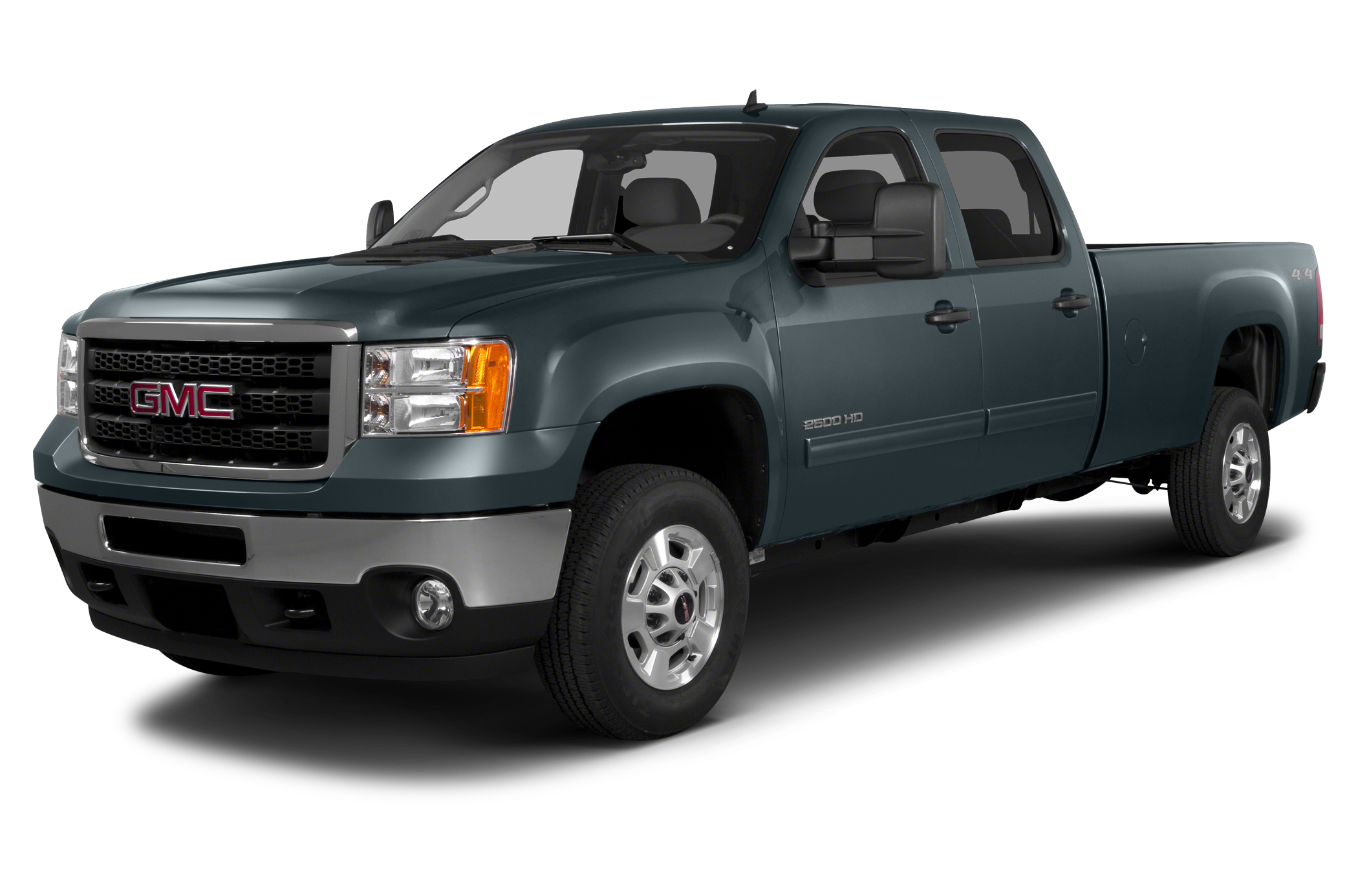

Showing the 2014 GMC Sierra 3500 2WD Crew Cab 153.7" SRW Denali

Shop Now

Key specs

4-door

5 seats

322.0-hp, 6.0-liter, 8 Cylinder Engine (Flex Fuel Capability)

0 combined MPG

229.5" length, - TBD -" height

Rear Wheel Drive

Color options

Exterior

Interior

Cocoa / Light Cashmere

Ebony

Packages

Specifications

Highlights

Gas/Ethanol V8

Engine Type

MPG

397 hp
322 hp

Horsepower

Seating Capacity

Brakes

Pwr

Brake Type

4-Wheel

Brake ABS System

Not Available

Brake ABS System (Second Line)

Yes

Disc - Front (Yes or )

Yes

Disc - Rear (Yes or )

N/A

Front Brake Rotor Diam x Thickness

N/A

Rear Brake Rotor Diam x Thickness

Not Available

Drum - Rear (Yes or )

Electrical

600

Cold Cranking Amps @ 0° F (Primary)

125

Maximum Alternator Capacity (amps)

Engine

322 @ 4400

SAE Net Horsepower @ RPM

380 @ 4200

SAE Net Torque @ RPM

Gas/Ethanol V8

Engine Type

6.0L/366

Displacement

6-Speed A/T
Transmission Overdrive Switch
A/T

Transmission Options

MPG

N/A

Total Cooling System Capacity

Entertainment

Optional

Bluetooth®

Measurements

154 in

Wheelbase

240 in

Length, Overall w/o rear bumper

N/A

Length, Overall w/rear bumper

N/A

Length, Overall

80 in

Width, Max w/o mirrors

77 in

Height, Overall

39 in

Overhang, Front

48 in

Overhang, Rear w/o bumper

N/A

Cab to End of Frame

38 in

Ground to Top of Load Floor

10 in

Ground Clearance, Front

8 in

Ground Clearance, Rear

79 in

Cargo Box Length @ Floor

N/A

Cargo Box Width @ Top, Rear

63 in

Cargo Box Width @ Floor

51 in

Cargo Box Width @ Wheelhousings

21 in

Cargo Box (Area) Height

62 in

Tailgate Width

61 ft³

Cargo Volume

N/A

Ext'd Cab Cargo Volume

41 in

Front Head Room

41 in

Front Leg Room

65 in

Front Shoulder Room

60 in

Front Hip Room

41 in

Second Head Room

39 in

Second Leg Room

65 in

Second Shoulder Room

66 in

Second Hip Room

Passenger Capacity

Safety

Optional

Navigation System

Optional

Stability Control

Optional

DVD Player

Steering

Pwr Recirculating Ball

Steering Type

N/A

Steering Ratio (:1), Overall

55 ft

Turning Diameter - Curb to Curb

N/A

Turning Diameter - Wall to Wall

Suspension

Independent

Suspension Type - Front

Multi-Leaf

Suspension Type - Rear

Independent

Axle Type - Front

Full-Floating

Axle Type - Rear

Tires & Wheels

LT265/70R18E

Front Tire Size

LT265/70R18E

Rear Tire Size

LT265/70R18E

Spare Tire Size

18 x 8.0 in

Front Wheel Size

18 x 8.0 in

Rear Wheel Size

17 x 6.5 in

Spare Wheel Size

Aluminum

Front Wheel Material

Aluminum

Rear Wheel Material

Steel

Spare Wheel Material

Weight & Capacity

11,450 lbs

Gross Axle Weight Rating

6,318 lbs

Curb Weight

0 lbs

Total Option Weight

10,500 lbs

Gross Vehicle Weight Rating

36 gal

Fuel Tank Capacity, Approx

Not Available gal

Aux Fuel Tank Capacity, Approx

N/A

Base Curb Weight

3,554 lbs

Curb Weight - Front

2,764 lbs

Curb Weight - Rear

0 lbs

Option Weight - Front

0 lbs

Option Weight - Rear

6,318 lbs

As Spec'd Curb Weight

4,182 lbs

As Spec'd Payload

4,182 lbs

Maximum Payload Capacity

N/A

Gross Combined Wt Rating

5,000 lbs

Dead Weight Hitch - Max Trailer Wt.

500 lbs

Dead Weight Hitch - Max Tongue Wt.

9,500 lbs

Wt Distributing Hitch - Max Trailer Wt.

1,425 lbs

Wt Distributing Hitch - Max Tongue Wt.

9,500 lbs

Fifth Wheel Hitch - Max Trailer Wt.

2,450 lbs

Fifth Wheel Hitch - Max Tongue Wt.

17,200 lbs

Maximum Trailering Capacity
