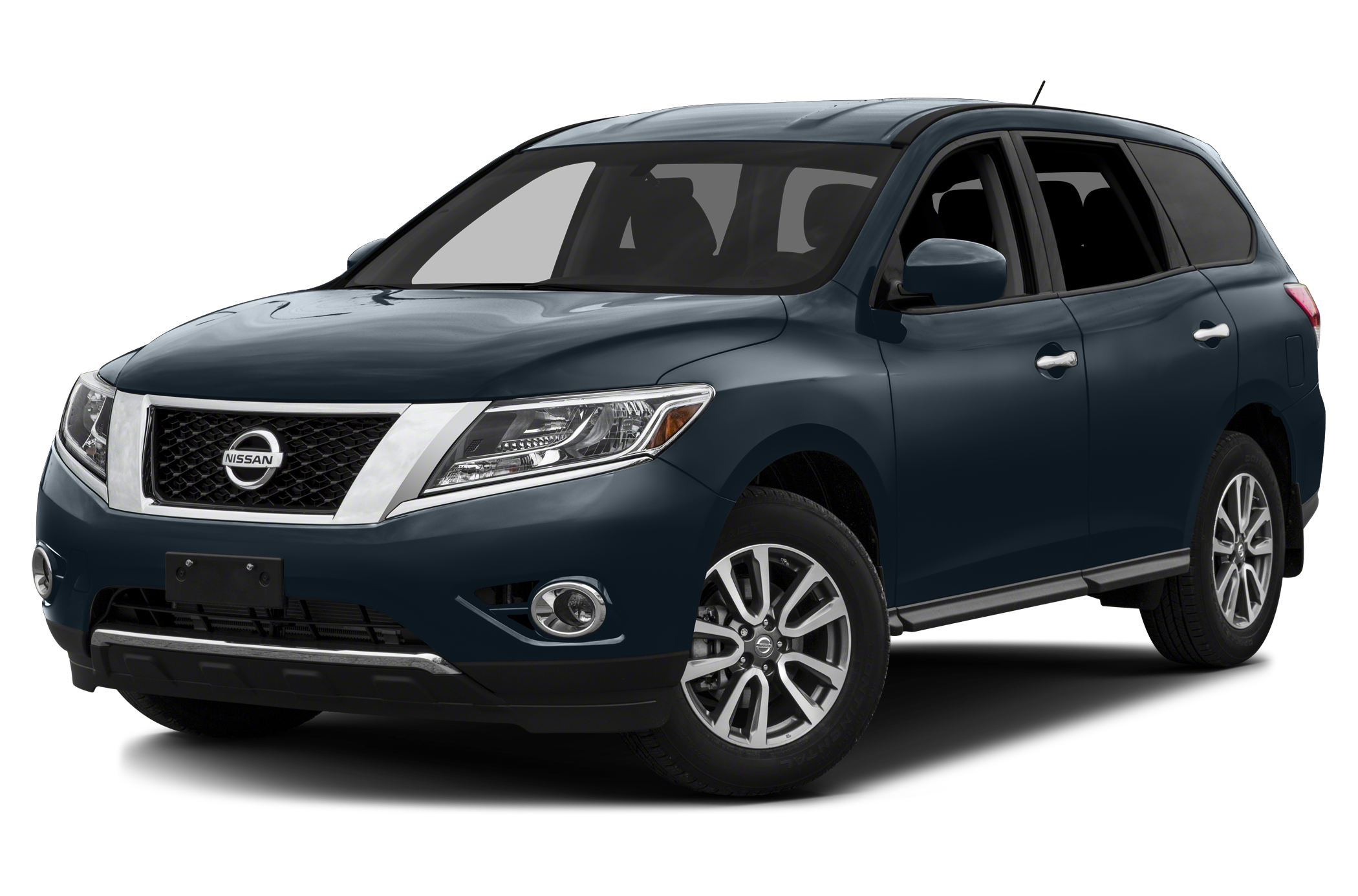

2016 Nissan Pathfinder S specs & colors
Sport Utility
MSRP
- 2WD 4dr S
- $29,830
- 4WD 4dr S
- $31,520
- 2WD 4dr SV
- $33,150
- 4WD 4dr SV
- $34,840
- 2WD 4dr SL
- $36,410
- 4WD 4dr SL
- $38,100
- 2WD 4dr Platinum
- $41,610
- 4WD 4dr Platinum
- $43,300
Key specs
Color options
Interior
Medium Grey
Gray
Packages
Specifications
Highlights
|
Regular Unleaded V-6
Engine Type
|
|
20 City / 27 Hwy
MPG
|
|
260 hp
Horsepower
|
|
7
Seating Capacity
|
Brakes
|
Yes
Disc - Front (Yes or )
|
|
4-Wheel
Brake ABS System
|
|
13 in
Front Brake Rotor Diam x Thickness
|
|
N/A
Drum - Rear (Yes or )
|
|
4-Wheel Disc
Brake Type
|
|
Yes
Disc - Rear (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
|
12 in
Rear Brake Rotor Diam x Thickness
|
Electrical
|
150
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
3.5 L/213
Displacement
|
|
240 @ 4400
SAE Net Torque @ RPM
|
|
260 @ 6400
SAE Net Horsepower @ RPM
|
|
Regular Unleaded V-6
Engine Type
|
|
CVT Transmission
A/T Transmission Options
|
|
20 City / 27 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
77 in
Width, Max w/o mirrors
|
|
39 in
Second Head Room
|
|
61 in
Front Shoulder Room
|
|
7
Passenger Capacity
|
|
51 in
Cargo Area Length @ Floor to Seat 2
|
|
31 in
Third Leg Room
|
|
42 in
Second Leg Room
|
|
57 in
Third Shoulder Room
|
|
42 in
Front Leg Room
|
|
60 in
Second Shoulder Room
|
|
56 in
Second Hip Room
|
|
70 in
Height, Overall
|
|
79 in
Cargo Area Length @ Floor to Seat 1
|
|
42 in
Third Hip Room
|
|
16 ft³
Cargo Volume to Seat 3
|
|
42 in
Front Head Room
|
|
80 ft³
Cargo Volume to Seat 1
|
|
N/A
Rear Door Opening Width
|
|
66 in
Track Width, Rear
|
|
20 in
Cargo Area Length @ Floor to Seat 3
|
|
197 in
Length, Overall
|
|
N/A
Liftover Height
|
|
57 in
Front Hip Room
|
|
66 in
Track Width, Front
|
|
31 in
Cargo Box (Area) Height
|
|
7 in
Min Ground Clearance
|
|
46 in
Cargo Area Width @ Beltline
|
|
38 in
Third Head Room
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
158 ft³
Passenger Volume
|
|
114 in
Wheelbase
|
|
N/A
Rear Door Opening Height
|
|
48 ft³
Cargo Volume to Seat 2
|
Safety
|
Standard
Stability Control
|
Steering
|
N/A
Steering Ratio (:1), Overall
|
|
39 ft
Turning Diameter - Curb to Curb
|
|
Rack-Pinion
Steering Type
|
|
N/A
Lock to Lock Turns (Steering)
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Strut
Suspension Type - Front (Cont.)
|
|
Multi-Link
Suspension Type - Rear (Cont.)
|
|
Multi-Link
Suspension Type - Rear
|
|
Strut
Suspension Type - Front
|
Tires & Wheels
|
18 X 7.5 in
Rear Wheel Size
|
|
P235/65SR18
Front Tire Size
|
|
Steel
Spare Wheel Material
|
|
Compact
Spare Tire Size
|
|
Aluminum
Rear Wheel Material
|
|
Aluminum
Front Wheel Material
|
|
18 X 7.5 in
Front Wheel Size
|
|
Compact in
Spare Wheel Size
|
|
P235/65SR18
Rear Tire Size
|
Weight & Capacity
|
4,168 lbs
Base Curb Weight
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
20 gal
Fuel Tank Capacity, Approx
|
|
N/A
Curb Weight - Front
|
|
500 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Curb Weight
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
0 lbs
Total Option Weight
|
|
5,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Maximum Payload Capacity
|
|
N/A
Curb Weight - Rear
|
|
5,000 lbs
Maximum Trailering Capacity
|
