2016 Chevrolet Express 2500 specs & colors

Full-size Cargo Van

Change trim

$30,595

Starting MSRP
Current listing price

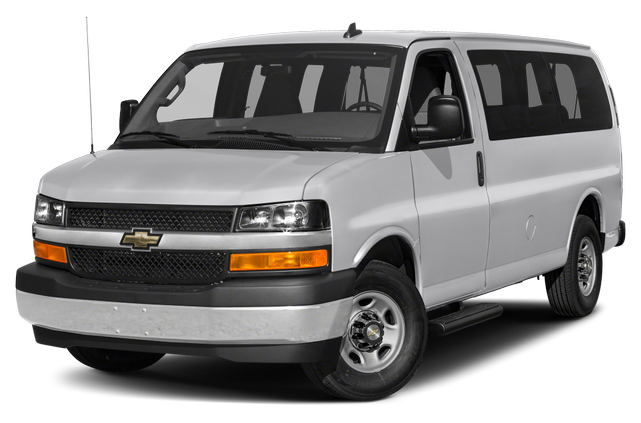

2016 Chevrolet Express 2500

Showing the 2016 Chevrolet Express 2500 RWD 2500 135"

Shop Now

Key specs

3-door
1 seat
285.0-hp, 4.8-liter, 8 Cylinder Engine (Gasoline Fuel)
0 combined MPG
Vehicle length and height not available
Rear Wheel Drive

Color options

Exterior

Medium Cadet Blue Metallic

Interior

Neutral

Medium Pewter

Packages

Express Access Plus Package

$540

Starting MSRP
- Includes (UF2) Express Access Enhanced Lighting Package
- (ZR7) Chrome Appearance Package
- (P03) chrome center cap wheel trim
See more detail
$540

Starting MSRP
- Includes (UF2) Express Access Enhanced Lighting Package
- (ZR7) Chrome Appearance Package
- (P03) chrome center cap wheel trim
- (TR9) auxiliary lighting and (DE5) outside heated
- power-adjustable Black mirrors.)
Chrome Appearance Package

$355

Starting MSRP
- (Includes (V37) front and rear chrome bumpers and (V22) chrome grille with dual composite halogen headlamps.
Hotel Shuttle Package, incomplete vehicle

$1,690

Starting MSRP
- Includes (B31) front rubberized vinyl Black floor covering
- (KG3) 145-amp alternator
- (ZQ3) Convenience Package
See more detail
$1,690

Starting MSRP
- Includes (B31) front rubberized vinyl Black floor covering
- (KG3) 145-amp alternator
- (ZQ3) Convenience Package
- (DE5) outside heated power-adjustable
- Black
- manual-folding mirrors
- (ZW3) rear door and side cargo door fixed glass
- (upgradeable to (ZW6) full body window package fixed glass)
- (AJ1) Solar-Ray deep-tinted glass
- (A18) rear cargo door window swing-out glass
- (A19) rear side door and rear door window swing-out glass
- (ZR7) Chrome Appearance Package and (B46) rear body-colored halo (Note that (B46) is not available with (GBA) Black
- (G7C) Red Hot
- (G7J) Rainforest Green Metallic or (86U) Wheatland Yellow. These colors will receive a Black halo).

Convenience Package, Tilt-Wheel and (K34) cruise control

$395

Starting MSRP
Preferred Equipment Group

$0

Starting MSRP
- includes Standard Equipment

Specifications

Highlights

Engine Type: Gas V8
MPG: -
Horsepower: 285 hp
282 hp
285 hp
Seating Capacity: 1

Brakes

Disc - Front (Yes or ): Yes
Brake Type: Pwr
Rear Brake Rotor Diam x Thickness: 13.0 x 1.1 in
Disc - Rear (Yes or ): Yes
Brake ABS System: 4-Wheel
Drum - Rear (Yes or ): N/A
Front Brake Rotor Diam x Thickness: 12.8 x 1.5 in
Brake ABS System (Second Line): N/A

Electrical

Maximum Alternator Capacity (amps): 105
Cold Cranking Amps @ 0° F (Primary): 600

Engine

Engine Type: Gas V8
Displacement: 4.8L/293
SAE Net Torque @ RPM: 295 @ 4600
SAE Net Horsepower @ RPM: 285 @ 5400
Transmission Options: 6-Speed A/T
Transmission Overdrive Switch
A/T
MPG: -
Total Cooling System Capacity: 13.6 qts

Measurements

Step Up Height - Front: 20 in
Cargo Area Length @ Floor to Console: 154 in
Wheelbase: 135 in
Height, Overall: 85 in
Second Leg Room: N/A
Side Door Opening Height: 48 in
Cargo Box Width @ Floor: N/A
Front Head Room: 40 in
Overhang, Rear w/o bumper: N/A
Front Leg Room: 41 in
Width, Max w/o mirrors: 79 in
Length, Overall w/rear bumper: 224 in
Second Hip Room: N/A
Cargo Area Width @ Beltline: N/A
Tailgate Width: N/A
Cab to End of Frame: N/A
Second Shoulder Room: N/A
Front Hip Room: 66 in
Cargo Box Width @ Wheelhousings: 53 in
Rear Door Opening Height: 49 in
Cargo Box Width @ Top, Rear: N/A
Ground Clearance, Rear: 7 in
Overhang, Front: 40 in
Cargo Box (Area) Height: 53 in
Length, Overall: N/A
Side Door Opening Width: 44 in
Ground to Top of Load Floor: 28 in
Cargo Area Length @ Floor to Seat 1: 125 in
Ext'd Cab Cargo Volume: N/A
Step Up Height - Side: 21 in
Second Head Room: N/A
Rear Door Opening Width: 57 in
Cargo Volume: 240 ft³
Passenger Capacity: 2
Front Shoulder Room: 69 in
Ground Clearance, Front: 11 in

Safety

Stability Control: Standard

Steering

Turning Diameter - Curb to Curb: 49 ft
Steering Type: Pwr
Turning Diameter - Wall to Wall: N/A
Steering Ratio (:1), Overall: N/A

Suspension

Axle Type - Rear: Semi-Floating
Suspension Type - Rear: Hypoid Multi-Leaf
Axle Type - Front: Independent
Suspension Type - Front: Coil Spring

Tires & Wheels

Front Tire Size: LT245/75R16E
Front Wheel Size: 16 x 6.5 in
Rear Wheel Material: Steel
Spare Tire Size: LT245/75R16E
Front Wheel Material: Steel
Rear Tire Size: LT245/75R16E
Spare Wheel Material: Steel
Rear Wheel Size: 16 x 6.5 in
Spare Wheel Size: 16 x 6.5 in

Weight & Capacity

Wt Distributing Hitch - Max Trailer Wt.: 8,900 lbs
Gross Vehicle Weight Rating: 8,600 lbs
Curb Weight - Rear: 2,362 lbs
As Spec'd Payload: 3,125 lbs
As Spec'd Curb Weight: 5,475 lbs
Base Curb Weight: N/A
Maximum Trailering Capacity: 10,000 lbs
Option Weight - Rear: 0 lbs
Dead Weight Hitch - Max Trailer Wt.: 5,000 lbs
Dead Weight Hitch - Max Tongue Wt.: 500 lbs
Maximum Payload Capacity: 3,212 lbs
Gross Axle Weight Rating: 9,460 lbs
Curb Weight - Front: 3,026 lbs
Aux Fuel Tank Capacity, Approx: N/A
Option Weight - Front: 0 lbs
Wt Distributing Hitch - Max Tongue Wt.: 890 lbs
Curb Weight: 5,388 lbs
Fifth Wheel Hitch - Max Trailer Wt.: N/A
Gross Combined Wt Rating: 14,600 lbs
Total Option Weight: 0 lbs
Fifth Wheel Hitch - Max Tongue Wt.: N/A
Fuel Tank Capacity, Approx: 31 gal
