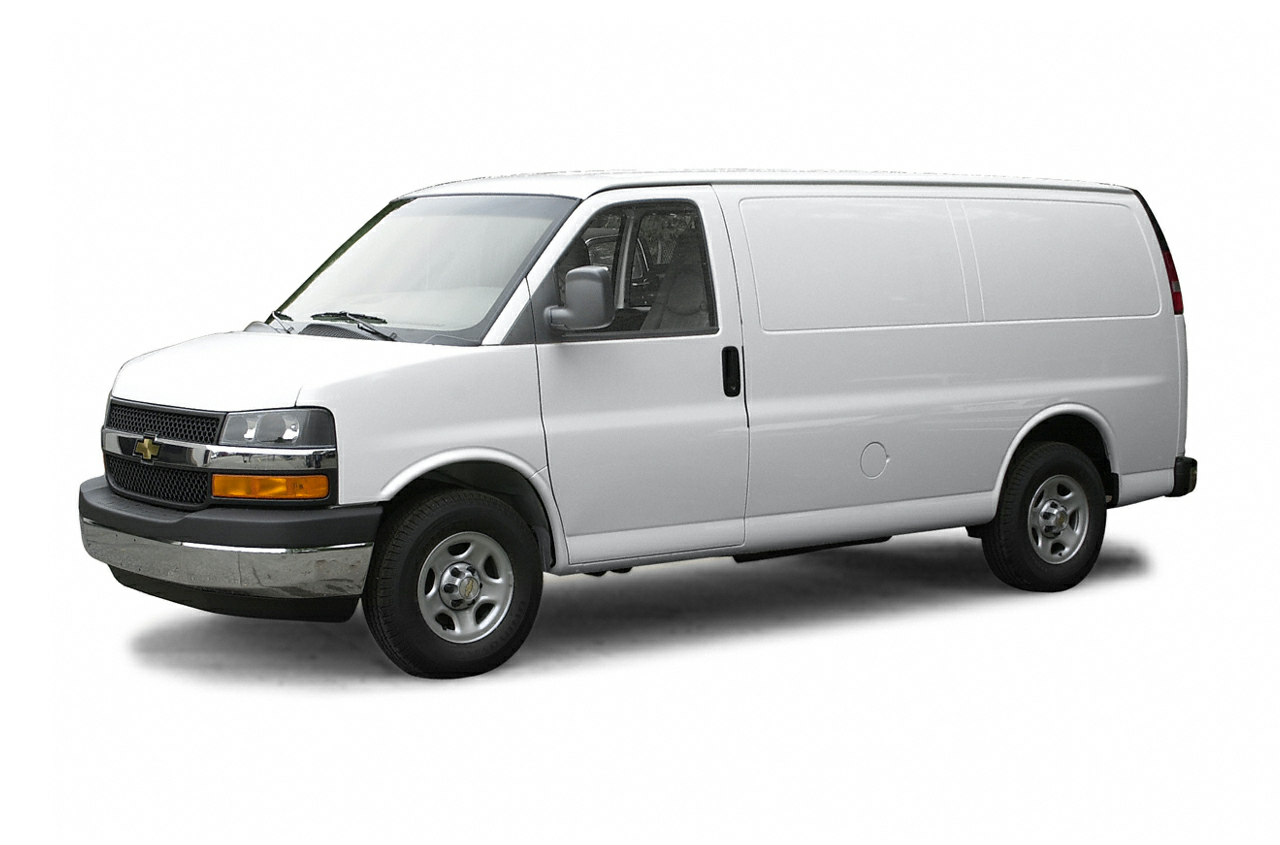

2005 Chevrolet Express 3500 specs & colors
Full-size Cargo Van
MSRP
- 3500 135" WB RWD
- $26,339
- 3500 135" WB RWD Y3G Mobility
- $26,339
- 3500 135" WB RWD Y3H Paratransit
- $26,339
- 3500 155" WB RWD
- $27,239
- 3500 155" WB RWD Y3H Paratransit
- $27,239
- 3500 135" WB RWD
- $29,849
- 3500 155" WB RWD
- $30,819
$26,339
Starting MSRP
Current listing price
Current listing price
Showing the 2005 Chevrolet Express 3500 3500 135" WB RWD
Shop NowKey specs
Color options
Interior
Taupe
Dark Pewter
Packages
Specifications
Highlights
|
Gas V8
Engine Type
|
|
-
MPG
|
|
300 hp
285 hp Horsepower
|
|
1
Seating Capacity
|
Brakes
|
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
|
|
13 x 1.1 in
Rear Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
|
Not Available
Brake ABS System (Second Line)
|
|
Yes
Disc - Rear (Yes or )
|
|
Not Available
Drum - Rear (Yes or )
|
|
Pwr
Brake Type
|
|
4-Wheel
Brake ABS System
|
Electrical
|
600
Cold Cranking Amps @ 0° F (Primary)
|
|
105
Maximum Alternator Capacity (amps)
|
Engine
|
295 @ 4000
SAE Net Torque @ RPM
|
|
285 @ 5600
SAE Net Horsepower @ RPM
|
|
4.8L/293
Displacement
|
|
Gas V8
Engine Type
|
|
Transmission Overdrive Switch
A/T 4-Speed A/T Transmission Options
|
|
-
MPG
|
|
13.6 qts
Total Cooling System Capacity
|
Measurements
|
57 in
Rear Door Opening Width
|
|
41 in
Front Leg Room
|
|
135 in
Wheelbase
|
|
N/A
Ext'd Cab Cargo Volume
|
|
N/A
Cargo Area Width @ Beltline
|
|
44 in
Side Door Opening Width
|
|
82 in
Height, Overall
|
|
N/A
Second Head Room
|
|
8 in
Ground Clearance, Rear
|
|
79 in
Width, Max w/o mirrors
|
|
N/A
Tailgate Width
|
|
69 in
Front Shoulder Room
|
|
21 in
Step Up Height - Side
|
|
N/A
Length, Overall
|
|
9 in
Ground Clearance, Front
|
|
49 in
Rear Door Opening Height
|
|
N/A
Second Leg Room
|
|
40 in
Front Head Room
|
|
52 in
Cargo Box (Area) Height
|
|
2
Passenger Capacity
|
|
N/A
Overhang, Rear w/o bumper
|
|
28 in
Ground to Top of Load Floor
|
|
128 in
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cab to End of Frame
|
|
N/A
Cargo Box Width @ Floor
|
|
66 in
Front Hip Room
|
|
224 in
Length, Overall w/rear bumper
|
|
225 ft³
Cargo Volume
|
|
48 in
Side Door Opening Height
|
|
N/A
Second Shoulder Room
|
|
53 in
Cargo Box Width @ Wheelhousings
|
|
N/A
Second Hip Room
|
|
154 in
Cargo Area Length @ Floor to Console
|
|
N/A
Overhang, Front
|
|
20 in
Step Up Height - Front
|
|
N/A
Cargo Box Width @ Top, Rear
|
Steering
|
49 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
Pwr-Assisted
Steering Type
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Independent
Axle Type - Front
|
|
Full-Floating
Axle Type - Rear
|
|
Hypoid Multi-Leaf
Suspension Type - Rear
|
|
Independent Coil
Suspension Type - Front
|
Tires & Wheels
|
Steel
Spare Wheel Material
|
|
LT245/75R16E
Rear Tire Size
|
|
16 x -TBD- in
Rear Wheel Size
|
|
LT245/75R16E
Spare Tire Size
|
|
16 x -TBD- in
Spare Wheel Size
|
|
Steel
Rear Wheel Material
|
|
LT245/75R16E
Front Tire Size
|
|
Steel
Front Wheel Material
|
|
16 x -TBD- in
Front Wheel Size
|
Weight & Capacity
|
0 lbs
Total Option Weight
|
|
2,358 lbs
Curb Weight - Rear
|
|
14,000 lbs
Gross Combined Wt Rating
|
|
820 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
8,200 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
4,286 lbs
As Spec'd Payload
|
|
5,314 lbs
Curb Weight
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
31 gal
Fuel Tank Capacity, Approx
|
|
10,384 lbs
Gross Axle Weight Rating
|
|
N/A
Base Curb Weight
|
|
5,314 lbs
As Spec'd Curb Weight
|
|
4,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
9,600 lbs
Gross Vehicle Weight Rating
|
|
0 lbs
Option Weight - Front
|
|
4,286 lbs
Maximum Payload Capacity
|
|
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
|
400 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
2,956 lbs
Curb Weight - Front
|
|
0 lbs
Option Weight - Rear
|
