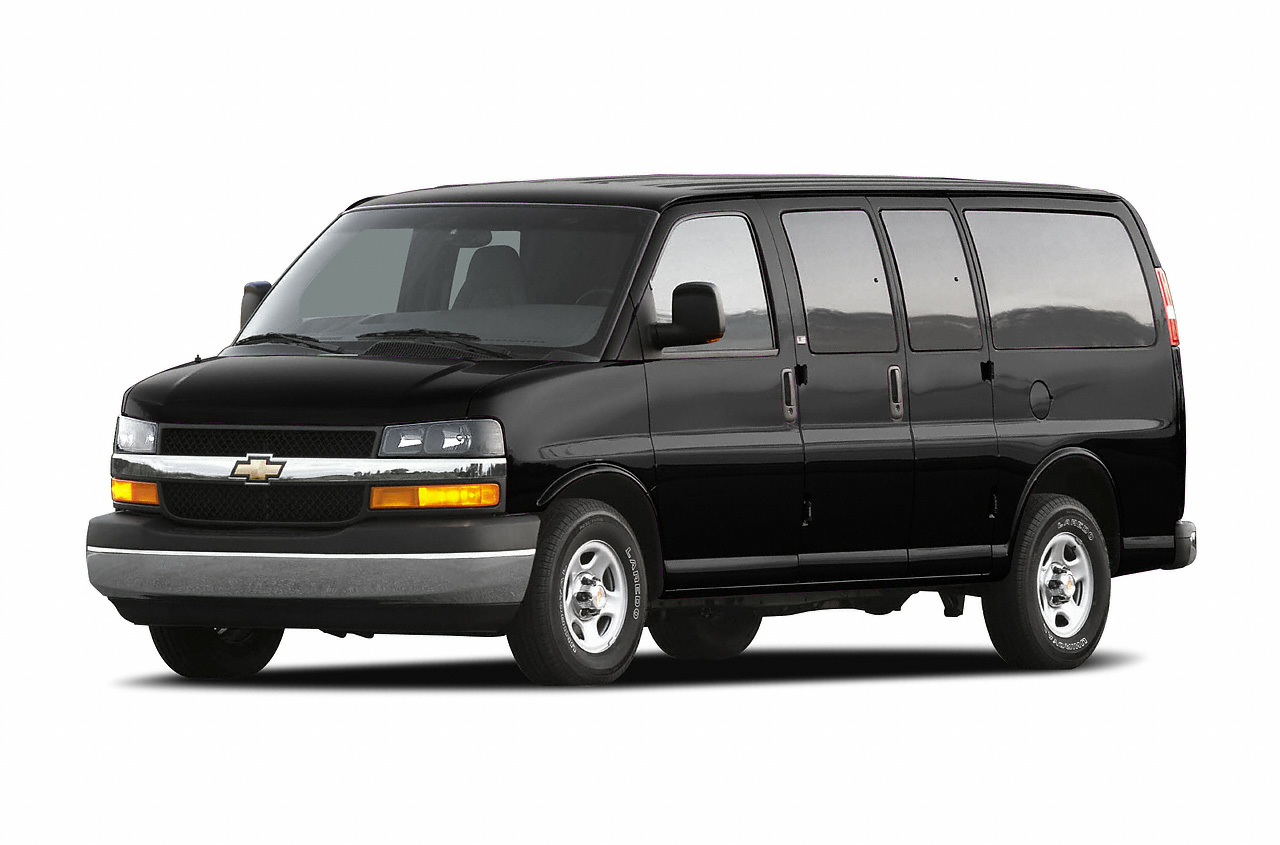

2006 Chevrolet Express 3500 specs & colors
Full-size Cargo Van
MSRP
- 3500 135" WB RWD Y3H Paratransit
- $25,024
- 3500 135" WB RWD
- $25,024
- 3500 155" WB RWD Y3H Paratransit
- $25,929
- 3500 155" WB RWD
- $25,929
- 3500 135" WB RWD YF7 Upfitter
- $27,714
- 3500 135" WB RWD
- $28,219
- 3500 155" WB RWD
- $28,774
$25,024
Starting MSRP
Current listing price
Current listing price
Showing the 2006 Chevrolet Express 3500 3500 135" WB RWD
Shop NowKey specs
Color options
Interior
Taupe
Dark Pewter
Packages
Specifications
Highlights
|
Gas V8
Engine Type
|
|
-
MPG
|
|
300 hp
250 hp 285 hp Horsepower
|
|
1
Seating Capacity
|
Brakes
|
4-Wheel
Brake ABS System
|
|
Not Available
Drum - Rear (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
Not Available
Brake ABS System (Second Line)
|
|
Pwr
Brake Type
|
|
13 x 1.1 in
Rear Brake Rotor Diam x Thickness
|
|
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
Electrical
|
105
Maximum Alternator Capacity (amps)
|
|
600
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
285 @ 5200
SAE Net Horsepower @ RPM
|
|
295 @ 4000
SAE Net Torque @ RPM
|
|
Gas V8
Engine Type
|
|
4.8L/293
Displacement
|
|
Transmission Overdrive Switch
A/T 4-Speed A/T Transmission Options
|
|
-
MPG
|
|
13.6 qts
Total Cooling System Capacity
|
Measurements
|
N/A
Second Hip Room
|
|
N/A
Cargo Box Width @ Floor
|
|
41 in
Front Leg Room
|
|
66 in
Front Hip Room
|
|
52 in
Cargo Box (Area) Height
|
|
N/A
Cab to End of Frame
|
|
40 in
Front Head Room
|
|
2
Passenger Capacity
|
|
N/A
Cargo Area Width @ Beltline
|
|
8 in
Ground Clearance, Rear
|
|
N/A
Second Head Room
|
|
154 in
Cargo Area Length @ Floor to Console
|
|
N/A
Second Shoulder Room
|
|
57 in
Rear Door Opening Width
|
|
N/A
Second Leg Room
|
|
N/A
Length, Overall
|
|
N/A
Overhang, Front
|
|
69 in
Front Shoulder Room
|
|
82 in
Height, Overall
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
79 in
Width, Max w/o mirrors
|
|
224 in
Length, Overall w/rear bumper
|
|
28 in
Ground to Top of Load Floor
|
|
N/A
Tailgate Width
|
|
135 in
Wheelbase
|
|
N/A
Overhang, Rear w/o bumper
|
|
53 in
Cargo Box Width @ Wheelhousings
|
|
44 in
Side Door Opening Width
|
|
9 in
Ground Clearance, Front
|
|
49 in
Rear Door Opening Height
|
|
N/A
Ext'd Cab Cargo Volume
|
|
48 in
Side Door Opening Height
|
|
21 in
Step Up Height - Side
|
|
128 in
Cargo Area Length @ Floor to Seat 1
|
|
20 in
Step Up Height - Front
|
|
225 ft³
Cargo Volume
|
Steering
|
N/A
Steering Ratio (:1), Overall
|
|
N/A
Turning Diameter - Wall to Wall
|
|
49 ft
Turning Diameter - Curb to Curb
|
|
Pwr-Assisted
Steering Type
|
Suspension
|
Hypoid Multi-Leaf
Suspension Type - Rear
|
|
Independent Coil
Suspension Type - Front
|
|
Full-Floating
Axle Type - Rear
|
|
Independent
Axle Type - Front
|
Tires & Wheels
|
16 x -TBD- in
Rear Wheel Size
|
|
LT245/75R16E
Front Tire Size
|
|
Steel
Front Wheel Material
|
|
Steel
Spare Wheel Material
|
|
16 x -TBD- in
Front Wheel Size
|
|
LT245/75R16E
Rear Tire Size
|
|
16 x -TBD- in
Spare Wheel Size
|
|
Steel
Rear Wheel Material
|
|
LT245/75R16E
Spare Tire Size
|
Weight & Capacity
|
4,339 lbs
As Spec'd Payload
|
|
N/A
Base Curb Weight
|
|
N/A
Maximum Trailering Capacity
|
|
31 gal
Fuel Tank Capacity, Approx
|
|
2,315 lbs
Curb Weight - Rear
|
|
0 lbs
Total Option Weight
|
|
5,261 lbs
Curb Weight
|
|
400 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
|
5,261 lbs
As Spec'd Curb Weight
|
|
4,339 lbs
Maximum Payload Capacity
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
0 lbs
Option Weight - Rear
|
|
12,000 lbs
Gross Combined Wt Rating
|
|
10,384 lbs
Gross Axle Weight Rating
|
|
6,200 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
4,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
9,600 lbs
Gross Vehicle Weight Rating
|
|
2,946 lbs
Curb Weight - Front
|
|
0 lbs
Option Weight - Front
|
|
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
930 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
