2013 Chevrolet Express 3500 specs & colors

Full-size Cargo Van

Change trim
MSRP
RWD 3500 135"
$30,575
RWD 3500 135" Paratransit
$30,575
RWD 3500 155" Paratransit
$31,460
RWD 3500 155"
$31,460
RWD 3500 135" LS w/1LS
$32,700
RWD 3500 135" LT w/1LT
$32,700
RWD 3500 155" LS w/1LS
$34,570
RWD 3500 155" LT w/1LT
$34,570
RWD 3500 135" Diesel
$42,520
RWD 3500 155" Diesel
$43,405
RWD 3500 135" LS w/2LS
$45,640
RWD 3500 135" LT w/2LT
$45,640
RWD 3500 155" LS w/2LS
$47,510
RWD 3500 155" LT w/2LT
$47,510
$30,575
Starting MSRP
Current listing price

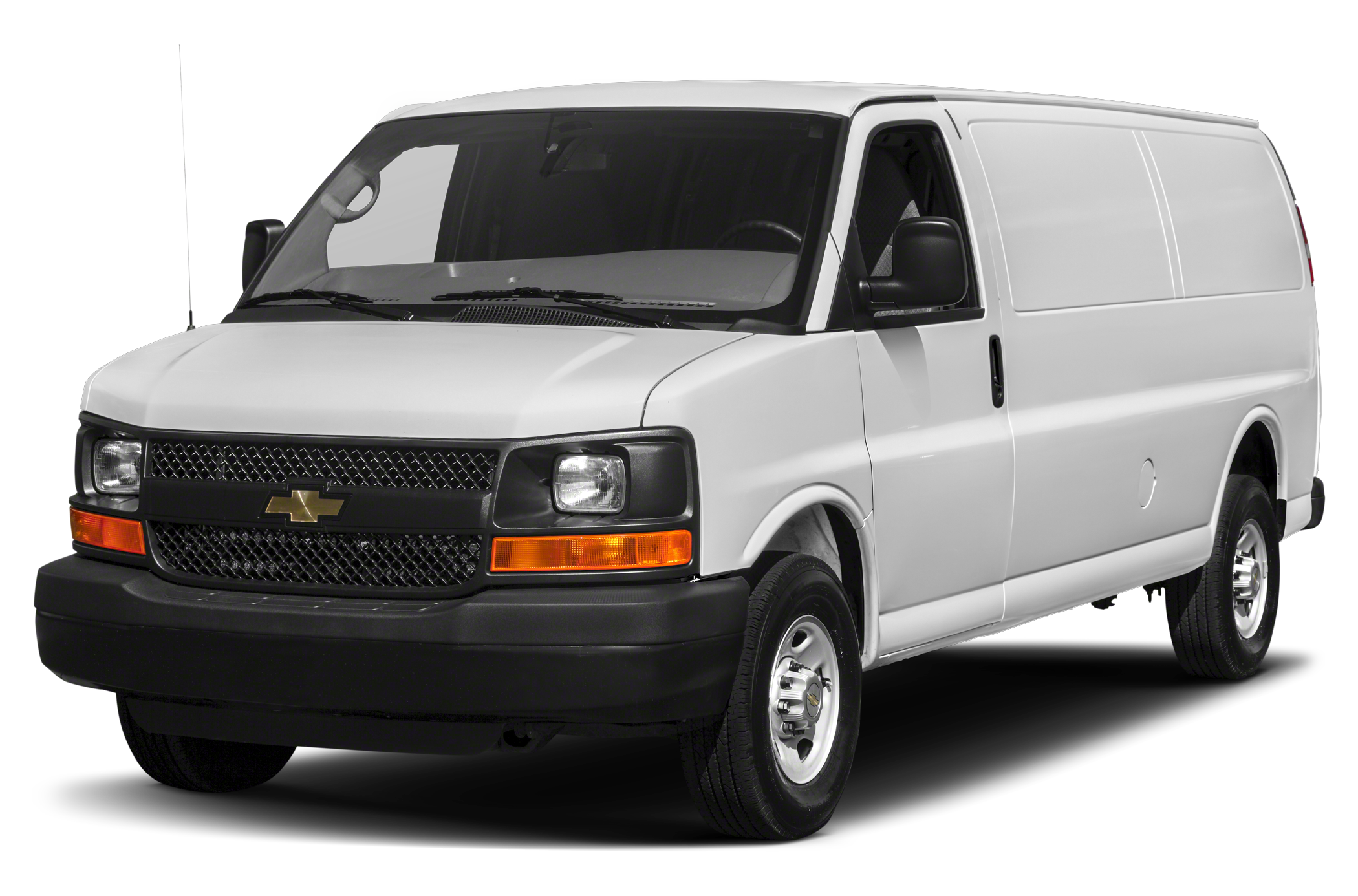

2013 Chevrolet Express 3500

Showing the 2013 Chevrolet Express 3500 RWD 3500 135"

Shop Now

Key specs

Color options

Interior
Neutral
Medium Pewter

Packages

Specifications

Highlights

Gas/Ethanol V8
Engine Type
-
MPG
280 hp
324 hp
282 hp
Horsepower
1
Seating Capacity

Brakes

Pwr
Brake Type
4-Wheel
Brake ABS System
Not Available
Brake ABS System (Second Line)
Yes
Disc - Front (Yes or )
Yes
Disc - Rear (Yes or )
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
13.0 x 1.1 in
Rear Brake Rotor Diam x Thickness
Not Available
Drum - Rear (Yes or )

Electrical

600
Cold Cranking Amps @ 0° F (Primary)
105
Maximum Alternator Capacity (amps)

Engine

Gas/Ethanol V8
Engine Type
4.8L/293
Displacement
280 @ 5200
SAE Net Horsepower @ RPM
295 @ 4600
SAE Net Torque @ RPM
6-Speed A/T
Transmission Overdrive Switch
A/T
Transmission Options
-
MPG
13.6 qts
Total Cooling System Capacity

Measurements

2
Passenger Capacity
40 in
Front Head Room
41 in
Front Leg Room
69 in
Front Shoulder Room
66 in
Front Hip Room
N/A
Second Head Room
N/A
Second Leg Room
N/A
Second Shoulder Room
N/A
Second Hip Room
135 in
Wheelbase
224 in
Length, Overall w/rear bumper
N/A
Length, Overall
79 in
Width, Max w/o mirrors
N/A
Height, Overall
40 in
Overhang, Front
N/A
Overhang, Rear w/o bumper
N/A
Cab to End of Frame
28 in
Ground to Top of Load Floor
9 in
Ground Clearance, Front
8 in
Ground Clearance, Rear
49 in
Rear Door Opening Height
57 in
Rear Door Opening Width
48 in
Side Door Opening Height
44 in
Side Door Opening Width
20 in
Step Up Height - Front
21 in
Step Up Height - Side
154 in
Cargo Area Length @ Floor to Console
125 in
Cargo Area Length @ Floor to Seat 1
N/A
Cargo Box Width @ Top, Rear
N/A
Cargo Area Width @ Beltline
N/A
Cargo Box Width @ Floor
53 in
Cargo Box Width @ Wheelhousings
53 in
Cargo Box (Area) Height
N/A
Tailgate Width
240 ft³
Cargo Volume
N/A
Ext'd Cab Cargo Volume

Safety

Standard
Stability Control

Steering

Pwr
Steering Type
N/A
Steering Ratio (:1), Overall
49 ft
Turning Diameter - Curb to Curb
N/A
Turning Diameter - Wall to Wall

Suspension

Coil Spring
Suspension Type - Front
Hypoid Multi-Leaf
Suspension Type - Rear
Independent
Axle Type - Front
Full-Floating
Axle Type - Rear

Tires & Wheels

LT245/75R16E
Front Tire Size
LT245/75R16E
Rear Tire Size
LT245/75R16E
Spare Tire Size
16 x 6.5 in
Front Wheel Size
16 x 6.5 in
Rear Wheel Size
16 x 6.5 in
Spare Wheel Size
Steel
Front Wheel Material
Steel
Rear Wheel Material
Steel
Spare Wheel Material

Weight & Capacity

N/A
Base Curb Weight
2,902 lbs
Curb Weight - Front
2,304 lbs
Curb Weight - Rear
0 lbs
Option Weight - Front
0 lbs
Option Weight - Rear
5,206 lbs
As Spec'd Curb Weight
4,394 lbs
As Spec'd Payload
4,394 lbs
Maximum Payload Capacity
13,000 lbs
Gross Combined Wt Rating
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
500 lbs
Dead Weight Hitch - Max Tongue Wt.
1,110 lbs
Wt Distributing Hitch - Max Tongue Wt.
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
10,000 lbs
Maximum Trailering Capacity
31 gal
Fuel Tank Capacity, Approx
Not Available gal
Aux Fuel Tank Capacity, Approx
10,684 lbs
Gross Axle Weight Rating
5,206 lbs
Curb Weight
0 lbs
Total Option Weight
9,600 lbs
Gross Vehicle Weight Rating
7,400 lbs
Wt Distributing Hitch - Max Trailer Wt.
