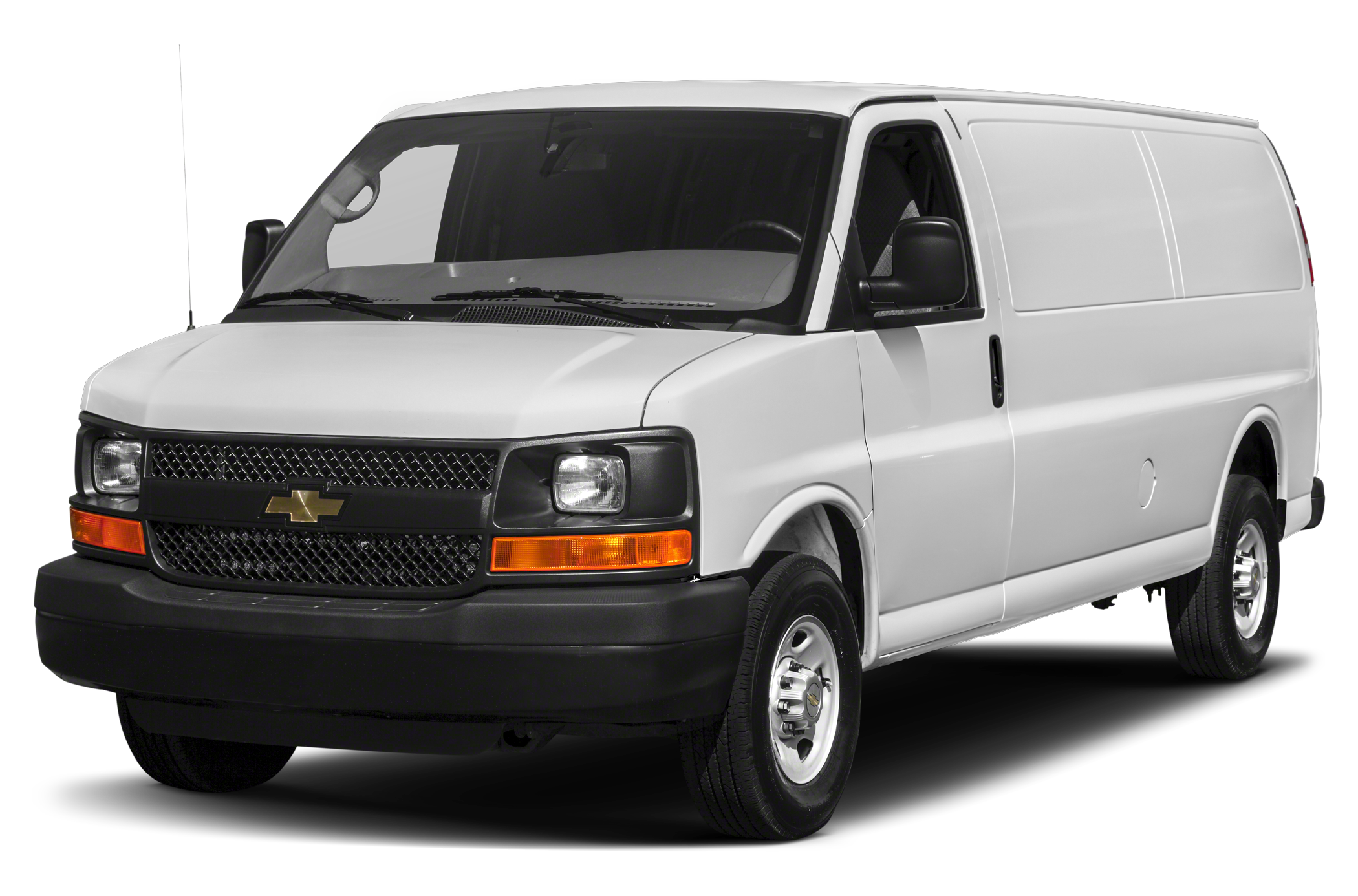

2013 Chevrolet Express 3500 Paratransit specs & colors
Full-size Cargo Van
Change trim
MSRP
- RWD 3500 135" $30,575
- RWD 3500 135" Paratransit $30,575
- RWD 3500 155" Paratransit $31,460
- RWD 3500 155" $31,460
- RWD 3500 135" LS w/1LS $32,700
- RWD 3500 135" LT w/1LT $32,700
- RWD 3500 155" LS w/1LS $34,570
- RWD 3500 155" LT w/1LT $34,570
- RWD 3500 135" Diesel $42,520
- RWD 3500 155" Diesel $43,405
- RWD 3500 135" LS w/2LS $45,640
- RWD 3500 135" LT w/2LT $45,640
- RWD 3500 155" LS w/2LS $47,510
- RWD 3500 155" LT w/2LT $47,510
$30,575
Starting MSRP
Current listing price
Current listing price
Showing the 2013 Chevrolet Express 3500 RWD 3500 135" Paratransit
Shop NowKey specs
Color options
Interior
Medium Pewter
Packages
Specifications
| Rear Door Type | Dual Swing-out |
| Rear Wheel Material | Steel |
| Front Wheel Size | 16 x 6.5 in |
| Spare Wheel Material | Steel |
| Rear Wheel Size | 16 x 6.5 in |
| Front Wheel Material | Steel |
| Spare Wheel Size | 16 x 6.5 in |
| Cold Cranking Amps @ 0° F (Primary) | 770 |
| Maximum Alternator Capacity (amps) | 145 |
| Displacement | 6.0L/364 |
| Engine Type | Gas/Ethanol V8 |
| Engine Oil Cooler | Yes |
| SAE Net Horsepower @ RPM | 324 @ 4700 |
| SAE Net Torque @ RPM | 373 @ 4400 |
| Cruising Range - Hwy | 0.00 mi |
| EPA Fuel Economy Est - City | Not Available MPG |
| Estimated Battery Range | N/A mi |
| EPA Fuel Economy Est - Hwy | Not Available MPG |
| Cruising Range - City | 0.00 mi |
| Fuel Economy Est-Combined | Not Available MPG |
| Fifth Gear Ratio (:1) | 0.85 |
| Final Drive Axle Ratio (:1) | N/A |
| Trans Power Take Off | Not Available |
| Transfer Case Gear Ratio (:1), Low | Not Available |
| Sixth Gear Ratio (:1) | 0.67 |
| Second Gear Ratio (:1) | 2.36 |
| Transfer Case Power Take Off | Not Available |
| Third Gear Ratio (:1) | 1.53 |
| Drivetrain | Rear Wheel Drive |
| First Gear Ratio (:1) | 4.03 |
| Reverse Ratio (:1) | 3.06 |
| Transfer Case Gear Ratio (:1), High | Not Available |
| Fourth Gear Ratio (:1) | 1.15 |
| Trans Description Cont. Again | Not Available |
| Transfer Case Model | Not Available |
| Trans Type | 6 |
| Trans Description Cont. | Automatic |
| Suspension Type - Rear | Hypoid Multi-Leaf |
| Axle Type - Rear | Full-Floating |
| Suspension Type - Front | Coil Spring |
| Axle Type - Front | Independent |
| Frame Type | Ladder |
| Side Door Type | Swing-out |
| Front Brake Rotor Diam x Thickness | 12.8 x 1.5 in |
| Brake ABS System | 4-Wheel |
| Rear Brake Rotor Diam x Thickness | 13.0 x 1.1 in |
| Brake Type | Pwr |
| Brake ABS System (Second Line) | Not Available |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Drum - Rear (Yes or ) | Not Available |
| Aux Fuel Tank Capacity, Approx | Not Available gal |
| Fuel Tank Capacity, Approx | 31.0 gal |
| Turning Diameter - Curb to Curb | 49.2 ft |
| Steering Ratio (:1), Overall | N/A |
| Steering Type | Pwr |
| Turning Diameter - Wall to Wall | N/A ft |
| Rear Tire Size | LT245/75R16E |
| Front Tire Size | LT245/75R16E |
| Spare Tire Size | LT245/75R16E |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 10000 lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | Not Available lbs |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 1500 lbs |
| Maximum Trailering Capacity | 10000 lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | Not Available lbs |
| Gross Combined Wt Rating | 16000 lbs |
| Gross Vehicle Weight Rating | 9600.00 lbs |
| Curb Weight | 5249.00 lbs |
| Maximum Payload Capacity | 4351.00 lbs |
| Total Option Weight | 0.00 lbs |
| Curb Weight - Front | 2914 lbs |
| Option Weight - Rear | 0.00 lbs |
| As Spec'd Curb Weight | 5249.00 lbs |
| Gross Axle Weight Rating | 10684.00 lbs |
| Option Weight - Front | 0.00 lbs |
| As Spec'd Payload | 4351.00 lbs |
| Curb Weight - Rear | 2335 lbs |
| Base Curb Weight | N/A lbs |
| Ground Clearance, Rear | 7.70 in |
| Second Head Room | N/A in |
| Ground to Top of Load Floor | 27.80 in |
| Cargo Area Length @ Floor to Seat 1 | 124.60 in |
| Cargo Box Width @ Floor | N/A in |
| Side Door Opening Height | 47.90 in |
| Second Shoulder Room | N/A in |
| Length, Overall | N/A in |
| Front Head Room | 39.80 in |
| Second Hip Room | N/A in |
| Side Door Opening Width | 44.10 in |
| Ground Clearance, Front | 8.80 in |
| Step Up Height - Side | 20.80 in |
| Front Hip Room | 65.50 in |
| Length, Overall w/rear bumper | 224.10 in |
| Front Shoulder Room | 68.80 in |
| Rear Door Opening Width | 57.00 in |
| Step Up Height - Front | 20.30 in |
| Tailgate Width | N/A in |
| Cargo Box Width @ Wheelhousings | 52.70 in |
| Front Leg Room | 41.30 in |
| Cargo Area Length @ Floor to Console | 153.60 in |
| Overhang, Front | 39.70 in |
| Cab to End of Frame | N/A in |
| Passenger Capacity | 2 |
| Overhang, Rear w/o bumper | N/A in |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Cargo Volume | 239.7 ft³ |
| Second Leg Room | N/A in |
| Height, Overall | N/A in |
| Width, Max w/o mirrors | 79.20 in |
| Rear Door Opening Height | 49.40 in |
| Cargo Area Width @ Beltline | N/A in |
| Cargo Box Width @ Top, Rear | N/A in |
| Wheelbase | 135.00 in |
| Cargo Box (Area) Height | 52.90 in |
| Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches | Standard |
| Power outlets, 2 auxiliary on engine console cover with covers, 12-volt | Standard |
| Tire Pressure Monitoring System (does not monitor spare tires) | Optional |
| Body, standard | Standard |
| Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle | Optional |
| Air bags, frontal, driver and right-front passenger (Includes passenger-side deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Not available with (ZX1) driver-only high-back bucket seat or (AJ3) driver-side only frontal air bag. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) | Optional |
| GVWR, 9600 lbs. (4354 kg) (Standard on CG33405 and CG33705 models. Reference the Engine/Axle page for availability.) | Optional |
| Glass, swing-out rear cargo door windows (Included with (A19) rear side door and rear door window swing-out glass.) | Optional |
| Assist handle, front passenger | Standard |
| Engine, Vortec 6.0L V8 SFI FlexFuel (324 hp [241.6 kW] @ 4700 rpm, 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (Includes external engine cooler.) | Optional |
| Defogger, side windows | Standard |
| Door, swing-out passenger-side, 60/40 split | Optional |
| Mirror, inside rearview manual day/night | Optional |
| Glass, fixed full-body window package | Optional |
| Frame, full-length box ladder-type | Standard |
| Tow/haul mode selector, instrument panel-mounted | Standard |
| Brake/transmission shift interlock, for automatic transmissions | Standard |
| Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure | Standard |
| Suspension, front independent with coil springs and stabilizer bar | Optional |
| Glass, Solar-Ray light-tinted, all windows | Standard |
| Tires, front LT245/75R16E all-season, blackwall | Optional |
| Transmission oil cooler, external | Optional |
| Steering wheel, steel sleeve column with theft-deterrent locking feature, Black | Standard |
| Alternator, 145 amps | Optional |
| Glass, swing-out rear side door and rear door window (Includes (A18) rear cargo door windows swing-out glass.) | Optional |
| Incomplete vehicle certification | Optional |
| Floor covering, full-length Black vinyl | Optional |
| Driver Information Center includes fuel range, average speed, oil life, tire pressure monitoring, fuel used, ice warning, engine hours, average fuel economy, tachometer, and maintenance reminders. Compass and outside temperature available if equipped. | Optional |
| Theft-deterrent system, vehicle, PASS-Key III | Standard |
| License plate kit, front | Standard |
| Brakes, 4-wheel antilock, 4-wheel disc | Standard |
| Console, engine cover with open storage bin | Standard |
| Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim | Standard |
| Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.) | Standard |
| Daytime Running Lamps | Standard |
| Bumpers, front and rear painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.) | Standard |
| Headlamps, single halogen | Optional |
| Rear axle, 3.42 ratio | Optional |
| Air conditioning, single-zone manual | Optional |
| Steering, power | Standard |
| Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers | Standard |
| Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare | Optional |
| Headliner, cloth, over driver and passenger | Standard |
| Air bag deactivation switch, frontal, passenger-side (Requires (C6P) 8600 lbs. (3901 kg) GVWR or (C6Y) 9600 lbs. (4354 kg) GVWR. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) | Standard |
| Visors, driver and front passenger (Included with (AR7) front bucket seats with vinyl trim.) | Optional |
| Suspension, rear hypoid drive axle with multi-leaf springs | Standard |
| Rear wheel drive | Standard |
| StabiliTrak, traction assistance and vehicle stability enhancement system | Standard |
| Cup holders, 3 on the engine console cover | Standard |
| Transmission, 6-speed automatic, heavy-duty, electronically controlled with overdrive tow/haul mode and internal transmission oil cooler | Optional |
| Tires, rear LT245/75R16E all-season, blackwall | Optional |
| Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L) | Standard |
| Battery, heavy-duty 770 cold-cranking amps, maintenance-free with rundown protection and retained accessory power | Optional |
| Mirrors, outside manual, Black | Standard |
| Door beams, steel-side | Standard |
| Oil life monitor | Standard |
| Wipers, front intermittent wet-arm with pulse washers | Standard |
| Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Includes (DAA) driver and front passenger vinyl visor. Requires (**W) interior trim.) | Optional |
| Exhaust, aluminized stainless-steel muffler and tailpipe | Standard |
| Trim panels, side and rear cargo door | Optional |
