2017 Chevrolet Express 3500 specs & colors

Full-size Cargo Van

Change trim
MSRP
RWD 3500 135"
$34,065
RWD 3500 155"
$34,950
RWD 3500 135" LT w/1LT
$35,435
RWD 3500 135" LS w/1LS
$35,435
RWD 3500 155" LT w/1LT
$37,305
RWD 3500 155" LS w/1LS
$37,305
$34,065
Starting MSRP
Current listing price

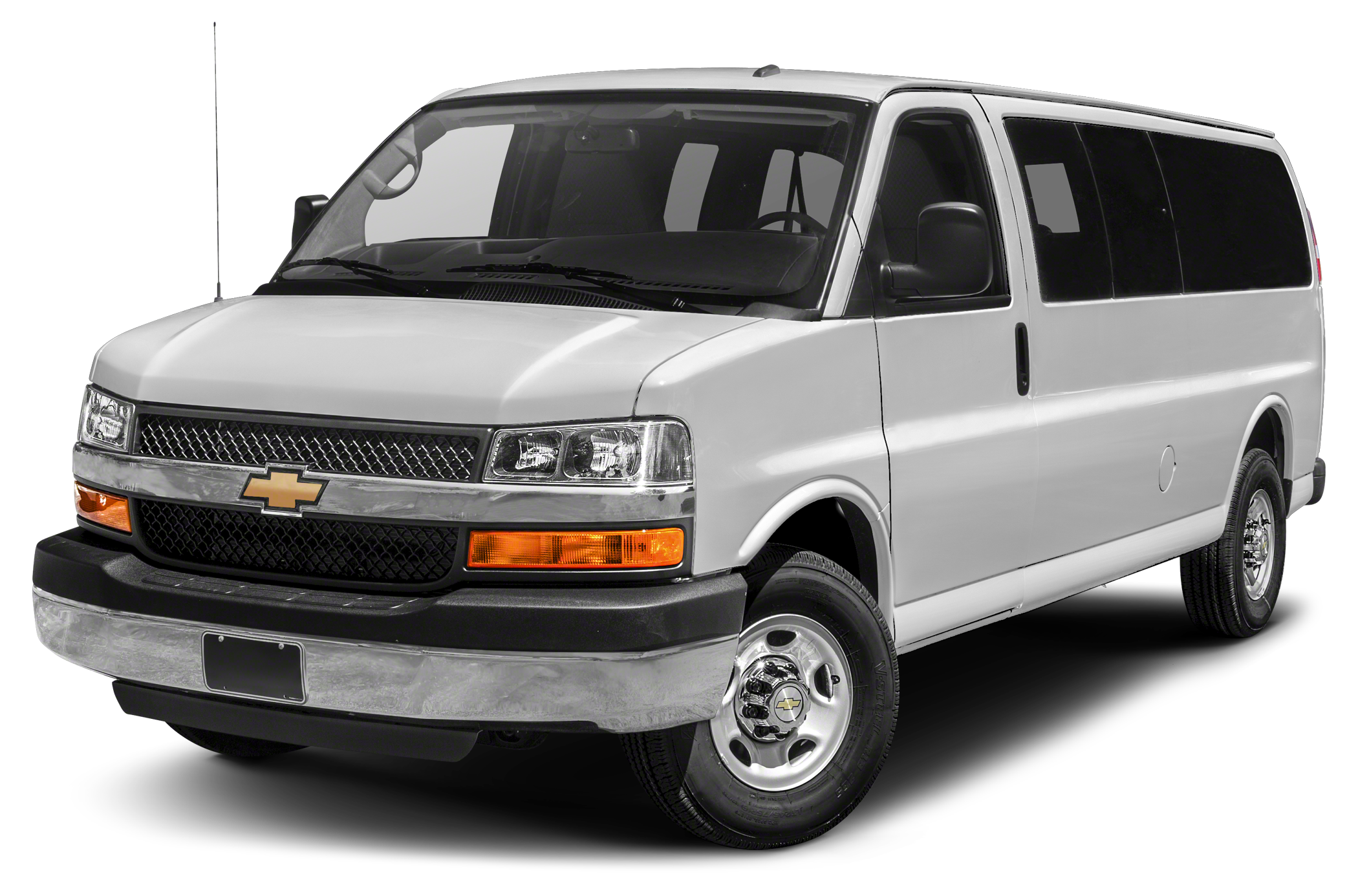

2017 Chevrolet Express 3500

Showing the 2017 Chevrolet Express 3500 RWD 3500 135"

Shop Now

Key specs

Color options

Interior
Neutral
Medium Pewter

Packages

  • $395

    Starting MSRP

  • $0

    Starting MSRP

    • includes Standard Equipment

  • $1,330

    Starting MSRP

    • Includes (B31) front rubberized vinyl Black floor covering
    • (KG4) 150-amp alternator
    • (ZQ3) Convenience Package
    See more detail

    $1,330

    Starting MSRP

    • Includes (B31) front rubberized vinyl Black floor covering
    • (KG4) 150-amp alternator
    • (ZQ3) Convenience Package
    • (DE5) outside heated power-adjustable
    • Black
    • manual-folding mirrors
    • (ZW3) rear door and side cargo door fixed glass
    • (upgradeable to (ZW6) full body window package fixed glass)
    • (AJ1) Solar-Ray deep-tinted glass
    • (A18) rear cargo door window swing-out glass
    • (A19) rear side door and rear door window swing-out glass
    • (ZR7) Chrome Appearance Package and (B46) rear body-colored halo (Note that (B46) is not available with (GBA) Black
    • (GPA) Graphite Metallic
    • (G7C) Red Hot or (86U) Wheatland Yellow. These colors will receive a Black halo).

  • $355

    Starting MSRP

    • (Includes (V37) front and rear chrome bumpers and (V22) chrome grille with dual composite halogen headlamps.

Specifications

Highlights

Gas V8
Engine Type
-
MPG
342 hp
181 hp
285 hp
Horsepower
1
Seating Capacity

Brakes

Pwr
Brake Type
4-Wheel
Brake ABS System
N/A
Brake ABS System (Second Line)
Yes
Disc - Front (Yes or )
Yes
Disc - Rear (Yes or )
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
13.0 x 1.1 in
Rear Brake Rotor Diam x Thickness
N/A
Drum - Rear (Yes or )

Electrical

600
Cold Cranking Amps @ 0° F (Primary)
105
Maximum Alternator Capacity (amps)

Engine

Gas V8
Engine Type
4.8L/293
Displacement
285 @ 5400
SAE Net Horsepower @ RPM
295 @ 4600
SAE Net Torque @ RPM
6-Speed A/T
Transmission Overdrive Switch
8-Speed A/T
A/T
Transmission Options
-
MPG
13.6 qts
Total Cooling System Capacity

Measurements

N/A
Cargo Box Width @ Top, Rear
N/A
Cargo Area Width @ Beltline
N/A
Cargo Box Width @ Floor
53 in
Cargo Box Width @ Wheelhousings
53 in
Cargo Box (Area) Height
N/A
Tailgate Width
N/A
Cargo Volume
N/A
Ext'd Cab Cargo Volume
2
Passenger Capacity
N/A
Front Head Room
N/A
Front Leg Room
N/A
Front Shoulder Room
N/A
Front Hip Room
N/A
Second Head Room
N/A
Second Leg Room
N/A
Second Shoulder Room
N/A
Second Hip Room
135 in
Wheelbase
224 in
Length, Overall w/rear bumper
N/A
Length, Overall
79 in
Width, Max w/o mirrors
85 in
Height, Overall
40 in
Overhang, Front
N/A
Overhang, Rear w/o bumper
N/A
Cab to End of Frame
28 in
Ground to Top of Load Floor
9 in
Ground Clearance, Front
8 in
Ground Clearance, Rear
49 in
Rear Door Opening Height
57 in
Rear Door Opening Width
48 in
Side Door Opening Height
44 in
Side Door Opening Width
20 in
Step Up Height - Front
21 in
Step Up Height - Side
154 in
Cargo Area Length @ Floor to Console
125 in
Cargo Area Length @ Floor to Seat 1

Safety

Standard
Stability Control

Steering

Pwr
Steering Type
N/A
Steering Ratio (:1), Overall
49 ft
Turning Diameter - Curb to Curb
N/A
Turning Diameter - Wall to Wall

Suspension

Coil Spring
Suspension Type - Front
Hypoid Multi-Leaf
Suspension Type - Rear
Independent
Axle Type - Front
Full-Floating
Axle Type - Rear

Tires & Wheels

LT245/75R16E
Front Tire Size
LT245/75R16E
Rear Tire Size
LT245/75R16E
Spare Tire Size
16 x 6.5 in
Front Wheel Size
16 x 6.5 in
Rear Wheel Size
16 x 6.5 in
Spare Wheel Size
Steel
Front Wheel Material
Steel
Rear Wheel Material
Steel
Spare Wheel Material

Weight & Capacity

10,384 lbs
Gross Axle Weight Rating
5,458 lbs
Curb Weight
0 lbs
Total Option Weight
9,600 lbs
Gross Vehicle Weight Rating
N/A
Base Curb Weight
3,025 lbs
Curb Weight - Front
2,433 lbs
Curb Weight - Rear
0 lbs
Option Weight - Front
0 lbs
Option Weight - Rear
5,539 lbs
As Spec'd Curb Weight
4,061 lbs
As Spec'd Payload
4,142 lbs
Maximum Payload Capacity
14,600 lbs
Gross Combined Wt Rating
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
500 lbs
Dead Weight Hitch - Max Tongue Wt.
8,900 lbs
Wt Distributing Hitch - Max Trailer Wt.
890 lbs
Wt Distributing Hitch - Max Tongue Wt.
N/A
Fifth Wheel Hitch - Max Trailer Wt.
N/A
Fifth Wheel Hitch - Max Tongue Wt.
10,000 lbs
Maximum Trailering Capacity
31 gal
Fuel Tank Capacity, Approx
N/A
Aux Fuel Tank Capacity, Approx
