2011 Chevrolet Silverado 3500 SRW Work Truck specs & colors

Regular Cab Pickup

Change trim
$29,255
Starting MSRP
Current listing price

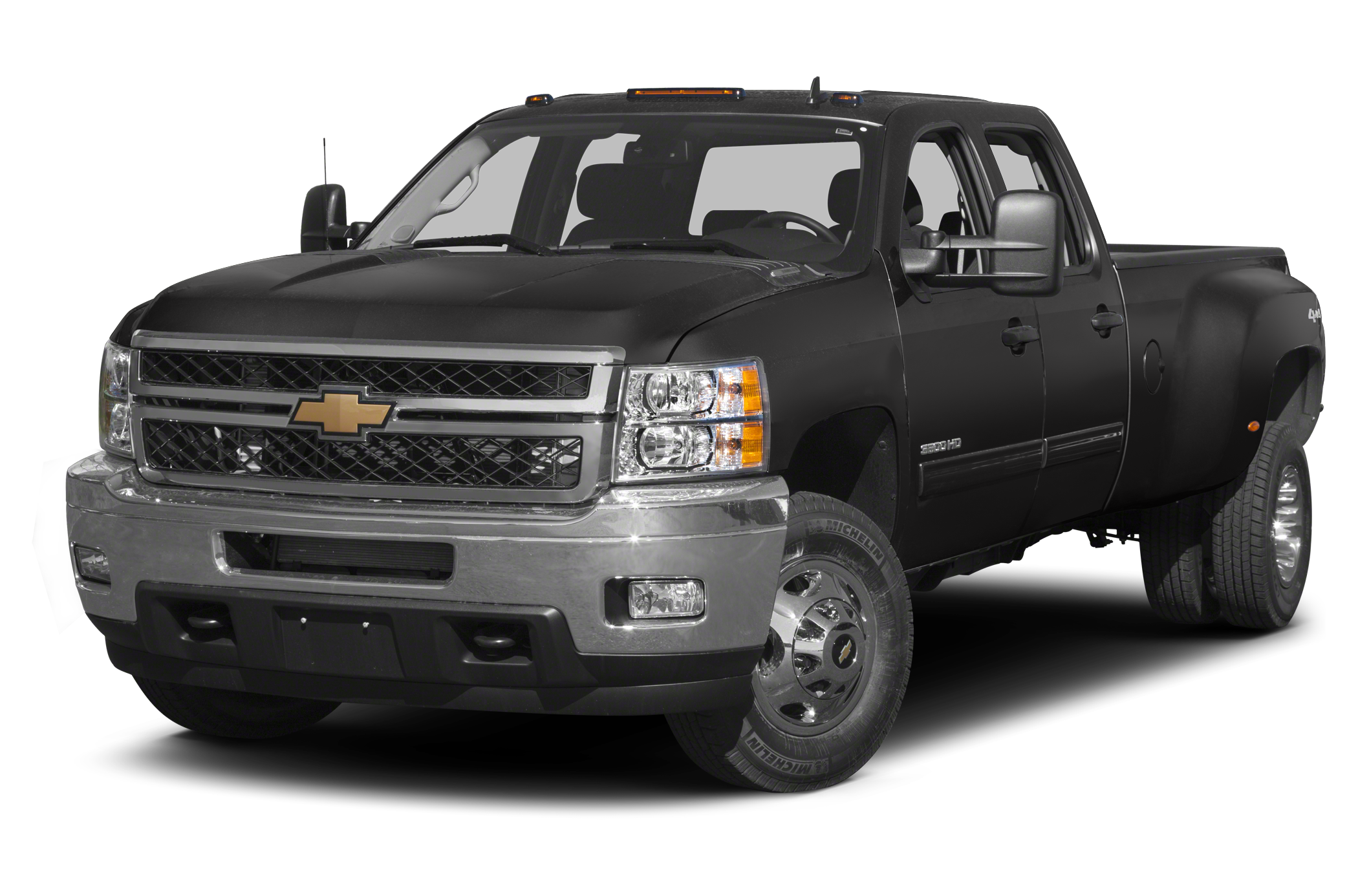

2011 Chevrolet Silverado 3500 SRW Work Truck

Showing the 2011 Chevrolet Silverado 3500 2WD Reg Cab 133.7" SRW Work Truck

Shop Now

Key specs

Color options

Interior

Dark Titanium

Packages

Specifications

Rear Wheel Material Steel
Front Wheel Size 17 x 6.5 in
Front Wheel Material Steel
Rear Wheel Size 17 x 6.5 in
Spare Wheel Material Steel
Spare Wheel Size 17 x -TBD- in
Cold Cranking Amps @ 0° F (Primary) 600
Maximum Alternator Capacity (amps) 125
SAE Net Horsepower @ RPM 322 @ 4400
SAE Net Torque @ RPM 380 @ 4200
Engine Type Gas V8
Engine Oil Cooler Yes
Displacement 6.0L/366
EPA Fuel Economy Est - Hwy Not Available MPG
Estimated Battery Range N/A mi
Fuel Economy Est-Combined Not Available MPG
EPA Fuel Economy Est - City Not Available MPG
Cruising Range - City 0.00 mi
Cruising Range - Hwy 0.00 mi
Transfer Case Model Not Available
Transfer Case Gear Ratio (:1), Low Not Available
Second Gear Ratio (:1) 2.36
Fifth Gear Ratio (:1) 0.85
Sixth Gear Ratio (:1) 0.67
Transfer Case Gear Ratio (:1), High Not Available
Trans Type 6
Trans Description Cont. HD Automatic w/OD
Fourth Gear Ratio (:1) 1.15
Trans Description Cont. Again Not Available
Drivetrain Rear Wheel Drive
First Gear Ratio (:1) 4.03
Trans Power Take Off Not Available
Reverse Ratio (:1) 3.06
Third Gear Ratio (:1) 1.53
Transfer Case Power Take Off Not Available
Final Drive Axle Ratio (:1) N/A
Suspension Type - Front Independent
Suspension Type - Rear Multi-Leaf
Axle Type - Front Independent
Axle Type - Rear Full-Floating
Frame Type Hydroformed
Drum - Rear (Yes or ) Not Available
Disc - Front (Yes or ) Yes
Rear Brake Rotor Diam x Thickness 13.98 x 1.57 in
Front Brake Rotor Diam x Thickness 13.98 x 1.57 in
Brake Type Pwr
Brake ABS System (Second Line) Not Available
Disc - Rear (Yes or ) Yes
Brake ABS System 4-Wheel
Aux Fuel Tank Capacity, Approx Not Available gal
Fuel Tank Capacity, Approx 36 gal
Steering Type Pwr Recirculating Ball
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 44.9 ft
Turning Diameter - Wall to Wall N/A ft
Spare Tire Size Not Available
Rear Tire Size LT235/80R17E
Front Tire Size LT235/80R17E
Wt Distributing Hitch - Max Tongue Wt. 1500 lbs
Fifth Wheel Hitch - Max Trailer Wt. 10000 lbs
Wt Distributing Hitch - Max Trailer Wt. 10000 lbs
Fifth Wheel Hitch - Max Tongue Wt. 2500 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Maximum Trailering Capacity 14500 lbs
Curb Weight - Front 3141 lbs
Gross Vehicle Weight Rating 12800.00 lbs
Base Curb Weight N/A lbs
As Spec'd Curb Weight 5768.00 lbs
As Spec'd Payload 7032.00 lbs
Option Weight - Rear 0.00 lbs
Maximum Payload Capacity 7032.00 lbs
Curb Weight - Rear 2627 lbs
Curb Weight 5768.00 lbs
Gross Combined Wt Rating 16000 lbs
Total Option Weight 0.00 lbs
Option Weight - Front 0.00 lbs
Gross Axle Weight Rating 13775.00 lbs
Cab to End of Frame N/A in
Cargo Box Width @ Wheelhousings 50.6 in
Length, Overall w/rear bumper N/A in
Ground to Top of Load Floor 37.9 in
Length, Overall N/A in
Cargo Box (Area) Height 21.0 in
Ext'd Cab Cargo Volume Not Available ft³
Second Leg Room N/A in
Ground Clearance, Front 10.0 in
Tailgate Width 61.6 in
Ground Clearance, Rear 8.8 in
Front Shoulder Room 65.2 in
Cargo Volume 75.5 ft³
Length, Overall w/o rear bumper 225.0 in
Second Hip Room N/A in
Second Shoulder Room N/A in
Cargo Box Length @ Floor 97.8 in
Passenger Capacity 3
Front Leg Room 41.3 in
Second Head Room N/A in
Height, Overall 77.4 in
Wheelbase 133.7 in
Front Hip Room 60.3 in
Overhang, Rear w/o bumper 52.6 in
Front Head Room 41.3 in
Overhang, Front 38.8 in
Cargo Box Width @ Floor 62.5 in
Cargo Box Width @ Top, Rear N/A in
Width, Max w/o mirrors 80.0 in
Instrumentation, analog with speedometer, fuel level, engine temperature, tachometer, voltmeter and oil pressure indicators Standard
Suspension, rear 4+1+2 multi-leaf springs for single rear wheel and 3+1+2 multi-leaf springs for dual rear wheel Standard
XM Radio, delete Standard
Frame, fully boxed, hydroformed front section Standard
Glass, Solar-Ray light-tinted, all windows Standard
Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches Standard
Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models) Standard
OnStar, delete Standard
Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.) Standard
Cooling, external engine oil cooler heavy-duty air-to-oil, integral to driver side of radiator tank Standard
Exhaust, aluminized stainless-steel muffler and tailpipe Standard
Steering, power, recirculating ball Standard
Rear wheel drive Standard
Wheels, 18" (45.7 cm) painted steel includes painted center caps and a steel spare. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Included with (L96) Vortec 6.0L V8 SFI engine. Available with (LML/LGH) Duramax 6.6L Turbo Diesel V8 engine. Not available with (9F6) 12,800 lbs. GVWR or (C7J) 13,000 lbs. GVWR (dual rear wheel).) Standard
Mirrors, outside manual, Black, manual-folding Standard
Alternator, 125 amps Standard
Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete) Standard
Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered) Standard
Recovery hooks, front, frame-mounted Standard
Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt Standard
Differential, heavy-duty automatic locking rear (Included with (Z82) trailering equipment on Retail Orders only. Standard with single rear wheel GVWR.) Standard
Transmission, 6-speed automatic, heavy-duty, electronically controlled with overdrive and tow/haul mode (Requires (L96) Vortec 6.0L V8 SFI engine.) Standard
Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models) Standard
Air cleaner, high-capacity Standard
Suspension Package, Handling/Trailering, heavy-duty includes 35mm monotube shocks and 34mm front stabilizer bar Standard
Mirror, inside rearview manual day/night Standard
Pickup box, Fleetside Standard
Bumper, front chrome Standard
Driver Information Center with odometer, trip odometer and message center (monitors numerous systems depending on vehicle equipment level including low fuel, turn signal "on", transmission temperature and oil change notification) (Driver Information Center controls are operated through the trip button unless (UK3) steering wheel mounted audio controls is ordered. On 1LT and 1LZ, includes 8-point compass and outside temperature.) Standard
Tires, LT265/70R18E all-season, blackwall (Not available with (9F6) 12,800 lbs. GVWR or (C7J) 13,000 lbs. GVWR (dual rear wheel). Included with (PYT) 18" (45.7 cm) painted steel wheels.) Standard
Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on Standard
Seat trim, Vinyl Standard
Cooling, auxiliary external transmission oil cooler heavy-duty air-to-oil Standard
Steering wheel includes theft-deterrent locking feature Standard
Floor covering, Black rubberized vinyl Standard
Engine, Vortec 6.0L Variable Valve Timing V8 SFI (322 hp [240.1 kW] @ 4400 rpm, 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) Standard
Audio system feature, 4-speaker system (Requires Regular Cab models) Standard
Rear axle, 3.73 ratio (Not available with (L96) Vortec 6.0L V8 SFI engine on CC30903 with Single Rear Wheels.) Standard
Brakes, 4-wheel antilock, 4-wheel disc with single rear wheels Standard
Steering column, Tilt-Wheel, adjustable with brake/transmission shift interlock Standard
Grille, chrome surround Standard
Coat hooks, rear driver and passenger side Standard
Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power Standard
Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) XM Radio) Standard
StabiliTrak, stability control system includes electronic trailer sway control, intelligent brake assist and hill start assist (Standard on single rear wheel GVWR only.) Standard
Lamps, dual cargo area lamps Standard
Daytime Running Lamps with automatic exterior lamp control Standard
Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored Standard
Door handles, Black Standard
Wipers, front intermittent wet-arm with pulse washers Standard
Air conditioning, single-zone manual front climate control Standard
Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage Standard
Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature Standard
Suspension, front independent, torsion bar with increased front GAWR Standard
