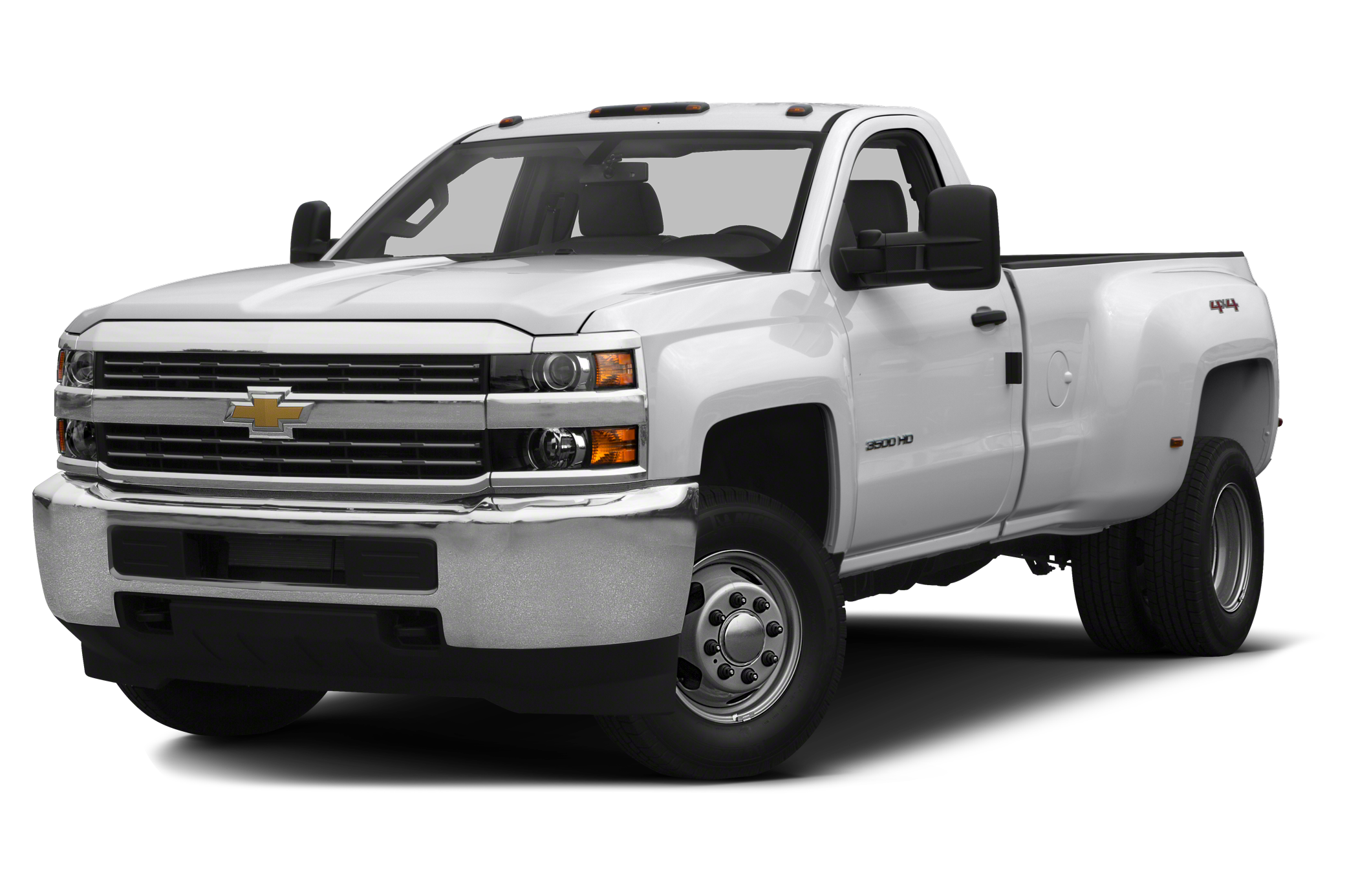

2016 Chevrolet Silverado 3500 Work Truck specs & colors

Regular Cab Pickup

Change trim

MSRP

2WD Reg Cab 133.6" Work Truck $34,055
4WD Reg Cab 133.6" Work Truck $37,010
2WD Double Cab 158.1" Work Truck $37,380
2WD Reg Cab 133.6" LT $38,010
2WD Crew Cab 153.7" Work Truck $38,615
2WD Crew Cab 167.7" Work Truck $38,810
4WD Double Cab 158.1" Work Truck $40,335
4WD Reg Cab 133.6" LT $41,135
4WD Crew Cab 153.7" Work Truck $41,570
4WD Crew Cab 167.7" Work Truck $41,765
2WD Double Cab 158.1" LT $41,870
2WD Crew Cab 153.7" LT $43,745
2WD Crew Cab 167.7" LT $43,940
4WD Double Cab 158.1" LT $45,070
2WD Double Cab 158.1" LTZ $46,775
4WD Crew Cab 153.7" LT $46,895
4WD Crew Cab 167.7" LT $47,090
2WD Crew Cab 153.7" LTZ $48,820
2WD Crew Cab 167.7" LTZ $49,015
4WD Double Cab 158.1" LTZ $49,925
4WD Crew Cab 153.7" LTZ $51,970
4WD Crew Cab 167.7" LTZ $52,165
2WD Crew Cab 153.7" High Country $53,740
2WD Crew Cab 167.7" High Country $53,935
4WD Crew Cab 153.7" High Country $56,890
4WD Crew Cab 167.7" High Country $57,085

Change trim

$34,055

Starting MSRP
Current listing price

Showing the 2016 Chevrolet Silverado 3500 2WD Reg Cab 133.6" Work Truck

Shop Now

Color options

Exterior

Interior

Jet Black / Dark Ash

Jet Black

Packages

1WT Preferred Equipment Group

$0

Starting MSRP

includes standard equipment

Specifications

Cruising Range - Hwy	N/A mi
EPA Fuel Economy Est - Hwy	N/A MPG
Cruising Range - City	N/A mi
Fuel Economy Est-Combined	N/A MPG
Estimated Battery Range	N/A mi
EPA Fuel Economy Est - City	N/A MPG

First Gear Ratio (:1)	4.03
Trans Description Cont.	Automatic
Trans Power Take Off	N/A
Transfer Case Model	N/A
Second Gear Ratio (:1)	2.36
Transfer Case Gear Ratio (:1), High	N/A
Reverse Ratio (:1)	3.06
Fifth Gear Ratio (:1)	0.85
Trans Description Cont. Again	N/A
Transfer Case Power Take Off	N/A
Trans Type	6
Fourth Gear Ratio (:1)	1.15
Third Gear Ratio (:1)	1.53
Transfer Case Gear Ratio (:1), Low	N/A
Sixth Gear Ratio (:1)	0.67
Final Drive Axle Ratio (:1)	N/A
Drivetrain	Rear Wheel Drive

Front Brake Rotor Diam x Thickness	N/A in
Brake ABS System	4-Wheel
Disc - Rear (Yes or )	Yes
Brake ABS System (Second Line)	N/A
Brake Type	Pwr
Rear Brake Rotor Diam x Thickness	N/A in
Disc - Front (Yes or )	Yes
Drum - Rear (Yes or )	N/A

Fifth Wheel Hitch - Max Tongue Wt.	3650 lbs
Fifth Wheel Hitch - Max Trailer Wt.	14600 lbs
Dead Weight Hitch - Max Trailer Wt.	5000 lbs
Maximum Trailering Capacity	14600 lbs
Dead Weight Hitch - Max Tongue Wt.	500 lbs
Wt Distributing Hitch - Max Trailer Wt.	14600 lbs
Wt Distributing Hitch - Max Tongue Wt.	1460 lbs

As Spec'd Payload	4441.00 lbs
Maximum Payload Capacity	4441.00 lbs
Curb Weight - Rear	2734 lbs
Curb Weight	5959.00 lbs
As Spec'd Curb Weight	5959.00 lbs
Total Option Weight	0.00 lbs
Option Weight - Rear	0.00 lbs
Base Curb Weight	N/A lbs
Option Weight - Front	0.00 lbs
Gross Vehicle Weight Rating	10400.00 lbs
Gross Axle Weight Rating	11450.00 lbs
Curb Weight - Front	3225 lbs
Gross Combined Wt Rating	20500 lbs

Cargo Box Width @ Floor	N/A in
Ground Clearance, Rear	8.42 in
Cargo Box Width @ Wheelhousings	51.02 in
Front Hip Room	60.73 in
Ground to Top of Load Floor	39.09 in
Front Head Room	42.80 in
Wheelbase	133.60 in
Length, Overall	N/A in
Passenger Capacity	3
Cargo Box Width @ Top, Rear	N/A in
Overhang, Rear w/o bumper	N/A in
Cargo Box (Area) Height	21.22 in
Length, Overall w/rear bumper	N/A in
Ext'd Cab Cargo Volume	N/A ft³
Front Shoulder Room	66.03 in
Cargo Volume	76.3 ft³
Overhang, Front	N/A in
Width, Max w/o mirrors	80.12 in
Second Hip Room	N/A in
Cab to End of Frame	N/A in
Second Shoulder Room	N/A in
Front Leg Room	45.27 in
Tailgate Width	N/A in
Second Head Room	N/A in
Ground Clearance, Front	N/A in
Cargo Box Length @ Floor	97.76 in
Length, Overall w/o rear bumper	224.4 in
Second Leg Room	N/A in
Height, Overall	77.83 in

Tailgate, locking, utilizes same key as ignition and door (Not available with (AQQ) Remote Keyless Entry.)	Standard
Door handles, Black	Standard
Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)	Standard
CornerStep, rear bumper	Standard
Mirrors, outside high-visibility vertical trailering, Black with manual folding and extension and lower convex spotter glass	Standard
Glass, solar absorbing, tinted	Standard
Bumper, front chrome	Standard
Tailgate and bed rail protection caps, top	Standard
Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels. Included with (E63) pickup box. Available to order when (ZW9) pick-up box delete is ordered.)	Standard
Lamps, cargo area, cab mounted with switch on center switch bank	Standard
Wheels, 18" (45.7 cm) painted steel includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD) (Requires single rear wheels, (QGM) LT265/70R18E all-terrain, blackwall tires or (QWF) LT265/70R18E all-season, blackwall tires.)	Standard
Grille surround, chrome	Standard
Bumper, rear chrome with bumper CornerSteps	Standard
Headlamps, halogen projector-beam	Standard
Tires, LT265/70R18E all-season, blackwall (STD) (Requires single rear wheels.)	Standard

Steering column, manual Tilt-Wheel	Standard
Assist handle, front passenger and driver on A-pillars	Standard
Seat trim, Vinyl	Standard
Air conditioning, single-zone	Standard
Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)	Standard
Door locks, power	Standard
Steering wheel	Standard
Instrumentation, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure	Standard
Floor covering, Graphite-colored rubberized-vinyl	Standard
Cruise control, steering wheel-mounted	Standard
Driver Information Center 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information	Standard

Trailer brake controller, integrated (If (ZW9) pickup box delete or (9J4) rear bumper delete is ordered (JL1) trailer brake controller is deleted and available to order as a free flow option.)	Standard
Differential, heavy-duty locking rear	Standard
GVWR, 10,400 lbs. (4717 kg) with single rear wheels (STD) (Requires C35903 and (L96) Vortec 6.0L V8 SFI engine or (LC8) 6.0L V8 SFI Gaseous engine.)	Standard
Cooling, external engine oil cooler	Standard
Recovery hooks, front, frame-mounted, black	Standard
Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)	Standard
Chassis, single rear wheel	Standard
Cooling, auxiliary external transmission oil cooler	Standard
Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)	Standard
Frame, fully-boxed, hydroformed front section	Standard
Air cleaner, high-capacity	Standard
Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power	Standard
Pickup box (STD)	Standard
Steering, Recirculating ball with smart flow power steering system	Standard
Rear axle, 4.10 ratio (Requires (L96) Vortec 6.0L V8 SFI engine or (LC8) 6.0L V8 SFI Gaseous CNG (Compressed Natural Gas) engine.)	Standard
Engine, Vortec 6.0L Variable Valve Timing V8 SFI E85-compatible, FlexFuel capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm, 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD) (Does not include E85 capability with (ZW9) pickup box delete.)	Standard
Rear wheel drive	Standard
Transmission, 6-speed automatic, heavy-duty, electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD) (Requires (L96) Vortec 6.0L V8 SFI engine or (LC8) 6.0L V8 SFI Gaseous CNG (Compressed Natural Gas) engine.)	Standard
Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Will be deleted if (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)	Standard
Exhaust, aluminized stainless-steel muffler and tailpipe	Standard
Alternator, 150 amps	Standard

Air bags, frontal, driver and right front passenger, single stage (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)	Standard
Air bag deactivation switch, frontal passenger-side (On Double Cab and Regular Cab models only.)	Standard
StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist	Standard
Daytime Running Lamps with automatic exterior lamp control	Standard
OnStar, delete also deletes driver information center compass.	Standard

Compare trims

Wondering which trim is right for you?

Our 2016 Chevrolet Silverado 3500 trim comparison will help you decide.

Front Wheel Size	18 x 8.0 in
Front Wheel Material	Steel
Rear Wheel Material	Steel
Spare Wheel Size	N/A in
Spare Wheel Material	N/A
Rear Wheel Size	18 x 8.0 in

Engine Type	Gas/Ethanol V8
Displacement	6.0L/366
SAE Net Torque @ RPM	380 @ 4200
SAE Net Horsepower @ RPM	360 @ 5400
Engine Oil Cooler	Yes

Suspension Type - Front	Independent
Suspension Type - Rear	Multi-Leaf
Axle Type - Front	Independent
Axle Type - Rear	Full-Floating

Fuel Tank Capacity, Approx	36.0 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Turning Diameter - Wall to Wall	N/A ft
Turning Diameter - Curb to Curb	45.9 ft
Steering Ratio (:1), Overall	N/A
Steering Type	Pwr Recirculating Ball

Cold Cranking Amps @ 0° F (Primary)	N/A
Maximum Alternator Capacity (amps)	150

Rear Tire Size	LT265/70R18E
Spare Tire Size	N/A
Front Tire Size	LT265/70R18E

Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB port and auxiliary jack (Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink. Dynamic guidelines not available on IO3.) (STD)	Standard
Audio system feature, 4-speaker system system	Standard
