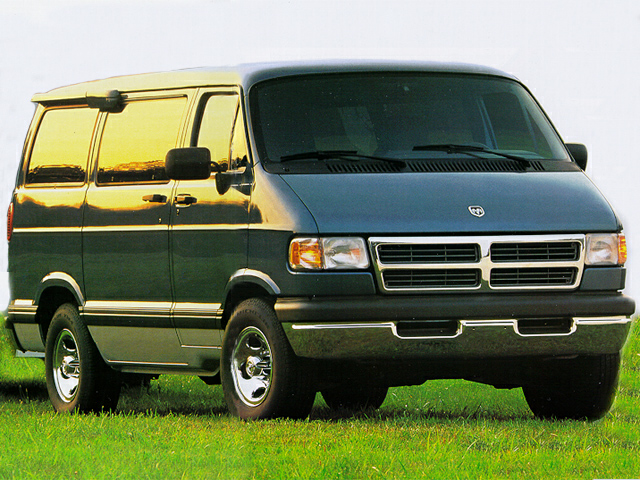

1999 Dodge Ram Wagon specs & colors
Full-size Passenger Van
Key specs
Color options
Interior
Camel / Tan
Mist Gray
Packages
$0
Starting MSRP
- base vehicle
Specifications
| Rear Door Type | Single-Hinged |
| Front Wheel Size | 15 x 6.5 in |
| Rear Wheel Size | 15 x 6.5 in |
| Rear Wheel Material | Steel |
| Spare Wheel Material | Steel |
| Spare Wheel Size | 15 x 6.5 in |
| Front Wheel Material | Steel |
| Maximum Alternator Capacity (amps) | 117 |
| Cold Cranking Amps @ 0° F (Primary) | 600 |
| Displacement | 3.9L/239 |
| SAE Net Torque @ RPM | 230 @ 3200 |
| Engine Type | Gas V6 |
| Engine Oil Cooler | Not Available |
| SAE Net Horsepower @ RPM | 175 @ 4800 |
| EPA Fuel Economy Est - Hwy | 16 MPG |
| EPA Fuel Economy Est - City | 15 MPG |
| Cruising Range - City | 480.00 mi |
| Fuel Economy Est-Combined | N/A MPG |
| Cruising Range - Hwy | 512.00 mi |
| Estimated Battery Range | N/A mi |
| Trans Description Cont. Again | Electronic |
| Reverse Ratio (:1) | 2.20 |
| Trans Power Take Off | Not Available |
| Trans Description Cont. | Automatic, |
| First Gear Ratio (:1) | 2.74 |
| Trans Type | 3 |
| Second Gear Ratio (:1) | 1.54 |
| Transfer Case Gear Ratio (:1), Low | Not Available |
| Transfer Case Gear Ratio (:1), High | Not Available |
| Transfer Case Model | Not Available |
| Third Gear Ratio (:1) | 1.00 |
| Final Drive Axle Ratio (:1) | N/A |
| Transfer Case Power Take Off | Not Available |
| Drivetrain | Rear Wheel Drive |
| Suspension Type - Front | Independent Coil |
| Axle Type - Front | Independent |
| Axle Type - Rear | Semi-floating |
| Suspension Type - Rear | Multi-Leaf |
| Frame Type | Unitized Construction |
| Side Door Type | RH Dual Swing-Out |
| Drum - Rear (Yes or ) | Yes |
| Rear Brake Rotor Diam x Thickness | Not Available in |
| Brake Type | Power |
| Disc - Front (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 11.75 x 1.25 in |
| Disc - Rear (Yes or ) | Not Available |
| Brake ABS System (Second Line) | Not Available |
| Brake ABS System | Rear |
| Aux Fuel Tank Capacity, Approx | Not Available gal |
| Fuel Tank Capacity, Approx | 32 gal |
| Turning Diameter - Curb to Curb | 40.5 ft |
| Steering Type | Power |
| Turning Diameter - Wall to Wall | N/A ft |
| Steering Ratio (:1), Overall | N/A |
| Front Tire Size | P235/75R15 |
| Spare Tire Size | P235/75R15 |
| Rear Tire Size | P235/75R15 |
| Fifth Wheel Hitch - Max Tongue Wt. | Not Available lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | Not Available lbs |
| Dead Weight Hitch - Max Tongue Wt. | 200 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 800 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 5600 lbs |
| Maximum Trailering Capacity | N/A lbs |
| Dead Weight Hitch - Max Trailer Wt. | 2000 lbs |
| Gross Combined Wt Rating | 8800 lbs |
| Option Weight - Front | 0.00 lbs |
| As Spec'd Payload | 2041.00 lbs |
| Curb Weight | 4559.00 lbs |
| Gross Axle Weight Rating | 7250.00 lbs |
| Total Option Weight | 0.00 lbs |
| Option Weight - Rear | 0.00 lbs |
| Gross Vehicle Weight Rating | 6600.00 lbs |
| As Spec'd Curb Weight | 4559.00 lbs |
| Curb Weight - Rear | 1924 lbs |
| Base Curb Weight | N/A lbs |
| Curb Weight - Front | 2635 lbs |
| Maximum Payload Capacity | 2041.00 lbs |
| Cargo Volume | N/A ft³ |
| Ground to Top of Load Floor | 25.3 in |
| Ground Clearance, Rear | 7.7 in |
| Passenger Capacity | 8 |
| Tailgate Width | N/A in |
| Third Shoulder Room | 66.3 in |
| Overhang, Rear w/o bumper | N/A in |
| Length, Overall w/rear bumper | 192.6 in |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Cargo Area Length @ Floor to Seat 3 | 21.8 in |
| Wheelbase | 109.3 in |
| Front Hip Room | 65.7 in |
| Rear Door Opening Width | 50.6 in |
| Side Door Opening Height | 54.6 in |
| Cargo Volume to Seat 3 | 44.1 ft³ |
| Step Up Height - Front | 19.2 in |
| Overhang, Front | 38.3 in |
| Cargo Box Width @ Wheelhousings | 50.0 in |
| Second Shoulder Room | 66.3 in |
| Step Up Height - Side | 16.7 in |
| Cargo Volume to Seat 2 | N/A ft³ |
| Width, Max w/o mirrors | 78.8 in |
| Cab to End of Frame | N/A in |
| Front Leg Room | 39.0 in |
| Cargo Volume to Seat 4 | Not Available ft³ |
| Height, Overall | 80.1 in |
| Cargo Area Length @ Floor to Console | 124.8 in |
| Cargo Volume to Seat 1 | 209.3 ft³ |
| Second Leg Room | 40.6 in |
| Third Hip Room | 66.5 in |
| Ground Clearance, Front | 7.7 in |
| Cargo Box Width @ Floor | N/A in |
| Second Head Room | 39.2 in |
| Front Shoulder Room | 65.7 in |
| Cargo Area Length @ Floor to Seat 2 | 55.8 in |
| Third Leg Room | 40.6 in |
| Length, Overall | N/A in |
| Front Head Room | 38.9 in |
| Third Head Room | 40.0 in |
| Cargo Box (Area) Height | 53.0 in |
| Rear Door Opening Height | 48.7 in |
| Cargo Box Width @ Top, Rear | N/A in |
| Cargo Area Width @ Beltline | 76.9 in |
| Second Hip Room | 65.5 in |
| Side Door Opening Width | 50.6 in |
| Cargo Area Length @ Floor to Seat 1 | 84.7 in |
| Electronic AM/FM stereo radio w/cassette-inc: 6-speakers, digital clock | Standard |
| City 15/hwy 16 (3.9L engine/3-speed auto trans) | Standard |
| 6600# GVWR (3400 front/3850 rear), springs (3400 front/3850 rear) axles (3400 front/3850 rear) | Standard |
| Instrumentation-inc: engine temp/oil pressure/voltmeter gauges | Standard |
| Dual black 6" x 9" mirrors | Standard |
| 600-CCA maintenance-free battery | Standard |
| Rear wheel anti-lock brakes | Standard |
| 109" wheelbase | Standard |
| Dash liner insulation | Standard |
| Spare tire carrier & winch | Standard |
| Underhood lamp | Standard |
| Forward storage console-inc: 2-cupholders/storage bins, storage compartment | Standard |
| Day/night rearview mirror | Standard |
| 3.9L (239) SMPI V6 Magnum engine | Standard |
| Map/dome/glovebox lamps | Standard |
| Dual vinyl sun visor | Standard |
| HD indepented front/multi-leaf spring rear suspension | Standard |
| Hinged single rear door-inc: vented glass | Standard |
| Full-length carpeting | Standard |
| Rear-wheel drive | Standard |
| Variable intermittent windshield wipers | Standard |
| Stainless steel exhaust system | Standard |
| Pwr front disc/rear drum brakes | Standard |
| Driver/front passenger "Next Generation" air bags | Standard |
| Front air conditioning | Standard |
| P235/75R15 all-season SBR BSW tires | Standard |
| Halogen headlamps | Standard |
| Cigar lighter | Standard |
| HD front/rear shock absorbers | Standard |
| Rear wheel anti-lock brakes | Standard |
| Front stabilizer bar | Standard |
| Premium cloth seat trim | Standard |
| City 13/hwy 19 (5.2L engine/4-speed auto trans) | Standard |
| (4) 15" x 7.0" steel wheels w/chrome center caps | Standard |
| Sport steering wheel | Standard |
| Full size spare tire | Standard |
| Deluxe headliner | Standard |
| Impact absorbing steering column | Standard |
| Color-keyed 3-point height adjustable shoulder/lap seat belts for front seats/ driver side bench seats, color-keyed lap belt for other bench positions | Standard |
| 32 gallon fuel tank | Standard |
| Warning indicators-inc: low washer fluid, maintenance, brakes, ABS, oil level | Standard |
| Pwr steering | Standard |
| Door sill scuff pads | Standard |
| 117-amp alternator | Standard |
| Tinted glass | Standard |
| Steel side-impact front door guard beams | Standard |
| Tilt steering column | Standard |
| 3-speed automatic transmission | Standard |
| 8-passenger seating-inc: dual reclining front bucket seats, (2) 3-passenger rear bench seats | Standard |
| 3.55 axle ratio | Standard |
| Aux 12-volt pwr outlet | Standard |
