1997 Ford Club Wagon XL specs & colors

Full-size Passenger Van

Change trim
MSRP
Reg 138" WB XL Plus
$21,755
Reg 138" WB XL
$21,755
Reg 138" WB XLT
$23,700
HD Reg 138" WB XL
$24,640
HD Reg 138" WB XL Plus
$24,640
Super 138" WB XL
$26,355
Super 138" WB XL Plus
$26,355
HD Reg 138" WB XLT
$26,510
Super 138" WB XLT
$27,325
$21,755
Starting MSRP
Current listing price

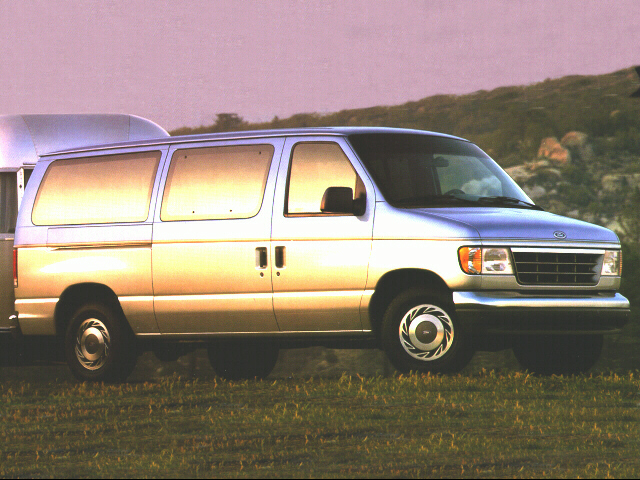

1997 Ford Club Wagon XL

Showing the 1997 Ford Club Wagon Reg 138" WB XL

Shop Now

Key specs

Color options

Interior
Crystal Blue
Mocha
Graphite

Packages

  • $0

    Starting MSRP

    • base vehicle

Specifications

Highlights

Gas V6
Engine Type
14 City / 18 Hwy
MPG
235 hp
200 hp
215 hp
Horsepower
8
Seating Capacity

Brakes

Yes
Drum - Rear (Yes or )
11.72 x 0.38 in
Front Brake Rotor Diam x Thickness
Not Available
Brake ABS System (Second Line)
Four Wheel
Brake ABS System
Not Available in
Rear Brake Rotor Diam x Thickness
Yes
Disc - Front (Yes or )
Power
Brake Type
Not Available
Disc - Rear (Yes or )

Electrical

650
Cold Cranking Amps @ 0° F (Primary)
95
Maximum Alternator Capacity (amps)

Engine

Gas V6
Engine Type
200 @ 4800
SAE Net Horsepower @ RPM
250 @ 2800
SAE Net Torque @ RPM
4.2L/256
Displacement
A/T
4-Speed A/T
Transmission Options
14 City / 18 Hwy
MPG
23.3 qts
Total Cooling System Capacity

Measurements

N/A
Cargo Volume to Seat 3
48 in
Side Door Opening Height
43 in
Front Head Room
48 in
Rear Door Opening Height
71 in
Third Hip Room
71 in
Second Shoulder Room
66 in
Front Hip Room
N/A
Cargo Box Width @ Top, Rear
N/A
Cargo Area Length @ Floor to Seat 3
67 in
Second Hip Room
51 in
Cargo Box Width @ Wheelhousings
N/A
Cargo Box Width @ Floor
N/A
Step Up Height - Front
N/A
Cargo Area Length @ Floor to Console
47 in
Side Door Opening Width
N/A
Length, Overall
79 in
Width, Max w/o mirrors
N/A
Cargo Volume to Seat 4
N/A
Cargo Area Width @ Beltline
68 in
Front Shoulder Room
40 in
Second Head Room
N/A
Overhang, Rear w/o bumper
84 in
Height, Overall
41 in
Third Leg Room
N/A
Ext'd Cab Cargo Volume
36 in
Second Leg Room
N/A
Cargo Area Length @ Floor to Seat 2
40 in
Third Head Room
27 in
Ground to Top of Load Floor
7 in
Ground Clearance, Rear
N/A
Cargo Volume
7 in
Ground Clearance, Front
N/A
Step Up Height - Side
138 in
Wheelbase
40 in
Front Leg Room
53 in
Cargo Box (Area) Height
N/A
Cargo Volume to Seat 2
8
Passenger Capacity
121 in
Cargo Area Length @ Floor to Seat 1
71 in
Third Shoulder Room
N/A
Tailgate Width
261 ft³
Cargo Volume to Seat 1
55 in
Rear Door Opening Width
N/A
Cab to End of Frame
212 in
Length, Overall w/rear bumper
30 in
Overhang, Front

Steering

49 ft
Turning Diameter - Wall to Wall
47 ft
Turning Diameter - Curb to Curb
Power
Steering Type
N/A
Steering Ratio (:1), Overall

Suspension

Coil
Suspension Type - Front
Ford Semi-Floating
Axle Type - Rear
Twin-I-Beam
Axle Type - Front
2-Stage Multi-Leaf
Suspension Type - Rear

Tires & Wheels

Steel
Front Wheel Material
Steel
Rear Wheel Material
P235/75R15XL
Spare Tire Size
15 x 6.0 in
Rear Wheel Size
15 x 6.0 in
Front Wheel Size
P235/75R15XL
Front Tire Size
P235/75R15XL
Rear Tire Size
Steel
Spare Wheel Material
15 x 6.0 in
Spare Wheel Size

Weight & Capacity

Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
35 gal
Fuel Tank Capacity, Approx
N/A
Base Curb Weight
5,077 lbs
Curb Weight
Not Available gal
Aux Fuel Tank Capacity, Approx
9,000 lbs
Gross Combined Wt Rating
3,500 lbs
Dead Weight Hitch - Max Trailer Wt.
1,923 lbs
As Spec'd Payload
3,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
7,400 lbs
Gross Axle Weight Rating
350 lbs
Wt Distributing Hitch - Max Tongue Wt.
1,923 lbs
Maximum Payload Capacity
N/A
Maximum Trailering Capacity
0 lbs
Option Weight - Rear
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
350 lbs
Dead Weight Hitch - Max Tongue Wt.
5,077 lbs
As Spec'd Curb Weight
7,000 lbs
Gross Vehicle Weight Rating
2,354 lbs
Curb Weight - Rear
2,723 lbs
Curb Weight - Front
0 lbs
Option Weight - Front
0 lbs
Total Option Weight
