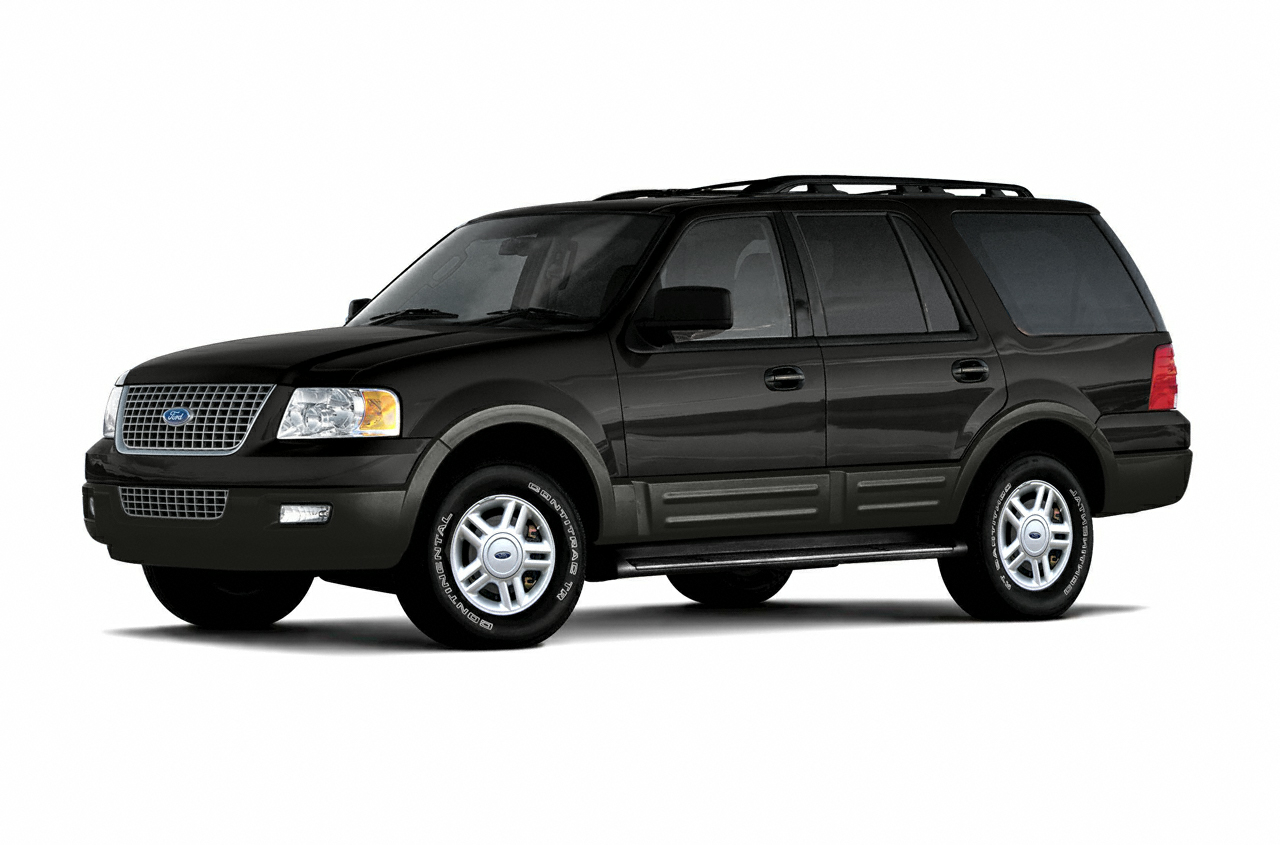

2005 Ford Expedition XLS specs & colors
Sport Utility
Change trim
MSRP
- 5.4L XLS $33,455
- 5.4L XLT $35,505
- 5.4L XLS 4WD $36,055
- 5.4L XLT Sport $36,365
- 5.4L XLT 4WD $38,285
- 5.4L NBX 4WD *Ltd Avail* $38,745
- 5.4L XLT Sport 4WD $39,145
- 5.4L Eddie Bauer $39,720
- 5.4L Limited $41,640
- 5.4L Eddie Bauer 4WD $42,905
- 5.4L King Ranch $43,155
- 5.4L Limited 4WD $44,825
- 5.4L King Ranch 4WD $46,340
Key specs
Color options
Interior
Medium Tan
Packages
$0
Starting MSRP
Specifications
| Rear Door Type | Liftgate |
| Rear Wheel Material | Steel |
| Front Wheel Material | Steel |
| Spare Wheel Material | Steel |
| Rear Wheel Size | 17 x 7.5 in |
| Front Wheel Size | 17 x 7.5 in |
| Spare Wheel Size | 17 x 7.5 in |
| Cold Cranking Amps @ 0° F (Primary) | 650 |
| Maximum Alternator Capacity (amps) | 110 |
| SAE Net Horsepower @ RPM | 300 @ 5000 |
| Displacement | 5.4L/330 |
| Engine Type | Gas V8 |
| SAE Net Torque @ RPM | 365 @ 3750 |
| Engine Oil Cooler | Yes |
| Cruising Range - City | 392.00 mi |
| EPA Fuel Economy Est - Hwy | 19 MPG |
| EPA Fuel Economy Est - City | 14 MPG |
| Estimated Battery Range | N/A mi |
| Fuel Economy Est-Combined | N/A MPG |
| Cruising Range - Hwy | 532.00 mi |
| First Gear Ratio (:1) | 2.84 |
| Second Gear Ratio (:1) | 1.55 |
| Final Drive Axle Ratio (:1) | N/A |
| Third Gear Ratio (:1) | 1.00 |
| Transfer Case Model | Not Available |
| Trans Type | 4 |
| Reverse Ratio (:1) | 2.32 |
| Trans Description Cont. | Automatic w/OD |
| Transfer Case Gear Ratio (:1), Low | Not Available |
| Transfer Case Gear Ratio (:1), High | Not Available |
| Fourth Gear Ratio (:1) | 0.70 |
| Trans Power Take Off | Not Available |
| Trans Description Cont. Again | Not Available |
| Transfer Case Power Take Off | Not Available |
| Drivetrain | Rear Wheel Drive |
| Suspension Type - Rear | Coil Spring |
| Axle Type - Front | Double Wishbone |
| Axle Type - Rear | Independent |
| Suspension Type - Front | Coil Spring |
| Frame Type | Front-to-Rear Boxed |
| Side Door Type | Not Available |
| Disc - Rear (Yes or ) | Yes |
| Drum - Rear (Yes or ) | Not Available |
| Front Brake Rotor Diam x Thickness | 13.0 x 1.18 in |
| Brake ABS System | 4-Wheel |
| Brake ABS System (Second Line) | Not Available |
| Brake Type | Power |
| Disc - Front (Yes or ) | Yes |
| Rear Brake Rotor Diam x Thickness | 13.5 x 0.9 in |
| Aux Fuel Tank Capacity, Approx | Not Available gal |
| Fuel Tank Capacity, Approx | 28 gal |
| Turning Diameter - Wall to Wall | 40.5 ft |
| Steering Ratio (:1), Overall | N/A |
| Steering Type | Variable Pwr Rack & Pinion |
| Turning Diameter - Curb to Curb | 39.2 ft |
| Spare Tire Size | P265/70R17 |
| Rear Tire Size | P265/70R17 |
| Front Tire Size | P265/70R17 |
| Fifth Wheel Hitch - Max Tongue Wt. | N/A lbs |
| Maximum Trailering Capacity | N/A lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | N/A lbs |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 600 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 6000 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Gross Axle Weight Rating | 7278.00 lbs |
| Maximum Payload Capacity | 1748.00 lbs |
| Option Weight - Rear | 0.00 lbs |
| Total Option Weight | 0.00 lbs |
| Curb Weight - Rear | 2732 lbs |
| Gross Vehicle Weight Rating | 7100.00 lbs |
| Option Weight - Front | 0.00 lbs |
| Curb Weight - Front | 2620 lbs |
| As Spec'd Curb Weight | 5352.00 lbs |
| As Spec'd Payload | 1748.00 lbs |
| Base Curb Weight | N/A lbs |
| Curb Weight | 5352.00 lbs |
| Gross Combined Wt Rating | 11800 lbs |
| Third Leg Room | 36.3 in |
| Side Door Opening Width | Not Available in |
| Second Shoulder Room | 64.3 in |
| Ground to Top of Load Floor | 33.5 in |
| Ground Clearance, Rear | 9.3 in |
| Tailgate Width | N/A in |
| Width, Max w/o mirrors | 78.7 in |
| Overhang, Rear w/o bumper | N/A in |
| Cargo Area Length @ Floor to Seat 2 | 44.7 in |
| Cargo Volume | N/A ft³ |
| Cargo Area Length @ Floor to Seat 3 | N/A in |
| Cargo Box Width @ Wheelhousings | 50.9 in |
| Step Up Height - Side | Not Available in |
| Cargo Box Width @ Top, Rear | N/A in |
| Length, Overall | N/A in |
| Cargo Box (Area) Height | N/A in |
| Second Hip Room | 62.4 in |
| Rear Door Opening Width | 57.0 in |
| Cargo Area Length @ Floor to Console | Not Available in |
| Length, Overall w/rear bumper | 205.8 in |
| Front Shoulder Room | 63.4 in |
| Cargo Volume to Seat 4 | Not Available ft³ |
| Cargo Volume to Seat 2 | 60.9 ft³ |
| Step Up Height - Front | N/A in |
| Third Shoulder Room | 60.1 in |
| Third Hip Room | 54.5 in |
| Second Head Room | 39.8 in |
| Wheelbase | 119.0 in |
| Third Head Room | 38.2 in |
| Cargo Volume to Seat 1 | 110.5 ft³ |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Cargo Box Width @ Floor | N/A in |
| Rear Door Opening Height | 35.5 in |
| Cargo Volume to Seat 3 | 20.7 ft³ |
| Passenger Capacity | 9 |
| Front Hip Room | 63.0 in |
| Side Door Opening Height | Not Available in |
| Cab to End of Frame | N/A in |
| Front Head Room | 39.7 in |
| Ground Clearance, Front | 9.6 in |
| Second Leg Room | 38.7 in |
| Overhang, Front | 38.6 in |
| Cargo Area Width @ Beltline | N/A in |
| Cargo Area Length @ Floor to Seat 1 | 82.8 in |
| Front Leg Room | 41.2 in |
| Height, Overall | 76.7 in |
| Color-keyed cloth headliner | Standard |
| Cup holders-inc: (2) instrument panel, (4) door trim panels, (4) 3rd row quarter trim panels | Standard |
| Rear liftgate w/flip-up glass | Standard |
| Variable assist pwr rack & pinion steering | Standard |
| Color-keyed cloth sunvisors w/auxiliary visors | Standard |
| Double wishbone front suspension w/coil-over shock | Standard |
| Pwr accessory delay | Standard |
| Floor carpeting | Standard |
| Engine block heater *Standard on non-fleet vehicles in AK, MN, ND, SD, MT, WI & WY* | Standard |
| Beltminder system-inc: buckle pretensioners, load-limiting retractors | Standard |
| Roof rails | Standard |
| Cigarette lighter | Standard |
| Coat hooks-inc: (2) second row, (2) 3rd row | Standard |
| Concealed antenna in RH quarter glass | Standard |
| 110-amp alternator | Standard |
| Front/rear stabilizer bars | Standard |
| Privacy glass | Standard |
| 4-wheel anti-lock braking system w/brake assist | Standard |
| 3350# capacity front axle/4128# capacity rear axle | Standard |
| Analog instrumentation-inc: voltmeter, oil pressure, water temp, tachometer | Standard |
| SecuriLock passive anti-theft system | Standard |
| 3-point safety belts on all outboard seats-inc: 1st/2nd row height-adjustable anchors | Standard |
| 17" x 7.5" steel wheels | Standard |
| City 14/hwy 19 (5.4L engine/4-speed auto trans) | Standard |
| Premium AM/FM stereo w/CD/cassette-inc: speed-compensated volume control, (4) speakers, RDS, clock, partial mute, 120-watt amp | Standard |
| 3.31 axle ratio | Standard |
| Pwr windows w/driver one-touch-down | Standard |
| Front & rear door map pockets | Standard |
| Integrated Class III trailer towing receiver-inc: 4-pin connector | Standard |
| (5) P265/70R17 all-season BSW tires | Standard |
| Cloth 3rd row 60/40 split bench seat-inc: fold flat feature | Standard |
| Head restraints at all outboard seating positions | Standard |
| Side intrusion door beams | Standard |
| Pwr 4-wheel disc brakes | Standard |
| 4-wheel anti-lock braking system w/brake assist | Standard |
| 5.4L SOHC SEFI 24-valve V8 engine | Standard |
| Cloth 60/40 split front bench seat-inc: 6-way pwr driver seat, dual manual lumbar, manual recline | Standard |
| Independent rear suspension | Standard |
| Cruise control | Standard |
| Warning lights-inc: door ajar, fasten seat belts, anti-lock brakes, cruise control, airbag, engine check, high beams, parking brake, low fuel/washer fluid, turn signal, charge system, OD off, check gauges | Standard |
| Lights-inc: glove box, front door approach, front dome/map, rear cargo, illuminated entry, theater lighting | Standard |
| Steel spare wheel | Standard |
| Speed-sensitive intermittent windshield wipers | Standard |
| Day/night rearview mirror | Standard |
| 28 gallon fuel tank | Standard |
| Ashtray mounted on instrument panel w/light | Standard |
| Pwr door locks-inc: auto lock | Standard |
| Rear wheel drive | Standard |
| Rear window defroster | Standard |
| Rear window intermittent wiper w/washer | Standard |
| Locking glove box | Standard |
| LATCH system on rear outboard seats | Standard |
| Child-proof rear door locks | Standard |
| 4-speed automatic transmission w/OD | Standard |
| Painted body-color upper/Medium Dark Platinum lower bumpers | Standard |
| Cloth 2nd row 40/20/40 split bench seat-inc: sliding center portion, recline & fold flat feature, carpeted seatbacks, easy-entry to 3rd row feature | Standard |
| Maintenance-free battery w/battery saver feature | Standard |
| Pwr point on instrument panel | Standard |
| Tilt steering column | Standard |
| Black pwr mirrors w/security approach lamps | Standard |
| Rear seat heat ducts | Standard |
| Assist handles-inc: color-keyed (2) front passengers, (2) second row | Standard |
| Medium Dark platinum grille | Standard |
| Medium Dark Platinum lower body-side cladding | Standard |
| Cargo area pwr point | Standard |
| Front dual-stage airbags-inc: driver seat position & crash severity sensing | Standard |
| Complex reflector headlamps w/autolamp feature | Standard |
| Manual air conditioning | Standard |
