2009 Ford Expedition XLT specs & colors

Starting MSRP
Current listing price

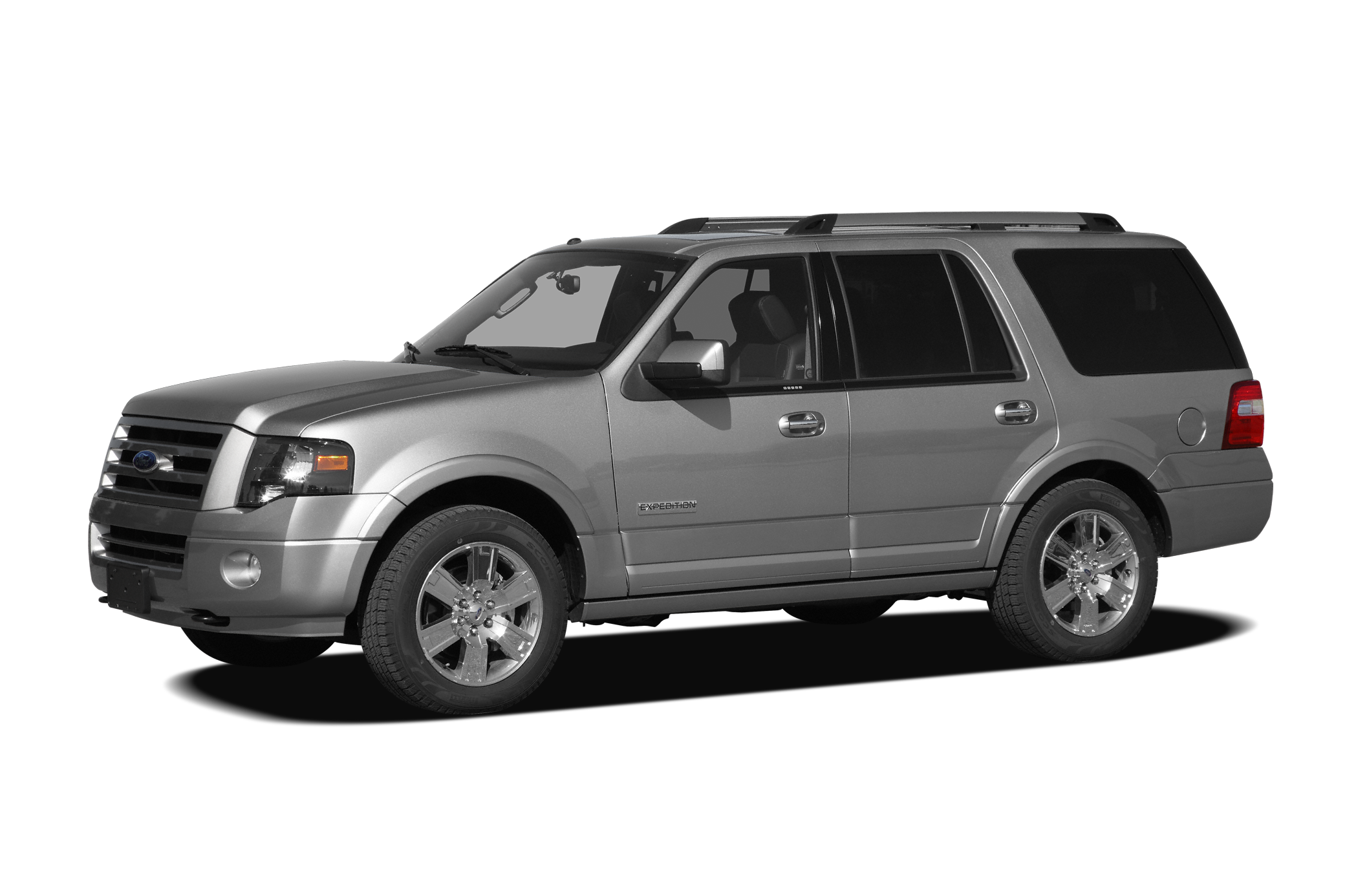

Showing the 2009 Ford Expedition 2WD 4dr XLT

Shop Now

Key specs

Color options


Charcoal Black

Taupe / Pearl Beige

Charcoal black

Medium light stone





Starting MSRP


Rear Door Type Liftgate

Front Wheel Material Aluminum
Rear Wheel Size 17 x 8.0 in
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Spare Wheel Size 17 x 8.0 in
Front Wheel Size 17 x 8.0 in

Maximum Alternator Capacity (amps) 150
Cold Cranking Amps @ 0° F (Primary) 650

Engine Type FFV V8
Engine Oil Cooler Not Available
Displacement 5.4L/330
SAE Net Horsepower @ RPM 310 @ 5100
SAE Net Torque @ RPM 365 @ 3600

EPA Fuel Economy Est - City 14 MPG
Fuel Economy Est-Combined 16 MPG
EPA Fuel Economy Est - Hwy 20 MPG
Cruising Range - City 392.00 mi
Estimated Battery Range N/A mi
Cruising Range - Hwy 560.00 mi

Trans Description Cont. Automatic w/OD
Sixth Gear Ratio (:1) 0.69
Trans Description Cont. Again Not Available
Drivetrain Rear Wheel Drive
Transfer Case Model Not Available
Transfer Case Gear Ratio (:1), High Not Available
Third Gear Ratio (:1) 1.52
Fifth Gear Ratio (:1) 0.86
Trans Type 6
Transfer Case Gear Ratio (:1), Low Not Available
First Gear Ratio (:1) 4.17
Transfer Case Power Take Off Not Available
Fourth Gear Ratio (:1) 1.14
Second Gear Ratio (:1) 2.34
Trans Power Take Off Not Available
Reverse Ratio (:1) 3.40
Final Drive Axle Ratio (:1) N/A

Suspension Type - Front Double Wishbone
Suspension Type - Rear Multi-Link
Axle Type - Front Independent
Axle Type - Rear Independent

Frame Type Fully Boxed

Side Door Type N/A

Brake ABS System (Second Line) Not Available
Brake Type Pwr
Front Brake Rotor Diam x Thickness 13.0 x -TBD- in
Brake ABS System 4-Wheel
Disc - Front (Yes or ) Yes
Drum - Rear (Yes or ) Not Available
Disc - Rear (Yes or ) Yes
Rear Brake Rotor Diam x Thickness 13.5 x -TBD- in

Fuel Tank Capacity, Approx 28 gal
Aux Fuel Tank Capacity, Approx Not Available gal

Turning Diameter - Curb to Curb 40.83 ft
Steering Type Variable Pwr Rack & Pinion
Turning Diameter - Wall to Wall 42.16 ft
Steering Ratio (:1), Overall N/A

Front Tire Size P265/70R17
Rear Tire Size P265/70R17
Spare Tire Size P265/70R17

Dead Weight Hitch - Max Tongue Wt. 500 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Fifth Wheel Hitch - Max Trailer Wt. Not Available lbs
Wt Distributing Hitch - Max Trailer Wt. 6000 lbs
Wt Distributing Hitch - Max Tongue Wt. 600 lbs
Fifth Wheel Hitch - Max Tongue Wt. Not Available lbs
Maximum Trailering Capacity N/A lbs

Curb Weight 5569.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Payload 1731.00 lbs
Gross Vehicle Weight Rating 7300.00 lbs
Maximum Payload Capacity 1731.00 lbs
As Spec'd Curb Weight 5569.00 lbs
Base Curb Weight N/A lbs
Option Weight - Front 0.00 lbs
Curb Weight - Front 2778 lbs
Gross Combined Wt Rating 11800 lbs
Total Option Weight 0.00 lbs
Gross Axle Weight Rating 7750.00 lbs
Curb Weight - Rear 2791 lbs

Overhang, Front 39.2 in
Front Shoulder Room 63.2 in
Length, Overall N/A in
Rear Door Opening Width 56.7 in
Cargo Area Length @ Floor to Seat 1 82.5 in
Second Shoulder Room 63.7 in
Cab to End of Frame N/A in
Third Shoulder Room Not Available in
Third Hip Room Not Available in
Step Up Height - Side N/A in
Front Leg Room 41.1 in
Length, Overall w/rear bumper 206.5 in
Second Leg Room 39.1 in
Front Hip Room 60.2 in
Step Up Height - Front N/A in
Third Head Room Not Available in
Cargo Box Width @ Floor N/A in
Cargo Volume to Seat 3 Not Available ft³
Ground to Top of Load Floor 34.4 in
Cargo Volume N/A ft³
Wheelbase 119.0 in
Third Leg Room Not Available in
Cargo Box (Area) Height N/A in
Cargo Volume to Seat 1 108.3 ft³
Height, Overall 77.2 in
Cargo Box Width @ Wheelhousings 49.2 in
Cargo Box Width @ Top, Rear N/A in
Rear Door Opening Height 34.6 in
Cargo Volume to Seat 2 55.0 ft³
Cargo Area Width @ Beltline N/A in
Passenger Capacity 5
Overhang, Rear w/o bumper N/A in
Cargo Area Length @ Floor to Console N/A in
Tailgate Width N/A in
Side Door Opening Height N/A in
Front Head Room 39.6 in
Cargo Volume to Seat 4 Not Available ft³
Ext'd Cab Cargo Volume N/A ft³
Side Door Opening Width N/A in
Ground Clearance, Front 8.7 in
Ground Clearance, Rear 8.7 in
Cargo Area Length @ Floor to Seat 3 Not Available in
Cargo Area Length @ Floor to Seat 2 44.4 in
Second Head Room 39.8 in
Width, Max w/o mirrors 78.8 in
Second Hip Room 59.9 in

Tire pressure monitoring system (TPMS) Standard
Rear wheel drive Standard
Pwr door locks w/auto lock Standard
Side intrusion door beams Standard
Rear seat heat ducts Standard
Rear window defogger Standard
Independent multi-link rear suspension Standard
SecuriLock remote keyless entry -inc: (2) key fobs, illum entry Standard
Cruise control Standard
Rainlamp feature Standard
4-wheel pwr disc brakes w/anti-lock & brake assist Standard
Pwr windows w/driver one-touch-down Standard
AM/FM stereo w/CD player -inc: (6) speakers, 160-watt amp, speed-compensated volume, RDS, partitioned audio, rear seat controls, MP3 capability Standard
SOS Post Crash Alert System Standard
Chrome rear license plate brow Standard
2nd & 3rd row coat hooks Standard
Cargo area pwr point Standard
Carpeted floor mats for 1st/2nd row Optional
Concealed antenna in RH quarter glass Standard
Rear outboard 3-point seat belts Standard
Maintenance-free battery w/battery saver feature Standard
Painted body-color bumpers Standard
Cloth low back front captains chairs -inc: 6-way pwr driver seat w/adjustable lumbar, 2-way adjustable headrests Standard
Fog lamps Standard
Variable assist pwr rack & pinion steering -inc: cooler Standard
Body-color wheel lip molding Standard
6-speed automatic transmission w/OD Standard
5.4L SOHC 24-valve V8 FFV engine Standard
Warning lights -inc: door/liftgate ajar, fasten seat belts, anti-lock brakes, cruise control, engine check, charge system, air bag, high beams, parking brake, TPMS, fuel cap, low fuel/washer fluid, turn signal, OD off, check gauges, suspension system, brake fluid gauge Standard
Tilt steering column Standard
Front/rear stabilizer bars Standard
Front 3-point seat belts -inc: adjustable shoulder harness, load limiting retractors, pretensioners, usage sensors Standard
Cloth 2nd row 40/20/40 split bench seat -inc: CenterSlide, recline, fold flat feature, carpeted seatbacks Optional
Speed-sensitive intermittent windshield wipers Standard
Color-keyed cloth headliner Standard
Privacy glass Standard
Double wishbone front suspension w/coil-over shock Standard
Head restraints at all outboard seating positions Standard
Chrome door handles Optional
Lights -inc: glove box, front door approach, rear cargo, 2nd row map lights, illuminated entry, theater lighting Standard
Perimeter alarm system Standard
Beltminder system Standard
Chrome grille Optional
Assist handles -inc: color-keyed (2) front passengers, (2) second row Standard
3.31 axle ratio Optional
Body-color lower body-side cladding Standard
SecuriCode keyless entry keypad Standard
Integrated Class IV trailer towing receiver -inc: 4-pin connector Standard
Pwr accessory delay Standard
LATCH system on rear outboard seats Standard
Child safety locks on rear doors Standard
Color-keyed floor carpeting Optional
AdvanceTrac w/roll stability control (RSC) Standard
Black roof rails w/crossbars Standard
Black running boards Optional
Body-color front/rear fascias Standard
17" x 8.0" aluminum wheels Optional
Front skid plates Standard
Floor console -inc: storage bin, coinholder, rear passenger audio controls, headphone jacks, tissue holder, padded cover, front/rear pwr points, auxiliary HVAC controls, pen holder, auxiliary audio input jack Optional
P265/70R17 all-season BSW tires -inc: 17" all-season BSW spare Optional
Complex reflector headlamps -inc: autolamp feature Standard
17" spare tire w/steel wheel Standard
Manual air conditioning -inc: aux rear climate controls Standard
Color-keyed leather-wrapped steering wheel w/cruise controls Standard
Cup holders -inc: (2) front/(2) rear in front console, (2) door trim panels, (3) rear quarter trim panels Optional
Safety Canopy Standard
Black instrument panel -inc: cigarette lighter, pwr point w/cap Standard
Engine block heater *Standard on non-fleet vehicles in AK, MN, ND, SD, MT, WI & WY* Optional
150-amp alternator Standard
Personal safety system -inc: crash severity sensor, dual-stage front airbags, airbag position sensor Standard
Front/rear door map pockets Standard
3rd row storage bin Standard
Analog instrumentation -inc: voltmeter, oil pressure, water temp, tachometer Standard
Overhead console -inc: map lights, sunglass holder, conversation mirror Standard
Electrochromic rearview mirror Standard
SecuriLock passive anti-theft system Standard
Color-keyed cloth sunvisors -inc: aux visors, dual illuminated mirrors Standard
Black pwr heated mirrors w/security approach lamps Standard
Rear liftgate w/flip-up glass Standard
Rear window intermittent wiper w/washer Standard
