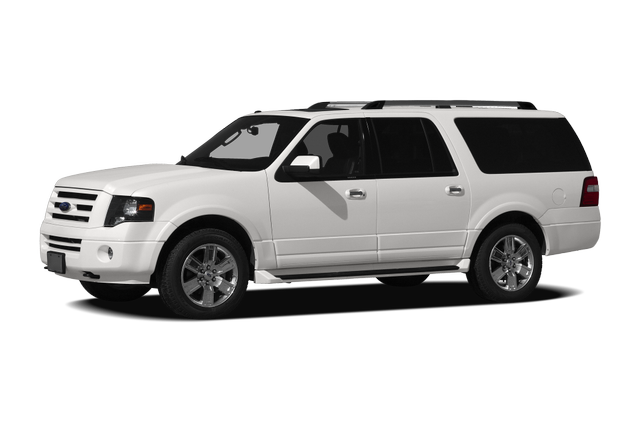

2012 Ford Expedition EL XL specs & colors
Sport Utility
MSRP
- 2WD 4dr XL
- $40,055
- 2WD 4dr XLT
- $41,850
- 4WD 4dr XL
- $42,955
- 4WD 4dr XLT
- $44,750
- 2WD 4dr Limited
- $47,920
- 2WD 4dr King Ranch
- $49,430
- 4WD 4dr Limited
- $50,820
- 4WD 4dr King Ranch
- $52,330
Key specs
Color options
Interior
Taupe / Pearl Beige
Packages
$195
Starting MSRP
- 3rd row manual seat
- SIRIUS satellite radio
Specifications
Highlights
|
Gas/Ethanol V8
Engine Type
|
|
14 City / 20 Hwy
MPG
|
|
310 hp
Horsepower
|
|
8
Seating Capacity
|
Brakes
|
13.0 x 1.2 in
Front Brake Rotor Diam x Thickness
|
|
4-Wheel
Brake ABS System
|
|
Not Available
Drum - Rear (Yes or )
|
|
13.5 x 0.9 in
Rear Brake Rotor Diam x Thickness
|
|
Not Available
Brake ABS System (Second Line)
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
Pwr
Brake Type
|
Electrical
|
650
Cold Cranking Amps @ 0° F (Primary)
|
|
150
Maximum Alternator Capacity (amps)
|
Engine
|
5.4L/330
Displacement
|
|
365 @ 3600
SAE Net Torque @ RPM
|
|
Gas/Ethanol V8
Engine Type
|
|
310 @ 5100
SAE Net Horsepower @ RPM
|
|
6-Speed A/T
A/T Transmission Options
|
|
14 City / 20 Hwy
MPG
|
|
13.0 qts
Total Cooling System Capacity
|
Measurements
|
221 in
Length, Overall w/rear bumper
|
|
40 in
Second Head Room
|
|
9 in
Ground Clearance, Front
|
|
N/A
Side Door Opening Width
|
|
131 ft³
Cargo Volume to Seat 1
|
|
60 in
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Volume
|
|
Not Available in
Third Head Room
|
|
63 in
Front Shoulder Room
|
|
Not Available in
Third Hip Room
|
|
N/A
Ext'd Cab Cargo Volume
|
|
N/A
Cargo Box Width @ Floor
|
|
60 in
Front Hip Room
|
|
Not Available in
Cargo Area Length @ Floor to Seat 3
|
|
39 in
Overhang, Front
|
|
34 in
Rear Door Opening Height
|
|
Not Available in
Third Leg Room
|
|
64 in
Second Shoulder Room
|
|
78 in
Height, Overall
|
|
9 in
Ground Clearance, Rear
|
|
51 in
Cargo Box Width @ Wheelhousings
|
|
40 in
Front Head Room
|
|
N/A
Cab to End of Frame
|
|
Not Available ft³
Cargo Volume to Seat 4
|
|
35 in
Ground to Top of Load Floor
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
60 in
Second Hip Room
|
|
N/A
Length, Overall
|
|
N/A
Step Up Height - Side
|
|
39 in
Second Leg Room
|
|
N/A
Tailgate Width
|
|
41 in
Front Leg Room
|
|
131 in
Wheelbase
|
|
N/A
Side Door Opening Height
|
|
N/A
Cargo Area Width @ Beltline
|
|
5
Passenger Capacity
|
|
79 in
Width, Max w/o mirrors
|
|
N/A
Step Up Height - Front
|
|
57 in
Rear Door Opening Width
|
|
86 ft³
Cargo Volume to Seat 2
|
|
Not Available in
Third Shoulder Room
|
|
Not Available ft³
Cargo Volume to Seat 3
|
|
98 in
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Console
|
Safety
|
Standard
Stability Control
|
|
Standard
Brake Assist
|
Steering
|
44 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
45 ft
Turning Diameter - Wall to Wall
|
|
Pwr Rack & Pinion
Steering Type
|
Suspension
|
Multi-Link
Suspension Type - Rear
|
|
N/A
Axle Type - Rear
|
|
N/A
Axle Type - Front
|
|
Double Wishbone
Suspension Type - Front
|
Tires & Wheels
|
Not Available in
Spare Wheel Size
|
|
18 x 8.5 in
Rear Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
P275/65R18
Front Tire Size
|
|
Not Available
Spare Tire Size
|
|
P275/65R18
Rear Tire Size
|
|
Aluminum
Rear Wheel Material
|
|
18 x 8.5 in
Front Wheel Size
|
|
Not Available
Spare Wheel Material
|
Weight & Capacity
|
1,696 lbs
Maximum Payload Capacity
|
|
15,000 lbs
Gross Combined Wt Rating
|
|
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
1,335 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
0 lbs
Option Weight - Front
|
|
2,893 lbs
Curb Weight - Front
|
|
8,900 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
5,844 lbs
Curb Weight
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
7,540 lbs
Gross Vehicle Weight Rating
|
|
2,951 lbs
Curb Weight - Rear
|
|
0 lbs
Total Option Weight
|
|
N/A
Maximum Trailering Capacity
|
|
5,844 lbs
As Spec'd Curb Weight
|
|
1,696 lbs
As Spec'd Payload
|
|
0 lbs
Option Weight - Rear
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Base Curb Weight
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
7,950 lbs
Gross Axle Weight Rating
|
|
34 gal
Fuel Tank Capacity, Approx
|
|
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
